Cloud NETBOX Communication Gateway
Configuration and User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NETBOX and is the answer not in the manual?

Questions and answers

Summary of Contents for Zoning NETBOX

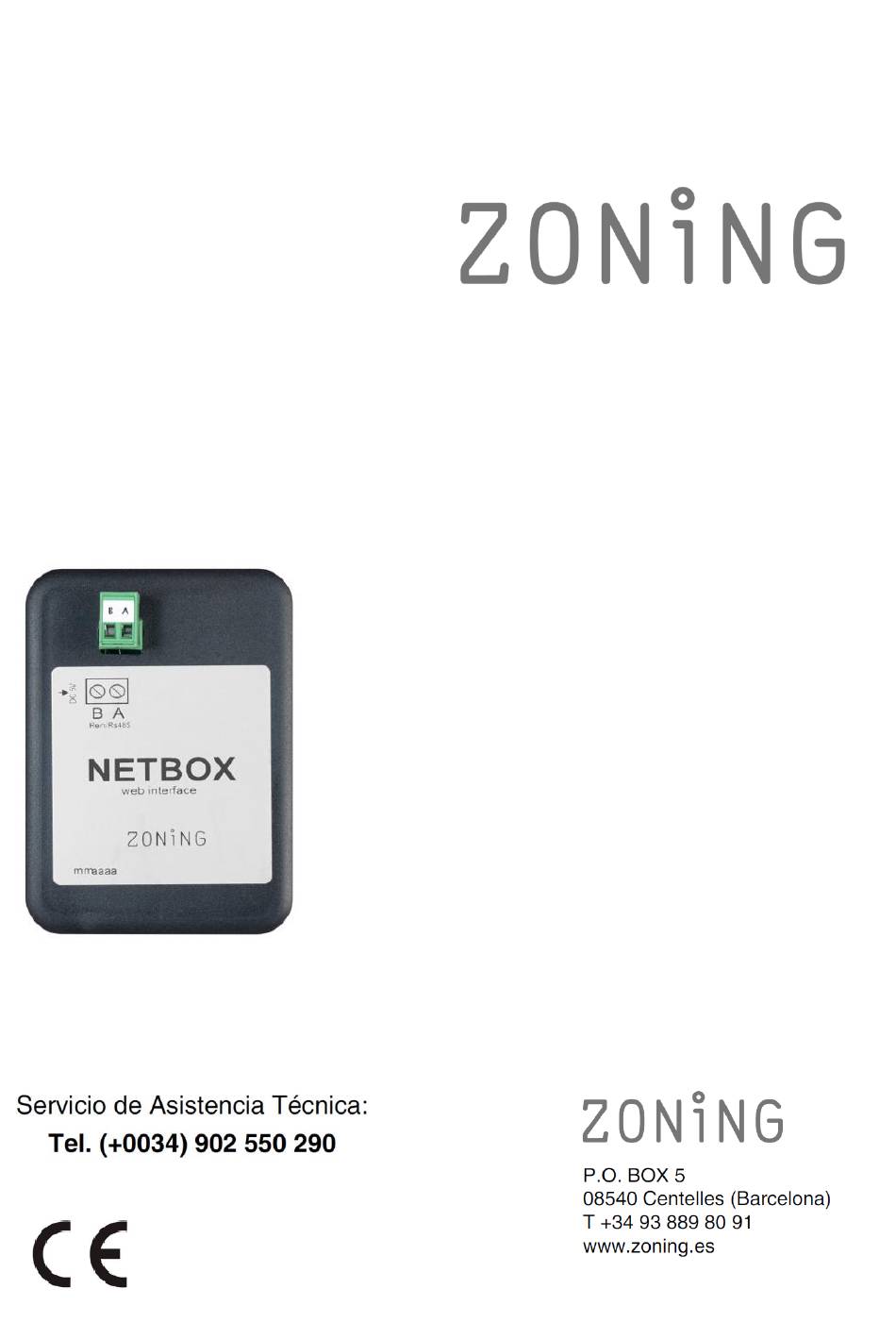

  • Page 1 Cloud NETBOX Communication Gateway Configuration and User Guide...
  • Page 2 Contents Descripción............................3 Antes de empezar..........................3 Inicio..............................4 Instalación del dispositivo......................4 3.1. Configuración Wi-Fi........................4 3.2. 3.3. Configuración de la aplicación local..................8 3.4. Registro de usuario........................10 Menú configuración avanzada....................12 3.5.

  • Page 3: Before You Start

    1. Description. The Netbox device is an external module that connects the Zity central zoning unit to your Wi-Fi network for remote control via a friendly interface. The contents include:  Power supply with 2.5 A 5.1 V European and British plug, Micro USB B and 1.5 m cable.

  • Page 4: Installation Of The Device

    Fi network, is temporarily disconnected and connected to the temporary network "zoningwifi".  An application is opened in any of the compatible browsers to assign a Netbox IP in the range of the local network router's IP. Once the previous steps are complete, the PC, tablet or smartphone automatically reconnects to the network where it was connected and the Netbox interface is now registered in your local network.
  • Page 5 Figure 3: Selection and connection of the wireless network generated by the Netbox device. 2. Link the Netbox device in the local Wi-Fi network: Open one of the browsers compatible with the Netbox device and access its configuration webpage (http://192.168.44.1:88). Next, select from the list the Wi-Fi network to which the Netbox will be linked.
  • Page 6 It is important to remember the identifier used. In any case, it is recommended to maintain the default name given (netbox). However, you must take into account that two devices connected to the same Wi-Fi network cannot have the same identifier. In these cases, it is recommended to number them (netbox1, netbox2, etc.).
  • Page 7 At this point, the device used (desktop PC, laptop, smartphone or tablet) must automatically reconnect to the Wi-Fi network of the home or premises. Check that this is the case, and if not, connect it manually. This way, both devices (PC and Netbox), will be connected to the same Wi-Fi network.
  • Page 8 4. Complete the process and move on to configure the application:: Wait between 3 and 5 minutes, open a WEB browser at the following address http://netbox/#/. (or the name that has been assigned during the configuration process) The PC should connect to the application's configuration webpage.
  • Page 9 3. Press the button to add a new central unit, and two fields will appear:  Desc: To write the name of the new central unit.  Modbus: You must write the Modbus IP address that appears on the front label of the Zity control panel.

  • Page 10: User Register

    At this point, press F5 and enter the application again. 3.4. User register. After configuring the Netbox device's Wi-Fi connection, all you need to do now is register the user of the application. To do this, follow the instructions listed below.
  • Page 11 Figure 16: Defining the validation code corresponding to the user register. 4. Once the Cloud user is set up, click on the connect button to finish the connection process to the Cloud. From this moment, access to the application will be established from the following web address https://www.zoningapp.es.

  • Page 12: Advanced Configuration Menu

    3.5.1. Restarts 1. Automator: It allows the database of the Zity central units registered in each Netbox device to be updated. You must act on this command every time a central unit is deleted. Where necessary, a message will appear like the one shown in Figure 19.
  • Page 13 ON: Turns the air conditioning equipment on Status OFF: Turns the air conditioning equipment off Cold Heat Ventilation Operating mode Radiant cold Radiant heat Flexifan Speed 0 of flexifan mode (In flexifan mode it must be activated...
  • Page 14 from the Zoe and Zebra thermostats. If it is not activated, Speed 1 of flexifan mode this icon does not appear in the application) Speed 2 of flexifan mode Speed 4 of flexifan mode Allows you to define the same set temperature in all zones with one temperature command.
  • Page 15 5. Configuration of the Cloud app 5.1. Central unit configuration commands. You can access by pressing the edition button located next to the central unit's name . The functionality of each of the configuration commands is described below. Name: Allows you to modify the name assigned to the central. Modbus ID: Displays the central unit's Modbus IP.
  • Page 16 Zebra thermostats, this field is defined in the actual thermostat, and can be modified from these fields. However, for Zoe thermostats this field is temporarily locked. ECO mode: Activates the ECO function. This function is temporarily locked in Zebra thermostats. If this function is activated, the following icon will appear next to the name of each zone.
  • Page 17  Once the start time has been set, the actions to be carried out must be programmed. To do this, use the left and right mouse buttons: o Right button:: Enables and disables the control command. That is, whether that action is going to be taken into account or not.
  • Page 18 temperature Table 4: Examples of enabled and disabled zone control commands  If you only want to program a specific day, you must press the “Save” button to finish.  If, on the other hand, you want to generate a programming template that will be repeated over several days, you must press the “Repeat”...

  • Page 19: User Management

    Figure 27: Example of a programming template 7. User management If you want to give remote access to the installation to other users, they must register from the cloud access page https://www.zoningapp.es. For this, you must press the “Create a new user” button. Next, fill in the required fields and press the confirmation button .
  • Page 20 with “Viewer” permissions will not be able to access the central unit or zone configuration menus or delete central units or buildings. Figure 29: User management menu.
