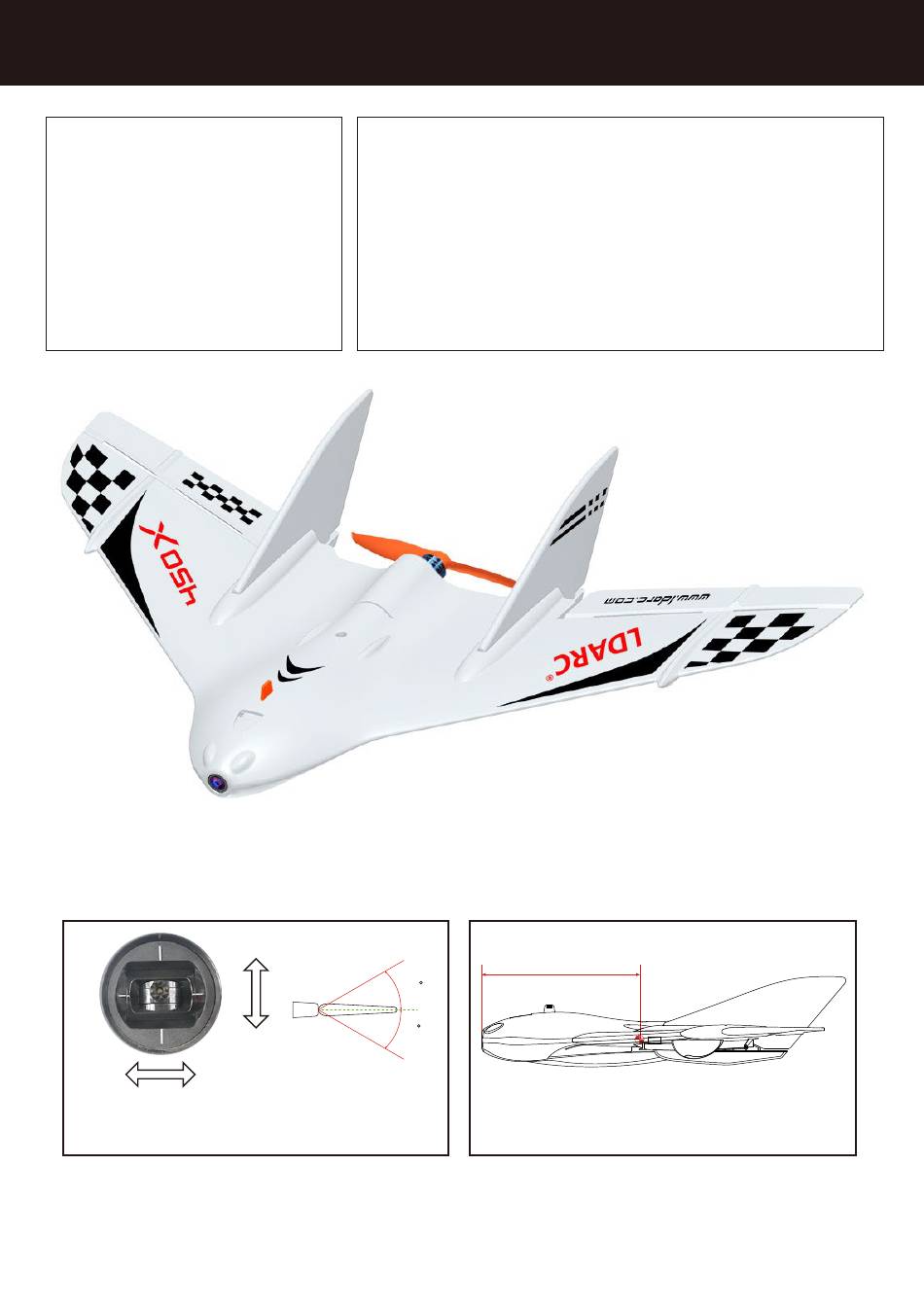

TINY WING 450X
Specification
Wingspan:431mm
Length:277mm
Material:EPP
Battery position size:
78*18*16mm
KIT:34.7g
PNP weight:65g(no receiver
and battery)
Tools:Screwdriver, foam glue, art knife and other tools
Roll and Pitch
User manual and video please visit：WWW.LDARC.COM
Departments 》 FPV FLY Wing 》 TINY WING 450X
Configuration
Motor:XT1104-5500KV
ESC:6A BLheli
FC:FC01
Servo:2g
Prop:3.8*3E
Color:White flywing body,orange and black plastic parts
112mm
30
30
-1-
Center of gravity
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for LDARC Tiny Wing 450X
- Page 1 TINY WING 450X User manual and video please visit：WWW.LDARC.COM Departments 》 FPV FLY Wing 》 TINY WING 450X Specification Configuration Wingspan:431mm Motor:XT1104-5500KV Length:277mm ESC:6A BLheli Material:EPP FC:FC01 Battery position size: Servo:2g 78*18*16mm Prop:3.8*3E KIT:34.7g Color:White flywing body,orange and black plastic parts...
- Page 2 Pre-flight check: Please switch to manual mode after the self-test is complete on the aircraft, at which point the left and right ailerons must be on the same horizontal surface as the wing root; if not inconsistent, it can be adjusted by the length of the steel rod. S GND 2S Input(Battery) Pneumatic gauge...
-
Page 3: Install The Propeller
2.Mix level(LED is green flashing,you can flip it 360 degrees; air pressure set high, current height hold) 3.Manual(LED is blue light,handfree operation,FC without any intervention) Transmitter setting: 1.Create a new standard fixed-wing model(AIRPLANE),wing type(1AIL),tail type(NORMAL). 2.Channel sort definition: ① AIL; ② ELE; ③ THR; ④ RUD; ⑤ AUX(ARM/Dis-ARM); ⑥ MOD(Flight mode). FC function: 1.Adjustable sensor and aircraft attitude (can be continuous switched through the flight mode channel, the speed is not too fast, because our remote control switch is a button). - Page 4 KIT Configuration Lists Include 2PCS KIT *2PCS *4PCS Part 1 Part 2 Part 3 Prop*10PCS *2PCS *4PCS *4PCS *2PCS orange,white,clear Part 4 *2PCS *2PCS *2PCS *2PCS *4PCS Orange & Black *2PCS *8PCS Part 5 *4PCS *2pairs *4PCS *16PCS *4PCS ST2.0*6*4PCS ST1.5*5*16PCS Install steps: 1.Weld the motor, ESC, FC and power cable together , recommend that the power cable and...
- Page 5 2.Use foam glue to stick EPP, plastic parts, magnets, reinforced bars well 3.Use ST1.5*5 screw install LED, servo, rudder angle, steel wire rod and lampshade. 4.Use ST1.5*5 screw install FC,ST2.0*6 screw install motor set,moter ,then stick the EPP well.
