Read the manual before mounting.
Important! Producer suggests the mounting to be performed in an authorized service
point.

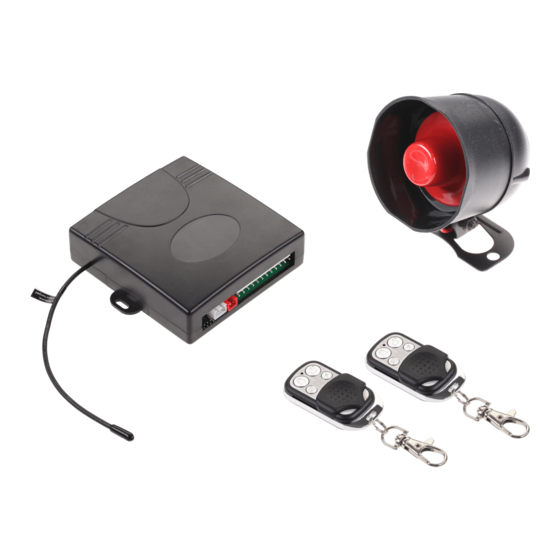

Set includes:
• control unit
• remote controls
• G-sensor
• alarm siren
• LED lamp
• cables
Specification:
A. Control unit:
• Operating voltage: DC 12 V +/- 3 V
• Quiescent current: < 20 mA
• Siren volume level: 105-125 dB
• Operating frequency: 315/433,92 MHz (+/- 0,5 MHz)
• Operating temperature: -40°C ~ +85°C
B. Remote control
• Operating voltage: DC 6-12 V
• Quiescent current: <2 μA
• Transmission current: 5-10 mA
• Operating frequency: 315/433,92 MHz (+/-0,3 MHz)
FUNCTIONS:
1. Alarm status: acousto-optical
Press the
button, the lights will flash once or twice, the device will issue a short sound
signal, the doors will be locked and the windows will be closed. After 5 or 30 seconds (depending
on settings) the alarm will be active, LED indicator will blink slowly, and after 25 seconds the
engine will be locked. When the alarm gets activated in case of opening the door, pressing the
brake, switching on the ignition etc. the siren will be on, the lights will start to flash and the
engine will be locked. If the alarm gets activated with a G-sensor, the siren and the lights will
be on and the engine will be locked for 30 seconds. After that time, the alarm will automatically
enter standby mode.
2. Alarm status: mute
Press the
button, the lights will flash once, the doors will be locked and the windows will
be closed. After 5 or 30 seconds (depending on settings) the alarm will be active, LED indicator
will blink slowly, and after 25 seconds the engine will be locked. If the alarm gets activated with
a G-sensor, the alarm siren will not be on, and the lights will flash for 30 seconds. After that
time, the alarm will automatically enter standby mode. When the alarm gets activated in case
of opening the door, pressing the brake, switching on the ignition etc. the siren will be on, the
lights will start to flash and the engine will be locked.
Advertisement
Summary of Contents for Lechpol PY-3018
- Page 1 Read the manual before mounting. Important! Producer suggests the mounting to be performed in an authorized service point. Set includes: • control unit • remote controls • G-sensor • alarm siren • LED lamp • cables Specification: A. Control unit: •...
- Page 2 3. Alarm status: off 10. Not fully closed door warning Press the button, the doors will be open the lights will flash twice, the device will issue two If the alarm is switched on and the doors are not fully closed, after 10 seconds the warning short sound signals (if the alarm is muted, the siren will not be activated).
-
Page 3: Jumper Settings
it as instructed: use a thin object to press the programming button on the alarm casing for G-sensor sensitivity level settings 1 second. Press any button on the first remote (one sound signal will be heard), then press There is a LED indicator on the casing which informs about sensor activity. To adjust sensor any button on the next remote (one sound signal will be heard), which means proper remote sensitivity settings, use a little screwdriver to rotate knob (rotate to right to increase, rotate to programming. -
Page 4: Control Unit
antenna black orange white yellow orange/black white/black yellow/black trunk green release CONTROL UNIT brown turn lights brown pink alarm siren yellow G-sensor positive activation from foot brake negative activation positive activation for side doors for side doors emergency status removing button engine power oil pump negative activation output... -
Page 5: Troubleshooting
This product should not be mixed with other commercial wastes for disposal. Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
