Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.

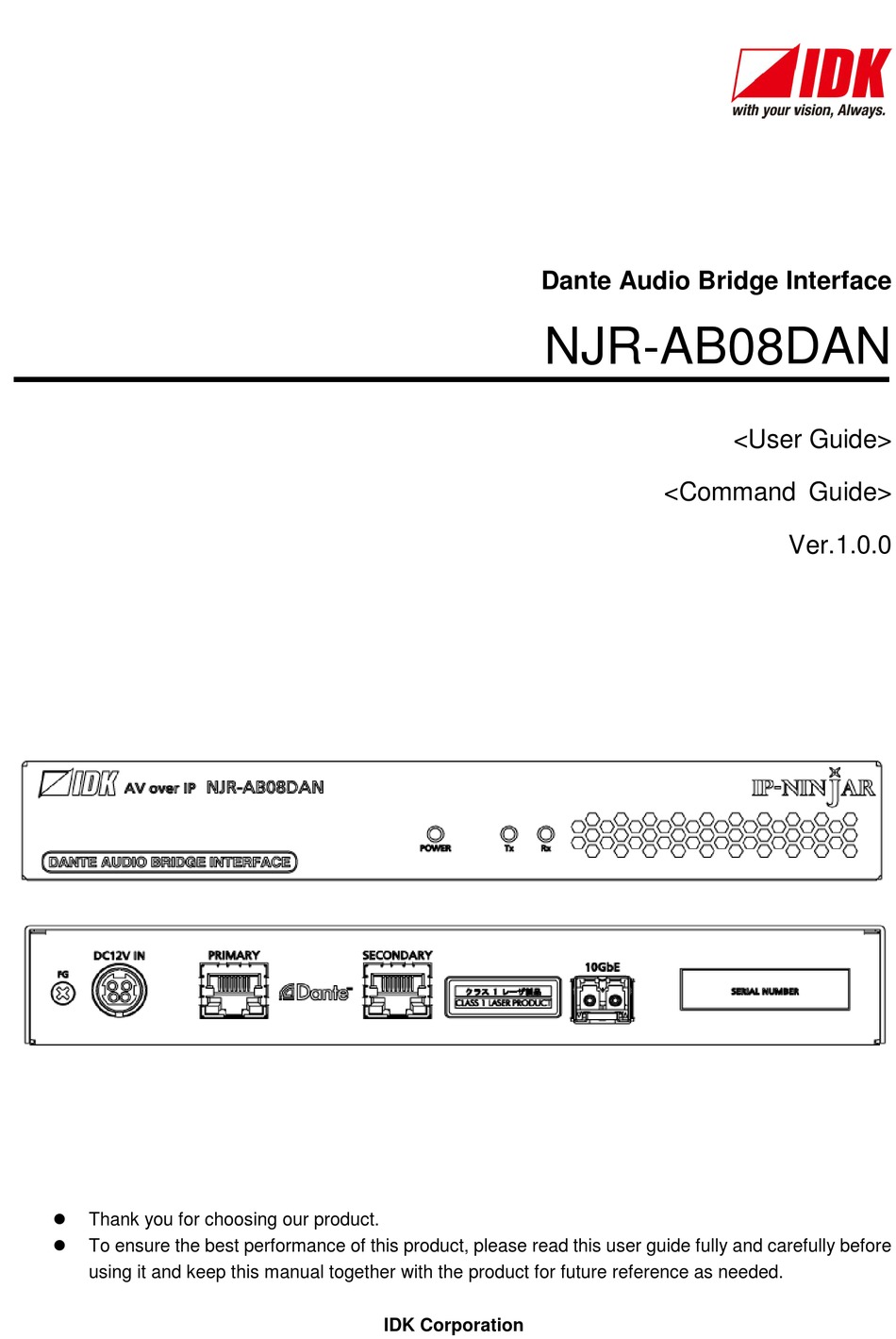

Dante Audio Bridge Interface
NJR-AB08DAN
IDK Corporation
<User Guide>
<Command Guide>
Ver.1.0.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IDK NJR-AB08DAN
Summary of Contents for IDK NJR-AB08DAN
-
Page 1: User Guide
Dante Audio Bridge Interface NJR-AB08DAN <User Guide> <Command Guide> Ver.1.0.0 Thank you for choosing our product. To ensure the best performance of this product, please read this user guide fully and carefully before using it and keep this manual together with the product for future reference as needed. - Page 2 HDMI Licensing Administrator, Inc. in the United States and other countries. IP NINJAR is a registered trademark of IDK Corporation in Japan. All other company and product names mentioned in this manual are either registered trademarks or...
- Page 3 Some information contained in this User guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version. This User guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...
-
Page 4: Safety Instructions
NJR-AB08DAN User Guide/Command Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious... - Page 5 ● Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK Do not representative.
- Page 6 Unplug If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For maintenance and repair, contact your IDK representative. ● Unplug immediately if water or other objects are directed inside.
- Page 7 NJR-AB08DAN User Guide/Command Guide Caution ■ For installing and connecting products: ● Do not place the product in a location where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.
-
Page 8: Table Of Contents
NJR-AB08DAN User Guide/Command Guide Table of Contents About this Guide ............................9 Included items ............................10 Precautions for shipping .......................... 11 Product outline ............................12 Features ..............................13 Panels ..............................14 System Configuration Example........................ 15 Precautions .............................. 16 Attaching Rubber feet ......................... 16 Installation ............................ -
Page 9: About This Guide
NJR-AB08DAN User Guide/Command Guide 1 About this Guide This user guide explains how to use the Dante Audio Bridge Interface, NJR-AB08DAN. For other products of IP-NINJAR series, see “[Table 1.1] Document for IP-NINJAR products”. Fiber optic cables HDMI HDMI 4K@60... -
Page 10: Included Items
NJR-AB08DAN User Guide/Command Guide 2 Included items Ensure that all items illustrated below are included in the package. If any items are missing or damaged, please contact IDK. One (1) NJR-AB08DAN One (1) DIN plug AC adapter with Four (4) Rubber feet locking mechanism (3.9 ft. -
Page 11: Precautions For Shipping
If, for any reason, you need to ship the NJR-AB08DAN, use the carton and cushion which were used at the time of purchase. Make sure to plug the attached dust cap into the SFP+ optical transceiver. If you do not have the carton and cushion, unplug the SFP+ optical transceiver from the NJR and plug the dust cap, and then put it in an antistatic bag with enough cushion. -
Page 12: Product Outline
Audio signal transport is enabled from NJR encoders to Dante devices and from Dante device to NJR decoders. The NJR-AB08DAN can receive up to four audio streams from IP-NINJAR encoders and output up to eight channels in Dante protocol. The bridge can also accept up to 8-channel audio from Dante sources, outputting IP-NINJAR protocol in up to four audio streams. -
Page 13: Features
NJR-AB08DAN User Guide/Command Guide 5 Features ■ Audio ・ Transcoding audio signal between IP- NINJAR and Dante protocols ・ Receiving up to four (4) audio streams from IP-NINJAR encoders and outputting as Dante protocol up to eight (8) channels ・ Receiving up to 8-channel Dante audio from Dante devices and outputting as IP-NINJAR protocol up to four (4) audio streams ・... -
Page 14: Panels
NJR-AB08DAN User Guide/Command Guide 6 Panels ④ ③ ⑥ ⑤ ① ② [Fig. 6.1] NJR-AB08DAN drawing [Table 6.1] NJR-AB08DAN features Feature Description ① Dante connectors Dante protocol connector (PRIMARY/SECONDARY) Connects to the network switch that is connected to Dante devices ②... -
Page 15: System Configuration Example
Configuration example: Connecting the NJR-AB08DAN to IP-NINJAR and Dante networks ① Audio signal that is input from source device to the NJR-T01UHD is transmitted to the NJR-AB08DAN. The NJR-AB08DAN transcodes the audio signal to Dante protocol and outputs the signal to Dante network. -
Page 16: Precautions
・ Do not block vent holes. To provide adequate ventilation, maintain sufficient clearances around the NJR-AB08DAN (1.2 in. (30 mm) or more) ・ When the NJR-AB08DAN needs to be mounted in an enclosed space or an EIA rack without using IDK’s rack mounting hardware (RM-SF and RM-SH), ensure that a sufficient ventilation/cooling system is provided to keep the ambient temperature at 104°F (40°C) or lower. -
Page 17: Cabling
When connecting the NJR-AB08DAN to external devices, please observe the following precautions. ・ Read manuals for the external devices ・ Before connecting cables to the NJR-AB08DAN or an external device, dissipate static electricity by touching grounded metal such as equipment racks before handling signal cables. Failure to observe this precaution may result in ESD (electrostatic discharge) damage. -
Page 18: Sfp+ Optical Transceiver
NJR-AB08DAN User Guide/Command Guide ・ To polish connectors: For SFP+ optical transceiver for multimode : PC polishing is recommended. For SFP+ optical transceiver for singlemode : UPC polishing is recommended. Note: APC polishing is not supported. ・ Extension distance varies depending on attenuation of the fiber, connector and other contact portions ・... -
Page 19: Din Plug Ac Adapter With Locking Mechanism
NJR-AB08DAN User Guide/Command Guide 8.3.3 DIN plug AC adapter with locking mechanism The shapes of AC plugs with screw locking mechanism vary from country to country. The AC plug can be removed from the AC adapter. Removing AC plug: Slide the AC plug (②) from the AC adapter while holding down the portion mentioned below (①) ②... - Page 20 NJR-AB08DAN User Guide/Command Guide ■ Plugging and unplugging DC plug Plug the DC plug to the power supply connector of the unit until it clicks Hold the portion mentioned below when unplugging the DC plug Hold this part and pull...
-
Page 21: Basic Operation
NJR-AB08DAN User Guide/Command Guide 9 Basic Operation IP-NINJAR network can be controlled from the NJR-CTB, and Dante network can be controlled from the Dante Controller. 【See: 9.2.2 Dante Controller】 Fiber optic cables HDMI HDMI 4K@60 4K@60 Source device NJR-T01UHD NJR-R01UHD... -
Page 22: Controlled By Njr-Ctb
NJR-AB08DAN User Guide/Command Guide 9.1 Controlled by NJR-CTB The NJR-CTB is the control device to command comprehensively IP-NINJAR devices via a 10 GbE switch. All IP-NINJAR devices that are connected to the network can be controlled using WEB browser or LAN communication commands by connecting the NJR-CTB to a 10 GbE switch or IP-NINJAR encoders/decoders. -
Page 23: Dante
Dante (Digital Audio Network Through Ethernet) is an audio networking technology developed by Audinate. The NJR-AB08DAN converts digital and analog audio signals from IP-NINJAR encoders into Dante format with 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, or 192 kHz sampling frequency and 24-bit sample size. -
Page 24: Dante Controller
NJR-AB08DAN User Guide/Command Guide Speakers Analog audio Power amp. (Dante supported) Laptop Mixer (Dante supported) Laptop Secondary Primary Secondary Primary connector connector connector connector Dante connector Dante connector (Primary) (Secondary) NJR-AB08DAN IP-NINJAR network 10 GbE switch HDMI HDMI 4K@60 4K@60... -
Page 25: Initialization
NJR-AB08DAN User Guide/Command Guide 9.3 Initialization All user configurable settings can be reset to their respective factory default values using NJR-CTB over LAN. When initialization completes, the NJR-AB08DAN reboots with new settings automatically. Note: Once setting values are initialized, they cannot be restored. -
Page 26: Setting
NJR-AB08DAN User Guide/Command Guide 10 Setting The following items of the NJR-AB08DAN can be set using the NJR-CTB. Refer to NJR-CTB User Guide for the following operations: Setting channel information, selecting input/output channel, and operating preset memory. [Table 10.1] Setting items... -
Page 27: Setting Audio
You can set the audio crosspoint mode for converting IP-NINJAR and Dante network audio signal protocols. Set the crosspoint mode based on the number of encoders/decoders and their output audio channels. The NJR-AB08DAN transcodes IP-NINJAR and Dante protocols of up to eight channels and supports up to four encoders and decoders simultaneously. - Page 28 NJR-AB08DAN User Guide/Command Guide ■ Application example (Decoder) 8 ch 2 ch Decoder 2 ch Decoder 2/2/2/2 ch 2 ch NJR-AB08DAN Dante network Decoder IP-NINJAR network 2 ch Decoder 2/2/2/2 mode 8 ch 4 ch Decoder 4/4 ch NJR-AB08DAN 4 ch...
-
Page 29: Assigning Audio Channel
NJR-AB08DAN User Guide/Command Guide 10.1.2 Assigning audio channel You can assign audio that is output from Dante network to IP-NINJAR network. Setting value ・2 Channels (FL-FR) [Default] ・2.1 Channels (FL-FR-LFE) ・3.1 Channels (FL-FR-LFE-FC) ・4.1 Channels (FL-FR-LFE-X-RL-RR) ・5.1 Channels (FL-FR-LFE-FC-RL-RR) ・6.1 Channels (FL-FR-LFE-FC-RL-RR-RC) ・7.1 Channels (FL-FR-LFE-FC-RL-RR-RLC-RRC) -
Page 30: Setting Lan
0.0.0.0 to 255.255.255.255 Communication command @SIPS Setting LAN @GIPS Getting LAN setting 10.2.2 MAC address You can display the NJR-AB08DAN’s MAC address. Information to be displayed [Table 10.3] MAC address Item to be displayed Example MAC address 0008E5690000 Communication command... -
Page 31: Command
NJR-AB08DAN User Guide/Command Guide 11 Command 11.1 Summary A command consists of “@” (“40” in hexadecimal), 4 one-byte alphabetical characters (upper and lower cases), followed by parameters (one-byte numbers). For some commands, multiple parameter values can be specified or parameters are not necessary. Processing is executed by sending a delimiter at the end of the command. -
Page 32: Command List
NJR-AB08DAN User Guide/Command Guide 11.2 Command list ■ Error status Command Function Page @ERR Error status ■ Setting audio Command Function Page @GACP / @SACP Audio crosspoint mode @GACA / @SACA Assigning audio channel ■ Setting LAN Command Function Page... -
Page 33: Details Of Commands
NJR-AB08DAN User Guide/Command Guide 11.3 Details of commands 11.3.1 Error status @ERR Error status Description Response in case the command is not executed Response @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format... -
Page 34: Setting Audio
NJR-AB08DAN User Guide/Command Guide 11.3.2 Setting audio @GACP / @SACP Audio crosspoint mode Getting Command @GACP, type_1, ch_1, reserved_1 (, type_2, ch_2, reserved_2･･･) Response @GACP, type_1, ch_1, reserved_1, mode_1 (, type_2, ch_2, reserved_2, mode_2･･･) Setting Command @SACP, type_1, ch_1, reserved_1, mode_1 (, type_2, ch_2, reserved_2, mode_2･･･) - Page 35 NJR-AB08DAN User Guide/Command Guide @GACA / @SACA Assigning audio channel Getting Command @GACA, type_1, ch_1, reserved1_1 (, type_2, ch_2, reserved_2･･･) Response @GACA, type_1, ch_1, reserved1_1, number_1, mode_1 (, type_2, ch_2, reserved_2, number_2, mode_2･･･) Setting Command @SACA, type_1, ch_1, reserved1_1, reserved2_1, mode_1 (, type_2, ch_2, reserved1_2, reserved2_2, mode_2･･･)
-
Page 36: Setting Lan
NJR-AB08DAN User Guide/Command Guide 11.3.3 Setting LAN @GIPS / @SIPS Getting Command @GIPS, type_1, ch_1, port_1 (,type_2, ch_2, port_2･･･) Response @GIPS, type_1, ch_1, port_1, mode_1, ip_1, mask_1, gateway_1 (,type_2, ch_2, port_2, mode_2, ip_2, mask_2, gateway_2･･･) Setting Command @SIPS, type_1, ch_1, port_1, mode_1, ip_1, mask_1, gateway_1 (,type_2, ch_2, port_2, mode_2, ip_2, mask_2, gateway_2･･･) - Page 37 NJR-AB08DAN User Guide/Command Guide @GMCC MAC address Getting Command @GMCC, type_1, ch_1, port_1 (, type_2, ch_2, port_2･･･) Response @GMCC, type_1, ch_1, port_1, mac_1 (, type_2, ch_2, port_2, mac_2･･･) Parameter type_1-512: Type 1 = Input, 2 = Output ch_1-512: Channel 1 to 512 = Channel 1 to Channel 512 port_1-512: Connector “1”...
-
Page 38: Advanced Setting
NJR-AB08DAN User Guide/Command Guide 11.3.4 Advanced setting @CLRC Initialization Setting Command @CLRC, type _1, ch_1, reserved_1, comm_setting_1, (,type _2, ch_2, reserved_2, comm_setting_2･･･) Response @CLRC, type _1, ch_1, reserved_1, comm_setting_1 (,type _2, ch_2, reserved_2, comm_setting_2･･･) Parameter type_1-512: Type 1 = Input, 2 = Output... -
Page 39: Product Specification
NJR-AB08DAN User Guide/Command Guide 12 Product specification Item Description 1 input Format: IP-NINJAR protocol IP-NINJAR Sampling frequency: 44.1 kHz to 192 kHz, Sample size: 24 bit network audio Maximum audio stream: 4 streams Maximum audio input channel: 8 channels Input... -
Page 40: Troubleshooting
NJR-AB08DAN User Guide/Command Guide 13 Troubleshooting In case the NJR-AB08DAN does not work correctly, please check the following items first. Also refer to manuals for connected devices as well, since they may possibly be the cause of the problem. ・ Are the NJR-AB08DAN and all devices plugged in and powered on normally? ・... - Page 41 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-259-6920 FAX: +81-46-259-6930 Email: info@arvanics.com URL: http://www.arvanics.com Information in this document is subject to change without notice. ©2019 IDK Corporation, all rights reserved. All trademarks mentioned are the property of their respective owners.
