Summary of Contents for KEYKING TA7003NT

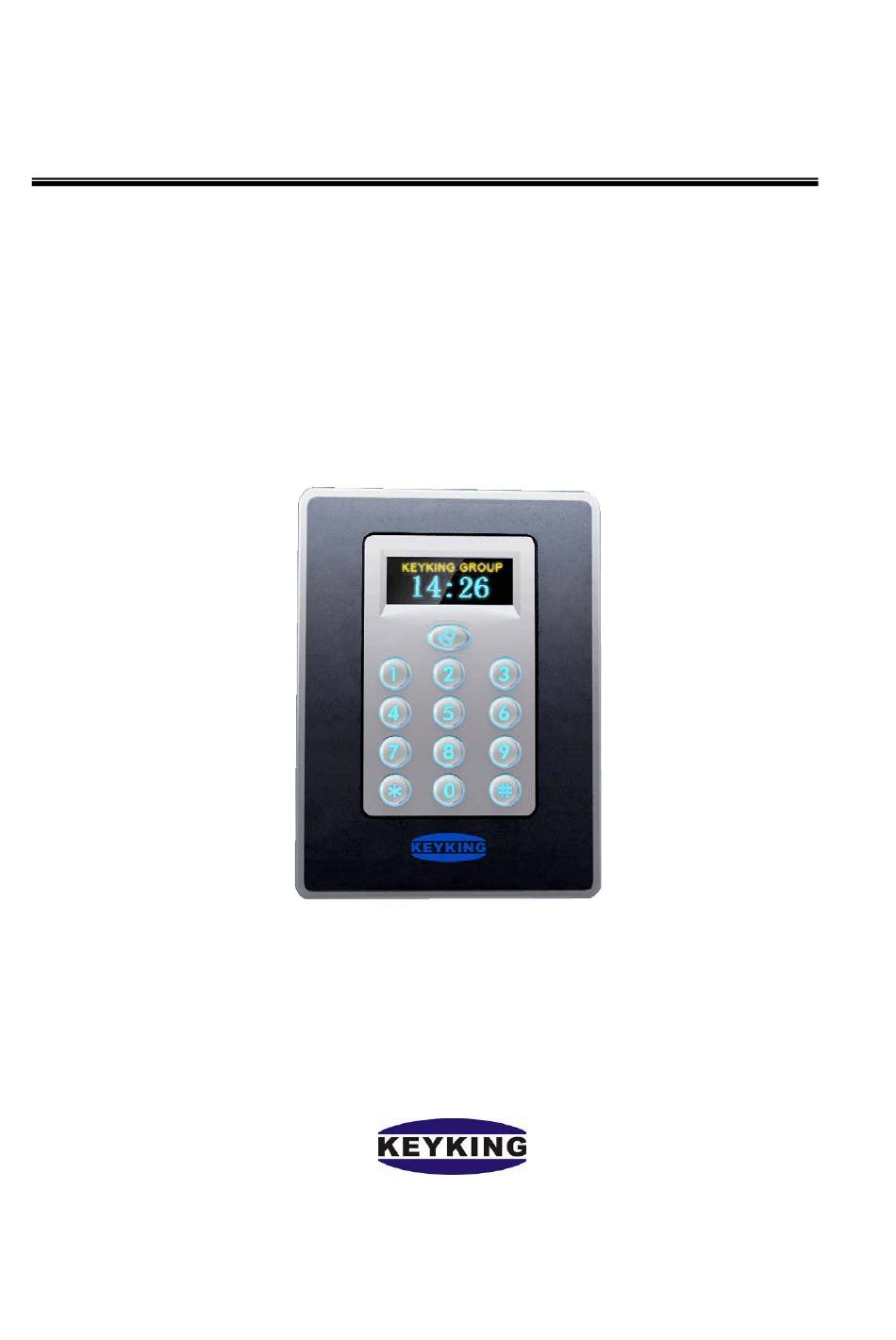

- Page 1 User Manual Thank you for selecting Keyking products. Please read this manual thoroughly before using. TA7003NT Time & Attendance Standalone KEYKING GROUP LIMITED...
-
Page 2: Table Of Contents
1.1 Summary ..............................3 1.2 Features ..............................4 1.3 Application Mode ........................... 5 Chapter2 Wiring Diagram ............................ 7 2.1 TA7003NT Appearance .......................... 7 2.2 Wiring Diagram ............................8 2.3 Lock Wiring Diagram ........................... 10 2.4 RS485 Net Bus ............................11 2.5 TCP/IP Network ............................ -
Page 3: Chapter1 Introduction
TA7003NT can by itself control a door, both in and out, at least one reader is needed for one side, and the other side can be controlled either by a reader or a Rex Button. -
Page 4: Features
TA7003NT User Manual（V1.0） 1.2 Features 1. TA7003NT is a new generation product of high value which has integrated keypad, text display, single door control and T&A. Its 3 flexible uses are as below. T&A： TA7003NT can directly communicate with host PC via RS485 or TCP/IP which managed by software AccessWatch3000. -
Page 5: Application Mode
125KHZ: E: EM； 13.56MHZ: M: Mifare； U：CPU Read Range：3-15CM Outputs：NC/NO，30VDC，5A Power Supply：12VDC+10% ，200MA Dimension：117mm (H) x 86mm (W) x 22mm (D) 。 1.3 Application Mode 3 Application Modes： Standalone Outdoor external reader, indoor TA7003NT Page 5 of 29... - Page 6 KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） Outdoor reader Indoor TA7003N Indoor external reader, outdoor TA7003NT Indoor Outdoor Reader TA7003N Page 6 of 29...
-
Page 7: Chapter2 Wiring Diagram

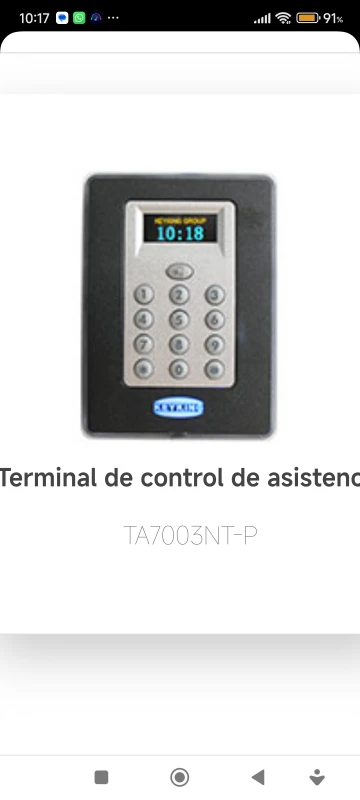

KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） Chapter2 Wiring Diagram 2.1 TA7003NT Appearance Company Logo Clock Door bell Keypad Backlight LED (Green&Blue) Figure 2-1 LED: Blue LED：Power indicator Green LED：Sensor indicator（Relay turned on indicator） Keypad: Description Description Numeral 1... -
Page 8: Wiring Diagram
KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） 2.2 Wiring Diagram J1：Power J2： Door bell J3： RS485 interface J4：TCP/IP interface J5： Reader interface J6：Megnetic,Rex Button, Auxiliary output J7： Reader signal output Figure 2-2 Backside J8：Relay output TCP/IP interface, as shown below： Figure 2-3... - Page 9 KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） Connection Definition Connection Definition Icon Icon Power supply Magnetic, Rex BELL Button, Door bell BELL Auxiliary output 485- 485 interface 485+ TCP/IP interface Reader signal output External reader COM1 interface Relay output COM2 Wiring Description：...
-
Page 10: Lock Wiring Diagram
KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） BUZ: Buzzer connector J6: Magnetic Switch, Rex Button, Auxiliary Input BUT： Rex Button connector（GND for the other side）. SEN： Magnetic switch connector（GND for the other side）. GND： Negative（Public side）. ... -
Page 11: Rs485 Net Bus
Figure 2-6 Cathode lock（Fail secure） 2.4 RS485 Net Bus TA7003NT can communicate via half-duplex RS485 bus, up to 1200m communication distance. Terminals use series connection. Please make sure power supply is in off state before do wiring. This helps to avoid any damage maybe caused to the device. - Page 12 KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） Figure 2-8 TCP/IP crystal head RJ45 NO. Difination Figure 2-9 Sheet 2-2 Normal net cable（to switch） ← ← 图 2-10 Crossed cable（to PC） Page 12 of 29...
- Page 13 KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） ← ← Figure 2-11 Page 13 of 29...
-
Page 14: Chapter3 Instructions
KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） Chapter3 Instructions User Management、PIN management、Work mode and Time set are configured in the manage menu. Menu structure is shown below. Press * 39 # to enter manage menu when idle. In the main menu, “*” works as “cancel”, “#” works as “confirm”, “3”... -
Page 15: Clock Configuration
KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） 3.1 Clock Configuration 3.1.1 Edit Time 1． Press * 39 # to enter manage menu when idle. In the main menu, “*” works as “cancel”, “#” works as “confirm”, “3” works as “Up”, ”9” works as “down”. -
Page 16: Card Configuration
3. Press # to enter register interface. Input or Flash 0000000000 4. Input a ten digits number or flash the card you want to register on TA7003NT, the card number will be read by TA7003NT automatically and shows up on the screen. Input or Flash 0123456789 5. -
Page 17: Delete Card
3. Press # to enter delete card interface. Input or Flash 0000000000 4. Input a ten digits number or flash the card you want to register on TA7003NT, the card number will be read by TA7003NT automatically and shows up on the screen. Input or Flash 0123456789 5. -
Page 18: System Configuration
3. Press # to enter Delete All Card interface. Input or Flash 0000000000 4. Input a ten digits number or flash the card you want to register on TA7003NT, the card number will be read by TA7003NT automatically and shows up on the screen. Input or Flash 0123456789 5. -
Page 19: Menu Password
KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） English× ◆ Chinese√ Use button 3 or 9 to select the language customer wanted. Press # to confirm. 3.3.2 Menu Password There is no defaulted password, customer can set favored password. Steps: 1． Use button 3 or 9 to select System when enter the manage menu. -
Page 20: System Info Configuration
4. Use button 3 or 9 to select Device ID and press # to confirm. Device ID Press # to confirm Device ID setting. Device ID must be set when using multiple TA7003NT while it’s not necessary for standalone. Page 20 of 29... - Page 21 KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） 3.3.4.2 Network Configuration 1. Use button 3 or 9 to select System when enter the manage menu. Clock Cards System ◆ Delete 2. Use button 3 or 9 to select System Info. Language Menu Password...
-
Page 22: Delete
4. Use button 3 or 9 to select Sleep Time and press # to confirm. Sleep Time 020 Sec Use keypad to input sleep time (sec), press # to confirm. 3.3.4.4 Board Info Use to check TA7003NT version and production date. Example： Version：.TA7003 Ver 03.00 Date：20100415（Programmed date 2010-4-15） IP Address：192.168.1.100 MAC Address：... -
Page 23: Door Parameter Initialize
3.5 Door Open Mode By Card Steps: 1. Register your card by using Add Card in the manage menu. 2. Flash the card on TA7003NT. (3-10cm read range) 3. The screen shows card number, owner name. 4. Relay responds, door open.N... - Page 24 KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） Please note that if the card is not registered, the TA7003NT will beep three short sounds and shows invalid card on the screen. Door will stay closed. By card + PIN Steps: 1. Register your card and set password by using Add Card in the manage menu. Password is limited to 4 digits.
-
Page 25: Chapter 4 Installation
KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） Chapter 4 Installation Steps: 4.1 In the Wall Use installation box: Drill a hole on the wall (size:86x86mm) where you want to install your reader. Then install the installation box in the hole. a). Installation box (Standard 86 box, single) b). -
Page 26: On The Wall
KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） 4.2 On the Wall Use installation box: Use 4 screws to fix standard 86 box on the wall. a). Installation box (Standard 86 box, single) Wiring: Design the wiring between reader and controller, then process wiring. -
Page 27: Without Installation Box
KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） 4.3 Without Installation Box Drill a hole in the wall withф30mm a). ф30mm drill tool b). Hole diameterф30mm Note: This tool is used for metal and wooden wall, no good for stone or cement wall. -
Page 28: Chapter 5 Faq
Door stays opened menu Password missing Reset password in PC.(Connect to PC fisrt) Device not powered up（TA7003NT、lock） Invalid card（register your card） Can not open door by flashing card Door open mode (Set to Card, not Card + PIN) ... - Page 29 KEYKING GROUP LIMITED TA7003NT User Manual（V1.0） Attached: Note：Please record card registration events as per attached form when using Card/Card + PIN mode. This will help to make a good management if customer wants to register a card or delete a card.
