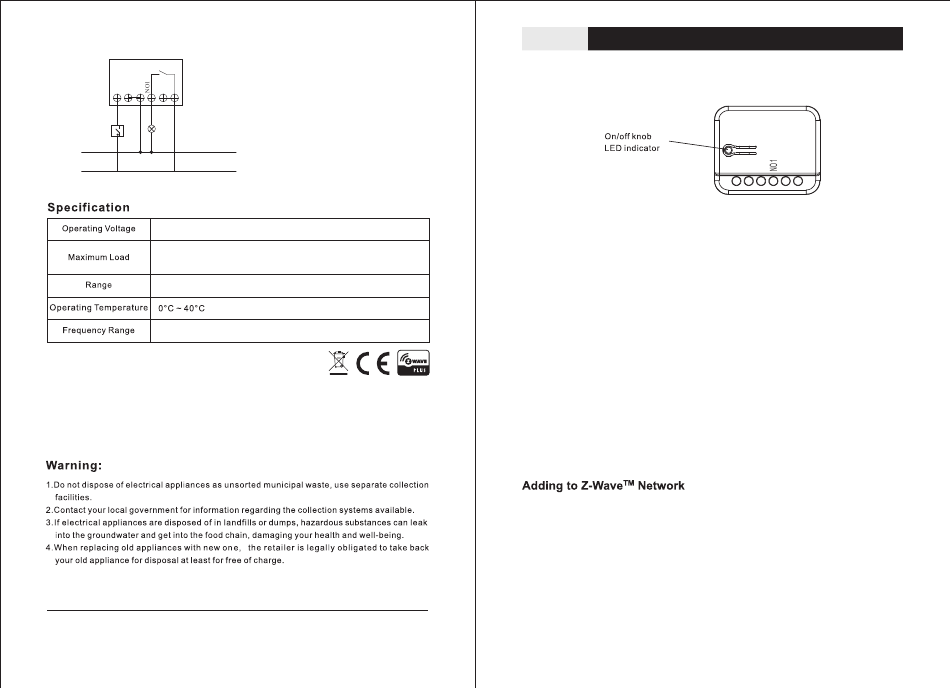

Wiring diagram
Relay
S
N
N
L
L
SWITCH
Load
N
L
AC110V~230V
3000W,(1500W for US)
Minimum 40m in door 70m outdoor line of sight
868.4MHz(EU),908.4MHZ(US),921.4MHz(AU),869MHz(RU)
Interoperability with Z-WAVE devices
A Z-Wave network can integrate devices of various classes made by different manufacturers.
The TZ78 can be incorporated into existing Z-Wave networks. The TZ78 module can be used
to carry out inclusion,association, or exclusion.
L: Line voltage input
NO1: Switched load output
N: Line neutral
S: Connect to wall switch input
50Hz/60Hz
TZ79-V2.0-2016 .3
-4-
TZ79
Note: This module must be"Included in the network",and suitable for where it will be
permanently installed. The proper operation of this node in the mesh network is
dependent on it knowing it's location with respect to other nodes. You can not "test
bench" configure this module, then install.
This insert switch module in a transceiver which is a Z-Wave enabled device
and is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices
displaying the Z-Wave logo can also be used with it regardless of the manufacturer,
and ours can also be used in other manufacturer's Z-Wave enabled networks.
Remote On/Off control of the connected load is possible with other manufacturer's
wireless controller. Each switch is designed to act as a repeater. Repeaters
will re-transmit the RF signal to ensure that the signal is received by its intended
destination by routing the signal around obstacles and radio dead spots.
This plug-in On/Off switch is able to detect current wattage (5~3000W) and overload
wattage(3010~3300W) of connected lights or appliances. When detecting overload
state, the Switch will be disabled and its On/Off button will be lockout of which LED
will flash quickly. However, unplug and re-connect the switch will reset its overload
condition to normal status.
The product supports Over The Air(OTA) feature for the products firmware upgrade.
In the front casing, there is an On/Off button with LED indicator which is used to
toggle switch on and off or carry out inclusion, exclusion, reset or association.
When first power is applied, its LED flashes on and off alternately and repeatedly
at 1-second intervals. It implies that it has not been assigned a node ID and can not
work with Z-Wave enabled devices.
The table below lists an operation summary of basic Z-Wave functions. Please
refer to the instructions for your Z-Wave
.6
access the setup function, and to include/exclude/associate devices.
Insert switch module
S
N N
TM
certificated primary controller to
-1-
L
L
