Summary of Contents for Boyo VTC1743M
-

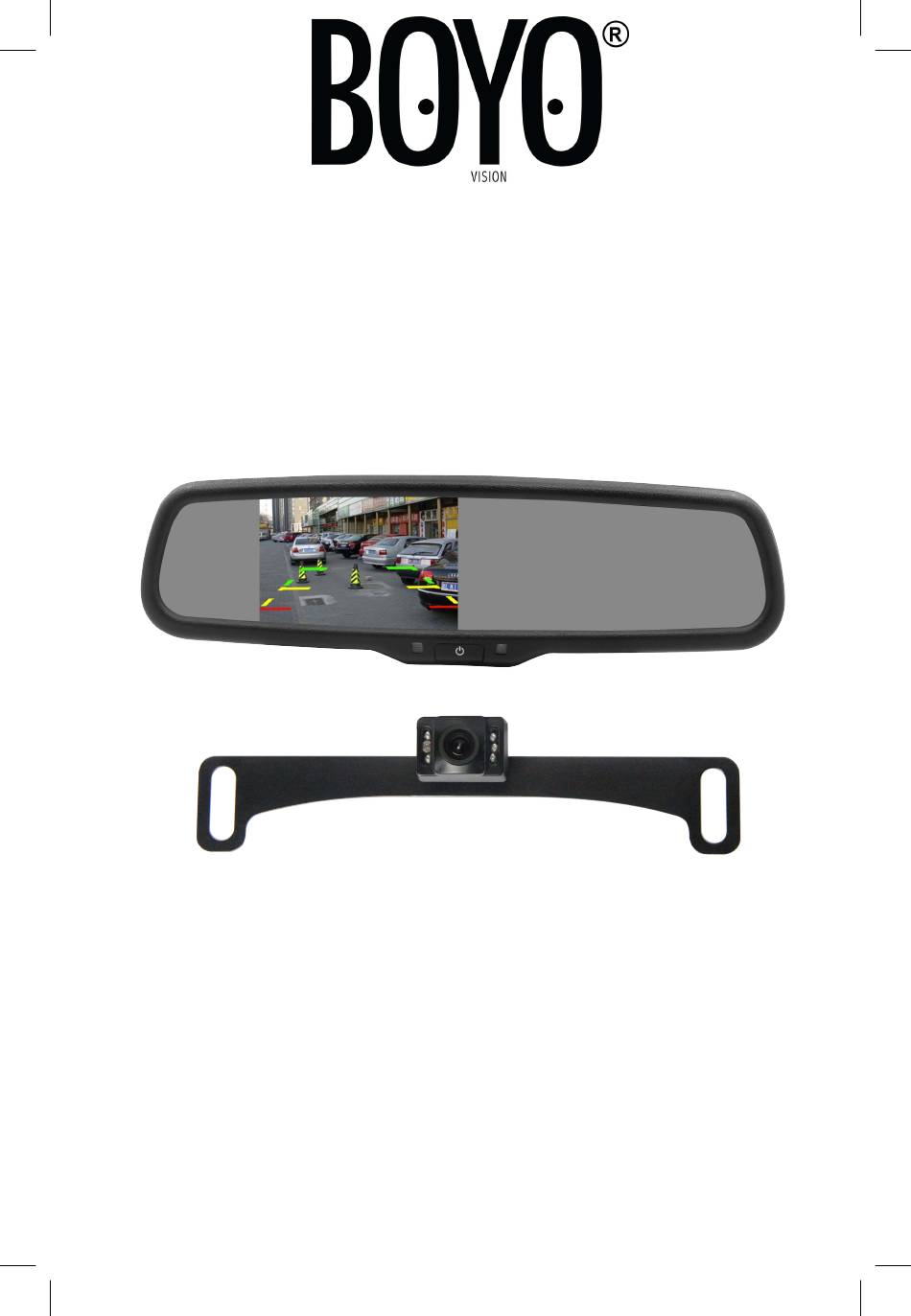

Page 1: User Manual
VTC1743M 4.3”Rear View Mirror Monitor and IR Camera Combo Kit User Manual... -
Page 2: Box Contents
Introduction Thank you for purchasing a Rear View Camera Kit from BOYO. BOYO Camera & Monitor Kits are designed to improve safety by providing high quality images to improve vehicle maneuvering capabilities by displaying blind spots or areas not normally visible to the driver. - Page 3 Installation Guid VTC1743M Installing the Mirror Step 1 Mount the mirror to the existing rear view mirror in your vehicle using the rubber straps provided. Please ensure that the mirror is mounted tightly and cannot come loose. Step 2 Route the wiring from the back of the mirror into the vehicle headlining and run it towards the passenger side of the vehicle.
- Page 4 VTC1743M Installing the Camera & Bracket Step 1 Remove the vehicle license plate. If the existing plate is stuck onto the vehicle you will need to remove the existing sticky tape to allow for proper adhesion when the new tape is used.
- Page 5 Installation Guid VTC1743M Installing the Camera & Bracket Step 5 Once the bracket is aligned and the mounting holes are drilled (if necessary), loosely mount the bracket on the vehicle. Step 6 PLEASE NOTE: The 2 holes in two side of the bracket.
- Page 6 VTC1743M Installing the Camera & Bracket Step 9 Next, run the cable through into the area behind the license plate and then mount the bracket tightly. Step 10 If mounted to a rear bumper you will need to find a suitable grommet...
- Page 7 Installation Guid VTC1743M Installing the Camera & Bracket Once the cable is routed to the rear light you will need to make the following wiring connections for the camera. RED WIRE from the Camera to the REVERSE LIGHT Connect the This wire will show 12V+ on a multimeter only when the vehicle is in reverse.
- Page 8 Installation Guid VTC1743M Wiring Diagram...
- Page 9 User Guide VTC1743M Camera & Mirror Monitor User Guide GREEN If installed correctly, the Mirror Monitor will display a light (next to the button) when it is powered up. When reverse gear is engaged the Mirror Monitor will automatically turn on and an image will be displayed on the screen.
-
Page 10: Specifications
User Guide VTC1743M Specifications Camera MMCK-43-BRK-DVTC1743M Sensor 1/3” CMOS NTSC TV system Parking Lines Dynamic Resolution 720 x 480 IP rating IP67 Definition 700 TV Lines Viewing Angle 120-170 degrees Illumination 0.1LUX Video Output 1.0vp / 75 Ohm-p White Balance... - Page 11 Vision Tech America, Inc. 1452 E. Valencia Drive, Fullerton, CA 92831,USA Ph: 714-446-0543 Fax: 714-446-0602 Email: info@visiontechamerica.com Web: www.visiontechamerica.com...
