FuehlerSysteme FS6002 Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

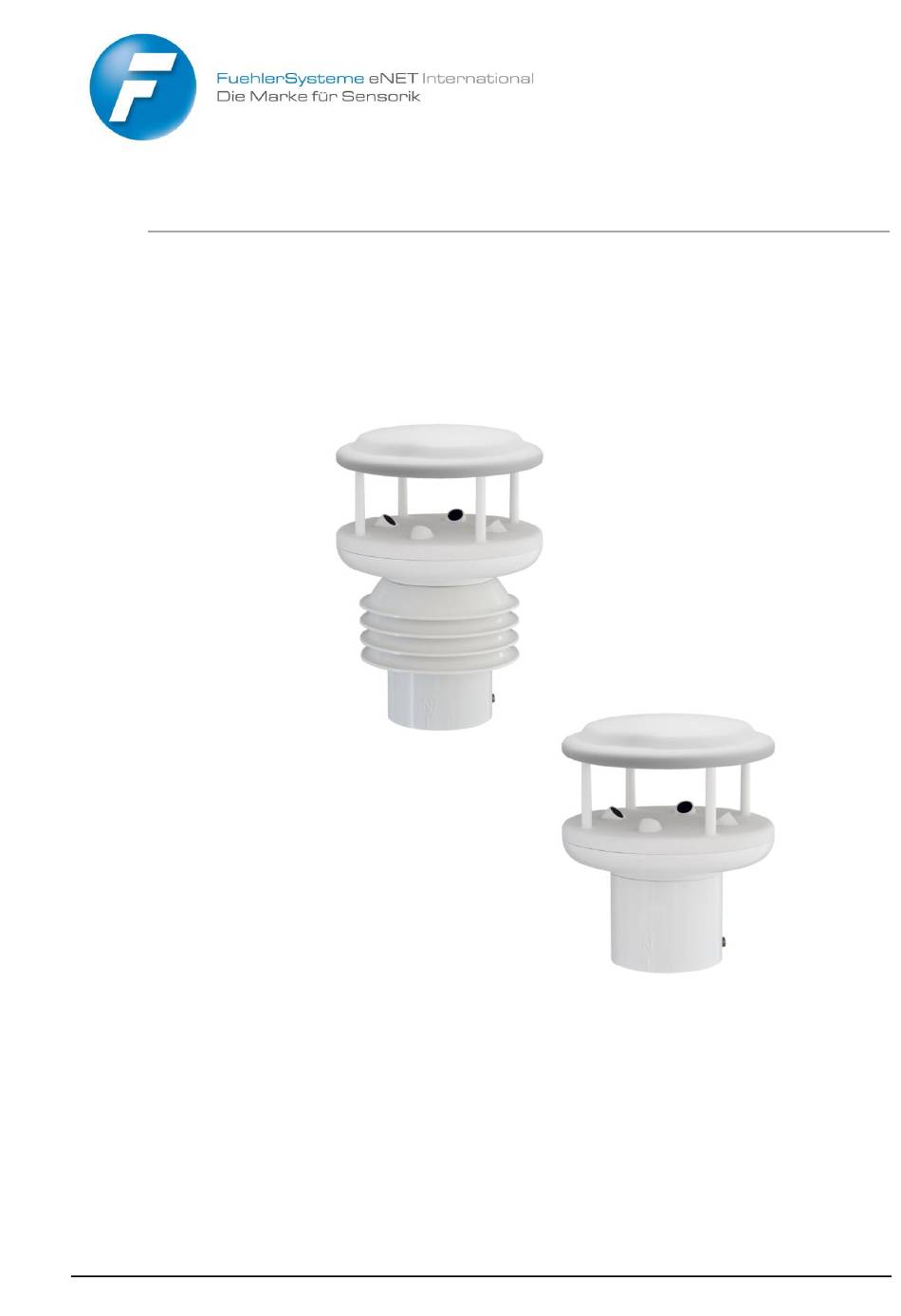

Instructions for Use

Weather Station

FS6002
1 - 80
ba_7-1-130/11E/0318

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS6002 and is the answer not in the manual?

Questions and answers

Related Manuals for FuehlerSysteme FS6002

Summary of Contents for FuehlerSysteme FS6002

  • Page 1: Weather Station

    Instructions for Use Weather Station FS6002 1 - 80 ba_7-1-130/11E/0318...
  • Page 2 © Copyright FuehlerSysteme eNET International GmbH, Nuremberg / Germany • Although this operating instruction has been drawn up with due care, FuehlerSysteme eNET International GmbH can accept no liability whatsoever for any technical and typographical errors or omissions in this document that might remain.

  • Page 3: Table Of Contents

    Contents Model ..........................6 Application ........................6 Mode of operation ......................9 Wind measurement: ......................9 3.1.1 Measuring principle: Wind speed and direction ............9 3.1.2 Measuring principle: Acoustic virtual temperature ............10 Temperature and humidity measurement: ................ 11 Air pressure: ........................11 Brightness: ........................
  • Page 4 7.5.1 Occurrence of errors: ....................34 7.5.2 Behaviour of analogue outputs ................... 34 7.5.3 Behaviour of telegram output ..................34 Output of all system parameters ..................34 Query software version ..................... 34 Force restart ........................34 Plausibility ........................35 7.10 Online Help ........................35 Configuration of WEATHER STATION by customer ............
  • Page 5 Table Table 1: Synop Code table ......................12 Table 2: Restrictions in full and half duplex mode ....... Fehler! Textmarke nicht definiert. Table 3: Access keys for different command levels ....Fehler! Textmarke nicht definiert. Table 4 : MODBUS frame ......................20 Table 5: MODBUS exceptions .......................

  • Page 6: Model

    1 Model Article No. Designation Parameters Output / Interfaces / Features WS2/O-U/MB WEATHER STATION As above As above, however Data protocol, adjusted: - BINARY (Modbus RTU) in half duplex mode 2 Application The WEATHER STATION is used for acquisition of the most important meteorological parameters. Depending on the development level the device supplies measured data for: •...
  • Page 7 For a correct determination of the wind direction in mobile use of the WEATHER STATION there is a magnetic compass integrated in all models available. Furthermore, an integrated GPS-receiver serves for the determination of the exact Universal Time, and geographic position. For an exact north alignment at stationary installation it is used the difference angle between the brightness direction –...
  • Page 8 Brightness is captured by 4 photo sensors with spectral sensitivity curve, which is ideally suited to the sensitivity of the human eye. The direction of the light source is calculated using the prevailing intensity conditions. The logarithmic intensity characteristic of the photo sensors allows light intensities to be measured and output in a wide range between 1 –...

  • Page 9: Mode Of Operation

    Individual output scaling of the measuring ranges is possible; see Command OL, Output Link. These outputs are either active or inactive depending on the model. Serial and analogue output of the data can take the form of an instantaneous value or a sliding mean.

  • Page 10: Measuring Principle: Acoustic Virtual Temperature

    Moving averaging of the wind velocity and wind direction acc. to the WMO- recommendations: The wind data can be averaged moving over a time span of up to 10 minutes on a base of 100 millisecond values. This averaging is calculated according the recommendation of the WMO as the FIFO-method.

  • Page 11: Temperature And Humidity Measurement

    3.2 Temperature and humidity measurement: A built-in hygro-thermo sensor with an I C interface is used to measure temperature and humidity levels. The sensor's power consumption is so low that even when actively performing measurement, the increase in temperature through heat loss can hardly be measured. The hygro-thermo sensor is protected from the ingress of water by a miniature housing with a vapour-permeable membrane.

  • Page 12: Type Of Precipitation (Synop Code)

    moving towards or away from the Doppler radar module. The speed at which rain drops fall is roughly proportional to the square root of the drop diameter (Gunn and Kinzer 1949). The precise relationship between the speed at which rain falls and the diameter / volume of the rain drops can be used to calculate individual volumes and thus the rainfall intensity based on the frequency rate and the frequency of the Doppler frequencies.

  • Page 13: Storage And Handling Of The Weather Station

    4 Storage and handling of the WEATHER STATION Recommendation: The Weather station should be stored in the original packing dry (relative humidity <60%), and a moderate temperatures (5°C…25°C). Remark: The storing temperature must not fall below or exceed the range of -55°C…80°C. Special requirements by the electronic magnetic field compass: Please take care that the instrument is not exposed to strong static magnetic fields >...

  • Page 14: Mechanical Installation

    5.2 Mechanical installation Proper installation of the WEATHER STATION is carried out using a tube socket R1½" (Ø 48.3mm) and at least 30mm in length. The inside diameter of the tube socket must be at least 30mm as the electrical connection of the WEATHER STATION is carried out at the bottom of the device.

  • Page 15: Electrical Installation

    5.3 Electrical installation The WEATHER STATION is equipped with a 19-pin plug for electrical connection. A socket outlet (mating connector) is included in the scope of supply. 5.3.1 Cable, cable preparation, connector installation The connecting cable should have the following properties depending on the model of the device: 16 cores, core cross-section for supply and data communications 0,25mm², cable diameter max.
  • Page 16 Socket outlet 212812, 19-pin, (Binder, Series 440), EMC 1. Strip over L = 33mm. Do not remove sheath. 2. Slip on pressing screw and clamping device. Remove sheath. 3. Strip wire strands and tin-coat. 4. Fan / comb out shielding. Thread shield wires into crown all round.

  • Page 17: Connection Diagram For 16-Core Cable (Function Example)

    5.3.2 Connection diagram for 16-core cable (function example) Note: - See the supplementary sheet "Werkseinstellung" with the factory settings for precise function assignment. - The pins A,B,C,H,I,K,L,M,N,O,P,R,S,T,U are electrically isolated from the supply voltage. Electrical connection View of solder terminal PIN Colour coding** Assignment Function of socket outlet...

  • Page 18: Connection Diagram For 8-Core Cable (Function Example)

    5.3.4 Connection diagram for 8-core cable (function example) Electrical connection View of solder terminal PIN Colour coding Assignment Function of socket outlet − − − − − − − − − − − − − − − − − − −...

  • Page 19: Servicing

    6 Servicing As the device does not have moving parts, i.e. is not subjected to wear during operation, only minimal servicing is required. The device may become soiled depending on its installation site. Cleaning should be carried out using water, non-aggressive cleaning agents and a soft cloth. The surface of the instrument cover is roughened for measurement technique reasons, and must not be polished, by no means.

  • Page 20: Warranty

    6.2 Warranty Damage caused by improper handling or external influences, e.g. strike by lightning, are not covered by the warranty provisions. The warranty is void if the device is opened. Important: The WEATHER STATION must be returned in the original packaging.

  • Page 21: Measured Values (Input Register)

    7.1.1 Measured values (input register) All measured values of the Weather station occupy 32 bits, i.e. 2 MODBUS register addresses. The following table shows the assignment of measured values to the register address, with the measured values being sorted as follows: By type of measured value (30003 to 34999).
  • Page 22 Register- Parameter name Unit Multiplier Explanation Data address type 30409 Wind Chill Temperature °C Value / 10 0x76C9 Valid if the air temperature (1 decimal place, e.g. 255=25.5°C) < °C. 30411 Heat Index Temperature °C Value / 10 0x76CB Valid if the air temperature (1 decimal place, e.g.
  • Page 23 Register- Parameter name Unit Multiplier Explanation Data address type Brightness East 31217 Value (fixed device assignment) 0x79F1 (no decimal place, e.g. 12000=12000Lux) 31219 Brightness South Value (fixed device assignment) 0x79F3 (no decimal place, e.g. 12000=12000Lux) 31221 Brightness West Value (fixed device assignment) 0x79F5 (no decimal place, e.g.
  • Page 24 Register- Parameter name Unit Multiplier Explanation Data address type 34807 Position of the sun azimuth ° Value / 10 0x87F7 (to 1 decimal place, e.g. 1800=180.0°/ 0°=north,180°=south, clockwise 0…360°) 34809 Height above mean sea level Value 0x87F9 (no decimal place, e.g. 240=240m amsl) 34811 Sensor status...
  • Page 25 Register- Parameter name Unit Multiplier Explanation Data address type Relative air pressure referred 35019 Value / 100 to sea level (30803) 0x88CB (to 2 decimal places, e.g. 105000=1050.00hPa) 35021 Brightness north klux Value / 10 (fixed device assignment) 0x88CD (to 1 decimal place, e.g. (31201) 1200=120.0klux) 35023...
  • Page 26 Register- Parameter name Unit Multiplier Explanation Data address type 35047 Degree of latitude ° 1000000 Value / 1000000 0x88E7 (34803) (6 decimal places, e.g. 51509153 = ±51.509153 Decimal degree) 35049 Position of the sun elevation ° Value / 10 0x88E9 (34805) (to 1 decimal place, e.g.
  • Page 27 Register- Parameter name Unit Multiplier Explanation Data address type 35077 g/m^3 Value / 100 Absolute humidity 0x8905 (2 decimal places , e.g. (30603) 923=9.23g/m^3) 35079 %r.h. Value / 10 Rel. humidity, uncorrected 0x8907 (1 decimal place, e.g. (30607) 234=23.4%rh) 35081 Magnetic compass °...

  • Page 28: Commands (Holding Register)

    7.1.2 Commands (holding register) All commands of the Weather station occupy 32bits, i.e. 2 MODBUS register addresses and represent whole numbers with no leading sign except the TA command (64bit). The following example illustrates changing the baud rate to 19200 baud, with permanent storing of parameter, afterwards.

  • Page 29: Sensor Status

    7.1.4 Sensor Status Explanation: Bit-Number Function Description Bit 0 General error Averaging time < 30sec An error is outputted in case that for a (s. command ET) time period of 30sec (s. command ET) no new measuring value can be detected. Averaging time >= 30sec An error is outputted in case that the (s.

  • Page 30: North Correction

    Command "OL" can be used to switch the optional measured values to any of the remaining 5 analogue outputs; see Command "OL". Scaling of certain measured values to the voltage output is also possible. Wind direction, direction of brightness and precipitation status are fixed values, which are not scalable. By default, the analog channels are linked always in the same way.

  • Page 31: Instantaneous Values And Output Of Raw Measured Values

    7.3 Instantaneous values and output of raw measured values The output of instantaneous values is generally a special case. Given the high acquisition speed for the measured values averaging of the data is advisable in most cases. If instantaneous values are to be output, averaging must not be switched on.

  • Page 32: Serial Data Output

    The vectorial and scalar averaging procedure for wind velocity and wind direction can be selected via the command AM like Average Method. Command for selecting the averaging procedure: AM00000 vectorial averaging of velocity and direction. AM00001 scalar averaging of velocity and direction. 7.4 Serial data output Data transmission via the RS485 interface is referred to as serial data output.

  • Page 33: Fixed Telegram Formats

    7.4.3 Fixed telegram formats A number of predefined telegrams are available for autonomous output (Command TT) and data request (Command TR). The detailed structure is described in Appendix 1 (Predefined data telegrams). A reference list of telegram formats can be found in Table 7. Telegram name Telegram number Telegram structure...

  • Page 34: Device Behaviour Under Extreme Measuring Conditions

    7.5 Device behaviour under extreme measuring conditions t is a basic rule that the measured values output are always valid and can be used by the target system. In case of error, i.e. when individual sensors are unable to supply valid measured values over a certain period of time, the data in the telegram is no longer updated and 'freezes up'.

  • Page 35: Plausibility

    7.9 Plausibility In order to recognize erroneously measured wind values, the WEATHER STATION includes an internal plausibility test, assessing the measuring values on the basis of the history. Erroneous measuring values can be caused, for example, by foreign objects in the ultrasonic measuring distance.

  • Page 36: Configuration Of Weather Station By Customer

    8 Configuration of WEATHER STATION by customer The WEATHER STATION is factory-set before delivery to the customer. • This is described in the supplementary sheet with the factory settings ("Werkseinstellung"). The customer can alter the factory settings of the WEATHER STATION or adapt them to new requirements.

  • Page 37: List Of Commands

    9 List of commands Command Description Command AB <id>AB<para5> Measuring range analogue output of air pressure (Analogue Barometer). Command AD <id>AD<para5> Delay of runtime measurement (Acquisition Delay). Measuring range analogue output of relative humidity (Analogue Command AH <id>AH<para5> Humidity). Command AL <id>AL<para5> Measuring range analogue output of brightness (Analogue Luminance).

  • Page 38: Commands And Descriptions

    Command Description Command PT <id>PT<para5> Precipitation threshold for the precipitation-flag (Precipitation Threshold). Command PW <id>PW<para5> Time frame for precipitation event (Precipitation Window) s.a. PE. Command RD <id>RD<para5> Delayed response (Response Delay). Command RS <id>RS<para5> Warm-boot WEATHER STATION (ReSet). Command RT <id>RT<para7> Set real-time clock (Real Time Clock).
  • Page 39 Value range(xx): 0..20 Value range(yyy): 50..100 [%] Initial value(xxyyy): 00100 Command AL <id>AL<para5> Adjust the measuring range of brightness for analogue output Access: Configuration mode (ADMIN) Description: This command is used to specify the terminal value of the analogue output. Parameter description: 00AL00150 Sets the measuring range of the analogue output to 0...150klux...
  • Page 40 Command AQ <id>AQ<para5> Sets measuring range of daily sum of precipitation [mm/d] for the analogue output. Access: Configuration mode (ADMIN). Description: This command determines the final value of measuring range of the precipitation daily sum. With exceeding the final value the automatic summation occurs again from „0“. The sum is reset at 00:00:00h.
  • Page 41 Command AT <id>AT<para5> Adjust the measuring range of the air temperature [°C] for analogue output. Access: Configuration mode (ADMIN). Description: This command is used to specify the output range for the air temperature. Parameter description: 00APsxxyy s : leading sign of lower temperature xx: lower terminal value of temperature yy: upper terminal value of temperature 00AP14060...
  • Page 42 Command BP <id>BP<para5> Determines the parity of the serial interface (Baud Parity) Access: Configuration mode (ADMIN) Description: Parameter 8: parity 8N1- Parameter 9: Parity 8E1 Parameter 10: Parität 8N2 Value range: 8...10 Initial value: Command BR <id>BR<para5> Select baud rate (Baud Rate) Access: Configuration mode (ADMIN) Description:...
  • Page 43 Command CI <id>CI<para5> Select the command interpreter Access: Configuration mode (ADMIN) Description: This command is used to select the required command interpreter. Parameter description: Parameter Description MODBUS RTU Value range: Initial value: Command CS <id>CS<para5> Save configuration (Configuration Saving). Access: Configuration mode (ADMIN).
  • Page 44 Command DO <id>DO<para5> Calculation of brightness direction on the analogue output (Direction Option). Access: Configuration mode (ADMIN). Description: The parameter determines the calculation of the analogously output brightness direction. The brightness direction 0...360° is output respectively as 0...10V. (see chap. 6.3, table 8). Parameter description: Output of the brightness direction calculated from the measuring values of the 4 brightness sensors.
  • Page 45 Command EI <id>EI<para5> Analogue value in case of error (Error inversion). Access: Configuration mode (ADMIN). Description: Specifies whether 0 or maximum value is output at the analogue outputs in case of error. If the WEATHER STATION determines a static error during a measurement, it will output an error under certain conditions.
  • Page 46 Command HC <id>HC<para5> Heating Condition. Access: Configuration mode (ADMIN). Description: This command defines the lower threshold of supply voltage, when the heating is no more activated. Parameter description: When the supply voltage drops below the set value, the heating is no more activated. Only when the voltage exceeds the set value by 2 volts, the heating is reactivated.
  • Page 47 Command HS <id>HS<para5> Height Settings. Access: Configuration mode (ADMIN). This command determines if the station height is set manually by the command “SH”, Description: or automatically acc. to GPS level. The station height is necessary for the calculation of the air pressure on sea level. Parameter description: The station height is set to “SH”, and is not readjusted by GPS.
  • Page 48 Command KY <id>KY<para5> Access mode (Key). Access: Query mode. Description: When editing the parameters of the WEATHER STATION access authorisations are required for most commands. This prevents any accidental change in parameters. Access consists of three levels: • Query mode "0"...
  • Page 49 Command MD <id>MD>>para5> Measuring interval of the complete wind measurement (Measurement Delay). Access: Configuration mode (ADMIN). Description: Specifies the time in increments of 10ms from the start of one measuring cycle (4 TOF) to the start of the next. In standard mode the time is 20ms so that a complete data record is generated from all sensors every 20ms.
  • Page 50 Example: OL=12789 means: output 4 (PIN:N) = relative humidity output 5 (PIN:C) = air pressure output 6 (PIN:B) = brightness output 7 (PIN:A) = direction of brightness output 8 (PIN:P) = precipitation intensity Note: The first 3 measured values have fixed linking to the analogue outputs, cannot be changed and are linked as follows: output 1 (PIN:T) = wind speed output 2 (PIN:S) = wind direction...
  • Page 51 Command OS <id>OS<para5> Meas. Unit of the wind speed output (Output Scale) Access: Configuration mode (ADMIN) Description: This command specifies the unit used for output of the wind speed in the serial telegram. Different units of measurement are available for this purpose. Parameter description: Parameter Meas.
  • Page 52 Command PT <id>PT<para5> Precipitation-intensity-threshold for the precipitation status flag. Access: Configuration mode (ADMIN). Sets the threshold of the precipitation intensity in µm, when the status flag is set to “1”. Description: In addition, the status flag can be linked to a precipitation event counter. This threshold is required for the precipitation start detection for ex.
  • Page 53 Command RT <id>RT<para7> Used to set the real-time clock of the WEATHER STATION (Real Time). Access: Configuration mode (ADMIN). Description: Output and setting of time and date of WEATHER STATION. Parameter description: Synchronization of date and time deactivated by GPS information. Synchronizes seconds acc.
  • Page 54 Command SN <id>SN Output of 8-digit serial number (Serial Number). Access: Query mode. Description: During factory setting of the device every WEATHER STATION is given a serial number. This serial number is a unique identifier for the WEATHER STATION. Parameter description: The WEATHER STATION responds e.g.
  • Page 55 Command SU <id>SU<para5> Preparation for firmware upload (Software Upload). Access: Configuration mode (ADMIN). Description: Starts the bootloader for the firmware update. The upload must be started within the stated time period, otherwise the previous firmware restarts. A started upload must not be interrupted, for ex. by disconnecting the power supply or interrupting the communication, as otherwise the firmware is not loaded completely, and the firmware of the WEATHER STATION would possibly be no longer executable.
  • Page 56 VDTBDRE telegram (wind speed, wind direction, temperature, brightness, Brightness direction, precipitation intensity / status). VDTHPBDRE (wind speed, wind direction, temperature, relative humidity, air pressure, brightness, brightness direction, precipitation intensity / status). NMEA V2.0. Extended telegram. Same as telegram 6 with additional gust. Scientific diagnostics telegram.

  • Page 57: Appendix 1 Predefined Data Telegrams

    11 Appendix 1 Predefined data telegrams 11.1 Telegram 1 Wind speed, Wind direction and Temperature Command: TR1 / Command: TT1 (with DT=0, see also Command DT and OP=0, see also Command OP) Telegram structure: Position Length Example Description Meas. error <STX>...

  • Page 58: Telegram 3 Vdtbdre

    11.3 Telegram 3 VDTBDRE Wind speed, Wind direction, Temperature, Brightness, Brightness direction, Precipitation intensity / status Command: TR3 / Command: TT3 (with DT=0, see also Command DT and OP=0, see also Command OP) Telegram structure: Position Length Example Description Meas. error <STX>...

  • Page 59: Telegram 5 Nmea - Wind

    Position Length Example Description Meas. error ## # ## # Max. brightness / vectorial sum [lux] (s. Command BO). FFFFF ’ ’ ’ ’ Blank character (HEX 20). ## # Direction of brightness [°]. ’ ’ ’ ’ Blank character (HEX 20). ## # .# # # Precipitation intensity [mm/h].
  • Page 60 11.6 Telegram 6 Wind speed, Wind direction, Temperature, Relative humidity, Air pressure, Brightness, Brightness direction, Precipitation status / intensity and Daily total Command: TR6 / Command: TT6 (with DT=0, see also Command DT and OP=0, see also Command OP) Telegram structure: Position Length Example...
  • Page 61 Wind speed, Wind direction, Temperature, Relative humidity, Air pressure, Brightness, Brightness direction, Precipitation status / Intensity and Daily total with GPS position and Time of day Command: TR6 / Command: TT6 (preselected telegram with DT=6, see also Command DT and OP=0, see also Command OP) Telegram structure: Position...

  • Page 62: Telegram 7

    Position Length Example Description Meas. error ’ ’ ’ ’ Blank character (HEX 20) ## : ## :# # Time of day, hour:minute:second (hh:mm:ss) ## : ## :# # ’ ’ ’ ’ Blank character (HEX 20) Asterisk (identifier for following check sum) Check sum (XOR, initial value HEX 00) <CR>...

  • Page 63: Telegram 14 Scientific Telegram

    Position Length Example Description Meas. value error Synop (table 1, chapter 3.5.2) ’ ’ ’ ’ space (HEX 20) Star (marking for following checksum) Checksum (XOR) <CR> Carriage Return (HEX 0D) <CR> <ETX> End of Text signs (HEX 03) <ETX> The precipitation total [mm/d] is reset at 00:00 o’clock of the next day! Missing measuring values by partial expansion stage are marked with „F“...
  • Page 64 Position Length Example Description br ig h N Brightness north [lux] Semicolon (HEX 3B) br ig h E Brightness east [lux] Semicolon (HEX 3B) br ig h S Brightness south [lux] Semicolon (HEX 3B) br ig hW Brightness west [lux] Semicolon (HEX 3B) br_s um Brightness max.

  • Page 65: Telegram Addition By Parameter Op

    11.9 Telegram Addition by Parameter OP By means of this parameter, it is possible to output additionally to each telegram – excepted the NMEA telegram (TR5/TT5) – the absolute humidity and/or the dew point temperature, wind chill, heat index and direction of magnetic compass.

  • Page 66: Technical Data

    12 Technical data Parameter Wind velocity Measuring range 0.01 ... 60m/s Scaling of analogue output freely selectable. ≤5m/s: 0.3m/s (rms - mean over 360°). Accuracy 5 ... 60m/s: 3% of measured value (rms - mean over 360°) Resolution 0.1m/s: in telegrams 1, 2, 3, 5, 6 0.01m/s: in telegram 14 Wind direction Measuring range...
  • Page 67 0.25 … 5.0mm, large as hail. Droplet size Accuracy with With 95% of the precipitations deviations less than 15% precipitation compared with Laser Precipitation Monitor (Reference). Type of Rain, snow, sleet, ice crystals, hail. precipitation 1 … 360° Electr. compass Measuring range Differential angle of instrument north...

  • Page 68: Accessories (Available As Optional Features)

    @ 9.9201.00.00x : WV, WD, Temp., Rel. H., Air Pressure @ 9.9202.00.00x : WV, WD, Brightness, Precipitation @ 9.9203.00.00x : WV, WD, General Internal measuring Wind: up to 500 propagation time measurements per second, rate up to 125 complete measuring sequences/second incl. calculations.

  • Page 69: Dimension Drawing

    14 Dimension drawing 69 - 70 71130/11E/0318...
  • Page 70 Address FuehlerSysteme eNET International GmbH Roethensteig 11 D-90408 Nürnberg Phone +49 911 37322-0 Technical Support +49 911 37322-111 +49 1805 858511 E-Mail & Web * 14 ct/min. from german network - max. 42 ct/min. from german mobile phone info@fuehlersysteme.de www.fuehlersysteme.de - Änderungen vorbehalten -...
