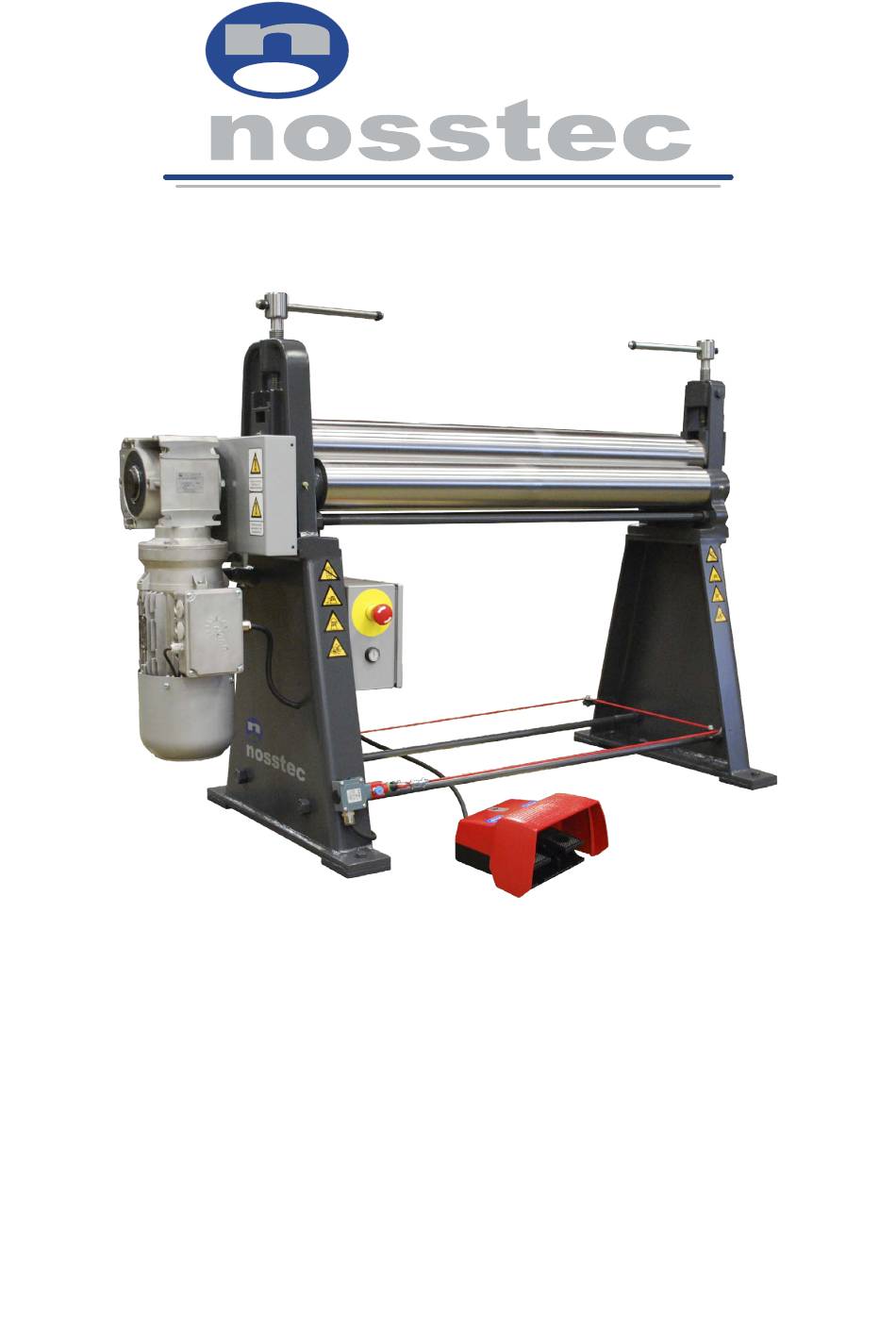

- Page 1 Bending Roll Machine 8264 Operating instructiOns...
-
Page 3: Table Of Contents
Contact information ..........See back Note: We reserve the right to alter specifications without prior notice. For copyright reasons all reproduction and copying of the texts, tables and illustrations within this manual is prohibited without written permission from Nosstec AB. 8264 English, rev 3... -
Page 4: Main Components
Operating instructiOns 8264 Main coMponenTs Front side Set screw, bending roll Bending roll Lower roll Drop end Motor with gear box Emergency stop Stand, power Stand, operated side drop end Safety equipment Foot switch Cone bending device Disclaimer: The machine pictured on this page is not necessarily representative of the actual product as delivered. -
Page 5: Operation
In order to obtain a symmetrically round shape, it is necessary to prebend the front as well as the rear edge of the workpiece. This prebending can be carried out by means of suitable equipment e.g. a press brake or manual folding machine. This operation can not be performed with a 8264 bending roll machine. - Page 6 Operating instructiOns 8264 operaTion Removal of workpiece The finished workpiece is removed from the machine as follows: • Loosen the set screws of the bending roll so that the bending roll is released from the workpiece. • Remove the locking device of the clamp.
-
Page 7: Safety
This area shall in an appropriate way be 1,5 m 1,5 m marked in the floor. A person staying in the dangerous area will henceforth be called “exposed per- son” and the user of the machine the Operator 1,5 m “operator”. 8264 English, rev 3... - Page 8 Broken parts or safety components must be changed by authorized staff. Contact Nosstec in case spare parts are needed. The machine has a 24 month applicable warranty from date of delivery.
- Page 9 Be careful when working with heavy workpieces so that they do not fall down by mistake when the grip loosens between the bending and lower rolls (see fi- gure). If necessary use a support table, travelling cra- ne or some other lifting device. 8264 English, rev 3...
-
Page 10: Service And Maintenance
Operating instructiOns 8264 safeTy Pinching risk of the workpiece Note that there is a pinching risk between the ends Pinching risk of the workpiece, see figure. Emergency stop This machine is equipped with two emergency stop functions, i.e. one emergency stop on the electrical cabinet and one emergency wire running around the machine at foot height. - Page 11 • Do not disconnect the safety devices of the machine. • Do not remove any part of the machine belonging to the safety devices. • Always check that all safety devices have been remounted after repair work etc. 8264 English, rev 3...
-
Page 12: Service And Maintenance
Operating instructiOns 8264 service and MainTenance Installation The machine must be placed on firm ground e.g. cemented floor. The ground must be level in order to avoid tensions in the machine when fixing it to the floor. Check that the motor is branched to the right voltage. Also check the direction of rotation. Plates with “Forward”... -
Page 13: Lubrication / Grease Chart
4. Rear right side, 1 points. See images for the lubrication points locations. Oil points There are in total 4 locations: 5. Left and right bearing housing, 2 locations. 6. Left and right set screw thread, 2 locations. 8264 English, rev 3... -
Page 14: Technical Data
Operating instructiOns 8264 Technical daTa Serial No ................ -
Page 15: Machine Plates And Stickers
White and yellow background, black text black text black text Yellow background, Yellow background, Yellow background, Yellow background, black text black text black text black text REVERSE FORWARD Blue background, white text Blue background, white text 8264 English, rev 3... -
Page 16: Dismantling Of Bending Roll Machine
Operating instructiOns 8264 disManTlinG of The Machine This instruction is made in order to support trained staff when repairing with a view to minimizing the risk of personal injuries and damage to the machine. To enable dismantling of the machine in a safe way, the job must be carried out by at least two trained mechanics. - Page 17 80-90 8264 English, rev 3...
- Page 18 Operating instructiOns 8264 spare parTs, 90-100 2018-09-12...
- Page 19 100-110 8264 English, rev 3...
- Page 20 Operating instructiOns 8264 spare parTs, 120-130 2018-09-12...
-
Page 21: Spare Parts
Contact protection Eingriffschutz Protection de contact Skruv Screw Schraube Bricka Washer Teller Rondelle Mutter Mutter Ecrou Handtag Handle Handgriff Poignée Handtag Handle Handgriff Poignée Skruv Screw Schraube Gummiring Rubber ring Gummiring Roulette en caoutchouc Wedge Keil Coin 8264 English, rev 3... -
Page 22: Declaration Of Conformity
Operating instructiOns 8264 declaraTion of conforMiTy Declaration of conformity as per the EC Machinery Directive 2006/42/EC, Annex II A. Nossebro Mekaniska Verkstad AB Manufacturer: SE 465 30 NOSSEBRO +46 512 298 80 Nosstec AB Distributor: SE 465 30 NOSSEBRO +46 512 298 85... - Page 24 Nosstec AB • Järnvägsgatan 19, 465 30 Nossebro, SWEDEN Tel: +46 (0)512 298 85 • Fax: +46 (0)512 298 89 • E-mail: info@nosstec.se For copyright reasons all reproduction and copying of the texts, tables and illustrations within this manual is prohibited without written permission from Nosstec AB.
