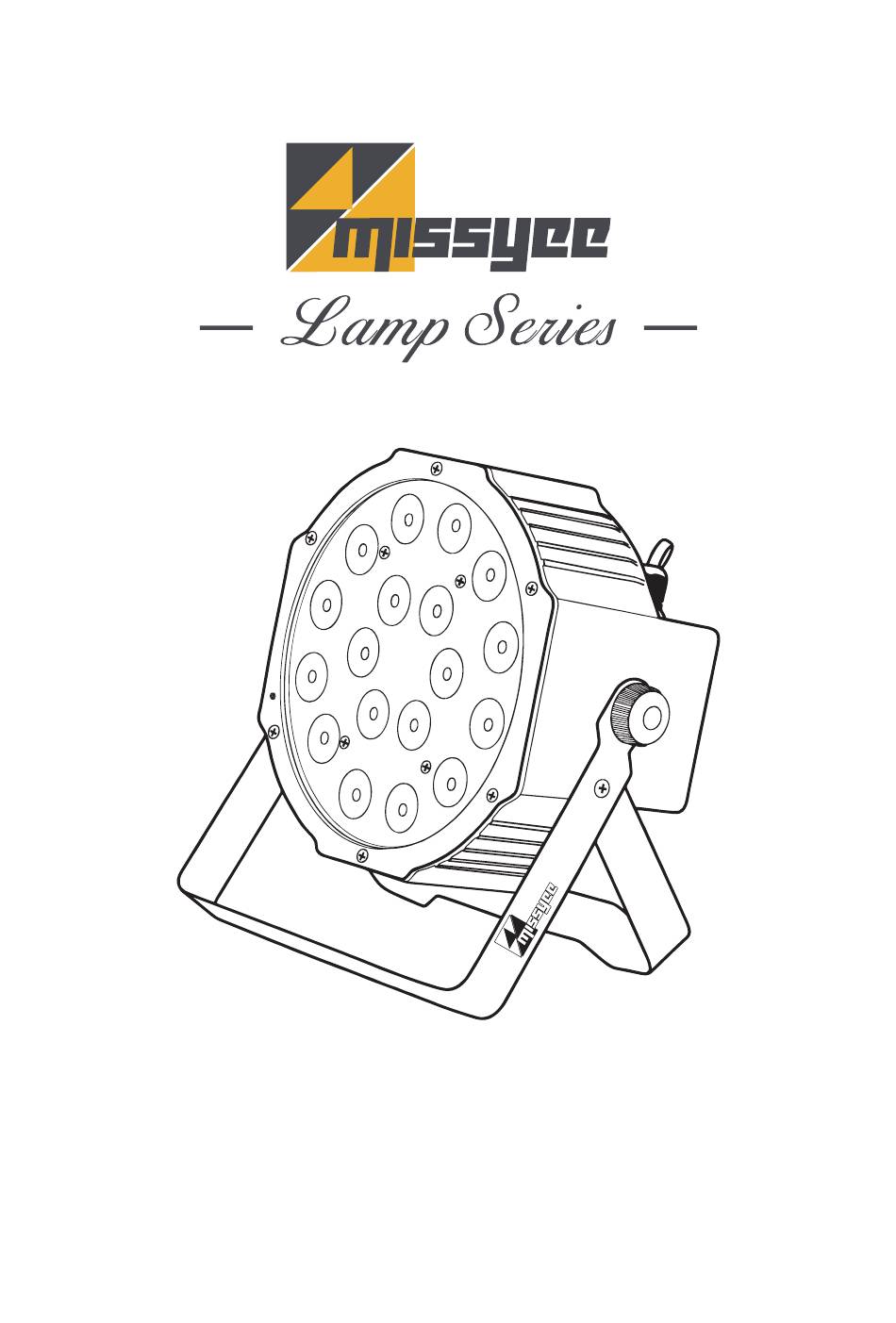

- Page 1 18 LED STAGE LIGHTS 4 PACKS Instruction Manual...
-
Page 3: Table Of Contents
CONTENTS PAGE Customer quality assurance Important safeguards Product description Operating instructions ·Control panel ·Menu display ·Remote control manual ·DMX channel description Troubleshooting Warranty Customer service... -
Page 4: Customer Quality Assurance
Missyee lamp series product. Missyee has gone to every effort to ensure that your product is of superior quality and meets the highest standards for convenience comfort and durability. It is your responsibility to read and always follow the safety, care and maintenance instructions for your new product. -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS Please read these instructions carefully, which includes important information about the installation, usage and maintenance of this product. ·Be sure that the local power outlet match that of the required volt-age for your unit. ·Do not attempt to operate this unit if the power cord has been frayed or broken. -
Page 6: Product Description
PRODUCT DESCRIPTION ·DMX channels: 7 ·18 x Ultra Bright 1 watt LEDs (Red LED:6, Green LED: 6, Blue LED:6) ·Static Colors/Dimmer/Strobe/Jump ·Auto/Sound Active/DMX/Master-Slave modes ·Internal programs with sound activation ·Voltage: AC90-240V 50~60Hz ·Beam angle: 25° ·Bracket allows for multiple rigging or floor standing applications ·4 push button menu with LED display ·3-Pin XLR in/out sockets ·Captive power connection... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS The Missyee 18 RGB is a DMX-512 controllable, full RGB c o l o u r m i x i n g P a r C a n m a d e up of high efficiency LED’s. There are three colour groups (red, green and blue) whose intensity can be controlled individually allowing the creation of an unlimited range of colours. -
Page 8: Menu Display
MENU DISPLAY UP/DOWN FUNCTION DMX console mode, DMX d001 d512 address (D001=Slave mode <..> for Master/Slave function) Color combination, to select different color combinations <..> CC01 CC64 and brightness Gradual fade from one color <..> to off, then fade into another rb01 rb16 color, from slower to faster... -
Page 9: Remote Control Manual
REMOTE CONTROL MANUAL ON/OFF. Switch lights in R/G/B mode (level:000~255). R/G/B Color combination (level:01~64). Gradual fade from one color to off, then fade into another color (level:01~16). Gradual fade from one color to another (level:01~16). Jump change (level:01~16). Save the custom mode settings. SAVE DMX console mode (level:001~512). -
Page 10: Dmx Channel Description
DMX CHANNEL DESCRIPTION Channel Functional Description Channel Values Master dimming, from OFF to brightness 0~255 (combined CH2, CH3, CH4 use) Red dimming, from OFF to brightness 0~255 0~255 Green dimming, from OFF to brightness Blue dimming, from OFF to brightness 0~255 No flicker 8~255... - Page 11 The address number is between 0-511(usually 0&1 are equal to 1). b.Master/Slave operation The Missyee allows you to link 4 lights together and operate without a controller. In Master/Slave mode, the first light will control others to give an automatic synchronized light show.
-
Page 12: Troubleshooting
TROUBLESHOOTING Here are some troubleshooting suggestions: a. There is no light output, or the lights does not work. (1). Check the connection of power and main fuse. (2). Measure the voltage output on your power receptacle to ensure proper voltage. b. -
Page 13: Warranty
WARRANTY The product is covered by a total parts and labor warranty for 1 year from the date of purchase. T h e w a r r a n t y a p p l i e s t o products that do not conform to the order or that are defective. -
Page 14: Customer Service
CUSTOMER SERVICE E-mail: support@missyeeled.com Facebook fan page: Missyee(missyee.fans) Lamp Series...
