IP LDK-20 Programming Manual
ISSUE
DATE
ISSUE 1.0
2004.08
ISSUE 1.1
2005.10
ISSUE 1.2
2006.01
Revision history
Initial Release
Added Networking Feature and IP LDK Version 3.3
Call Rerouting is added in ISDN Supplementary service.
CONTENTS OF CHANGES
Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP LDK-20 and is the answer not in the manual?

Questions and answers

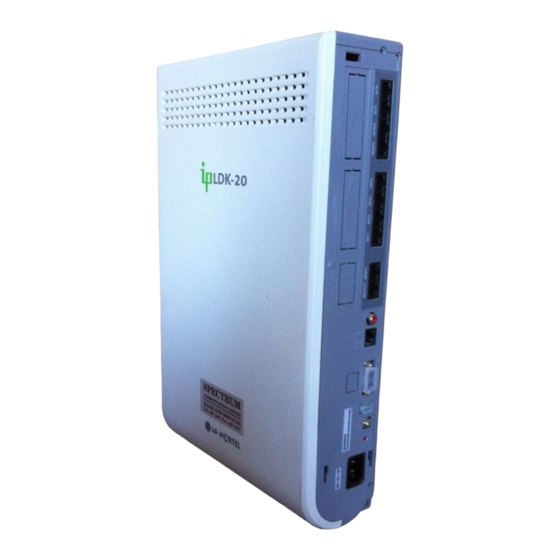

Summary of Contents for LG-Nortel IP LDK-20

  • Page 1 IP LDK-20 Programming Manual Table of Contents Revision history ISSUE DATE CONTENTS OF CHANGES ISSUE 1.0 2004.08 Initial Release ISSUE 1.1 2005.10 Added Networking Feature and IP LDK Version 3.3 ISSUE 1.2 2006.01 Call Rerouting is added in ISDN Supplementary service.
  • Page 2: Table Of Contents

    IP LDK-20 Programming Manual Table of Contents Table of contents Abbreviations and Keywords Table ..............1 Section 1. Introduction..................8 1.1 THE STRUCTURE OF PROGRAMMING MANUAL ...........8 1.2 MANUAL USAGE ....................9 Section 2. System Feature ................10 2.1 HOW TO GET INCOMING CALL ..............10 2.1.1 Ring Assignment....................10...
  • Page 3 IP LDK-20 Programming Manual Table of Contents 2.4.1 Absent Text Message....................59 2.4.1.1 Custom Message......................59 2.4.1.2 Pre-selected Message ......................60 2.4.2 Alarm ........................62 2.4.3 Automatic Privacy ....................63 2.4.4 BGM (Background Music)..................64 2.4.5 Camp-on .......................65 2.4.6 Change Ring Type ....................66 2.4.7 Data Line Security ....................67 2.4.8 Dialing Security.....................68...
  • Page 4 IP LDK-20 Programming Manual Table of Contents 2.6.6 UCD Group(Unified Call Distribution Group)............114 2.6.7 ACD (Automatic Call Distribution) ...............115 2.7 CONFERENCE FEATURE................116 2.7.1 Conference – SLT (BROKERS Call) ..............118 2.7.2 Paging Conference .....................119 2.7.3 Conference Room....................120 2.8 PAGING FEATURE................... 121 2.8.1 Internal page / External page / All-Call page / Meet-me Page ......121...
  • Page 5 IP LDK-20 Programming Manual Table of Contents 2.14.8 MSN/Sub-Addressing ..................169 2.14.9 ISDN - CALL HOLD/RETRIEVE ...............171 2.14.10 ISDN – BROKER CALL ..................172 2.14.11 ETSI Conference.....................173 2.14.12 ISDN – Supplementary Service with Italy national protocol ......174 2.14.12.1 ISDN – Call Barring (Italy national protocol) – ATD only ..........174 2.14.12.2...
  • Page 6 IP LDK-20 Programming Manual Table of Contents 3.6.1 Location PGM-Nation code & Site Name (PGM100) ..........237 3.6.1.1 Nation Code ........................237 3.6.1.2 Site Name .......................... 237 3.6.2 RACK SLOT ASSIGNMENT (PGM 101) ............239 3.6.3 WTIB PORT NUMBER ASSIGNMENT (PGM 102)...........239 3.6.4 LOGICAL SLOT ASSIGNMENT (PGM 103) .............240...
  • Page 7 IP LDK-20 Programming Manual Table of Contents 4.1.3.3 CO Call Time Restriction ....................258 4.1.3.4 Individual CO Line Access ....................259 4.1.3.5 CO Line Queuing........................ 259 4.1.3.6 CO PGM ..........................259 4.1.3.7 PLA 260 4.1.3.8 Prepaid Call........................260 4.1.3.9 Speed Dial Access......................260 4.1.3.10 Two-way Record.......................
  • Page 8 IP LDK-20 Programming Manual Table of Contents 4.1.11.1 ICM Tenancy Group Attendant assign................283 4.1.11.2 ICM Tenancy Group Access ....................283 4.1.12 ICM PRESET CALL FORWARD (PGM 121) ..........284 4.1.13 IDLE LINE SELECTION(PGM 122) ..............284 4.1.14 SMDR ACCOUNT GROUP (PGM 124) ............285 4.1.15 COPY DSS BUTTON (PGM 125) ..............285...
  • Page 9 IP LDK-20 Programming Manual Table of Contents 4.2.7.2 Outgoing prefix code Insertion .................... 307 4.2.7.3 ISDN Line Type ........................308 4.2.7.4 Calling Sub-address ......................308 4.2.7.5 DID Digit Receive No......................308 4.2.7.6 DID Digit Mask ........................309 4.4 SYSTEM DATA PROGRAMMOMG ..............310 4.4.1 SYSTEM ATTRIBUTE - •...
  • Page 10 IP LDK-20 Programming Manual Table of Contents 4.4.7 CO-TO-CO COS (PGM 166) ................329 4.4.7.1 Day COS..........................329 4.4.7.2 Night / Weekend COS ......................329 4.4.8 DID/DISA DESTINATION (PGM 167) ...............330 4.4.8.1 Busy Destination ........................ 330 4.4.8.2 Error Destination ........................ 330 4.4.8.3 No Answer Destination .......................
  • Page 11 IP LDK-20 Programming Manual Table of Contents 4.4.18.14 SMDR Long Distance Codes ..................357 4.4.18.15 MSN PRINT ON SMDR ....................357 4.4.18.16 PRINT CALLER NUMBER....................358 4.4.19 SYSTEM TIME/DATE SETTING (PGM 178) ..........359 4.4.19.1 System Time ........................359 4.4.19.2 System Date........................359 4.4.20 LINKED STATION PAIRS TABLE (PGM 179)..........360...
  • Page 12 IP LDK-20 Programming Manual Table of Contents 4.5.3.4 SLT Ring Phase Timer......................379 4.5.3.5 Station Auto Release Timer....................379 4.5.3.6 Unsupervised Conference Timer..................379 4.5.3.7 Wake-Up Fail Ring Timer....................380 4.5.3.8 Warm Line Timer ........................ 380 4.5.3.9 Wink Timer ......................... 380 4.5.3.10 Enblock Digit Timer......................
  • Page 13 IP LDK-20 Programming Manual Table of Contents 4.8.1.5 Time Zone of Day Zone3 ....................421 4.8.2 LEADING DIGIT TABLE (PGM 221) ..............422 4.8.2.1 LCR Type ........................... 422 4.8.2.2 LCR Code .......................... 423 4.8.2.3 DMT index(Day Zone 1) ..................... 423 4.8.2.4 DMT index(Day Zone 2) ..................... 424 4.8.2.5 DMT index(Day Zone 3) .....................
  • Page 14 IP LDK-20 Programming Manual Table of Contents 4.10.4.5 Reroute Destination......................449 4.10.5 SYSTEM SPEED ZONE (PGM 232) ..............450 4.10.5.1 Speed Bin Range in Zone....................450 4.10.5.2 Station Range to Access Zone ..................450 4.10.5.3 Toll Checking........................451 4.10.5.4 Authorization Check......................451 4.10.6 WEEKLY TIME TABLE (PGM 233) ..............452...
  • Page 15 IP LDK-20 Programming Manual Table of Contents 4.13.2.1 RSG Number........................472 4.13.2.2 IP Phone No........................472 4.13.3 RSG / IP Phone ATTRIBUTE (PGM 382) ............473 4.13.3.1 Transfer Mode ........................473 4.13.3.2 Casting Mode ........................473 4.13.3.3 Tone Source ........................473 4.13.3.4 Peer to Peer ........................
  • Page 16 IP LDK-20 Programming Manual Table of Contents 5.1.2 Station Programming ..................502 5.1.3 Attendant Programming ..................503 5.1.4 Flexible Button Programming Code ..............504 ADMIN PROGRAMMING INDEX..............505 DEFAULT VALUES..................508 5.3.1 LOCATION PROGRAM ..................508 5.3.2 RACK SLOT ASSIGNMENT ................508 5.3.3 WTIB PORT NUMBER ASSIGNMENT ...............508 5.3.4 LOGICAL SLOT ASSIGNMENT................509...
  • Page 17: Abbreviations And Keywords Table

    IP LDK-20 Programming Manual Abbreviation and Keywords Table Abbreviations and Keywords Table Abbreviation / Keywords Full Spelling Description [CALLBK] or [CB] or [CALLBACK] The fixed button for the call back function. [CONF] The fixed button for the conference function. [DND] or [FWD] or [CFW] or [FOR] or The fixed button for the DND and call forward function.
  • Page 18 IP LDK-20 Programming Manual Abbreviation and Keywords Table Abbreviation / Keywords Full Spelling Description Back Ground Music The software service of providing BGM through the station speaker. Busy Lamp Field The software service of presentation of the network station status via button LED.
  • Page 19 IP LDK-20 Programming Manual Abbreviation and Keywords Table Abbreviation / Keywords Full Spelling Description Connected Line Identification COLP The software service of the answerer's CLI display. Presentation Connected Line Identification COLR Prohibit the transmission of answerer's CLI. Restriction CONP Connected Line Name Presentation The software service of the answerer's name display.
  • Page 20 IP LDK-20 Programming Manual Abbreviation and Keywords Table Abbreviation / Keywords Full Spelling Description Do Not Disturb The software service of prohibiting the call receiving. Dialed Number Identification Service The CLI service protocol of R2-DCO line. DNIS Domain Name System Domain Name System of the Internet protocol.
  • Page 21 IP LDK-20 Programming Manual Abbreviation and Keywords Table Abbreviation / Keywords Full Spelling Description Telephone that is served as keyphone terminal. Keyset DKTU, SLT, ISDN Phone, IP Phone, ICM Box, etc. Local Area Network LAN protocol. Loud Bell Control The software service of serving the external loud bell device.
  • Page 22 IP LDK-20 Programming Manual Abbreviation and Keywords Table Abbreviation / Keywords Full Spelling Description PABX Private Automatic Branch Exchange The private switch system or network. Paging Conference The software service of one way speech conference. PC ADMIN (program) ADMIN program mode via IP LDK PC application software.
  • Page 23 The hunt group that the call is distributed to voice mail device. VMIB Voice Mail Interface Board IP LDK hardware board to serve the voice mail service. VOIB ( VOIM in IP LDK-20) Voice Over IP Interface Board IP LDK hardware board to serve the voice over IP. Weekly Time Table The table that is saved the day working time and work finish time during week.
  • Page 24: Section 1. Introduction

    IP LDK-20 Programming Manual System Feature Section 1. Introduction This programming manual is designed to provide as general features for the IP LDK-20 System. It also explains the procedure of ADMIN Programming of the IP LDK-20 System using DKTU and PC.
  • Page 25: Manual Usage

    IP LDK-20 Programming Manual System Feature 1.2 Manual usage As you can see from the introduction, this manual is divided into 6 parts. Abbreviation table Before getting started, you understand the terms and abbreviations in contents. Therefore we summarized the abbreviations and keyword table using this programming manual on first page.
  • Page 26: Section 2. System Feature

    IP LDK-20 Programming Manual System Feature Section 2. System Feature 2.1 How to get incoming call 2.1.1 Ring Assignment Description If there is an incoming call through CO Line which is ring assigned, the pre-assigned destination gets the call. The destination can be Station, Hunt Group(see Ref.1), or VMIB announcement(see Ref.2).
  • Page 27 IP LDK-20 Programming Manual System Feature Make Hunt group 620 ring at the incoming call from CO Line 1~8 at Night Mode. 1. Check if CO Service type is set to Normal at ADMIN 140. 2. Check if Hunt group 620 is assigned properly at ADMIN 190.
  • Page 28: Pla (Preferred Line Answer)

    IP LDK-20 Programming Manual System Feature 2.1.2 PLA (Preferred Line Answer) Description If PLA service is enabled and there’re several incoming CO Calls(type of Transferred Call, Recalled Call, queued Call, and Normal Incoming Call) at the same time, the first answered Call is chosen by PLA priority.
  • Page 29: Did(Direct Inward Dialing)

    IP LDK-20 Programming Manual System Feature 2.1.3 DID(Direct Inward Dialing) Description This feature allows CO incoming calls to access to specific destination. There is no relation with Attendant, and this feature enables direct access to desired station, Hunt group, VMIB announcement, Speed, and Page.
  • Page 30 IP LDK-20 Programming Manual System Feature 1. Check if DID Digit Receive number is set to 3 at ADMIN 146. 2. Set DID Conversion Type as 2 (using Flexible DID Table) at ADMIN 143 – FLEX 4. 3. Program Flexible DID Table as below at ADMIN 231.
  • Page 31 IP LDK-20 Programming Manual System Feature [Flow chart] RING ON or SETUP DID LINE ? DIGIT INPUT ISDN LINE ? Is there the matched format ADMIN202 MSN TBL? 1.CO&Called No 2. Called No ADM 143 (DID_RM) ? ADM 201 Ignore digit until DID_RM...
  • Page 32: Disa(Direct Inward System Access)

    IP LDK-20 Programming Manual System Feature 2.1.4 DISA(Direct Inward System Access) Description This feature allows CO incoming calls to access to specific destination without attendant’s answering. Compared with DID(see Ref.1), there is no digit conversion in DISA. On seizing incoming CO Line, system gives VMIB announcement(see Ref.2) or dial tone. Then the caller dials additional digit to access desired destination.
  • Page 33 IP LDK-20 Programming Manual System Feature Admin Programming n DISA Line Assignment 4.2.1.3 (PGM 140 – FLEX 2) n DISA Account Code 4.2.2.3 (PGM 141 – FLEX 3) n DISA Retry Counter 4.4.1.4 (PGM 160 – FLEX 4) n CO to CO COS Assignment 4.4.7 (PGM 166) n Weekly Time Table 4.10.6 (PGM 233)
  • Page 34: Ccr(Customer Call Routing) With Vmib

    IP LDK-20 Programming Manual System Feature 2.1.5 CCR(Customer Call Routing) with VMIB Description CCR is incoming CO Call type of DISA/DID(see Ref.1, Ref.2), the user can route the destination by pressing only one digit. If user press a certain digit, corresponding VMIB announcement is played.
  • Page 35 IP LDK-20 Programming Manual System Feature To Program CCR Table as described at Figure 2.1.5, 1. Select CCR Table 01(match with VMIB announcement number) at ADMIN 228. 2. Press FLEX 1 to set Sales Dept. The Flexible button number should be same with the dialing digit number.
  • Page 36: Co Line Name

    IP LDK-20 Programming Manual System Feature 2.1.6 CO Line Name Description This feature assign name to each CO Line. The stations with LCD, including the attendant, display the programmed CO Line name in place of the ‘LINE XXX’ message. This is applied to all conditions where the ‘LINE XXX’ message is displayed. However, SMDR (see Ref.1) continues to print out the line number in place of the programmed name.
  • Page 37: Una (Universal Night Answer)

    IP LDK-20 Programming Manual System Feature 2.1.7 UNA (UNIVERSAL NIGHT ANSWER) Description If the CO Line is Programmed to UNA, user can pick up incoming CO Calls by dialing Night Answer code 569 (see Ref.1) regardless of the pick-up group.
  • Page 38: How To Access Outgoing Call

    IP LDK-20 Programming Manual System Feature 2.2 How to Access outgoing call 2.2.1 Basic access Description Each station is allowed or denied to access particular CO Lines or CO Groups. Station user may use flexible buttons which are assigned as a {CO} button or {CO Group} button including {POOL} button and {LOOP} button.
  • Page 39 2. Dial the individual CO Line, CO group access code, or the first CO Line access code from the accessible group. To access a CO Line Group, 1. The number of CO Group in IP LDK-20 is 8. 2. You can access a CO Group by dialing 8, 8 and the CO Group number(see Ref.1) Condition A DKTU should have an idle appearance (CO Line/Pool button/Loop button) to access an outgoing CO Line/incoming CO Line.
  • Page 40: Call Time Restriction

    IP LDK-20 Programming Manual System Feature 2.2.2 Call time restriction Description This feature is used to restrict an outgoing CO call time. In a station programming, user set the CO Call Drop Timer, the call will be disconnected automatically when the timer is expired. The caller and called parties will hear warning tone 15sec before the CO call is disconnected.
  • Page 41: Co Line Queuing

    IP LDK-20 Programming Manual System Feature 2.2.3 CO Line Queuing Description When station user receives a busy tone during an attempt to access a CO Line, the user may request a call back(queue). The station will receive a call back when the busy CO Line becomes available.
  • Page 42: Co Step Call - Analog Only

    IP LDK-20 Programming Manual System Feature 2.2.4 CO Step Call – Analog Only Description When a station receives a busy tone after accessing a CO Line, the user can dial a CO Line number which has the same first digits as the called busy CO Line without dialing the full number.
  • Page 43: Hot Line & Warm Line

    IP LDK-20 Programming Manual System Feature 2.2.6 Hot Line & Warm Line Description A station user can make an outgoing call by only going off-hook, if the user has previously stored the destination. The following figure 2.2.2 describes Hot Line / Warm Line operation. The destination can be CO Line / CO Line Group, the function which is set at Flexible button, or another station.
  • Page 44: Lcr (Least Call Routing)

    IP LDK-20 Programming Manual System Feature 2.2.7 LCR (Least Call Routing) Description LCR is a system programmable feature that is automatically selected the least expensive available route when an outgoing CO call is made. This programming eliminates the necessity for the user to dial the access code of the least expensive carrier.
  • Page 45 IP LDK-20 Programming Manual System Feature Internal LCR 1. Dial internal LCR code after lifting handset or pressing the [MON] button. On-hook dialing can also activate LCR call. 2. It is an internal LCR code if the code is programmed with internal or both in Leading Digit Table.
  • Page 46 IP LDK-20 Programming Manual System Feature User off-hook & Hear internal dial-tone Press CO access code Press CO Button or LOOP key or LOOP key when LCR Mode : M13 (LOOP LCR) (CO LCR) Hear real dial-tone Hear dummy dial-tone...
  • Page 47 IP LDK-20 Programming Manual System Feature Condition 1. There are 6 LCR modes. The mode is determined by ADMIN 220 – FLEX 1. - LCR Access Mode 00 (M00): LCR call is disabled. - LCR Access Mode 01 (M01): Only Loop LCR is activated.
  • Page 48 IP LDK-20 Programming Manual System Feature Admin Programming n LCR Attributes 4.8.1 (PGM 220) n LCR – LDT Table 4.8.2 (PGM 221) n LCR – DMT Table 4.8.3 (PGM 222) n LCR Table Initialization 4.8.4 (PGM 223) [LCR Admin Example] 1.
  • Page 49 IP LDK-20 Programming Manual System Feature 3. Situation 3 (make another co access code) IP LDK system has VOIP CO Lines and normal CO Lines. IP LDK system administrator wants to access VOIP CO using code ‘7’. and access normal CO Lines using code ‘9’ (let assume this is a default co access code) ADMIN 106 remove / change numbering plan which starts with ‘7’...
  • Page 50: Memory Dialing

    IP LDK-20 Programming Manual System Feature 2.2.8 Memory dialing 2.2.8.1 ACNR (Auto Call Number Redial) Description If Call destination is busy or no answer, Redialing is operated repeatedly within ACNR retry counter. The system will retry the number based on programming with appropriate pauses in between dialing.
  • Page 51: Last Number Redialing

    IP LDK-20 Programming Manual System Feature 2.2.8.2 Last Number Redialing Description The last dialed number with CO Line can be stored (up to 48 digits) in the station's Last Number Redial buffer. The user may request the system redial the last number without redialing the full number.
  • Page 52: Station Speed Dialing

    Station numbers are saved up to 24 digits including pauses, Flash commands, pulse-to-tone switchover, and no-display characters. A pause is automatically inserted after a flash. The station speed bin numbers of IP LDK-20 is 500. Operation To make a call using Station Speed Dial from a DKTU, 1.
  • Page 53 IP LDK-20 Programming Manual System Feature 7. If desired, enter the name (Max. 12 characters) by dialing 2-digit for each character. 8. Press the [HOLD/SAVE] button. *. To store continuously, repeat the above procedure from 3. To delete a Station Speed Dial bin, 1.
  • Page 54: System Speed Dialing

    Description The system speed dial bins are programmed by system attendant. These numbers are available for easy access by all stations allowed in the system. Max. system speed dial capacity is 500 in IP LDK-20. [Flow chart] Attendant Each Station...
  • Page 55 IP LDK-20 Programming Manual System Feature Station COS COS 1 There is no restriction to dial. COS 2 Monitored by Exception Table A. COS 3 Monitored by Exception Table B. COS 4 Monitored by Exception Table A & B. COS 5 Long distance call is not allowed.
  • Page 56: Private Line

    IP LDK-20 Programming Manual System Feature 4. If you dial an empty system speed bin, error tone will be heard. 5. If you select a CO Line before dialing system speed bin number, the selected CO Line is used though there is programmed CO Line in the system speed bin number.
  • Page 57: Rerouting Feature

    IP LDK-20 Programming Manual System Feature 2.3 Rerouting feature 2.3.1 Call Forward Description A station user can forward calls to any station, station group or VMIB in the system, by activating feature codes. Figure 2.3.1 Describes destination types of Call Forwarding. Each Call forwarding is decided by Call Forward type.
  • Page 58: Call Forward, Unconditional

    IP LDK-20 Programming Manual System Feature 2.3.1.1 Call Forward, Unconditional Description A user forwards all calls immediately to other station, Hunt Group or VMIB. Operation To activate Unconditional Call Forward, 1. Lift the Handset or press the [MON] button. 2. Press the [DND/FOR] button.
  • Page 59: Call Forward, No Answer

    IP LDK-20 Programming Manual System Feature To activate Call Forward, 1. Press the assigned flexible button. 2. The LED of [DND/FOR] button is flashing and the function assigned to the flexible button is activated. To activate Call Forward to VMIB, 1.
  • Page 60: Call Forward, Busy/No Answer

    IP LDK-20 Programming Manual System Feature To activate Call Forward, 1. Press the assigned flexible button. 2. The LED of [DND/FOR] button is flashing and the function assigned to the flexible button is activated. To deactivate Call Forward, 1. Lift the handset or press the [MON] button.
  • Page 61: Call Forward, Station Off-Net (Unconditional, No Answer)

    IP LDK-20 Programming Manual System Feature 2.3.1.5 Call Forward, Station Off-net (Unconditional, No answer) Description Stations allowed call forward access can forward intercom and transferred CO Line calls to a directory number (telephone number) outside of the system. When a call is received, the system will access an outgoing CO Line and dial the telephone number entered by the user.
  • Page 62: Call Forward, Follow Me

    IP LDK-20 Programming Manual System Feature Operation To activate Follow-me Call Forward from any station, 1. Lift the handset or press the [MON] button. 2. Press the [DND/FOR] button. 3. Dial Call Forward code ‘7’. 4. Dial CO Line/group access code (9, 801-8xx, 8801-88xx, or 8* for all CO Lines) or press {CO Line} button.
  • Page 63: Slt Call Forward

    IP LDK-20 Programming Manual System Feature To deactivate Follow-me Call Forward from the station, (only the user's station, not at any other station) 1. In idle state; Press the [DND/FOR] button. 2. In off-hook state, Press the [DND/FOR] button and dial #.
  • Page 64: Preset Call Forward

    IP LDK-20 Programming Manual System Feature Condition 1. Call forward is maintained until it is released. 2. A call cannot be forwarded to a station which is in DND. When trying to forward to the station, error tone will be heard.
  • Page 65: Did/Disa Reroute Destination (Uk Only)

    IP LDK-20 Programming Manual System Feature 2.3.1.10 DID/DISA Reroute Destination (UK only) Description DID calls can be rerouted by no answer forward/CCR. In this case, if rerouted destination is busy/no answer/error case, calls follows by second reroute destination(PGM 167-Flexible button5,6,7) Condition 1.
  • Page 66: Call Transfer

    IP LDK-20 Programming Manual System Feature 2.3.2 Call Transfer Description An Intercom Call or CO Call can be transferred to other station or CO Line during conversation. There are 2 kinds of call transfer ; Screened Transfer and Unscreened Transfer.
  • Page 67: Call Transfer To Station

    IP LDK-20 Programming Manual System Feature Screened CO Line Call Transfer; 1. Press the [TRANS/PGM] button. 2. Intercom dial tone is heard and the previous call is placed on hold. 3. Seize a CO Line and dial the number of external party to receive the call.
  • Page 68 IP LDK-20 Programming Manual System Feature 3. Dial the station number to receive the transfer. 4. Replace the handset or go on-hook. To make a screened transfer by DKTU, 1. Press the [TRANS/PGM] button. 2. Intercom dial tone is heard and the previous call is placed on exclusive hold.
  • Page 69: Holding And Parking

    IP LDK-20 Programming Manual System Feature 2.3.3 Holding and Parking Description A station user can hold a call. The following features are available depending on the result. Feature Description Any Station can retrieve a held call. System Hold Other station in the group can seize the CO Line and answer.
  • Page 70: Hold Preference

    IP LDK-20 Programming Manual System Feature Reference 1. System Hold Code : 3.6.7 (ADMIN106 – FLEX 17) 2. Held Individual CO Line Code : 3.6.7 (ADMIN107 – FLEX 11) 3. Access Held CO Group Code : 3.6.7 (ADMIN107 – FLEX 10) Admin Programming n Hold Preference 4.4.1.8 (PGM 160 –...
  • Page 71: Automatic Hold

    IP LDK-20 Programming Manual System Feature 2.3.3.3 Automatic Hold Description When a station is connected to a CO Call, the station user can make another intercom call just by pressing DSS button. In this case, the previous CO Call is held automatically.
  • Page 72 IP LDK-20 Programming Manual System Feature Condition 1. To receive the parked call, the station should have {CO} button or {LOOP} button. Reference 1. Call Park Location Code : 3.6.7 (ADMIN107 – FLEX 5) Admin Programming n Call Park Recall Timer 4.5.1.2 (PGM 180 – FLEX 2)
  • Page 73: Pickup

    IP LDK-20 Programming Manual System Feature 2.3.4 Pickup Description A station user can pick up other station’s call. In intercom Calls, incoming CO Calls, recalling CO Calls and transferred CO Calls can be picked up instead of the ringing station.
  • Page 74: Group Call Pick Up

    IP LDK-20 Programming Manual System Feature Reference 1. Intercom Tenancy Group : 2.4.15 2. Pick up Attribute : 4.7.1.2 3. Direct Call Pick up Code : 3.6.7 (ADMIN107 – FLEX 6) Admin Programming n PLA Priority Setting 4.4.14 (PGM 173) - Pick-up Priority 2.3.4.2 Group Call Pick Up...
  • Page 75: Call Handling

    IP LDK-20 Programming Manual System Feature 2.4 Call Handling 2.4.1 Absent Text Message Custom Message Description Each station can select from ten(11~20) possible custom message to display on the LCD of DKTU. These messages are programmed from the system attendant(see Ref.1) for system-wide use.
  • Page 76: Pre-Selected Message

    IP LDK-20 Programming Manual System Feature To activate LCD Messages (Custom/Pre-selected) from a station or from the system attendant, Press the [TRANS/PGM] button. 2. Dial 5 1. 3. Dial the 2-digit message code 00 or 11~20. 4. Press the [HOLD/SAVE] button.
  • Page 77 IP LDK-20 Programming Manual System Feature To activate LCD Messages (Custom/Pre-selected) from a station or from the system attendant, Press the [TRANS/PGM] button. 2. Dial 5 1. 3. Dial the 2-digit message code 00 or 01~10. 4. Press the [HOLD/SAVE] button.
  • Page 78: Alarm

    IP LDK-20 Programming Manual System Feature 2.4.2 Alarm Description The system can be programmed to recognize the status of an external contact (normally open or closed) from a relay. When activated, the system will signal programmed stations with a single tone repeated per 1-min.
  • Page 79: Automatic Privacy

    IP LDK-20 Programming Manual System Feature 2.4.3 Automatic Privacy Description By default, all conversation which take place on CO lines, intercom, and conference are protected by privacy(Automatic privacy) Automatic privacy allows a station user to suspend automatic privacy for an existing CO line conversation without invitation.
  • Page 80: Bgm (Background Music)

    IP LDK-20 Programming Manual System Feature 2.4.4 BGM (Background Music) Description A user can listen to BGM through the speaker while on-hook and idle. Music from the source is heard over the station speaker and will be shut-off during ringing, paging announcement or when the station is off-hook.
  • Page 81: Camp-On

    IP LDK-20 Programming Manual System Feature 2.4.5 Camp-on Description When a user calls a busy station, busy tone is heard and the user can give a signal to the busy station. The busy station (off-hook or on speakerphone) is notified of the call waiting by a camp-on tone and flashing LED of the [HOLD/SAVE] button.
  • Page 82: Change Ring Type

    IP LDK-20 Programming Manual System Feature 2.4.6 Change Ring Type Description The ring tone signal used to notify stations of an incoming call can be changed in ADMIN programming to provide distinctive ringing on per CO line basis. A distinctive ring tone can be programmed for each CO line that is used to ring each station.
  • Page 83: Data Line Security

    IP LDK-20 Programming Manual System Feature 2.4.7 Data Line Security Description Once Data Line Security(ADMIN program 111 – FLEX 4) is set on an station, communication between the station and the other party is protected from signals such as overriding, Camp-on to the station(see Ref.1).
  • Page 84: Dialing Security

    IP LDK-20 Programming Manual System Feature 2.4.8 Dialing Security Description The dialed phone number may not be displayed on the LCD of called station in calling with a speed dial(see Ref.1) Operation To activate Dialing Security in calling with a speed dial If pressing ‘•’...
  • Page 85: Dnd(Do Not Disturb)

    IP LDK-20 Programming Manual System Feature 2.4.9 DND(Do Not Disturb) Description Placing a station in DND eliminates incoming outside line ringing, intercom calls, transfers and paging announcements. While in DND, the station will not receive ring for CO lines. The Attendant can override a station in DND(see Ref.1).
  • Page 86: Dnd - One Time Dnd

    IP LDK-20 Programming Manual System Feature 2.4.10 DND - One Time DND Description One Time DND allows a station user to turn off muted ringing that occurs while off hook(handset or [MON]) on another call. Useful when having an important conversation and do not wish to be disturbed by ringing.
  • Page 87: Flash

    IP LDK-20 Programming Manual System Feature 2.4.11 Flash Description CO Flash Provides station users with the ability to terminate an outside call or transfer a call behind a key phone system and restore dial tone without hanging up. A [FLASH] button is located on each DKTU.
  • Page 88: Flexible Button

    IP LDK-20 Programming Manual System Feature 2.4.12 Flexible Button Description Flexible buttons are customized by either ADMIN or station programming. The list of programmable functions are summarized below: Ø CO Line – Automatically accesses assigned line.(User Programmable) Ø DSS/BLF – Automatically signal assigned station and provides BLF for off-hook and DND.(User Programmable)
  • Page 89 IP LDK-20 Programming Manual System Feature Condition 1. A flexible button that is not assigned as {CO Line} button is considered as “Feature” button and is programmable at each station. When ADMIN program 112 - FLEX 6 (CO Line Programming) is enabled, the flexible button that is assigned as {CO line} button can be programmed.
  • Page 90: Headset

    IP LDK-20 Programming Manual System Feature 2.4.13 Headset Description An industry standard headset can be connected to a station instead of handset. The station is programmed for headset operation in place of speakerphone operation. A user can use headset instead of handset to make or answer a call.
  • Page 91: Intercom Signal Mode

    IP LDK-20 Programming Manual System Feature 2.4.14 Intercom Signal Mode Description Users can control the method by which they receive intercom calls and signals. stations equipped with the speakerphone can select one from the 3 signaling modes as below; HF - Call announcing with hands free answer-back The station user, upon hearing a tone burst and voice announcement over the speaker, can reply hands free.
  • Page 92: Intercom Tenancy Group

    CO group to use. Maximum 5 Intercom Tenancy Groups can be assigned in the IP LDK-20. Each group can be assigned with attendant(intercom tenancy group attendant) and can be programmed to allow or deny calls to other groups (allowed access groups).
  • Page 93 IP LDK-20 Programming Manual System Feature The figure 2.4.15 describes that when a call to other intercom tenancy group is not allowed, CO line call or Station call, pick-up or transfer cannot be activated and each group will be operated as different system.
  • Page 94: Message Wait / Call Back

    IP LDK-20 Programming Manual System Feature 2.4.16 Message Wait / Call Back Description Message Wait A station user can notify another station user that he wishes to talk to the user. The notified station user can return the call or the message left on the station. when responding to the station, the user can answer the message left on the station in sequential order.
  • Page 95 IP LDK-20 Programming Manual System Feature To leave a call back to a busy SLT, 1. Make hook flash. 2. Dial 5 5 6 while busy tone is heard. 3. Confirmation tone is heard and replace the handset. 4. When the SLT becomes idle state, intercom ring is received.
  • Page 96: Moh (Music On Hold)

    IP LDK-20 Programming Manual System Feature 2.4.17 MOH (Music On Hold) Description When a CO call is placed on hold (system, exclusive, transfer, conference, etc), the external party will hear music. In this way, the CO line party can be notified that the connection is still established.
  • Page 97: Slt Moh

    IP LDK-20 Programming Manual System Feature 2.4.17.1 SLT MOH Description When a CO line call is placed in the hold state (system, exclusive, transfer, conference, etc), the external party will hear music. In this way, the CO line party can be notified that the connection is still established.
  • Page 98: Mute

    IP LDK-20 Programming Manual System Feature Condition VMIB MOH message should be recorded before setting VMIB MOH as system MOH source. While attendant operates system greetings and prompt including VMIB MOH, VMIB MOH is stopped. When VMIB MOH is used as system MOH, 1 port of VMIB should be always reserved for MOH even though MOH is not used.
  • Page 99: Mwi (Message Wait Indication) - Slt Feature

    IP LDK-20 Programming Manual System Feature 2.4.19 MWI (Message Wait Indication) – SLT Feature Description If the SLT station that has the message wait indication lamp receives message from another users, then the lamp of SLT will flash. It indicates that it has the waiting message.
  • Page 100: Station Name

    IP LDK-20 Programming Manual System Feature 2.4.21 Station Name Description The system will allow station users to dial station numbers by entering a name that has been programmed for the station (intercom). Also each station may be assigned with a name up to 7 characters and speed dial (system and station) number may be assigned with a name of up to 16 characters.
  • Page 101 IP LDK-20 Programming Manual System Feature 3. Entering another alpha-numeric data, then LCD will display names started with the updated input. It will be continued until you stops entering the character. 4. When the matched name is displayed, move the cursor to the name (The cursor points to the first name in the LCD) and press [HOLD/SAVE] button to make a call.
  • Page 102: Station Program

    IP LDK-20 Programming Manual System Feature 2.4.22 Station Program Description The system supports multiple hierarchical menus based on station programming. User can make station programming by selecting desired menu. Attendant also can make station programming and attendant programming with the same way. (Ref.1) 2.4.22.1 Station Program Menu...
  • Page 103 IP LDK-20 Programming Manual System Feature Operation To enter programming mode, Press the [TRANS/PGM] button. You may find the following menu;(Description : 2.4.22.1) To search other programming menu, 1. With [UP]/[DOWN] key, you can search the previous/next menu. To select a menu, 1.
  • Page 104: Station Relocation

    IP LDK-20 Programming Manual System Feature 2.4.23 Station Relocation Description The Station Relocation Feature lets a user unplug their station and plug it into another location. Dialing a code followed by the old station number brings all the station attributes including station number, button mapping, speed dial, and class of service(see Ref.3) to the new location.
  • Page 105: Station Serial Call

    IP LDK-20 Programming Manual System Feature 2.4.24 Station Serial Call Description With DSS flexible buttons, users can place consecutive intercom calls without the need for regaining intercom dial tone (no need to hang-up) between calls. The user can simply press the appropriate DSS flexible button.
  • Page 106: Voice Over

    IP LDK-20 Programming Manual System Feature 2.4.26 Voice Over Description This feature provides voice announcements for a busy station without interrupting the existing conversation. The announcement is received over the existing conversation so that only the busy station hears both incoming parties. The user can talk back to other party and alternate conversation between the parties.
  • Page 107: Wakeup

    IP LDK-20 Programming Manual System Feature 2.4.27 Wakeup Description Each attendant or station user can set an alarm for any time as a wake-up call or reminder. This feature can be programmed to activate only once or daily. If the user goes off-hook during the alarm, he hears special dial tone.
  • Page 108: Automatic Fax Transfer

    IP LDK-20 Programming Manual System Feature Admin Programming n Wake-up Fail Ring Timer 4.5.3.7 (PGM 182 - FLEX 7) 2.4.28 Automatic Fax Transfer Description The system can determine if an incoming call from the preprogrammed CO line is for FAX (facsimile) or for speech terminal by detecting the tone of the call (1100Hz, 0.5s ON/3s OFF repeated).
  • Page 109: Mobile Extension

    IP LDK-20 Programming Manual System Feature 2.4.29 Mobile Extension Description A mobile user is able to use the phone as extension of IP LDK system. So he can receive the incoming call and make the outgoing call when a user registers the mobile phone number to IP LDK system.
  • Page 110: Extend Co-To-Co Connection

    IP LDK-20 Programming Manual System Feature 2.4.30 Extend CO-to-CO connection When call is made between two analog CO lines by DISA or Off-net call forward, the call duration is limited by unsupervised conference timer. After the unsupervised conference timer, the call is dropped by IP LDK system.
  • Page 111: Forced Hands Free Mode

    IP LDK-20 Programming Manual System Feature 2.4.31 Forced Hands free Mode Description A DKTU caller can change the answer mode of called party DKT temporary.(tone mode -> hands free mode ) Operation To activate forced hands free mode. Call to DKT which is a tone mode.
  • Page 112: Hot Desk

    (Total number of hot-desk user = 26(26 : From the total number of station 28, last station port is used for modem and one extra port is reserved)) For example in IP LDK-20; If DTIB8 is installed, the total station number installed are 16, then maximum number of hot- desk User is 10 ( 26 –...
  • Page 113 IP LDK-20 Programming Manual System Feature 11. Modem associated station cannot log in. (which is set at PGM [170]) 12. When system reset happens, all login agents are logout automatically. 13. The Agent can’t be the slave station of linked pair stations.
  • Page 114: Analogue Cli Display

    System Feature 2.4.33 Analogue CLI Display Description IP LDK-20 system supports Type I CID protocol of following specifications. -. Bellcore GR-30-CORE & SR-TSV-002476 & ETSI ETS 300 659, ETSI ETS 300 778 -. Denmark, TDK-TS 900 216 -. UK, BT SIN 227 & SIN 242 -.
  • Page 115: Call Log

    IP LDK-20 Programming Manual System Feature 2.4.34 Call Log Description The call log feature enables the LDP series or LKD series user to view a log of the last (15-50) incoming and outgoing calls. The user can scroll the list of numbers stored, select the desired number and activate a redial to that number.
  • Page 116 3. In case a user program ‘call log list number’, all call log database will be initialized. 4. Maximum call log list per system is 500 for IP LDK-20. 5. The system assigns the call log list from the physical port 1 in order.
  • Page 117: Call Barring Feature

    IP LDK-20 Programming Manual System Feature 2.5 Call Barring Feature 2.5.1 Account Code Description An account code is used to identify outgoing call for accounting and billing purposes, the account code is appended to SMDR Call record. So company use account code for each station user so that the company can determine what calls were made for station users, and can submit a bill to the station users according to the station user’s account code on the SMDR call record.
  • Page 118: Authorization Code

    3. If valid, the CO line is connected and if not valid, you will hear error tone. Condition 1. The total number of authorization code in the system is 200 for IP LDK-20. 2. The same authorization code cannot be assigned.
  • Page 119: Automatic Call Release

    IP LDK-20 Programming Manual System Feature 2.5.3 Automatic Call Release Description When a station does not initiate dialing on an outgoing CO line or receive no answer on an intercom call, the system will return the CO line or the called station to idle based on the assigned Auto Release Timer(ADMIN program 180 –...
  • Page 120: Cos (Class Of Service)

    IP LDK-20 Programming Manual System Feature 2.5.4 COS (Class Of Service) Description Each station and CO line may be assigned to have different class to allow or restrict call service. The level of COS assignments are programmed to each station and CO line. Applied dialing restrictions are the result of the interaction of COS assignments as shown below.
  • Page 121 IP LDK-20 Programming Manual System Feature CO COS Ø COS 1 There is no restriction. Monitored by STA COS. COS 2 Monitored by Exception Table A & STA COS 2/4. COS 3 Monitored by Exception Table B & STA COS 2/4.
  • Page 122: System Speed Zone

    IP LDK-20 Programming Manual System Feature Admin Programming n Station COS 4.1.7 (PGM 116) n CO line COS 4.2.2.2 (PGM 141 – FLEX 2) n CO to CO COS 4.4.7 (PGM 166) n Toll Exception Table 4.9.1 (PGM 224) n Canned Toll Exception Tables 4.9.2 (PGM 225) n Incoming Toll Check 4.4.2.16 (PGM 161 –...
  • Page 123: Walking Cos

    IP LDK-20 Programming Manual System Feature 2.5.6 Walking COS Description This feature allows to temporarily override toll restriction and makes a toll call from toll restricted phone. It is activated by entering a feature code or pressing programmed {Walking COS} flexible button and the authorization code before accessing a CO line.
  • Page 124: Hunt Group

    IP LDK-20 Programming Manual System Feature 2.6 Hunt Group Description Stations can be grouped so that incoming calls may be routed to an idle station in the group. The number of Hunt group and the number of station in a group as follows;...
  • Page 125: Common Features For Hunt Group

    IP LDK-20 Programming Manual System Feature 2.6.1 Common features for Hunt Group The common features for hunt group are as followings: [ VMIB announcement ] IP LDK system supports first and secondary VMIB announcements for hunt group. When a call is arrived to hunt group, pre-assigned VMIB announcement will be played to the caller, if VMIB announcement is set and its timer is expired.
  • Page 126 IP LDK-20 Programming Manual System Feature 12. When the number of queued incoming calls are over the pre-defined in UCD group, the incoming CO calls will be dropped. If alternative destination is set and all members are busy, incoming calls are not queued.
  • Page 127: Terminal Group

    IP LDK-20 Programming Manual System Feature 2.6.2 Terminal Group Calls to a station in the group or a pilot number will go to the first station in the group. If unanswered or unavailable, the call proceeds to the next listed station in the group. The call will continue to be rerouted until reaching the last station in the group where the call will remain or can be sent to an overflow station/group.
  • Page 128: Circular Group

    IP LDK-20 Programming Manual System Feature 2.6.3 Circular Group In Circular Hunt, calls to a station in the group or a pilot number will go to the station or an idle station in the group. If unavailable or unanswered in the hunt no answer time, the call is directed to the next station in the group.
  • Page 129: Ring Group

    IP LDK-20 Programming Manual System Feature 2.6.4 Ring Group All the stations in the group receive ring simultaneously for a call of Hunt group until one of stations received ring answers the call. If call is not answered until overflow timer, it will be sent to an overflow destination, if assigned.
  • Page 130: Ucd Group(Unified Call Distribution Group)

    IP LDK-20 Programming Manual System Feature 2.6.6 UCD Group(Unified Call Distribution Group) Calls are sent to the group by dialing the pilot number (Hunt group Number) or assigning CO lines to directly terminate to the group. Calls are directed to the station in the group that has been idle for the longest time.
  • Page 131: Acd (Automatic Call Distribution)

    IP LDK-20 Programming Manual System Feature 2.6.7 ACD (Automatic Call Distribution) Description A separate supervisor or common supervisor can be assigned in UCD group. And, the supervisor can monitor the status of the group. When a call is queued to a group for longer than a predefined time or when a predefined number of calls are queued, the supervisor's LCD will indicate the number of calls in queue, and the queued time for the longest queue.
  • Page 132: Conference Feature

    IP LDK-20 Programming Manual System Feature 2.7 Conference Feature Description A station user(Supervisor) can make a call with intercom stations and CO Lines. Supervisor invite station user or CO Line user one by one with [CONF] button. Connected users can speak and hear with each other at the same time.
  • Page 133 (Default: 10min) 2. The Unsupervised Conference timer will be reset if the internal party re-enters the conference. 3. Max. 3 parties (internal/external) can enter a conference in IP LDK-20. But 3 parties can be members for conference.
  • Page 134: Conference - Slt (Brokers Call)

    IP LDK-20 Programming Manual System Feature 2.7.1 Conference – SLT (BROKERS Call) Description A single line telephone user can initiate a 3-way conference with any combination of CO line or internal users. A single line telephone user can alternate between two calls maintaining private conversations with both parties.
  • Page 135: Paging Conference

    IP LDK-20 Programming Manual System Feature 2.7.2 Paging Conference Description During the Paging by conference page zone(at this manual, Paging means broadcast to pre-assigned destination), second originator can page with first originator together. It is possible for any paged station user to be the second page originator by off-hook and pressing the [CONF] button. SLT users...
  • Page 136: Conference Room

    IP LDK-20 Programming Manual System Feature 2.7.3 Conference Room Description This feature allows internal users or CO callers to join a conference without being invited by the conference supervisor. This conference feature has the conference join codes, and each conference room has an own join code (room number).
  • Page 137: Paging Feature

    IP LDK-20 Programming Manual System Feature 2.8 Paging feature 2.8.1 Internal page / External page / All-Call page / Meet-me Page Description Stations can individually be allowed or denied the ability to make pages. This applies to all internal zone paging and all external zone paging. A station denied access to paging may still answer a Meet- Me Page announcement.
  • Page 138 IP LDK-20 Programming Manual System Feature Condition 1. When external paging is required, appropriate external equipment should be attached to the proper external page connections on the MBU. 2. A station which is in DND or busy, it cannot receive a page.
  • Page 139: Pre-Recorded Msg

    IP LDK-20 Programming Manual System Feature 2.8.2 Pre-recorded MSG Description User can record VMIB message for paging. Operation To record VMIB paging message, 1. Press the [TRANS/PGM] button. 2. Dial 6 5. 3. You will hear the announcement “Press # button to record” If there is already a recorded message in the number dialed, the recorded message will be played.
  • Page 140: Sos Paging

    IP LDK-20 Programming Manual System Feature 2.8.3 SOS Paging Description The system allows of being recorded multiple VMIB messages for pre-recorded paging. Depending on circumstance, user can use pre-recorded messages for paging. Recorded VMIB message is paged to a page zone at emergency.
  • Page 141: Linked Stations

    IP LDK-20 Programming Manual System Feature 2.9 Linked Stations 2.9.1 Executive/Secretary Description Stations in the system can be assigned as Executive pairs and Secretary pairs. When an Executive station is busy or in DND(see Ref.1), intercom calls and transfer calls are automatically routed to the designated secretary.
  • Page 142 IP LDK-20 Programming Manual System Feature the next Secretary. 6. If an Executive has multiple secretaries, a secretary can forward a call to another secretary. But, secretary cannot forward a call to Executive. 7. If an Executive makes a call forward to non-secretary station, a call to Executive will be routed to assigned station(see Ref.4).
  • Page 143: Linked-Pair Station

    IP LDK-20 Programming Manual System Feature 2.9.2 Linked-Pair Station Description Two stations can be linked with each other by programming. Linking with a DKTU and a wireless terminal(DECT), the user can use them alternatively. When two stations are linked, the following functions are supported;...
  • Page 144 IP LDK-20 Programming Manual System Feature Ø If one station of linked pair goes to DND or call forward or pre-selected message display state(see Ref.3, Ref.4), then linked station goes to the same state automatically. Also, if any station in a linked pair comes out of this state, then the other comes out simultaneously.
  • Page 145: External Device Control

    IP LDK-20 Programming Manual System Feature 2.10 External Device Control 2.10.1 Door Open Description Maximum 2 relays in IP LDK-20 can be used for Door Open feature. Door Open Code ITEM REMARK 1st Door Open 2nd Door Open Operation 1. Dial the door open code, or press the programmed {DOOR OPEN} button.
  • Page 146: Door Phone

    IP LDK-20 Programming Manual System Feature 2.10.2 Door Phone Description A convenient intercom box can be connected to the system. The intercom box can receive page announcements and intercom calls. And the intercom box can signal assigned stations in the system.
  • Page 147: Loud Bell

    IP LDK-20 Programming Manual System Feature Reference 1. DND : 2.4.9 2. Conference : 2.7 3. Paging : 2.8 Admin Programming n ICM Box Signaling 4.1.2.6 (PGM 111 – FLEX 6) n Station ID Assignment 4.1.1 (PGM 110) n ICM Box Music Channel 4.4.12.3 (PGM 171 – FLEX 3) n ICM Box Timer 4.5.2.6 (PGM 181 –...
  • Page 148: Voice Service

    IP LDK-20 Programming Manual System Feature 2.11 Voice Service 2.11.1 Recording System VMIB Announcement Description Attendant station in the system can record the voice announcements as system greetings and prompts. System greetings should be recorded before use. System prompts in user’s language are contained as default in VMIB. But users can also modify those prompts.
  • Page 149 IP LDK-20 Programming Manual System Feature Messages Station Off-net Forward Prompt DND Prompt No Answer Prompt Reserved Reserved Remote VMIB Control Main Menu Prompt Remote VMIB Sub-menu for digit 1 in Main Menu Reserved Reserved Reserved Remote VMIB Sub-menu for digit 2 in Main Menu...
  • Page 150 IP LDK-20 Programming Manual System Feature 18. User can record the VMIB MOH with system prompt message number ‘071’. 19. The system supports system prompts (072~100) basically. But users may use their own prompts by recording the prompts at attendant station.
  • Page 151: Remote Control

    IP LDK-20 Programming Manual System Feature 2.11.2 Remote Control Description An outside caller through DID/DISA(see Ref.1) can access VMIB after calling a station which is in VMIB Forward mode. Entering VMIB controlling mode, the user can retrieve received messages, change user greeting, release Call Forward to VMIB , etc.
  • Page 152 IP LDK-20 Programming Manual System Feature Condition Pressing * key while operating in a sub-menu, the system will go to the main control menu. If the user doesn’t enter any digit while Inter-digit time, the connection is dropped automatically. If VMIB User Record Timer expires while recording user greeting, the recording is finished and will go to main menu.
  • Page 153: Two-Way Recording

    IP LDK-20 Programming Manual System Feature 2.11.3 Two-way Recording 2.11.3.1 Two-way Recording via SMDI Description This feature allows a station to record a conversation on the mailbox by pressing a {RECORD} button while the station is talking with CO party.
  • Page 154: Two-Way Recording Via Vmib

    IP LDK-20 Programming Manual System Feature 2.11.3.2 Two-way Recording via VMIB Description This feature allows a station to record a conversation on the mailbox by pressing a {RECORD} button while the station is talking with CO party. [Example] IP LDK System...
  • Page 155: Recording User Vmib Announcement

    IP LDK-20 Programming Manual System Feature 2.11.4 Recording User VMIB Announcement Description If the access to the VMIB is allowed, user can record User Greeting and make a call be forwarded to VMIB port according to forward condition type if user enables forward. And the caller can leave a voice message wait at the station after hearing user greeting.
  • Page 156 IP LDK-20 Programming Manual System Feature 5. Pressing the [CALLBK] button, the current message is played again. For SLT and 2/8 BTN DKTU, dial #3. 6. Pressing the [ADD] soft button, you can record the additional message. (It can be possible LDP-6000/7000 which has 3 soft key) 7.
  • Page 157: Vmib Announcement For Auto Attendant

    IP LDK-20 Programming Manual System Feature 2.11.5 VMIB Announcement for Auto Attendant Description Incoming CO calls may be answered by VMIB and rerouted to another station with CCR when attendant does not answer the call until No Answer Timer expires or attendant is busy.
  • Page 158: Smdr(Station Message Detail Recording)

    IP LDK-20 Programming Manual System Feature 2.12 SMDR(Station Message Detail Recording) Description The IP LDK System SMDR(station message detail recording) provides details information about both incoming calls and outgoing calls. In this feature, it is programmable to record all calls or just outgoing long distance calls.
  • Page 159 IP LDK-20 Programming Manual System Feature Condition 1. There is an assignable SMDR record option ADMIN program(PGM177 – FLEX 3). If SMDR – LONG DISTANCE ONLY is selected, only outgoing toll call will be printed, and If SMDR – ALL CALL is selected, incoming and outgoing local and long distance call are printed.
  • Page 160: Aoc (Advice Of Charge)

    IP LDK-20 Programming Manual System Feature 2.12.1 AOC (Advice Of Charge) Description The AOC service provides outgoing call charging to the user in public ISDN. According to the ADMIN programming, the saved and printed information is provided to the PC or user's LCD. This function is applicable to the most European countries.
  • Page 161: Print-Out

    IP LDK-20 Programming Manual System Feature 2.12.2 Print-out Description Lost call means that the caller gives up and terminates the call before the call is answered. The format of the individual call record is illustrated below, and the contents are focused on each case about the types of lost call.
  • Page 162 IP LDK-20 Programming Manual System Feature Admin Programming n SMDR Print Enable 4.4.18.2 (PGM 177 – FLEX 2) n Long distance/ All Call Recorded 4.4.18.3 (PGM 177 – FLEX 3) n Print Lost Call 4.4.18.6 (PGM 177 – FLEX 6)
  • Page 163: Attendant Service

    Main Attendant 4 STA c Main Attendant 5 STA d intercom tenancy group Main Attendant Assignment intercom tenancy group attendant Figure 2.13.1 Attendants of IP LDK-20 system The figure 2.13.1 describes the arrangement of attendants of IP LDK-20 system generally.
  • Page 164: Assign Attendant

    IP LDK-20 Programming Manual System Feature Referenc Intercom tenancy Group : 2.4.15 2.13.1 Assign Attendant Description As default, first station( e.g. station100) is assigned as the system attendant, and other attendants are not assigned. Main attendants can be assigned ADMIN program 164, but Intercom tenancy group attendant can be assigned ADMIN program 120 –...
  • Page 165: Attendant Call & Queuing

    IP LDK-20 Programming Manual System Feature 2.13.2 Attendant Call & Queuing Description Attendant call is the intercom call and CO call to an attendant. In order to make an intercom call to the attendant, a user enters the station number of the attendant or dials ‘0’...
  • Page 166: Attendant Forward

    IP LDK-20 Programming Manual System Feature 2.13.3 Attendant Forward Description The attendant can forward (Unconditional Call Forward) a call to the other station.(see Ref.1) the forwarded-to station will substitute for the attendant temporarily, while the attendant is in forwarding state.
  • Page 167: Attendant Intrusion

    IP LDK-20 Programming Manual System Feature 2.13.4 Attendant Intrusion Description When an attendant have a urgent message to a station which is conversing with a CO party, the attendant can intrude upon the conversation and converse with the station and the CO line.
  • Page 168: Attendant Override

    IP LDK-20 Programming Manual System Feature 2.13.5 Attendant Override Description A station in DND state(see Ref.1) can not generally receive an incoming call. The attendant, however, can temporarily invalidate the DND state. Therefore, the attendant can call and transfer to the station in DND state.
  • Page 169: Attendant Recall

    IP LDK-20 Programming Manual System Feature 2.13.6 Attendant Recall Description If the recalled CO call(transfer, hold) is unanswered by destination station, the CO call will be directed to the attendant.(see Ref.1,2) This is attendant recall. The attendant will receive the recall ring for a time equal to the Attendant Recall Timer(ADMIN program 180 –...
  • Page 170: Change Lcd Date/Time Display

    IP LDK-20 Programming Manual System Feature 2.13.7 Change LCD Date/Time display Description The attendant can change the LCD Date/Time display format of stations in system. Date : MM-DD-YY / DD-MM-YY ( ex. August 4, 2004 -> 08-04-03 / 04-08-03) Time : 12H / 24H ( ex. eight thirty P.M. -> 08:30 PM / 20:30)
  • Page 171: Day/Night Service

    IP LDK-20 Programming Manual System Feature 2.13.8 Day/Night service Description When a CO call come in the system, the destination of CO call can be changed according to the time. Such event is happened because the ring mode can be changed according to the time.
  • Page 172: Disable Outgoing Access

    IP LDK-20 Programming Manual System Feature 2. On-demand mode is not available in the Automatic Ring mode. 3. The attendants of intercom tenancy group can change ring mode as well as main attendants. If an attendant of intercom tenancy group changes ring mode, only the ring mode of intercom tenancy group which the attendant belongs to is changed.
  • Page 173: Icm Box Music Selection

    IP LDK-20 Programming Manual System Feature 2.13.10 ICM Box Music Selection Description The attendant can select the music channel source to provide the intercom Box. Operation To select the music source from the attendant, 1. Press the [TRANS/PGM] button. 2. Dial 0 7 5.
  • Page 174: Station Feature Cancel

    IP LDK-20 Programming Manual System Feature 2.13.11 Station Feature Cancel Description The attendants can cancel features - such as DND, Call Forward and pre-selected messages - of other stations.(see Ref.1, Ref.2, Ref.3) Operation To disable active features at a station from the attendant, 1.
  • Page 175: Dss/Dls Consoles

    IP LDK-20 Programming Manual System Feature 2.13.12 DSS/DLS Consoles Description Attendants and other DKTU may be equipped with DSS/DLS consoles which provide additional buttons for more convenient operation. The consoles are arranged as flexible mapped units. The DSS/DLS consoles are assigned with programming as one of the 3 maps. All buttons of any map are programmable.
  • Page 176: Isdn Service

    System Feature 2.14 ISDN service IP LDK-20 system Basic Rate Interface (BRI) Integrated Services Digital Network (ISDN) circuits. The BRI provides two bearer channels and one data channel (2B+D) Calling Number and Called Number services are supported. Calling Number services will be routed in the same way as ANI(automatic number identification) calls using the DID route table .
  • Page 177: Cli(Calling Line Identification Presentation)

    IP LDK-20 Programming Manual System Feature 2.14.2 CLI(Calling Line Identification Presentation) Description The term of CLI is the telephone number of caller. By using of this, IP LDK station user can recognize the incoming CO caller’s information and send the telephone number of the caller when he make an outgoing CO call.
  • Page 178: Outgoing Cli Service

    Though the power of system is off, the stored CLI messages is not erased. The CLI can be shown at SLT which has a CLI display LCD in IP LDK-20. But secondary SLT of 2B DKTU can’t display CLI information.
  • Page 179 IP LDK-20 Programming Manual System Feature FLEX 3). The end digits of CLI is ‘100’. It generated from the ISDN CLI of station(ADMIN program 114 – FLEX 12). At default, this ADMIN value is set as the same value as the station number. The middle digits of CLI is ‘3283’.
  • Page 180: Clir/Colr

    IP LDK-20 Programming Manual System Feature 2.14.3 CLIR/COLR Description When a call exists through ISDN DID line, calling line identification (CLI) of the incoming call will be displayed on the LCD of the station. And if the DID external party hangs up before an Attendant or called station answer, the CLI provided by digital network will be stored in the CO message wait queue of the original called station.
  • Page 181 IP LDK-20 Programming Manual System Feature To delete all CLI messages at attendant 1. Press [TRANS/PGM] button 2. Dial 055 and station range. 3. Press [HOLD] button. To program the SPEED BIN no. with CLI message 1. At the retrieve CLI message LCD, press [SPEED] button.
  • Page 182: Clir/Colr

    IP LDK-20 Programming Manual System Feature 2.14.4 CLIR/COLR Description CLIR(Calling Line Identification Restriction) & COLR(Connected Line Identification Restriction) are used, that calling party & called party inform to the public switching system, that they don’t want to send their phone number to the other party.
  • Page 183: Key Pad

    IP LDK-20 Programming Manual System Feature 2.14.6 Key Pad Description The IP LDK system supports the key pad dialing feature. The key pad facility dialing is the feature that the dialed digit information is sent through the key pad facility IE(Information Element) instead of the called party IE.
  • Page 184: Malicious Call Id

    IP LDK-20 Programming Manual System Feature Admin Programming n Keypad Facility Access 4.1.5.6 (PGM 114 – FLEX 6) 2.14.7 Malicious Call ID Description IP LDK system is supporting ISDN-SS-MCID (ISDN Supplementary Service – Malicious Call ID). The protocol standard about MCID is referred the EN300-130.
  • Page 185: Msn/Sub-Addressing

    IP LDK-20 Programming Manual System Feature 2.14.8 MSN/Sub-Addressing Description When several ISDN devices are connected to a single ISDN port, the numbering method of each station is as follows; MSN (Multiple Subscriber Number) MSN provides the possibility for assigning multiple ISDN numbers to a single interface. It allows dialing from a line connected to a public network directly to terminals connected to a basic access which has subscribed to MSN number.
  • Page 186 IP LDK-20 Programming Manual System Feature 6. Max. 8 devices can be connected to a S0 part. It is required to have individual ISDN terminal power feeding to use them. 7. The sub-address is carried from PX in CPSN (Called Party Sub-address Number) IE.
  • Page 187: Isdn - Call Hold/Retrieve

    IP LDK-20 Programming Manual System Feature 2.14.9 ISDN - CALL HOLD/RETRIEVE Description This feature allows the user to make another call without using other channel. When the HOLD supplementary service is invoked, communication on a B-channel is interrupted and the B-channel is released.
  • Page 188: Isdn - Broker Call

    IP LDK-20 Programming Manual System Feature 2.14.10 ISDN – BROKER CALL Description This feature allows a station user engaged in one ISDN CO line to hold that call and can originate another call by using the same channel. Once the second call is established, the originating station may alternate between calls carrying on a private conversation with either party.
  • Page 189: Etsi Conference

    IP LDK-20 Programming Manual System Feature 2.14.11 ETSI Conference Description ISDN Supplementary Service ETSI Conference(ISDN-SS-EC). The feature allows user to make a 3 party conference with one ISDN B channel. Operation To make a 3 party conversation 1. Press [FLASH] + [CONF] whilst ISDN broker call is in progress with one hold and another call on conversation.
  • Page 190: Isdn - Supplementary Service With Italy National Protocol

    2.14.12.1 ISDN – Call Barring (Italy national protocol) – ATD only Description This feature enables the adjustment of the COS(Class of Service) of ISDN CO lines in IP LDK-20. That is to change the current COS of the CO line from C5(all outgoing calls are possible) to C2(outgoing calls only for specific numbers) and vice versa.
  • Page 191: Isdn - Call Forward Unconditional (Cfu, Italy National Protocol)

    IP LDK-20 Programming Manual System Feature Condition 1. This feature is only available in national keypad protocol. 2. Password code for call barring is not possible to program to flexible button. So, user always should dial this code. 3. This feature is supported only access basis. So, only ATD station can activate this feature. If normal station tries to use this feature, then error tone is heard.
  • Page 192: Isdn - Memo Tel (Italy National Protocol)

    IP LDK-20 Programming Manual System Feature 2.14.12.3 ISDN – Memo Tel (Italy national protocol) Description Memo-Tel is a feature transferring the incoming co call to the MSG Storage system of the PX when co line is busy or when there is no answer. This feature can be activated selectively activated in normal case(busy or no answer) or only in no answer case.
  • Page 193 IP LDK-20 Programming Manual System Feature Condition 1. Memo-Tel is only available in national keypad protocol. 2. If this feature is activated by attendant station (access basis), then the ISDN lines are in MEMO- TEL mode. To retrieve stored message or enquiry of service status at attendant station, attendant should to retrieve of MSRS or enquiry of status for all CO lines respectively.
  • Page 194: Voip Service

    IP LDK-20 Programming Manual System Feature 2.15 VoIP Service 2.15.1 Call by IP address Description This feature is established by receiving IP numbers or dialing IP numbers directly. Operation Press the desired {CO} line, {POOL}, or {LOOP} button or dial the CO line or group code When hearing Dial Tone, dial the IP address of Called Party sequentially.
  • Page 195: Call By Routing Table

    IP LDK-20 Programming Manual System Feature 2.15.2 Call by routing table Description This feature is established by dialing Station number programmed in NETWORK ROUTING TABLE(PGM324) Operation Dial the station number included in the range from start range to end range in network routing table.
  • Page 196: Over Ip

    IP LDK-20 Programming Manual System Feature 2.16 H.450 over IP Description The IP LDK system supports the networking feature. In the IP LDK system, the networking is defined the software feature that supports the service of H.450 over IP(Internet Protocol).
  • Page 197 IP LDK-20 Programming Manual System Feature Requirement To use the networking features, the software lock-key installation is required. Each IP LDK system has own unique software lock-key. To get the software lock-key, contact the distributor of IP LDK system. Numbering Plan Unified Dialing Plan (UDP) : In the IP LDK networking system, the UDP numbering plan is used.
  • Page 198: Net Call

    IP LDK-20 Programming Manual System Feature 2.16.1 Net Call Description In the networking configuration, a station user can make a call to a station in other networking systems by dialing only a station number just as an intercom call within the same system. This service is defined as ‘NET CALL’.
  • Page 199 IP LDK-20 Programming Manual System Feature Operation To make a net call, lift handset or press the [MON] button. The system provides a user with a dial tone. Dial the station number of other networking systems, or if station has the [NET DSS] button that contains the net call station number, then the net call is made by pressing the [NET DSS] button.
  • Page 200 IP LDK-20 Programming Manual System Feature system’s VOIB must be set at ADMIN program 324 – FLEX button 4. The ADMIN program to configure the VOIP networking between system A & B are summarized like below. At system A : Enter ADMIN program 105 + [SPEED] + ‘100’ + ‘199’ + [HOLD] At system B : Enter ADMIN program 105 + [SPEED] + ‘200’...
  • Page 201: Identification Service

    IP LDK-20 Programming Manual System Feature At system B FLEX ITEM VALUE System usage NET(0) Numbering plan code 2#ÚÚ Numbering plan CO group VOIP Called Party Information 1/2/3/4 0.0.0.0 System usage NET(0) Numbering plan code 1ÚÚ Numbering plan CO group...
  • Page 202 IP LDK-20 Programming Manual System Feature...
  • Page 203: Net Transfer

    IP LDK-20 Programming Manual System Feature 2.16.3 Net Transfer Description A station user of the networking system can use the net transfer service. The net transfer is the call transfer service that is using the net call. It can transfer any kind of call to a station in other systems by pressing [TRANS/PGM] button and dialing the station number.
  • Page 204 IP LDK-20 Programming Manual System Feature Call Flow Step Flow Outside Caller dials a station in the networking system Call comes in, the station 100 receive a ring. Station 100 answers and converse Step 1 ~ 2 Station 100 transfers the call to 202,and goes idle...
  • Page 205 IP LDK-20 Programming Manual System Feature Unscreened transfer Press the [TRANS/PGM] button at a station during conversation. The transferred call is placed on EXCLUSIVE HOLD(see Ref.2) At the transferring station, dial the station number of another networking system to transfer the call, and go on-hook.
  • Page 206: Net Call Forward - Unconditional

    IP LDK-20 Programming Manual System Feature 2.16.4 Net Call Forward - Unconditional Description It is possible for a user to forward his station remotely and immediately over the network when it receives a ring signal. Engineering notice) There are two kinds of standard net call forward signaling method in H.450 protocol specification defined;...
  • Page 207 IP LDK-20 Programming Manual System Feature Call Flow Step Flow Station 100 set forward to 202 Outside Caller dials in Station 100 Call is forwarding to Station 202 Step 2 Station 202 rings instead of 100. Conversation PSTN or ISDN...
  • Page 208 IP LDK-20 Programming Manual System Feature Condition 1. If both call forwarded stations and call forwarded-to stations are located in the same system, the networking path CO line that is used for forward voice path is not needed. That is, the forwarded call will be setup as intercom call.
  • Page 209: Net Call Forward - Busy

    IP LDK-20 Programming Manual System Feature 2.16.5 Net Call Forward - Busy Description It is possible for a user to forward his station remotely over the network when it is busy. Engineering notice) There are two kinds of standard net call forward signaling method in H.450 protocol specification defined;...
  • Page 210: Net Call Forward - Busy / No Answer

    IP LDK-20 Programming Manual System Feature 2.16.6 Net Call Forward – Busy / No Answer Description It is possible for a user to forward his station remotely over the network when it does not answer within the CFW NO ANS(Call Forward No Answer) Timer or busy.
  • Page 211 IP LDK-20 Programming Manual System Feature...
  • Page 212: Net Call Forward - No Answer

    IP LDK-20 Programming Manual System Feature 2.16.7 Net Call Forward – No Answer Description It is possible for a user to forward his station remotely over the network when it does not answer within the CFW NO ANS(Call Forward No Answer) Timer.
  • Page 213 IP LDK-20 Programming Manual System Feature...
  • Page 214: Net Conference

    IP LDK-20 Programming Manual System Feature 2.16.8 Net Conference Description The net conference is the same service as the conference that is described at Section 2.7(see Ref.1), except that the networking station can be assigned the conference member. Operation To make a Net Conference 1.
  • Page 215: Call Offer

    IP LDK-20 Programming Manual System Feature 2.16.9 Call Offer Description The CALL OFFER is the same service as the CAMP-ON that is described at Section 2.4.5(see Ref.1), except that the camp on is executed on the networking connection environment. The term of CALL OFFER is used at H.450 protocol standard specification.
  • Page 216 IP LDK-20 Programming Manual System Feature Operation To activate Call Offer Dial a busy station number of another networking system. The caller hears a busy tone. Press the camp-on code ‘Ú’ during hearing a busy tone. The busy station receives an off- hook muted ring.
  • Page 217: Call Completion

    IP LDK-20 Programming Manual System Feature 2.16.10 Call Completion Description The call completion is the same service as the call back that is described at Section 2.4.16(see Ref.1), except that this service is executed on the networking connection environment. The term of call completion is used at H.450 protocol standard specification.
  • Page 218 IP LDK-20 Programming Manual System Feature Call Flow Step Flow Station 100 dials 202, but hears BUSY tone Station 100 press [CALL BK] button, and goes to IDLE Call-back ring to station 100 when 202 is IDLE Station 100 lifts handset, then station 202 is ringing Conversation Figure 2.16.10 The CCBS operation on the networking connection environment.
  • Page 219: Do-Not-Disturb (Dnd)

    IP LDK-20 Programming Manual System Feature 2.16.11 Do-Not-Disturb (DND) Description A call to a station in DND mode can be denied though it is arrived from a station of other systems. The calling party will hear a busy tone. Operation 1.
  • Page 220: Co Transit - In

    IP LDK-20 Programming Manual System Feature 2.16.12 CO Transit - In Description The CO TRANSIT-IN is the net call routing service about the incoming DID/MSN call. The incoming DID call can reroute to the net call destination in another networking system.
  • Page 221 IP LDK-20 Programming Manual System Feature Operation A DID call is arrived from PABX. There is no limit for selecting DID conversion type. According to the result of DID conversion, the call will be routed. Network CO line is seized automatically, and the call is transferred to the network destination.
  • Page 222: Co Transit - Out

    IP LDK-20 Programming Manual System Feature 2.16.13 CO Transit - Out Description The CO TRANSIT-OUT is the CO line lend service that is executed by the request of the slave networking system that want to connect PSTN. This service can increase the using efficiency of CO line and reduce call costs by routing outgoing CO calls to the nearest appropriate point on the network.
  • Page 223 IP LDK-20 Programming Manual System Feature Call Flow Step Flow Station 202 dials CO transit code of PGM 324 Dialed digit goes to master system Step 4 Master sizes the real PX CO line and dials Outside party rings Conversation...
  • Page 224 IP LDK-20 Programming Manual System Feature Operation 1. A station of slave system dials the CO TRANSIT-OUT code. The slave system seizes a CO line that is preprogrammed for transmitting the CO TRANSIT-OUT code to the master system The master system seizes a CO line that is preprogrammed to serve the lend request by the CO TRANSIT-OUT code.
  • Page 225: Message Waiting Indication (Mwi)

    IP LDK-20 Programming Manual System Feature 2.16.14 Message Waiting Indication (MWI) Description The MWI(Message Waiting Indication) is the exactly same service as the CLI(Calling Line Identification) message wait that is described at Section 2.14.2(see Ref.1) A station can leave the CLI message of itself, when the station of other networking system doesn’t answer.
  • Page 226: Absent Text Message

    IP LDK-20 Programming Manual System Feature 2.16.15 Absent Text Message Description The absent text message is the same service, that is described at Section 2.4.1(see Ref.1), except that this service is executed on the networking connection environment. If a station user absents his desk with the absent text message on his station LCD, if a station of another networking system make a net call to this station, then the absent text message of this station is transmitted to the caller station, and it is displayed on LCD.
  • Page 227 IP LDK-20 Programming Manual System Feature IP LDK-A (master) Dial ATD Call Dial ATD Call IP LDK-D (slave) IP LDK-B (slave) IP LDK-C Dial ATD Call (slave) LINE Figure 2.16.16 The CAS operation on the networking connection environment Operation Dial attendant code at any station in the system, then the call will be routed to the Net attendant.
  • Page 228: Centralized Vms

    IP LDK-20 Programming Manual System Feature 2.16.17 Centralized VMS Description This function can support that all voice mail occurred in all systems can be recorded in an external VMS. Condition 1. The centralize VMS should be assigned in slave system, and the number of the centralized VMS should use the representative number of mail access created in master system.
  • Page 229: Blf(Busy Lamp Field) Presentation

    IP LDK-20 Programming Manual System Feature 2.16.18 BLF(Busy Lamp Field) Presentation Description A station of networking system is able to program a busy lamp appearance of the station status of other networking system. The Busy Lamp Field (BLF) button can also be used to make a net call the networking station.
  • Page 230 IP LDK-20 Programming Manual System Feature Condition The BLF manager should be installed at one system for whole networked systems. The number of Net DSS can be restricted according to the capability of each system. When a flexible button on a station is assigned as the [NET DSS] button of another system, the system serves as local BLF to indicate the status of the station.
  • Page 231: Net Follow-Me Forward

    IP LDK-20 Programming Manual System Feature 2.16.19 Net Follow-Me Forward Description A user from one system can activate a Follow-Me-Forward from a station on another system within the network. Once activated, all calls to the forwarded station will be forwarded to the forwarding station over the network.
  • Page 232: Centralized Smdr For Transit Call

    IP LDK-20 Programming Manual System Feature 2.16.20 Centralized SMDR for Transit Call Description The SMDR call records from the Master system will include the station number from the slave system (NET-Number) on CO Transit-In and CO Transit-Out calls. Operation 1. The NET-Number will be included in the Centralized SMDR output for CO Transit-In and CO...
  • Page 233: Function

    IP LDK-20 Programming Manual System Feature 2.17 2B Function Description This feature allows to connect secondary devices to a primary station. To extend a primary, the additional device is connected directly to a primary station with a 2B module. There are 3 kinds of 2B module that can be used with some LKD model stations –...
  • Page 234: Traffic Analysis

    IP LDK-20 Programming Manual System Feature 2.18 Traffic Analysis Description The system can monitor and print various system activities based on the main attendant's request(see Ref.1). The information can be used to; - Monitor and evaluate system performance - Observe current usage and take corrective actions, if needed.
  • Page 235 IP LDK-20 Programming Manual System Feature Reference 1. Attendant : 2.13 Condition 1. This feature is available at main attendant. 2. The Printing of all summary service will generate attendant traffic report, call summary report, H/W unit usage summary report, and CO traffic summary report.
  • Page 236: Traffic Analysis - Attendant

    IP LDK-20 Programming Manual System Feature 2.18.1 Traffic Analysis - Attendant Description IP LDK system supports the following report to analyze the attendant resource. Attendant Traffic Report You may understand attendant’s service status with statistics of all attendants. You can choose one of the followings;...
  • Page 237: Traffic Analysis - Calls

    IP LDK-20 Programming Manual System Feature 4807 --:-- 0 04:21 00:13 00:00 00:09 00:04 Main 3619 --:-- 0 01:04 00:21 00:00 --:-- 00:01 Main 2618 --:-- 0 00:05 00:00 00:00 --:-- --:-- Main 3629 --:-- 0 02:58 00:23 00:00 00:14 00:03 Main 2.18.2 Traffic Analysis - Calls...
  • Page 238: Traffic Analysis - Co

    IP LDK-20 Programming Manual System Feature 2.18.3 Traffic Analysis - CO Description IP LDK system supports the following report to analyze the traffics of CO line group. CO Traffic Summary Report This report helps user to understand the traffic status of CO group by showing their statistics. You can choose one of the followings;...
  • Page 239: Traffic Analysis - H/W Unit

    IP LDK-20 Programming Manual System Feature ========================================================================== Site Name Report Type : CO Group Summary Report - Yesterday Total Date : 02/12/04 13:15 ========================================================================== Peak Hour For All CO: 10:00 Grp Num Anal Total Total Inc. Out. No COs Hour...
  • Page 240: Software Upgrade

    IP LDK-20 Programming Manual System Feature 2.19 Software Upgrade Description The IP LDK MPB software can be upgraded by IP LDK upgrade program in PC. In order to upgrade by upgrade program, system should connected through SERIAL/ISDN/LAN/MODEM interface. Then the software file in the PC is sent to the system at first and the MPB software is upgraded.
  • Page 241: Isdn

    IP LDK-20 Programming Manual System Feature 2.19.1 ISDN Description The IP LDK MPB software can be upgraded through ISDN BRI line interface by IP LDK upgrade program in remote PC. Operation 1. Connect the ISDN phone line to the PC ISDN card.
  • Page 242 IP LDK-20 Programming Manual System Feature 6. Enter the ISDN phone number, path of the binary file, and the password for upgrade. And press the ‘Next’ button. 7. In the ‘Next’ window, press ‘Start’ button. You can see the IP LDK MPB software upgrade process.
  • Page 243: Lan

    IP LDK-20 Programming Manual System Feature 2.19.2 LAN Description The IP LDK MPB software can be upgraded through LAN interface by IP LDK upgrade program in remote PC. Operation 1. Connect the LAN cable to the PC LAN-card. 2. Run IP LDK PC Upgrade program.
  • Page 244 IP LDK-20 Programming Manual System Feature 5. Enter the IP LDK IP address, path of the binary file and the password for upgrade. And press the ‘Next’ button. 6. In the ‘Next’ window, press ‘Start’ button. You can see the IP LDK MPB software upgrade process.
  • Page 245: Serial(Com Port)

    IP LDK-20 Programming Manual System Feature 2.19.3 SERIAL(COM port) Description The IP LDK MPB software can be upgraded through RS-232C interface by IP LDK upgrade program in the PC. Operation 1. Connect the RS-232C cable between IP LDK system and PC.
  • Page 246 IP LDK-20 Programming Manual System Feature 5. Enter the path of binary file, serial port number, serial port baud rate, and the password for upgrade. And press the ‘Next’ button. 6. In the ‘Next’ window, press ‘Start’ button. You can see the IP LDK MPB software upgrade process.
  • Page 247: Modem

    IP LDK-20 Programming Manual System Feature 2.19.4 MODEM Description The IP LDK MPB software can be upgraded through Modem interface by IP LDK upgrade program in remote PC. Operation 1. Run IP LDK PC Upgrade program. 2. Select the IP LDK system to be upgraded and press ‘OK’ button.
  • Page 248 IP LDK-20 Programming Manual System Feature 4. Enter the IP LDK dial number, the path of binary file and the password for upgrade. And press the ‘Next’ button. 5. Select your Modem type in the Modem Configuration dialog. 6. In the ‘Next’ window, press ‘Start’ button. You can see the IP LDK MPB software upgrade process.
  • Page 249: Section 3. System Basic Admin Programming

    IP LDK-20 Programming Manual System Basic ADMIN programming Section 3. System Basic ADMIN programming The IP LDK System can be programmed to meet each customer's individual need. This section contains the following topics : Ø Before ADMIN programming Ø Button explanation Ø...
  • Page 250: Button Explanation

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.2 Button explanation FLEX 1 FLEX 2 FLEX 3 FLEX 30 Microphone Speaker phone Fixed button Flexible button Description of LDP-7024D button There are many kinds of DKTU connecting to the IP LDK system. This model of LDP-7024D is an sample that just shows each button.
  • Page 251: How To Enter The Programming Mode

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.3 How to enter the programming mode 1. Lift handset or press the [MON] button on the ADMIN station, and hear ICM dial tone (optional) 2. Press the [TRANS/PGM] button and dial •# (Confirmation tone is heard) •...
  • Page 252: Pre-Programming

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6 Pre-programming This section describes the pre-programming of the data. When installed, user must program some database (Ex. Nationality, Numbering Plan Type, and Slot Assignment) first, otherwise system may not operate properly.
  • Page 253: Location Pgm-Nation Code & Site Name (Pgm100)

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6.1 Location PGM-Nation code & Site Name (PGM100) The Dip switch 4 of the SW3 on the MPB : On PROCEDURE 3.6.1.1 Nation Code Enter Nation Code (PGM NUMBER) 3.6.1.2 Site Name...
  • Page 254 IP LDK-20 Programming Manual System Basic ADMIN programming NATION CODE NATION CODE NATION CODE America Argentina Australia Bahrain Bangladesh Belgium Bolivia Brazil Brunei Burma Cameroon Chile China (Taiwan) Colombia Costa Rica Cyprus Czech Denmark Ecuador Egypt El Salvador Ethiopia Fiji...
  • Page 255: Rack Slot Assignment (Pgm 101)

    - Slot 5: CO board on MBU. - Slot 6: optional CO slot. - Slot 7: VMIB slot. - Slot 8: SLIM/DTIM slot. - Slot 9: VOIM slot. 3.6.3 WTIB PORT NUMBER ASSIGNMENT (PGM 102) This program is not available in IP LDK-20.
  • Page 256: Logical Slot Assignment (Pgm 103)

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6.4 LOGICAL SLOT ASSIGNMENT (PGM 103) PROCEDURE 3.6.4.1 COL Board Enter Logical slot Number(CO Board) Range (PGM NUMBER) IP LDK-20 : 05-06,09 05(Basic CO slot on MBU) 06(Optional CO slot) 09(VOIM slot) 3.6.4.2 STA Board...
  • Page 257: Numbering Plan Type (Pgm 104)

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6.5 NUMBERING PLAN TYPE (PGM 104) Description There’re 8 Numbering Plan Type. Each type has different default value at each Numbering Plan Code. Intercom Range of ADMIN105 is described below. For Flexible Numbering Plan of ADMIN 106 and ADMIN 107, Refer to 5.3.6.
  • Page 258: Flexible Numbering Plan - Station Number (Pgm 105)

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6.6 FLEXIBLE NUMBERING PLAN – Station Number (PGM 105) PROCEDURE Enter Station Range (PGM NUMBER) Dial two station numbers - Range start station number & range end station number (1) [TRANS/PGM] + 105.
  • Page 259: Flexible Numbering Plan A (Pgm 106-107)

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6.7 FLEXIBLE NUMBERING PLAN A (PGM 106-107) Description By dialing Feature Code, the proper feature is activated. PROCEDURE Enter FLEXIBLE BUTTON Enter Code (PGM NUMBER) (Range : FLEX1~FLEX21) (TABLE 2.2.7.1) Enter FLEXIBLE BUTTON Enter Code (TABLE 2.2.7.2)
  • Page 260 IP LDK-20 Programming Manual System Basic ADMIN programming DEFAULT VALUE FLEX ITEM (at Numbering Plan Type 1) Alarm Reset Group Call Pick-Up UCD Group DND Night Answer Call Park Location Range 601 – 608 Direct Call Pick-Up 801 – 808...
  • Page 261: Ip Setting For Mbu (Pgm 108)

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6.8 IP setting for MBU (PGM 108) 3.6.8.1 IP Name Enter Code (PGM NUMBER) (Range : 15 Character) . – 13 A – 21 D – 31 Q – 11 B – 22 E –...
  • Page 262: Expanded Flexible Numbering Plan (Pgm 109)

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6.9 EXPANDED FLEXIBLE NUMBERING PLAN (PGM 109) 3.6.9.1 MCID Request Enter Number + (PGM NUMBER) (Digit : Max. 8 ) 3.6.9.2 RSG DOOR Open 1 Enter Number + (PGM NUMBER) (Digit : Max. 8 ) 3.6.9.3 RSG DOOR Open 2...
  • Page 263: Hot Desk Agent Attribute (Pgm 250)

    IP LDK-20 Programming Manual System Basic ADMIN programming 3.6.10 HOT DESK AGENT ATTRIBUTE (PGM 250) 3.6.10.1 Number of Agent + Enter Number + (PGM NUMBER) (Digit : 2 ) 3.6.10.2 View Assigned Station Number for Agents (PGM NUMBER) 3.6.10.3 Automatic Logout Timer...
  • Page 264: Section 4. Admin Programming

    IP LDK-20 Programming Manual ADMIN Programming Section 4. ADMIN programming Ø How to enter programming mode 1. Lift handset or press the [MON] button on the ADMIN station, and hear ICM dial tone (optional) 2. Press the [TRANS/PGM] button and dial • # (Confirmation tone is heard) •...
  • Page 265: Station Programming

    IP LDK-20 Programming Manual ADMIN Programming 4.1 STATION PROGRAMMING In this part, every station can be customized by ADMIN program. Station Program is a tool can adjusts values of station. To change, enter the program number want to change and then put the station range.
  • Page 266: Dss/Dls Id Assignment

    IP LDK-20 Programming Manual ADMIN Programming 4.1.1.2 DSS/DLS ID Assignment Description To use DSS/DLS, assign its ID after pressing FLEX 1. Then set associated station number after pressing FLEX 2. One station can have multiple DSS/DLS maps up to 3. These DSS/DLS should have their ID sequentially (i.e.
  • Page 267: Station Attribute - I (Pgm 111)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.2 STATION ATTRIBUTE – I (PGM 111) 4.1.2.1 Auto Speaker Selection Description If this value is set to ON, Station user can access a CO line or make a DSS call by pressing appropriate {CO} or {DSS} button without lifting handset or pressing the [MON] button.
  • Page 268: Data Line Security

    IP LDK-20 Programming Manual ADMIN Programming 4.1.2.4 Data Line Security Description If this value is set to ON, override and camp-on from other stations are prohibited when this station is busy. Value : ON= 1 / OFF= 0 PROCEDURE + STATION RANGE +...
  • Page 269: No Touch Answer

    IP LDK-20 Programming Manual ADMIN Programming 4.1.2.7 No Touch Answer Description If this value is set to ON, the station can be responded to the transferred CO call automatically when station mode is H/P. Value : ON= 1 / OFF= 0...
  • Page 270: Speaker Ring

    IP LDK-20 Programming Manual ADMIN Programming 4.1.2.10 Speaker Ring Description This feature determines the ringing path whether Speaker or Headset and even both. Value : S=1 / H=2 / Both=3 S : Speaker H : Headset B : Both PROCEDURE...
  • Page 271: Error Tone For Tad (Telephone Answering Device)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.2.13 Error Tone for TAD (Telephone Answering Device) Description If this value is set to ON, and TAD is used in SLT port, when the caller hangs up, busy tone will be provided to TAD instead of error tone.
  • Page 272: Vmib Message Type

    IP LDK-20 Programming Manual ADMIN Programming 4.1.2.16 VMIB Message Type Description In FIFO state, the first recorded VMIB message can play. Oppositely in LIFO state, the latest message plays. Value : FIFO=1 / LIFO=0 PROCEDURE + STATION RANGE 1(FIFO) 4.1.2.17 Off-net Call Forward Description If this value is set to ON, Off-net call forward can be used.
  • Page 273: Cid Slt Cas Gain

    IP LDK-20 Programming Manual ADMIN Programming 4.1.2.19 CID SLT CAS GAIN This is not available in IP LDK-20. Description This feature selects CID SLT CAS GAIN value. Value : (00 ~ 20) PROCEDURE + STATION RANGE 4.1.2.20 CID SLT FSK GAIN This is not available in IP LDK-20.
  • Page 274: Station Attribute -• (Pgm 112)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.3 STATION ATTRIBUTE –• (PGM 112) 4.1.3.1 CO Warning Tone Description In case of restricting outgoing CO call time, if this value is set to ON, the station user receives warning tone during CO call after the timer expires(ADMIN 180-FLEX 22)
  • Page 275: Individual Co Line Access

    IP LDK-20 Programming Manual ADMIN Programming 4.1.3.4 Individual CO Line Access Description If this value is set to ENABLE, the station user can access individual CO line by dialing Individual CO access code(ADMIN 107-FLEX 8) Value : ENABLE=1 / DISABLE=0...
  • Page 276: Pla

    IP LDK-20 Programming Manual ADMIN Programming 4.1.3.7 PLA Description If this value is set to ENABLE, the station user can answer calls according to the priority (ADMIN 173). Value : ENABLE=1 / DISABLE=0 PROCEDURE + 112 + STATION RANGE + 0(Disable) 4.1.3.8 Prepaid Call...
  • Page 277: Two-Way Record

    IP LDK-20 Programming Manual ADMIN Programming 4.1.3.10 Two-way Record Description If this value is set to ON, the station user can record the incoming and outgoing voice during conversation. Value : ON= 1 / OFF= 0 PROCEDURE + 112 + STATION RANGE +...
  • Page 278: Off-Net Call Mode

    IP LDK-20 Programming Manual ADMIN Programming 4.1.3.12 Off-net Call Mode Description If this value is set to EXT, the station user can only forward CO call to Off-net(ex mobile phone) Otherwise both CO call and ICM call can be forwarded to Off-net.
  • Page 279: Ring Group Service

    IP LDK-20 Programming Manual ADMIN Programming 4.1.3.14 Ring Group Service Description This feature is used when a station in Ring Group gets a DID/DISA call. If this value is set to ON, the Ring Group, which the station belongs to, gets the incoming call and if this value is set to OFF, the station gets the incoming call directly.
  • Page 280: Msg Scrl Spd

    IP LDK-20 Programming Manual ADMIN Programming 4.1.3.17 MSG SCRL SPD Description This value means the scroll speed of SMS or broadcasting notice message. (Only for LKD-30DH) Value : 0~7 PROCEDURE Scroll Speed :0(Fast) ~ 7(Slow) + 112 + STATION RANGE + 4.1.3.18 Block Back Call...
  • Page 281: Forced Station Account Code

    + STATION RANGE + 1(ON) 4.1.3.21 CID Type 2 Service Type II is not serviced in IP LDK-20. Description If this value is set to ON,. busy station can receive call indication if another new call is entered through analog PSTN line.
  • Page 282: Dummy Station

    IP LDK-20 Programming Manual ADMIN Programming 4.1.3.23 Dummy Station Description If this value is set to ON, this station goes to a dummy station, so a hot-desk agent can login at the dummy station. Value : ON= 1 / OFF= 0...
  • Page 283: Station Attribute - • (Pgm 113)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.4 STATION ATTRIBUTE – • (PGM 113) 4.1.4.1 ADMIN Description If this value is set to ENABLE, the assigned station users can program ADMIN Database. This feature is only available at DKTU. (STA 100 : Enabled as default)
  • Page 284: Override Privilege

    IP LDK-20 Programming Manual ADMIN Programming 4.1.4.4 Override Privilege Description If this value is set to ENABLE, the station user can override CO Call. Value : ENABLE=1 / DISABLE=0 PROCEDURE + 113 + STATION RANGE + 1(Enable) Reference 1. Attendant Override : 2.13.5 4.1.4.5 SMDR Hidden Dialed Digits...
  • Page 285: Voice Over

    IP LDK-20 Programming Manual ADMIN Programming 4.1.4.6 Voice Over Description If this value is set to ENABLE, the station user can talk alternately a call to the other call. Value : ENABLE=1 / DISABLE=0 PROCEDURE + 113 + STATION RANGE +...
  • Page 286: Vmib Msg Retrieve Date/Time

    IP LDK-20 Programming Manual ADMIN Programming 4.1.4.9 VMIB MSG Retrieve Date/Time Description If this value is set to ON, Date and time will be heard when VMIB Message is retrieved. Value : ON=1 / OFF=0 PROCEDURE + 113 + STATION RANGE +...
  • Page 287: Isdn Station Attribute (Pgm 114)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.5 ISDN STATION ATTRIBUTE (PGM 114) 4.1.5.1 CLIP LCD Display(Calling Line Identification Presentation) Description If this value is set to ON, the CLI is displayed on the station’s LCD. ( CO Line Name is not displayed when CLIP is set to ON.)
  • Page 288: Cli / Redirect Display

    IP LDK-20 Programming Manual ADMIN Programming 4.1.5.3 CLI / Redirect Display Description When using networking, If this value is set to RED, the redirected CLI is displayed. Otherwise, the original CLI is displayed Value : RED=1 / CLI=0 PROCEDURE + 114 + STATION RANGE +...
  • Page 289: Ext Or Co Atd

    IP LDK-20 Programming Manual ADMIN Programming 4.1.5.5 EXT or CO ATD Description If this value is set to ATD, CO ATD code(ADMIN 200) is used to outgoing CLI information. Otherwise, station number is used as CLI information Value : ATD=1 / EXT=0...
  • Page 290: Cpn Type

    IP LDK-20 Programming Manual ADMIN Programming 4.1.5.8 CPN Type Description This value set CPN IE type of SETUP message. (If this value is set to 0, all S0 stations of the S port get the incoming call. in case of 1 & 2, only one specific station gets the call.)
  • Page 291: Cli Name Display

    IP LDK-20 Programming Manual ADMIN Programming 4.1.5.10 CLI Name Display Description If this field is ON, the system checks whether the received CLI is matched with the speed dial data or not. If it is matched, the speed dial name is displayed.
  • Page 292: Isdn Clir(Cli Restriction)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.5.13 ISDN CLIR(CLI Restriction) Description If this value is set to ON, the CLI information is restricted by PX . Value : ON=1 / OFF=0 PROCEDURE + 114 + STATION RANGE + 1(On) 4.1.5.14 ISDN COLR Description If this value is set to ON, the connect party’s CLI information is restricted by PX.
  • Page 293: Did Call Wait

    IP LDK-20 Programming Manual ADMIN Programming 4.1.5.16 DID Call Wait Description If this value is set to ON, when the station is busy, another DID call could be waiting. Value : ON=1 / OFF=0 PROCEDURE + 114 + STATION RANGE + 1(On) 4.1.5.17 CLI Type...
  • Page 294: Msn Wait

    IP LDK-20 Programming Manual ADMIN Programming 4.1.5.19 MSN Wait Description If this value is set to ON, A busy station can receive a call waiting signal when another MSN call is entered. Value : ON= 1 / OFF= 0 PROCEDURE...
  • Page 295: Flex Button Assignment (Pgm 115)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.6 FLEX BUTTON ASSIGNMENT (PGM 115) Description Each Flexible Button in a station can be assigned as desired. Value : 1 = F01 ~ F24 / 2 = F25~F48 , Button Type = 01~11...
  • Page 296: Station Cos (Pgm 116)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.7 STATION COS (PGM 116) Description Each station is assigned to COS(Class Of Service) which determine station's toll restriction for the day and night operation. For a particular call, the CO COS is combined with station COS to determine restriction.
  • Page 297: Co Line Group Access (Pgm 117)

    The access ability to CO Line Group1 is offered as default for all stations. Accessibility to multiple CO Line Group is possible. Range / Default Value Eight CO line groups are available in IP LDK-20. PROCEDURE + 117 + STATION RANGE...
  • Page 298: Conference Page Zone (Pgm 119)

    4.1.10 CONFERENCE PAGE ZONE (PGM 119) Description Each station can be assigned to conference page zone. IP LDK-20 support 5 conference page zones. Range : FLEX1 ~ FLEX5 - FLEX1 : CONFERENCE PAGE ZONE 06 - FLEX2 : CONFERENCE PAGE ZONE 07...
  • Page 299: Icm Tenancy Group (Pgm 120)

    Each Intercom Tenancy Group can be operated independently and the stations in the group can be assigned an individual CO Line Group to use. Each group can be assigned with attendant and can be programmed to allow or deny calls to other groups. IP LDK-20 supports 5 ICM Tenancy Groups and Tenancy ATDs. FLEX ITEM...
  • Page 300: Icm Preset Call Forward (Pgm 121)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.12 ICM PRESET CALL FORWARD (PGM 121) Description When this feature is programmed, If the station does not answer the incoming CO call within Preset Call Forward timer, then this call is forwarded to preset destination.
  • Page 301: Smdr Account Group (Pgm 124)

    4.1.15 COPY DSS BUTTON (PGM 125) Description The assigned DSS button can be copied to another station or ICM group. Value : FLEX1=Station / FLEX2=ICM Group - ICM Group : 1~5 (IP LDK-20) PROCEDURE Copy DSS from Station. + 125...
  • Page 302: Display Station Number By Cos (Pgm 130)

    IP LDK-20 Programming Manual ADMIN Programming 4.1.16 DISPLAY STATION NUMBER BY COS (PGM 130) Description COS stands for Class of Service. It means, defends on the grade of COS, the service could be limited. The certain COS of station could be checked.
  • Page 303: Co Line Programming

    IP LDK-20 Programming Manual ADMIN Programming 4.2 CO LINE PROGRAMMING If user would like to change CO line features, press the [TRANS/PGM] button and dial 140-144 in ADMIN Programming Mode. When programming, LCD and LEDs indicate current programmed data and programming status. If the programmer enters correct data, then LCD and LEDs show the entered data and the data is stored in the temporary buffer area.
  • Page 304: Disa (Sub Att)

    IP LDK-20 Programming Manual ADMIN Programming 4.2.1.3 DISA (SUB ATT) To use DISA Service, previously, CO type is set to only Normal CO. Then, execute below procedure continually. PROCEDURE 1. DISA Service On + 140 CO LINE RANGE (F1: DAY,...
  • Page 305: Co Line Attribute -• (Pgm 141)

    IP LDK-20 Programming Manual ADMIN Programming 4.2.2 CO LINE ATTRIBUTE –• (PGM 141) 4.2.2.1 CO line Group Description Each CO Line must be a member of CO Line Group. Groups may be assigned according to CO type and Class-Of-Service. Group 00 means private group, and group 09 means not used group.
  • Page 306: Disa Account Code

    IP LDK-20 Programming Manual ADMIN Programming 4.2.2.3 DISA Account Code Description If this value is set to ON, when the incoming CO caller tries to access another CO Line by dialing CO Line access code, the caller should enter authorization code.
  • Page 307: Co Line Type

    IP LDK-20 Programming Manual ADMIN Programming 4.2.2.5 CO Line Type Description If this value is set to PBX, the opposite system is PBX. Oppositely if it is set to CO, the system is Central Office. Value : PBX=1 / CO=0...
  • Page 308: Una(Universal Night Answer)

    IP LDK-20 Programming Manual ADMIN Programming 4.2.2.8 UNA(Universal Night Answer) Description If this feature is set to ON, Universal Night Answer service is applied to this CO Line. Value : ON=1 / OFF=0 PROCEDURE CO LINE RANGE 1(On) Reference 1. UNA (UNIVERSAL NIGHT ANSWER) : 2.1.7 4.2.2.9 CO Line Group Account...
  • Page 309: Tenancy Group

    IP LDK-20 Programming Manual ADMIN Programming 4.2.2.10 Tenancy Group Description This value means ICM Tenancy group number the station belongs to. This station receives the CO Call. If this value is set, separated Day/Night ring mode is applied to the incoming CO Call according to each ICM tenancy group attendant’s Day/Night ring mode.
  • Page 310: Co Line Attribute -• (Pgm 142)

    IP LDK-20 Programming Manual ADMIN Programming 4.2.3 CO LINE ATTRIBUTE –• (PGM 142) 4.2.3.1 CO Line Name Display Description If this value is set to ON and the CO Line Name is assigned, the Name is displayed on the station LCD when the station gets the CO incoming call through this CO Line.
  • Page 311: Metering Unit

    Value : 00 ~ 06 (Metering signal type) There are 7 metering signal types: - 00: None - 01: 50 Hz (Not available in IP LDK-20) - 02: 12 KHz (Not available in IP LDK-20) - 03: 16 KHz (Not available in IP LDK-20)
  • Page 312: Co Line Moh

    IP LDK-20 Programming Manual ADMIN Programming 4.2.3.6 CO Line MOH Description This value is used at MOH of the CO Line. Value : 0~9(IP LDK-20) 0: Not assigned by this field 1: Internal Music 2: External Music VMIB 4 - 8: SLT MOH...
  • Page 313: Pabx Co Ring Back Tone

    IP LDK-20 Programming Manual ADMIN Programming 4.2.3.8 PABX CO Ring Back Tone Description If this value is set to YES, PX or PABX provides CO Ring Back Tone. Otherwise PX or PABX does not provide CO Ring Back Tone. Instead, IP LDK system provides it.
  • Page 314: Pabx Co Announce Tone

    IP LDK-20 Programming Manual ADMIN Programming 4.2.3.11 PABX CO Announce Tone Description If this value is set to YES, PX or PABX provides CO Announce Tone. Otherwise PX or PABX does not provide CO Announce Tone. Instead, IP LDK system provides it.
  • Page 315: Open Loop Detect Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.2.3.13 Open Loop Detect Timer Description This value provides the time limit of CO Open Loop. 100msec base Value : 00~20 PROCEDURE + 142 CO LINE RANGE 10(1000msec) 4.2.3.14 Line Length Description This feature is used to distinguish the line length when the CO Line length is too variable. (SAF only)
  • Page 316: Isdn Co Line Attribute (Pgm 143)

    IP LDK-20 Programming Manual ADMIN Programming 4.2.4 ISDN CO LINE ATTRIBUTE (PGM 143) 4.2.4.1 COLP Table Index Description To know connected party number information, CLI refer this value. If this value is set to 50, the CLI of this CO Line refers to ADMIN114-FLEX5.
  • Page 317: Call Type

    IP LDK-20 Programming Manual ADMIN Programming 4.2.4.3 Call Type Description This value is used to set the call type of ISDN CO line CLI. Value : 0~4 - 0: Unknown - 1: International - 2: National - 3: Not used...
  • Page 318: Did Remove Number

    IP LDK-20 Programming Manual ADMIN Programming 4.2.4.5 DID Remove Number Description If this value is not 0, and the CO Line is DID Line, the system discard the incoming DID digits up to amount of this value . e.g. If this value is set to 02 and the outside caller dialed ‘01245’, then the first ‘01’ is removed.
  • Page 319: Numbering Plan Id

    IP LDK-20 Programming Manual ADMIN Programming 4.2.4.8 Numbering Plan Id Description This value is used for Numbering Plan Id of ISDN called and calling party number. Value : 0~7 - 0: unknown - 1: ISDN / TELEPHONY - 2: NOT USED...
  • Page 320: Isdn 1Digit Remove

    IP LDK-20 Programming Manual ADMIN Programming 4.2.4.10 ISDN 1Digit Remove Description If this value is set to ON, the first digit is removed. Italy only. Value : ON=1 / OFF=0 PROCEDURE + 143 CO LINE RANGE 1(On) 4.2.4.11 ISDN Call Proc. Inband Message Description If this value is set to ON, Inband info.
  • Page 321: Co Ring Assignment (Pgm 144)

    IP LDK-20 Programming Manual ADMIN Programming 4.2.5 CO RING ASSIGNMENT (PGM 144) Description When CO Service Type(ADMIN 140) is set to Normal, CO incoming call goes to proper destination according to this assignment. Destination can be station or hunt group or VMIB announcement.
  • Page 322: Ring Assignment To Hunt Group

    IP LDK-20 Programming Manual ADMIN Programming 4.2.5.2 Ring Assignment to Hunt Group PROCEDURE To Assign Ring to Station at Night Mode, + 144 + CO LINE RANGE (Night) HUNT GROUP (RANGE: 620~629) 4.2.5.3 Ring Assignment to VMIB Announcement PROCEDURE To Assign Ring to Station at Weekend Mode,...
  • Page 323: Co Line Attribute • (Pgm 146)

    IP LDK-20 Programming Manual ADMIN Programming 4.2.7 CO LINE ATTRIBUTE • (PGM 146) 4.2.7.1 Incoming prefix code Insertion Description If this value is set to ON, prefix code will be attached in front of incoming CLI. Value : ON=1 / OFF=0...
  • Page 324: Isdn Line Type

    IP LDK-20 Programming Manual ADMIN Programming 4.2.7.3 ISDN Line Type Description This value is used to set ISDN CODEC Type. Value : µ-Law=1 / A-Law= 0 PROCEDURE µ-Law) + 146 + CO LINE RANGE 4.2.7.4 Calling Sub-address Description If this value is set to ON, calling party sub-address of the ISDN station is attached when an ISDN station makes an outgoing CO Call through this CO Line.
  • Page 325: Did Digit Mask

    IP LDK-20 Programming Manual ADMIN Programming 4.2.7.6 DID Digit Mask Description When DID Conversion Type(ADMIN 143 – FLEX4) is set to 0, The received DID digits are converted by this value. The number 0 ~ 9, #, * can be entered.
  • Page 326: System Data Programmomg

    IP LDK-20 Programming Manual ADMIN Programming 4.4 SYSTEM DATA PROGRAMMOMG User can adjust the whole system configuration. 4.4.1 SYSTEM ATTRIBUTE - • (PGM 160) 4.4.1.1 Attendant Call Queuing Ring Back Tone Description If this value is set to RBT, ring back tone is provided to the station when the station calls busy attendant.
  • Page 327: Co Line Choice

    IP LDK-20 Programming Manual ADMIN Programming 4.4.1.3 CO Line Choice Description In seizing a CO Line among CO line group, if this value is set to LAST CHOICE, Last available CO Line is seized. Otherwise, CO line is seized round robin choice.
  • Page 328: Co Dial-Tone Detect

    IP LDK-20 Programming Manual ADMIN Programming 4.4.1.6 CO Dial-Tone Detect Description When the speed dial is activated, if this value is set to ON, system detects dial tone using CPT instead of pause timer. Value : ON=1 / OFF=0 PROCEDURE 1(On) 4.4.1.7 External Night Ring...
  • Page 329: Multi-Line Conference

    IP LDK-20 Programming Manual ADMIN Programming 4.4.1.9 Multi-line Conference Description If this value is set to ON, a conference with multi-CO lines is available. Value : ON=1 / OFF=0 PROCEDURE 0(Off) Reference 1. Conference – SLT (BROKERS Call) : 2.7.1 4.4.1.10 Print LCR Converted Digit...
  • Page 330: Off-Net Prompt Usage

    IP LDK-20 Programming Manual ADMIN Programming 4.4.1.12 Off-net Prompt Usage Description If this value is set to On, off-net VMIB announcement(prompt) will be heard when the call is Off-net call forwarded,. It is only applied to CO-to-CO Transfer. Value : ON=1 / OFF=0...
  • Page 331: Voice Path Connect

    IP LDK-20 Programming Manual ADMIN Programming 4.4.1.14 Voice Path Connect Description If this value is set to IMM(immediate), voice path is connected immediately at the CO outgoing call, Otherwise It is connected after dialing any digits. Value : IMM=1 / DGT=0...
  • Page 332: Acd Package Usage

    IP LDK-20 Programming Manual ADMIN Programming 4.4.1.17 ACD PACKAGE USAGE This is not available in IP LDK-20. Description If this value is set to ON, ACD Information is printable. Value : ON=1 / OFF=0 PROCEDURE 4.4.1.18 CO – CO UC TIMER EXTEND...
  • Page 333: System Attribute - • (Pgm 161)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.2 SYSTEM ATTRIBUTE - • (PGM 161) 4.4.2.1 Network Time/Date Setting Description If this value is set to ON, the system time/date are set by the network time/date. Value : ON=1 / OFF=0 PROCEDURE 1(On) 4.4.2.2 Off-Hook Ring Type...
  • Page 334: Page Warning Tone

    IP LDK-20 Programming Manual ADMIN Programming 4.4.2.4 Page Warning Tone Description If this value is set to ON, page warning tone will be heard when paging starts. Value : ON=1 / OFF=0 PROCEDURE 0(Off) 4.4.2.5 Auto Privacy Description If this value is set to ON, the call is protected from override regardless of Station Override Privilege...
  • Page 335: Single Ring For Co Call

    IP LDK-20 Programming Manual ADMIN Programming 4.4.2.7 Single Ring for CO Call Description The cadence of ICM ring is set to 1sec on/ 4sec off. The cadence of CO ring is set to 0.4s on/ 0.2s off/ 0.4s on/ 4sec off.
  • Page 336: Acd Print Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.4.2.10 ACD Print Timer Description ACD database is printed per desired time interval. (10 sec or 1 hour based : ADMIN 161-FLEX 14) Value : 001 ~ 225(3 digits) PROCEDURE (RANGE: 001~225) Reference 1. ACD (Automatic Call Distribution) : 2.6.7 4.4.2.11 ACD Clear Database after Print...
  • Page 337: Vimb Prompt Gain

    IP LDK-20 Programming Manual ADMIN Programming 4.4.2.12 VIMB Prompt Gain Description This value is gain of VMIB Announcement(Prompt). Whenever VMIB Announcement is played, this value is applied. Value : 00 ~ 31 PROCEDURE (Range:00 - 31) 4.4.2.13 CLI Information at VM SMDI(Simplified Message Desk Interface)
  • Page 338: Set Vm Smdi Type

    IP LDK-20 Programming Manual ADMIN Programming 4.4.2.15 Set VM SMDI Type Description This value sets VM SMDI type (Refer RS232 Spec) Value : TYPE II=1 / TYPE I=0 PROCEDURE To change the value, user can do as follows. 1(Type •) 4.4.2.16 Incoming Toll Check...
  • Page 339: No Dss Indication

    IP LDK-20 Programming Manual ADMIN Programming 4.4.2.18 NO DSS Indication Description If this value is set to ENABLE, LED indication of {CO} button or {DSS} button is blocked. (i.e. LED does not flash even if there is incoming call to the assigned CO Line or Station) This feature is not applied for direct call such as DID/DISA.
  • Page 340: Digits Authorization Code Usage

    IP LDK-20 Programming Manual ADMIN Programming Reference 1. Station COS : 4. 1.7 2. Station COS : 4.10.1 4.4.2.21 5 Digits Authorization Code Usage Description If this value is set to ON, Authorization code is programmed as 5 digits fixed length. Under this mode, 5 digits of authorization code should be entered when related features are activated.
  • Page 341: Alarm Attributes (Pgm 163)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.4 ALARM ATTRIBUTES (PGM 163) FLEX ITEM RANGE DEFAULT REMARK Alarm Enable ON/OFF Alarm Contact Type CLOSE/OPEN CLOSE Close, Open Alarm Mode ALARM / BELL ALARM Alarm, Door Bell Alarm Signal Mode RPT/ONCE Repeat , Once 4.4.4.1 Alarm Enable...
  • Page 342: Alarm Mode

    IP LDK-20 Programming Manual ADMIN Programming 4.4.4.3 Alarm Mode Description Value : ALARM=1 / DOOR BELL=0 PROCEDURE To change the value, user can do as follows. 0(Door Bell) Reference 1. Alarm : 2.4.2 4.4.4.4 Alarm Signal Mode Description If this value is set to REPEAT, the Alarm Signal is repeated until Alarm Reset.
  • Page 343: Attendant Assignment (Pgm 164)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.5 ATTENDANT ASSIGNMENT (PGM 164) Maximum 5 Attendants can be assigned including the Main Attendants and System Attendant. The system attendant is different from main attendant in aspect of the call handling and system management priority.
  • Page 344: Auto Attendant Vmib Annc Assignment (Pgm 165)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.6 AUTO ATTENDANT VMIB ANNC ASSIGNMENT (PGM 165) User may set the number of the VMIB announcement for auto attendant. FLEX ITEM RANGE DEFAULT REMARK AUTO ATD USAGE ON/OFF VMIB ANNC 00 - 70 4.4.6.1 AUTO ATD USAGE...
  • Page 345: Co-To-Co Cos (Pgm 166)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.7 CO-TO-CO COS (PGM 166) When an external user of DID/DISA/TIE line tries to access another CO Line in the system, CO-to- CO COS is applied. The attributes of CO-to-CO COS are the same as the station COS.
  • Page 346: Did/Disa Destination (Pgm 167)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.8 DID/DISA DESTINATION (PGM 167) When there is a DID/DISA incoming call, if the destination is not answer / invalid / busy, the call is routed to Attendant / Hunt group / or the caller gets the proper tone.
  • Page 347: No Answer Destination

    IP LDK-20 Programming Manual ADMIN Programming PROCEDURE To change the value, user can do as follows. FLEX2 (Range: FLEX1~3) 4.4.8.3 No Answer Destination Description When there is a DID/DISA incoming call, and the destination is not answer, the call is routed to No...
  • Page 348 IP LDK-20 Programming Manual ADMIN Programming 4.4.8.4.1 Busy Prompt Usage Description If the value is set to ON, Busy announcement is presented to the caller before the call is routed to Busy Destination. Value : ON=1 / OFF=0 PROCEDURE 0(On) (Range: FLEX1~5) 4.4.8.4.2 Error Prompt Usage...
  • Page 349: Reroute Busy Destination

    IP LDK-20 Programming Manual ADMIN Programming 4.4.8.4.4 No Answer Prompt Usage Description If the value is set to ON, No Answer announcement is presented to the caller before the call is routed to No Answer Destination. Value : ON=1 / OFF=0...
  • Page 350: Reroute Error Destination

    IP LDK-20 Programming Manual ADMIN Programming 4.4.8.7 Reroute Error Destination Description When DID/DISA call is rerouted by no answer forward/CCR and if rereouted destination is error case, calls follows by reroute error destation(PGM 167-Flexible button 6) Value : FLEX1~FLEX3 FLEX1: Tone...
  • Page 351: External Control Contact (Pgm 168)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.9 EXTERNAL CONTROL CONTACT (PGM 168) The usage of External Relay is defined. By default, External control contacts are not assigned at all. FLEX ITEM VALUE DEFAULT REMARK 1: LBC(STA #) First Contact 1 – 3...
  • Page 352: External Relay (1~2)

    IP LDK-20 Programming Manual ADMIN Programming PROCEDURE (Range: FLEX1~2) 4.4.9.3 External Relay (1~2) Description External Control Contact can be used at any External Relay. Value: 1~3 - 1: LBC (STA #) - 2: Door - 3: Ext. 1 PROCEDURE (Range: FLEX1~2)
  • Page 353: Lcd Time/Date/Language Display Mode (Pgm 169)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.10 LCD TIME/DATE/LANGUAGE DISPLAY MODE (PGM 169) The LCD Time/Date/Language display formats can be set. 4.4.10.1 LCD Time Display Mode Description Two LCD Time formats are Ordinary (12-hour)/Military (24-hour) mode Value : 12H=1 / 24H=0...
  • Page 354: Lcd Language Display Mode

    IP LDK-20 Programming Manual ADMIN Programming 4.4.10.3 LCD Language Display Mode Description The LCD language format can be selected. Value : 00~14 - 00: English - 01: Italian - 02: Finnish - 03: Dutch - 04: Swedish - 05: Danish...
  • Page 355: Modem (Pgm 170)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.11 MODEM (PGM 170) Modem service is available only when there’s MODU on MPB. 4.4.11.1 STA No. Description This value means the Modem-associated station. To use Modem line flexibly, associate one station with Modem. Then incoming CO Call is connected to Modem device if the station gets the call.
  • Page 356: Music Assignment (Pgm 171)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.12 MUSIC Assignment (PGM 171) 4.4.12.1 BGM Type Description Value : 0~8 - 0: Not Assignment - 1: Int. Music - 2: External Music - 3: VMIB BGM - 4 -8: SLT MOH PROCEDURE...
  • Page 357: Icm Box Music Channel

    IP LDK-20 Programming Manual ADMIN Programming 4.4.12.3 ICM Box Music Channel Description Value : 0~9 - 0: No BGM - 1: Int. Music - 2: External Music - 3: VMIB BGM - 4 – 8: SLT MOH PROCEDURE Value (Music Channel) Reference 1.
  • Page 358: Dial Tone Source

    IP LDK-20 Programming Manual ADMIN Programming 4.4.12.5 DIAL TONE SOURCE Description To assign external dial tone, set the SLT station number of the SLT port. Value : 1 ~ 5 (SLT MOH) - 1 : SLT MOH 1 - 2 : SLT MOH 2...
  • Page 359: Pbx Access Code (Pgm 172)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.13 PBX ACCESS CODE (PGM 172) Maximum 4 PABX Access Codes can be assigned. Each PABX Access Code is 1 or 2-digit number. By default, PABX Access Codes are not assigned at all. Description...
  • Page 360: Pla Priority Setting (Pgm 173)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.14 PLA PRIORITY SETTING (PGM 173) The PLA Priority among Transferred Call, Recalled Call, Incoming Call, Queued Call can be set. FLEX ITEM VALUE DEFAULT REMARK XFER (Transfer Call) 1 – 4 REC (Recall) 1 –...
  • Page 361: Rs-232C Port Setting (Pgm 174)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.15 RS-232C PORT SETTING (PGM 174) FLEX ITEM RANGE DEFAULT REMARK COM1 Port Setting FLEX 1-2 COM2 - MODU Port Setting FLEX 1-2 Description Baud Rate, CTS/RTS, P-Break, LPP can be assigned at this feature to COM1 port, COM2 – MODU port.
  • Page 362: Print Port Selection (Pgm 175)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.16 PRINT PORT SELECTION (PGM 175) FLEX ITEM RANGE DEFAULT REMARK Off-line SMDR/ Statistics 01-10 COM1 01: COM1 Print 02: COM2-MODU 03: TELNET 1 ADMIN Print 01-10 COM1 04: TELNET 2 Traffic 01-10 COM1...
  • Page 363: Admin Data

    IP LDK-20 Programming Manual ADMIN Programming 4.4.16.2 ADMIN Data Description When ADMIN 451 is used, the ADMIN data is printed through this port. Value :- 01~11 PROCEDURE Value 4.4.16.3 Traffic Description Traffic analysis data is printed through this port. Value : 01~11...
  • Page 364: Smdi Print

    IP LDK-20 Programming Manual ADMIN Programming 4.4.16.4 SMDI Print Description SMDI data is printed through this port. Value : 01~11 PROCEDURE Value 4.4.16.5 Call Information Description Call information data is printed through this port. Value : 01~11 PROCEDURE Value 4.4.16.6 Info/On-line SMDR Description On-line SMDR data is printed through this port.
  • Page 365: Trace

    IP LDK-20 Programming Manual ADMIN Programming 4.4.16.7 Trace Description Trace data is printed through this port. Value : 01~11 PROCEDURE Value Reference 1. SMDR : 2.12 4.4.16.8 Debug Description Debug data is printed through this port. Value : 01~11 PROCEDURE...
  • Page 366: Pc Attendant

    IP LDK-20 Programming Manual ADMIN Programming 4.4.16.10 PC Attendant Description PC Admin is connected through this port. Value : 01~11 PROCEDURE Value Reference PC ADMIN programming manual 4.4.16.11 CTI Description CTI is connected through this port. Value : 01~11 PROCEDURE Value 4.4.16.12 Remote Diagnostic...
  • Page 367: Pulse Dial Ratio (Pgm 176)

    In LDK-300/300E/100, pulse dial speed ratio is set only for 10 PPS. Value : 1 / 0 - 2 : 10 PPS 50/50% (Not available in IP LDK-20) - 1 : 10 PPS 66/33% - 0 : 10 PPS 60/40%...
  • Page 368: Smdr Attributes (Pgm 177)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.18 SMDR ATTRIBUTES (PGM 177) Station Message Detail Recording (SMDR) will provide details on both incoming and outgoing calls. As an assignable database option, If All Call record type is selected, incoming and outgoing local and long distance calls are all provided.
  • Page 369: Long Distance / All Call Recorded (Smdr Recording Call Type)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.18.3 Long Distance / All Call Recorded (SMDR Recording Call Type) Description If this value is set to LD, only long distance outgoing CO call is served SMDR. If this value is set to ALL, all outgoing CO call is served SMDR.
  • Page 370: Print Lost Call

    IP LDK-20 Programming Manual ADMIN Programming 4.4.18.6 Print Lost Call Description If value is set to ON, lost calls are printed The lost call is defined that the call is unanswered. Value : ON=1 / OFF=0 PROCEDURE 1(On) 4.4.18.7 Records in Detail...
  • Page 371: Smdr Dial Digit Hidden

    IP LDK-20 Programming Manual ADMIN Programming 4.4.18.8 SMDR Dial Digit Hidden Description If this value is set non-zero value, the printed digits from right or left will be replace to ‘*’ symbol up to this value. The direction of right or left can be set at ADMIN program 177 – FLEX 13.
  • Page 372: Smdr Cost Per Unit Pulse

    IP LDK-20 Programming Manual ADMIN Programming 4.4.18.10 SMDR Cost Per Unit Pulse Description This is the call cost unit per cost metering pulse, which is sent from the Central Office. Value : 6 digits(0~9) PROCEDURE 001000 (Range: 6 digits) 4.4.18.11 SMDR Fraction...
  • Page 373: Smdr Hidden Digit

    IP LDK-20 Programming Manual ADMIN Programming 4.4.18.13 SMDR Hidden Digit Description If this value is set to RIGHT, SDMR digit hiding is executed the right-to-left direction. At this case, if dialed ‘1234567890’, SDMR printed hidden digits are formatted ‘12345*****’. If this value is set to LEFT, SDMR digit hiding is executed to left-to-right direction.
  • Page 374: Print Caller Number

    IP LDK-20 Programming Manual ADMIN Programming Reference 1. MSN : 2.14.7 4.4.18.16 PRINT CALLER NUMBER Description If this value is set to ON, the caller number is printed at incoming call SMDR. Value : ON=1 / OFF=0 PROCEDURE I (enable)
  • Page 375: System Time/Date Setting (Pgm 178)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.19 SYSTEM TIME/DATE SETTING (PGM 178) In this ADMIN program, date and time can be set. 4.4.19.1 System Time Description Hour/Min in sequence( ex. In case 11:30, enter 1130 ) Value : 4 digits...
  • Page 376: Linked Station Pairs Table (Pgm 179)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.20 LINKED STATION PAIRS TABLE (PGM 179) Description The linked station pair is defined section 2.9.2. Review of the programmed linked station pairs can be accessed at flexible button 1 sub-menu. Registration and delete of the linked station pairs can be set at flexible button 2 sub-menu.
  • Page 377: Cidu Setting (Pgm 185)

    IP LDK-20 Programming Manual ADMIN Programming 4.4.21 CIDU SETTING (PGM 185) This program define analog CO line CLI information. By using this hardware device unit, IP LDK system can detect CLI that is carried through analog CO line, and serve the software feature that related caller ID service.
  • Page 378: Serial Port Select

    IP LDK-20 Programming Manual ADMIN Programming 4.4.21.3 Serial Port Select This is no need to service CID on analog CO line in IP LDK-20. Description This ADMIN program set the port connected to CIDU hardware device. * Note: This ADMIN program is only needed, when the external CIDU hardware device is installed.
  • Page 379: Initialize Cid Data

    Value : None PROCEDURE 4.4.21.6 CID type • Usage This is not available in IP LDK-20, only CID type 1 is serviced. Description If this value is set to ON, CID type 2 service can be usage. Value : ON=1 / OFF=0 PROCEDURE 4.4.21.7 FAST CID MODE...
  • Page 380: System Timers

    IP LDK-20 Programming Manual ADMIN Programming 4.5 SYSTEM TIMERS 4.5.1 SYSTEM TIMERS –• (PGM 180) 4.5.1.1 Attendant Recall Timer Description If a recalled call arrives to a attendant, the attendant may not answer the call. Then the system disconnect the call if the attendant don’t answer the call for some time. This ADMIN program set the...
  • Page 381: Camp On Recall Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.1.3 Camp On Recall Timer Description When a station transfers to busy station by Camp-On, if the transferred-to station don’t answer the call, the call will recall to transferring station after setting time passes. Therefore This ADMIN program set the appropriate time.
  • Page 382: Sys Hold Recall Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.1.6 Sys Hold Recall Timer Description Determines the amount of time before a call placed on system hold will recall the station placing the hold. Value : 000~300(3 digits) PROCEDURE Value(sec) 4.5.1.7 Transfer Recall Timer...
  • Page 383: Acnr No Answer Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.1.9 ACNR No Answer Timer Description This timer is invoked after system detects CO ring back tone from CO party. If the call isn’t answered, system disconnect the call. And wait next ACNR trial.
  • Page 384: Acnr No Tone Retry Counter

    IP LDK-20 Programming Manual ADMIN Programming 4.5.1.12 ACNR No Tone Retry Counter Description This ADMIN program can set the trial number of seizing the CO line for ACNR. If the CO line isn’t seized, ACNR will be canceled. Value : 1~9(1 digit)
  • Page 385: Ccr Inter-Digit Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.1.15 CCR Inter-digit Timer Description This timer is used for the CCR inter-digit timer in the DISA/DID CO line. In DID type 2, it is used for DID inter-digit timer. Value : 000~255(3 digits)
  • Page 386: Co Dial Delay Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.1.18 CO Dial Delay Timer Description Voice connection to the outside party will be made after this timer. This can be used to prevent illegal dialing in case of slow response from the Central Office Line or PBX.
  • Page 387: Co Ring On Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.1.21 CO Ring On Timer Description This timer controls the time necessary to detect an incoming CO call as ringing into the system. Value : 1~9(1 digit) PROCEDURE Value(100msec) 4.5.1.22 CO Warning Tone Timer...
  • Page 388: System Timers -• (Pgm 181)

    IP LDK-20 Programming Manual ADMIN Programming 4.5.2 SYSTEM TIMERS –• (PGM 181) 4.5.2.1 Call Forward No Answer Timer Description This timer is used at the no answer call forward feature(Section 2.3.1.2, and 2.3.1.3). If station is set the no answer call forward type, and if station don’t answer during this timer, then the call will be routed to the forward destination.
  • Page 389: Vmib Valid User Message Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.2.4 VMIB Valid User Message Timer Description This is the minimum time that station user must record his VMIB announcement. If this value is set to 0, VMIB announcement can not be recorded. Value : 0~9(1 digit)
  • Page 390: Icm Dial Tone Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.2.7 ICM Dial Tone Timer Description This timer is used when the off-hooked station is heard the intercom dial tone. If station doesn’t dial a digit within this timer, error tone is provided. Value : 01~20(2 digits)
  • Page 391: Paging Timeout Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.2.10 Paging Timeout Timer Description Select the maximum time of a page. The system will automatically disconnect the page at the end of this time unless the caller has hung up earlier. Value : 000~255(3 digits)
  • Page 392: Slt Dtmf Release Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.2.13 SLT DTMF Release Timer Description Value : 00~20(2 digits) PROCEDURE Value(sec) 4.5.2.14 3SOFT Auto Release Timer Description This timer is used only in 3soft BTN DKTU. In 3soft menu, if there is no any digit within time, the DKTU turn to Idle state.
  • Page 393: Transit Connect Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.2.16 Transit Connect Timer Description Master sends the connect message to slave system after this timer when the transit out CO type is a pulse analog trunk. Value : 01~30(2 digits) PROCEDURE Value(sec) 4.5.2.17 VMIB Message Rewind Timer...
  • Page 394: System Timers -• (Pgm 182)

    IP LDK-20 Programming Manual ADMIN Programming 4.5.3 SYSTEM TIMERS –• (PGM 182) 4.5.3.1 SLT Hook Switch Bounce Timer Description This timer is used at SLT only. Select the length of time that is needed to regard as a valid on-hook or off-hook (for SLT).
  • Page 395: Slt Ring Phase Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.3.4 SLT Ring Phase Timer Description Select the ring phase(cadency) of SLT. (5 SEC: 1SEC ON / 4SEC OFF) Value : 2~5(1 digit) PROCEDURE Value(sec) 4.5.3.5 Station Auto Release Timer Description If a station hears ring back tone and no action is taken, this timer is assigned. When this timer is expired, the station is released.
  • Page 396: Wake-Up Fail Ring Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.3.7 Wake-Up Fail Ring Timer Description After a Wake-up fail ring invokes on system attendant, the alarm ring exists during this timer. If this timer expires, the alarm ring will be disappeared. Value : 00~99(2 digits)
  • Page 397: Enblock Digit Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.3.10 Enblock Digit Timer Description This timer is used at the enblock dialing sending feature. If station user make a call at the enblock dialing mode, and if station user doesn’t dial within this time, then the enblock dialing is executed.
  • Page 398: Fax Tone Detect Timer

    IP LDK-20 Programming Manual ADMIN Programming 4.5.3.13 FAX Tone Detect Timer Description This timer is used to detect FAX tone from FAX CO line. During this timer, IP LDK system will be wait to detect FAX tone. If this timer is expired, the call is routed to the ring assigned stations for FAX CO line.
  • Page 399: Station Group Programming (Pgm 190 - Pgm 191)

    IP LDK-20 Programming Manual ADMIN Programming 4.6 STATION GROUP PROGRAMMING (PGM 190 – PGM 191) The station group is defined the hunt group(Section 2.6) in IP LDK system. At ADMIN program 190 and 191, the hunt group programming can be set.
  • Page 400: Pick Up Attribute

    IP LDK-20 Programming Manual ADMIN Programming 4.6.1.2 Pick up Attribute Description This value is used to assign the pick-up attribute at hunt group. Except pick-up hunt group, all type of hunt group can be assigned the pick-up attribute optionally. Value : ON=1 / OFF=0...
  • Page 401: Station Group Attribute (Pgm 191)

    IP LDK-20 Programming Manual ADMIN Programming 4.6.2 STATION GROUP ATTRIBUTE (PGM 191) If the hunt group type is selected at ADMIN program 190, then the attributes of each hunt group can be programmed at ADMIN program 191. 4.6.2.1 CIRCULAR/TERMINAL GROUP ATTRIBUTE Description If the hunt group type is selected to CIRCULAR or TERMINAL(Section 2.6.2, 2.6.3), then the...
  • Page 402 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.1.3 VMIB Announce 1 Location Description This is used to play VMIB announcement, when the VMIB announce 1 timer is expired. Value : 00~70(VMIB Announcement Number) PROCEDURE + 191 + Hunt Group NUMBER + Value 4.6.2.1.4 VMIB Announce 2 Location...
  • Page 403 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.1.6 VMIB Announce 2 Repeat Enable/Disable Description This value is used to enable or disable VMIB Announce 2 Repeat. Value : ON=1 / OFF=0 PROCEDURE + 191 + Hunt Group NUMBER + 1(On) 4.6.2.1.7 Overflow Destination...
  • Page 404 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.1.8 Overflow Timer Description If this timer expires after a call is received in the group, the call is routed to the overflow destination. The overflow destination can be set at ADMIN program 191 – FLEX 7.
  • Page 405 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.1.11 Pilot Hunt Description If this value is set ON, the call to the each hunt group member is processed as the call to hunt group. A circular/terminal hunt group can be assigned with a pilot number (the station group) so that only calls to the pilot number will hunt.
  • Page 406: Ucd Group Attribute

    IP LDK-20 Programming Manual ADMIN Programming 4.6.2.1.14 Alt DESTINATION Description If there is no member on duty or all member is busy, CO incoming call will be routed to alternative destination. Value : : 1~2(Destination Type) - 1: STA #...
  • Page 407 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.2.2 VMIB Announce 2 Timer Description The second VMIB announcement can be played if the call continues to wait beyond the 2nd announcement timer. The played VMIB announcement can be programmed at ADMIN program 191 –...
  • Page 408 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.2.5 VMIB Announce 2 Repeat Timer Description This is used to repeat VMIB announce 2 when the timer is expired. (000: Not repeat). Value : 000~999 PROCEDURE + 191 + Hunt Group NUMBER + + Value(sec) + 4.6.2.2.6 VMIB Announce 2 Repeat Enable/Disable...
  • Page 409 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.2.8 Overflow Timer Description If this timer expires after a call is received in the group, the call is routed to the overflow destination. The overflow destination can be set at ADMIN program 191 – FLEX 7.
  • Page 410 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.2.11 Music Source Description If music source is assigned, calling user will be heard music instead of ring back tone. Value : 0~8 - 0: Not assigned by this field. - 1: Internal Music...
  • Page 411 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.2.14 Supervisor Timer Description If there is no idle member at hunt group, the incoming call will be queued. If the total queued call count is more than the supervisor call count value, and ACD queued call ADMIN program value is set to ON, and the queued time is longer than this timer, then the counts of queued calls will be displayed onto supervisor's LCD.
  • Page 412 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.2.17 Max Queued Call Count Description This value is the maximum call count that can be queued. If the total queued call count is this value, the next queuing tried call will be disconnected.
  • Page 413: Ring Group Attribute

    IP LDK-20 Programming Manual ADMIN Programming 4.6.2.3 RING GROUP ATTRIBUTE If the hunt group type is selected to RING(Section 2.6.4), then the following attributes for RING hunt group can be programmed at ADMIN program 191. 4.6.2.3.1 VMIB Announce 1 Timer Description If the call doesn’t answered during this timer, the system plays VMIB announcement that is...
  • Page 414 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.3.3 VMIB Announce 1 Location Description This is used to play VMIB announcement, when the VMIB announce 1 timer is expired. Value : 00~70(VMIB Announcement Number) PROCEDURE + 191 + Hunt Group NUMBER + Value 4.6.2.3.4 VMIB Announce 2 Location...
  • Page 415 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.3.6 VMIB Announce 2 Repeat Enable/Disable Description This value is used to enable or disable VMIB Announce 2 Repeat. Value : ON=1 / OFF=0 PROCEDURE + 191 + Hunt Group NUMBER + 1(On) 4.6.2.3.7 Overflow Destination...
  • Page 416 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.3.9 Wrap Up Timer Description A station in a hunt group is maintained in a busy state during this timer value, after the end of received call and outgoing call for the assigned wrap-up time.
  • Page 417: Vm Group Attribute

    IP LDK-20 Programming Manual ADMIN Programming 4.6.2.3.12 VMIB Supervisor Description Value : STA 100~125 PROCEDURE + 191 + Hunt Group NUMBER + + Value(STA Number) + 4.6.2.4 VM GROUP ATTRIBUTE If the hunt group type is selected to VM(Ref Section 2.6.5), then the following attributes for VM hunt group can be programmed at ADMIN program 191.
  • Page 418 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.4.2 Put Mail Index Description This index is one of the voice mail dialing tables Value : 1~4 PROCEDURE + 191 + Hunt Group NUMBER + Value 4.6.2.4.3 Get Mail Index Description This index is one of the voice mail dialing tables...
  • Page 419 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.4.5 SMDI Port Description This value is used to set SMDI print port. SMDI is defined ‘Simplified Message Desk Interface’ that indicates the distribute information of VM. Value : 01~11 FLEX ITEM RANGE DEFAULT...
  • Page 420: Pick-Up Group Attribute

    IP LDK-20 Programming Manual ADMIN Programming 4.6.2.4.7 Overflow Destination Description The call to a station in the group will continue to route until answered or each station in the group has been tried. The call will remain at the last station in the group or will be passed to this overflow station/group/ VMIB/System Speed bin, after overflow timer expiring.
  • Page 421 IP LDK-20 Programming Manual ADMIN Programming 4.6.2.5.2 All Ring Description If this value is set to ON, and if a hunt group member receives an intercom call, then all hunt group member is ringing. To set this value, ‘Auto Pickup’ ADMIN program value must be set to ON.
  • Page 422: Isdn Program

    IP LDK-20 Programming Manual ADMIN Programming 4.7 ISDN PROGRAM To change ISDN system values, press the [TRANS/PGM] button and dial ADMIN program number. The ISDN system ADMIN program number range is 200-202. When programming, LCD and LEDs indicate current programmed data and programming status. The programmer enters correct data, then LCD and LEDs show the entered data and the data is stored in the temporary buffer area.
  • Page 423: Co Atd Code

    IP LDK-20 Programming Manual ADMIN Programming 4.7.1.2 CO ATD Code Description This value is used when ISDN DID call incoming and outgoing case. If the received DID digit is matched this value, then the call is routed to attendant station.
  • Page 424: My Area Code

    IP LDK-20 Programming Manual ADMIN Programming 4.7.1.5 My Area Code Description This value is used to set the my area code. The combination of this value and ADMIN program 200 – FLEX 10 is compared with the received CLI, and the received CO call can be judged the local call or the long distance call.
  • Page 425: Maintain Did Name

    IP LDK-20 Programming Manual ADMIN Programming 4.7.1.7 Maintain DID Name Description This value is used at the CLI display of incoming DID CO call. If the incoming DID call has CLI, it is displayed on station LCD only ringing time.
  • Page 426: Colp Table (Pgm 201)

    IP LDK-20 Programming Manual ADMIN Programming 4.7.2 COLP TABLE (PGM 201) Description COLP table is used when makes the outgoing CLI The method of making CLI is explained at ‘Section 2.14.2’. At this ADMIN program, the maximum 50 CLI data can be programmed.
  • Page 427: Msn Table (Pgm 202)

    IP LDK-20 Programming Manual ADMIN Programming 4.7.3 MSN TABLE (PGM 202) MSN is defined one of ISDN CO line service. In IP LDK system, maximum 250 MSN table entry can be programmed. Each MSN table entry has MSN ‘CO line number’, ‘Index of flexible DID table’, ‘Subaddress number’, and ‘Telephone number’.
  • Page 428: Sub Number

    IP LDK-20 Programming Manual ADMIN Programming 4.7.3.3 Sub Number Description This value is only used when the destination station type is ISDN telephone. If the destination is ISDN telephone, this value is sent as the ISDN sub-address number of it.
  • Page 429: Isdn Attribute Ii (Pgm 203)

    IP LDK-20 Programming Manual ADMIN Programming 4.7.4 ISDN Attribute II (PGM 203) 4.7.4.1 CO Line Number Description This value controls the type of ISDN Terminal Equipment Identification of each BRI port. Value : FIXED=1 / AUTO=0 PROCEDURE 203 + (Toggle) + (Range: FLEX1~FLEX4) 4.7.4.2 Hold/Retrieve Service Type...
  • Page 430: Retrieve Code

    IP LDK-20 Programming Manual ADMIN Programming 4.7.4.4 Retrieve Code Description This determines the code for ISDN Supplementary Retrieve. Value : Max 10 Digits PROCEDURE 203 + + value(Max:10digits) + 4.7.4.5 B channel selection type (Italy only) Description This sets B channel selection Type.
  • Page 431: Barring Down Code (Italy National Protocol)

    IP LDK-20 Programming Manual ADMIN Programming 4.7.4.7 Barring Down Code (Italy national protocol) Description This determines the code for Barring down code . Value : Max 10 Digits PROCEDURE 203 + + value(Max:10digits) + 4.7.4.8 CFU Activation Code (Italy national protocol) Description This determines the code for CFU Activation Code .
  • Page 432: Memo-Tel Activation Normal Code (Italy National Protocol)

    IP LDK-20 Programming Manual ADMIN Programming 4.7.4.10 Memo-Tel Activation normal Code (Italy national protocol) Description This determines the code for Memo-Tel Activation Code . Value : Max 10 Digits PROCEDURE 203 + + value(Max:10digits) + 4.7.4.11 Memo-Tel Timer Code (Italy national protocol) Description This determines the code for Memo-Tel Timer Code.
  • Page 433: Memo-Tel Interrogation Code (Italy National Protocol)

    IP LDK-20 Programming Manual ADMIN Programming 4.7.4.13 Memo-Tel Interrogation Code (Italy national protocol) Description This determines the code for Memo-Tel Interrogation Code . Value : Max 10 Digits PROCEDURE 203 + + value(Max:10digits) + 4.7.4.14 Memo-Tel Retrieve MSRS Code (Italy national protocol) Description This determines the code for Memo-Tel Retrieve MSRS(Message Retrieve System) Code .
  • Page 434: Lcr

    IP LDK-20 Programming Manual ADMIN Programming 4.8 LCR To enter LCR ADMIN program, press the [TRANS/PGM] button and dial LCR ADMIN program number. The LCR ADMIN program number range is 220-223. There are 4 parts in the LCR table. User can program general database, LCR access mode, day zone and time zone by PGM 220. PGM 221 is for Leading Digit Table and PGM 222 is for Digit Modification Table.
  • Page 435: Lcr Access

    IP LDK-20 Programming Manual ADMIN Programming 4.8.1.1 LCR Access Description This value is used to select LCR access mode. Each access mode is explained at section 2.2.7. Value : M00=1 / M01=2 / M02=3 / M11=4 / M12=5 / M13=6...
  • Page 436: Time Zone Of Day Zone1

    IP LDK-20 Programming Manual ADMIN Programming 4.8.1.3 Time Zone of Day Zone1 Description Each time of day zone1 can use different LCR setting. At this ADMIN program, each time of day zone1 can be grouped up to 3 zone. *Note: IP LDK accepts it as the same value for 00 and 24 and changes to “00”, if input is 24 as starting value and vice versa.
  • Page 437: Time Zone Of Day Zone3

    IP LDK-20 Programming Manual ADMIN Programming 4.8.1.5 Time Zone of Day Zone3 Description Each time of day zone3 can use different LCR setting. At this ADMIN program, each time of day zone3 can be grouped up to 3 zone. *Note: IP LDK accepts it as the same value for 00 and 24 and changes to “00”, if input is 24 as starting value and vice versa.
  • Page 438: Leading Digit Table (Pgm 221)

    IP LDK-20 Programming Manual ADMIN Programming 4.8.2 LEADING DIGIT TABLE (PGM 221) LDT(Leading Digit Table) is used to check whether digits that is dialed by user is LCR Code or not. If digits that is dialed by user are equal to LCR Code(ADMIN program 221 – FLEX 2), the digits is converted and CO line is seized according to DMT(ADMIN program 222).
  • Page 439: Lcr Code

    IP LDK-20 Programming Manual ADMIN Programming 4.8.2.2 LCR Code Description If digits that is dialed by user are equal to this value, the digits is converted and CO line is seized according to DMT(ADMIN program 222) Value1: 000~249(LDT Table) Value2 : *,#,0~9(Max 12 digits)
  • Page 440: Dmt Index(Day Zone 2)

    IP LDK-20 Programming Manual ADMIN Programming 4.8.2.4 DMT index(Day Zone 2) Description This value is used to set the table index DMT(ADMIN program 222) of the day zone 2. Because day zone 2 has 3 different time zone, three table index of each time must be selected.
  • Page 441: Flex Check Password

    IP LDK-20 Programming Manual ADMIN Programming 4.8.2.6 FLEX Check Password Description If this value is set to ON, IP LDK system request the account code of user, when dialed digit is matched LCR code. Value1 : 000~249(LDT Table) Value2 : ON=1 / OFF=0...
  • Page 442: Digit Modifcation Table (Pgm 222)

    IP LDK-20 Programming Manual ADMIN Programming 4.8.3 DIGIT MODIFCATION TABLE (PGM 222) DMT(Digit Modification Table) is used to convert the dialed digit and seize the outgoing CO line. In IP LDK system, maximum 100 DMT entry can be programmed. Each DMT entry has six sub- attributes, ‘Added digit stream’, ‘Removal position’, ‘Remove Number’, ‘Add position’, ‘CO Line...
  • Page 443: Removal Position

    IP LDK-20 Programming Manual ADMIN Programming 4.8.3.2 Removal Position Description This value is used to set the removal position at user dialed digits. Some digits are removed from the this position up to ‘Remove Number’ (ADMIN program 222 – FLEX 3) The example of this ADMIN programming is illustrated at ‘Section 2.7’.
  • Page 444: Add Position

    IP LDK-20 Programming Manual ADMIN Programming 4.8.3.4 Add Position Description This value is used to set the add position at user dialed digits. Some digits are added from the this position with ‘Add Digit Stream’ (ADMIN program 222 – FLEX 1) The example of this ADMIN programming is illustrated at ‘Section 2.7’.
  • Page 445: Alternative Dmt Index

    IP LDK-20 Programming Manual ADMIN Programming 4.8.3.6 Alternative DMT Index Description This value is used when LCR call can’t seize the idle CO line within ADMIN program 222 – FLEX 5. If LCR call can’t seize the idle CO line within LCR CO Line Group, LCR call seize the idle CO within CO Line Group of this value DMT index.
  • Page 446: Lcr Table Initialization (Pgm 223)

    IP LDK-20 Programming Manual ADMIN Programming 4.8.4 LCR TABLE INITIALIZATION (PGM 223) This ADMIN program changes all LCR ADMIN table entry value to new value. FLEX Item Default Remark(Value) LCR Database change / Initialize None (6 digits) Each pair (2 digits) is the index to the DMT...
  • Page 447: Day Zone 3

    IP LDK-20 Programming Manual ADMIN Programming 4.8.4.3 Day zone 3 Description This ADMIN program change the index of DMT value of day zone 3 to new value. Value : 00~99(6 digits) PROCEDURE Value(6 digits) 4.8.4.4 CO Line Group Description This ADMIN program change the all CO Line Group values of DMT entry to new value.
  • Page 448: Initialize All Lcr

    IP LDK-20 Programming Manual ADMIN Programming 4.8.4.6 Initialize All LCR Description This ADMIN program initialize the all LCR ADMIN data to default value. Value: None PROCEDURE...
  • Page 449: Toll Table

    IP LDK-20 Programming Manual ADMIN Programming 4.9 TOLL TABLE To enter TOLL TABLE ADMIN program, press the [TRANS/PGM] button and dial TOLL TABLE ADMIN program number. The LCR ADMIN program number range is 224 - 226. Toll tables are used to have access to certain toll free calls as well as being denied certain calls for the stations assigned Station COS.
  • Page 450: Allow Table A

    IP LDK-20 Programming Manual ADMIN Programming 4.9.1.1 Allow Table A Description This ADMIN value is used to check, whether the dialed digit by COS 2 and COS 4 station is matched with the allowed toll pass digits or not. Allow table A is only used when the COS of dialed station is COS 2 or 4.
  • Page 451: Deny Table B

    IP LDK-20 Programming Manual ADMIN Programming 4.9.1.4 Deny Table B Description This ADMIN value is used to check, whether the dialed digit by COS 3 and COS 4 station is matched with the denied toll pass digits or not. Deny table B is only used when the COS of dialed station is COS 3 or 4.
  • Page 452: Allow Table D

    IP LDK-20 Programming Manual ADMIN Programming 4.9.1.7 Allow Table D Description This ADMIN value is used to check, whether the dialed digit by COS 9 station is matched with the allowed toll pass digits or not. Allow table B is only used when the COS of dialed station is COS 9.
  • Page 453: Canned Toll Tables (Pgm 225)

    IP LDK-20 Programming Manual ADMIN Programming 4.9.2 CANNED TOLL TABLES (PGM 225) In addition to the basic toll restrictions, stations with a COS 5 or 6 are subject to dial restrictions based on the “Canned” Allow and Deny Tables. This program permits entries in the Canned Toll Tables.
  • Page 454: Emergency Service Call (Pgm 226)

    IP LDK-20 Programming Manual ADMIN Programming 4.9.3 EMERGENCY SERVICE CALL (PGM 226) The emergency code table is used for emergency call service. All stations, regardless of COS, can dial the emergency codes in this table. 4.9.3.1 Emergency Service Call Description Maximum 10 emergency codes can be programmable.
  • Page 455: Tables

    Stations or ADMIN programming can enter the authorization codes. Administrator can see and change station's password. There can be no duplicate entries. By default, Authorization Codes are not assigned at all. In IP LDK-20 system, the total number of Authorization Codes is 200 entries.
  • Page 456: Authorization Code

    IP LDK-20 Programming Manual ADMIN Programming 4.10.1.1 Authorization Code PROCEDURE Variable Authorization Code Mode + Value1 Value2 5 Digits Authorization Code Mode Value1 Value2 Reference 1. 5 Digits authorization code usage(PGM 161, FLEX21) 4.10.1.2 Day COS of Authorization Code Day COS of stations are viewed only. But Day COS of extra entries can also be assigned.
  • Page 457: Custom Call Routing (Pgm 228)

    IP LDK-20 Programming Manual ADMIN Programming 4.10.2 CUSTOM CALL ROUTING (PGM 228) This ADMIN program is used at CCR feature, that the caller can select the destination according to the guiding VMIB announcement. In IP LDK system, maximum 70 VMIB announcement can be used, and 10 different destination type can be selected.
  • Page 458: Hunt Group

    IP LDK-20 Programming Manual ADMIN Programming 4.10.2.2 Hunt Group Description If CCR destination type is the HUNT GROUP, the call is ringing at member station of this value hunt group. Value1 : 01~70(CCR Table Number) Value2 : FLEX01~FLEX10(Bin Number) Value3 : 01~10(Destination Type)
  • Page 459: System Speed

    IP LDK-20 Programming Manual ADMIN Programming 4.10.2.5 System Speed Description If CCR destination type is the SYSTEM SPEED, the call is routed to the system speed telephone number. Value1 : 01~70(CCR Table Number) Value2 : FLEX01~FLEX10(Bin Number) Value3 : 1~10(Destination Type)
  • Page 460: External Page

    IP LDK-20 Programming Manual ADMIN Programming 4.10.2.7 External Page Description If CCR destination type is the EXTERNAL PAGE, the call can page to the external page zone of this value. Value1 : 01~70(CCR Table Number) Value2 : FLEX01~FLEX10(Bin Number) Value3 : 1~10(Destination Type)
  • Page 461: Conference Room

    When the executive designated station is in DND state, intercom and transfer calls will be automatically routed to the designated secretary station. By default, EXECUTIVE/SECRETARY pairs are not assigned at all. In IP LDK-20, system supports 6 EXECUTIVE/SECRETARY pairs. Value : 01~06...
  • Page 462: Flexible Did Table (Pgm 231)

    IP LDK-20 Programming Manual ADMIN Programming 4.10.4 FLEXIBLE DID TABLE (PGM 231) This ADMIN program is used at DID feature – DID type2. The example of ADMIN programming is illustrated at Section 2.1.3, too. In IP LDK system, maximum 1000 Flexible DID Table entry can be programmed. Each Flexible DID Table entry has five attributes ‘DID Name’, ’Day Destination’, ’Night Destination’, ’Weekend...
  • Page 463: Day Destination

    IP LDK-20 Programming Manual ADMIN Programming 4.10.4.2 Day Destination Description This value is used to set the destination, when route DID call during day ring mode. The nine different destination type can be selected. Value1 : F1=Input / F2=Initial / F3=Delete...
  • Page 464: Weekend Destination

    IP LDK-20 Programming Manual ADMIN Programming PROCEDURE (Value1) + Value2 Value3(1~9) + Value3(STA/Group/ VMIB/SPD/PAGE ZONE) + 4.10.4.4 Weekend Destination Description This value is used to set the destination, when route DID call during weekend ring mode. The nine different destination type can be selected.
  • Page 465: Reroute Destination

    IP LDK-20 Programming Manual ADMIN Programming 4.10.4.5 Reroute Destination Description This value is used to set the second destination, when routed DID call destination is busy. Value1 : F1=Input / F2=Initial / F3=Delete Value2 : 000~999(DID Conversion table) Value3 : 1~6(Destination Type)
  • Page 466: System Speed Zone (Pgm 232)

    IP LDK-20 Programming Manual ADMIN Programming 4.10.5 SYSTEM SPEED ZONE (PGM 232) This ADMIN program is used at SYSTEM SPEED ZONE feature (Ref Section 2.5.5) 4.10.5.1 Speed Bin Range in Zone Description The system speed zone can be grouped the maximum 10 system speed zone.
  • Page 467: Toll Checking

    IP LDK-20 Programming Manual ADMIN Programming 4.10.5.3 Toll Checking Description If this value is set to ON, the speed dial of this zone is checked by the toll table. Value 1 : 01~10 (Speed Zone Number) Value 2 : F1=Zone / F2=Station / F3=Toll Check/F4=AUTH Check...
  • Page 468: Weekly Time Table (Pgm 233)

    IP LDK-20 Programming Manual ADMIN Programming 4.10.6 WEEKLY TIME TABLE (PGM 233) Description This ADMIN program is used at the ring assignment feature. The WEEKLY TIME TABLE can manage the ring mode changes automatically. The use of WEEKLY TIME TABLE is executed by the system attendant and each intercom tenancy group attendant.
  • Page 469: Voice Mail Dialing Table (Pgm 234)

    IP LDK-20 Programming Manual ADMIN Programming 4.10.7 VOICE MAIL DIALING TABLE (PGM 234) Description This ADMIN program is used at the VM hunt group feature. This VOICE MAIL DIALING TABLE value defines the interface of dialing command between IP LDK and the external VM device.
  • Page 470: Mobile Extension (Pgm 236)

    IP LDK-20 Programming Manual ADMIN Programming 4.10.8 MOBILE EXTENSION (PGM 236) A mobile user is able to use the phone as extension of system. So he can receive the incoming call and make the outgoing call when a user registers the mobile phone number.
  • Page 471: Networking Attribute

    IP LDK-20 Programming Manual ADMIN Programming Description This value is used as the CLI of Mobile Extension. Value : Telephone Number of Mobile PROCEDURE + 236 + CLI digits (Max 16) 4.11 NETWORKING ATTRIBUTE To program NETWORKING ATTRIBUTE, press the [TRANS/PGM] button and dial 320 - 324.
  • Page 472 IP LDK-20 Programming Manual ADMIN Programming PROCEDURE Value(2 Digit)
  • Page 473: Networking Cnip Enable

    IP LDK-20 Programming Manual ADMIN Programming 4.11.1.3 Networking CNIP Enable Description The name of calling station is sent to the called system between IP LDK systems. CNIP is displayed on called party station LCD according to ADMIN programming. If the CNIP and CLI are received together, CNIP is prior to CLI.
  • Page 474: Networking Cas Enable

    IP LDK-20 Programming Manual ADMIN Programming 4.11.1.6 Networking CAS Enable Description The networking CAS is explained at Section 2.16.16. Enable Centralized attendant in master system, CAS should be disabled. Value : ON=1 / OFF=0 PROCEDURE 1(On) Reference 1. Attendant Call Service(CAS) : 2.16.16 4.11.1.7 Networking VPN Enable...
  • Page 475: Networking Supplementary Attribute (Pgm 321)

    IP LDK-20 Programming Manual ADMIN Programming 4.11.2 Networking Supplementary Attribute (PGM 321) 4.11.2.1 Networking Transfer Mode Description At international standard of the networking transfer signaling, two kinds of signaling type are exist. The name of each signaling type is REROUTE and JOIN.
  • Page 476: Udp Port

    IP LDK-20 Programming Manual ADMIN Programming 4.11.2.3 UDP Port Description The BLF is explained at Section 2.16.19. This ADMIN program is used to set the UDP port for BLF message. Value : 0000~9999(4 digits) Default value : 9001 PROCEDURE Value(4 Digits) Reference BLF(Busy Lamp Field) Presentation : 2.16.19...
  • Page 477: Duration Of Blf Status

    IP LDK-20 Programming Manual ADMIN Programming 4.11.2.5 Duration of BLF status Description The BLF is explained at Section 2.16.19. This ADMIN program is used to set the duration of BLF status message. Value : 01~20(sec) PROCEDURE Value(sec) Reference BLF(Busy Lamp Field) Presentation : 2.16.19 4.11.2.6 Multicast IP Address...
  • Page 478: Networking Co Line Attribute (Pgm 322)

    IP LDK-20 Programming Manual ADMIN Programming 4.11.3 Networking CO Line Attribute (PGM 322) 4.11.3.1 Networking CO Line Group Description This ADMIN program is used to select CO Line Group for networking call. Value : 00~24(Net CO Line Group) PROCEDURE CO LINE RANGE Value 4.11.3.2 Networking CO Line Type...
  • Page 479: Networking Routing Table (Pgm 324)

    IP LDK-20 Programming Manual ADMIN Programming 4.11.4 Networking Routing Table (PGM 324) At this ADMIN program, the numbering routing table for the networking connection can be set. NETWORKING ROUTING TABLE has 72 entries, and each entry is consisted of 7 attributes, ‘SYSTEM USAGE’, ‘NETWORKING NUMBERING CODE’, ‘NETWORKING NUMBER CO LINE...
  • Page 480: Net Number Co Line Group

    IP LDK-20 Programming Manual ADMIN Programming 4.11.4.3 Net Number CO Line Group Description This ADMIN program is used to select CO line group for networking call. If networking call number corresponding NET NUMBERING CODE is entered, the networking call route to the destination through this CO Line Group.
  • Page 481: Destination Mpb Ip

    IP LDK-20 Programming Manual ADMIN Programming 4.11.4.6 Destination MPB IP Description IP Address of destination system to support DECT mobility service. DECT mobility service is explained at section 2.16.17. Value1 : 00~71(Net Numbering Plan Table) Value2 : IP address PROCEDURE...
  • Page 482: Voib Attribute

    IP LDK-20 Programming Manual ADMIN Programming 4.12 VOIB Attribute 4.12.1 VOIP IP Setting (PGM 340) At this ADMIN program, the VOIP board can be installed. Maximum 3 VOIP boards can be installed. The VOIP board ADMIN program is consisted of 10 attributes, ‘IP ADDRESS’, ‘GATEWAY ADDRESS’, ‘SUBNET MASK’, ‘DNS ADDRESS’, ‘TRACE PASSWORD’, ‘DEFAULTE CODEC’,...
  • Page 483: Subnet Mask (Skip:#)

    IP LDK-20 Programming Manual ADMIN Programming 4.12.1.3 SUBNET Mask (Skip:#) Description This ADMIN program is used at setting the subnet mask of VOIP board. Value : 12 digits(Subnet Mask) Default value : 255.255.255.0 PROCEDURE + Value 4.12.1.4 DNS Address (Skip:#) Description This ADMIN program is used at setting the DNS address of VOIP board.
  • Page 484: Trace Password

    IP LDK-20 Programming Manual ADMIN Programming 4.12.1.5 Trace Password Description This ADMIN program is used at setting the password which need to contact to VOIP board for trace. Value : 10 Characters(Password) . – 13 A – 21 D – 31 Q –...
  • Page 485: Default Gain

    IP LDK-20 Programming Manual ADMIN Programming 4.12.1.7 Default Gain Description This ADMIN program is used at setting the default codec of VOIP board. Value : 1~62 PROCEDURE Value 4.12.1.8 No Delay(TOS) Description This ADMIN program is used at selecting whether the response of VOIP board will be delayed or not.
  • Page 486: Reliability(Tos)

    IP LDK-20 Programming Manual ADMIN Programming 4.12.1.10 Reliability(TOS) Description This ADMIN program is used at selecting whether the reliability of VOIP board is high or normal. Value : HIGH=1 / NORMAL=0 PROCEDURE VOIB SLOT Number + 1(High)
  • Page 487: Rsg/Ip Phone Programming

    IP LDK-20 Programming Manual ADMIN Programming 4.13 RSG/IP Phone Programming 4.13.1 VOIB SLOT ASSIGNMENT for RSG/IP Phone (PGM 380) The VOIB slot and VOIB channel for RSG/IP Phone can be assigned. The RSG is serviced through VOIB. So, the VOIB for RSG should be assigned.
  • Page 488: Rsg/Ip Phone Port Number Assignment (Pgm 381)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.2 RSG/IP Phone Port Number ASSIGNMENT (PGM 381) The port number for RSG /IP Phone can be assigned. 4.13.2.1 RSG Number Description The RSG number to be serviced from system Value : RSG No.
  • Page 489: Rsg / Ip Phone Attribute (Pgm 382)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.3 RSG / IP Phone ATTRIBUTE (PGM 382) 4.13.3.1 Transfer Mode Value : MAC=1 / IP=0 Default Value : IP PROCEDURE + 0(IP) 4.13.3.2 Casting Mode Value : MULTI=1 / UNI=0 Default Value : UNI...
  • Page 490: Codec Type

    IP LDK-20 Programming Manual ADMIN Programming 4.13.3.5 Codec Type Value : 0~2 - 0 : G.711_ALAW - 1 : G.711_ULAW - 2 : G.723.1 Default Value : 0 PROCEDURE + Value 4.13.3.6 First Access RSG CO Description If the field is set, the station on RSG can access a CO line on his RSG by dialing CO Line access code in the 1 available CO group (ex) 9).
  • Page 491: Rsgm Attribute 1 (Pgm 383)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.4 RSGM ATTRIBUTE 1 (PGM 383) 4.13.4.1 Set MAC Address Description For registration of RSG to the IP LDK system, enter the MAC of RSG after VOIB Configuration. You can input the hex digits (A ~ F) by pressing following buttons.
  • Page 492: Rsg Port View

    IP LDK-20 Programming Manual ADMIN Programming 4.13.4.3 RSG Port View Description D : DKT S : SLT C : CO line Value : BIN no.(1~8) Default Value : D(…) S(…) C(…) PROCEDURE + Value 4.13.4.4 Port Number View Value : BIN no.(1~8)
  • Page 493: Stun Enabled

    IP LDK-20 Programming Manual ADMIN Programming 4.13.4.7 STUN Enabled Value : BIN no.(1~8) Default Value : NONE PROCEDURE + Value...
  • Page 494: Rsgm Attribute 2 (Pgm 384)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.5 RSGM ATTRIBUTE 2 (PGM 384) 4.13.5.1 RTP Port number of Internal MOH Value1 : Range of BIN (1~8) Value2 : Port No. Default Value2 : 8186 PROCEDURE + Value1 + Value2 4.13.5.2 RTP Port number of External MOH Value1 : Range of BIN (1~8) Value2 : Port No.
  • Page 495: Music Source

    IP LDK-20 Programming Manual ADMIN Programming 4.13.5.4 Music Source Description The RSG has one internal and one external MOH source. RSG associated devices use their local MOH source in the RSG. The music will be heard when RSG devices on RSG are held or digital keyset on RSG activates the BGM.
  • Page 496: External Contact 2

    IP LDK-20 Programming Manual ADMIN Programming 4.13.5.6 External Contact 2 Description By default, External Contacts are not assigned at all. Value1 : Range of BIN (1~8) Value2 : LBC=1/Door Open=2 Value3 : Station number when 1(LBC) is pressed PROCEDURE + Value1...
  • Page 497: Alarm / Door Bell Mode

    IP LDK-20 Programming Manual ADMIN Programming 4.13.5.9 Alarm / Door Bell Mode Value1 : Range of BIN (1~8) Value2 : ALARM=1/BELL=0 Default Value2 : ALARM PROCEDURE + Value1 + 1(ALARM) 4.13.5.10 Alarm Signal Description RPT means the repetition. Value1 : Range of BIN (1~8)
  • Page 498: Rsg Nation Code

    IP LDK-20 Programming Manual ADMIN Programming 4.13.5.12 RSG Nation Code Value1 : Range of BIN (1~8) Value2 : Nation Code Default Value2 : NOT USED PROCEDURE + Value1 + 82(KOREA) 4.13.5.13 IPSEC Value1 : Range of BIN (1~8) Value2 : ON=1/OFF=0...
  • Page 499: Ip Phone Attribute (Pgm 386)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.7 IP Phone ATTRIBUTE (PGM 386) 4.13.7.1 Set MAC Address Description For registration of IP Phone to the IP LDK system, enter the MAC of IP Phone. You can input the hex digits (A ~ F) by pressing following buttons.
  • Page 500: Port View

    IP LDK-20 Programming Manual ADMIN Programming 4.13.7.3 Port View Value : BIN no.(01~16) PROCEDURE + Value 4.13.7.4 Port Number View Value : BIN no.(01~16) PROCEDURE + Value 4.13.7.5 NAT IP Address Display Value : BIN no.(01~16) Default Value : 0.0.0.0...
  • Page 501: Stun Enabled

    IP LDK-20 Programming Manual ADMIN Programming 4.13.7.7 STUN Enabled Description None, PAT, NAT or NAT/PAT is displayed. Value : BIN no.(01~16) Default Value : NONE PROCEDURE + Value 4.13.7.8 CTI Port Description Set CTI IP Address to support the first party CTI...
  • Page 502: Ipsec

    IP LDK-20 Programming Manual ADMIN Programming 4.13.7.9 IPSEC Description If this feature is set to ON, VOIB serves IPSEC. Value1 : Range of BIN (01~16) Value2 : ON=1/OFF=0 Default Value2 : OFF PROCEDURE + Value1 + 0(OFF)
  • Page 503: Rsg Dkt Rx Gain Control (Pgm 390)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.8 RSG DKT RX GAIN CONTROL (PGM 390) Description The RX gain of DKT on RSG can be adjusted. Value : Gain range PROCEDURE + Value FLEX ITEM RANGE DEFAULT REMARK RSG_DKT RX from DKTU 00 –...
  • Page 504: Rsg Dkt Tx Gain Control (Pgm 391)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.9 RSG DKT TX GAIN CONTROL (PGM 391) Description The TX gain of DKT on RSG can be adjusted. Value : Gain range PROCEDURE + Value + FLEX ITEM RANGE DEFAULT REMARK RSG_DKT RX to DKTU 00 –...
  • Page 505: Rsg Slt Rx Gain Control (Pgm 392)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.10 RSG SLT RX GAIN CONTROL (PGM 392) Description The RX gain of SLT on RSG can be adjusted. Value : Gain range PROCEDURE + Value FLEX ITEM RANGE DEFAULT REMARK RSG_SLT RX from DKTU 00 –...
  • Page 506: Rsg Slt Tx Gain Control (Pgm 393)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.11 RSG SLT TX GAIN CONTROL (PGM 393) Description The TX gain of SLT on RSG can be adjusted. Value : Gain range PROCEDURE Value FLEX ITEM RANGE DEFAULT REMARK RSG_SLT RX to DKTU 00 –...
  • Page 507: Rsg Lco Rx Gain Control (Pgm 394)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.12 RSG LCO RX GAIN CONTROL (PGM 394) Description The RX gain of LCO on RSG can be adjusted. Value : Gain range PROCEDURE + Value FLEX ITEM RANGE DEFAULT REMARK RSG_LCO RX from DKTU 00 –...
  • Page 508: Rsg Lco Tx Gain Control (Pgm 395)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.13 RSG LCO TX GAIN CONTROL (PGM 395) Description The TX gain of LCO on RSG can be adjusted. Value : Gain range PROCEDURE Value FLEX ITEM RANGE DEFAULT REMARK RSG_LCO RX to DKTU 00 –...
  • Page 509: Rsg Ip Phone Rx Gain Control (Pgm 396)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.14 RSG IP Phone RX GAIN CONTROL (PGM 396) Description The RX gain of IP Phone on RSG can be adjusted. Value : Gain range PROCEDURE Value FLEX ITEM RANGE DEFAULT REMARK RSG_IP PHONE RX from DKTU 00 –...
  • Page 510: Rsg Ip Phone Tx Gain Control (Pgm 397)

    IP LDK-20 Programming Manual ADMIN Programming 4.13.15 RSG IP Phone TX GAIN CONTROL (PGM 397) Description The TX gain of IP Phone on RSG can be adjusted. Value : Gain range PROCEDURE ) + Value FLEX ITEM RANGE DEFAULT REMARK RSG_IP PHONE RX to DKTU 00 –...
  • Page 511: The Others

    IP LDK-20 Programming Manual ADMIN Programming 4.14 The others 4.14.1 Nation Specific (PGM 400 ~ 423) FLEX ITEM RANGE DEFAULT REMARK DTIB RX Gain Korean version DTIB/DKT 00 – 63 DTIB/SLT 00 – 63 DTIB/RESERV 00 – 63 DTIB/RESERV 00 – 63 DTIB/ACO 00 –...
  • Page 512 IP LDK-20 Programming Manual ADMIN Programming DCOB RX Gain DCOB/DKT 00 – 63 DCOB/SLT 00 – 63 DCOB/RESERV 00 – 63 DCOB/RESERV 00 – 63 DCOB/ACO 00 – 63 DCOB/RESERV 00 – 63 DCOB/DCO 00 – 63 DCOB/VMIB 00 – 63 DCOB/DTMF 00 –...
  • Page 513 IP LDK-20 Programming Manual ADMIN Programming MODEM/DCO 00 – 63 Short SLIB Gain SAF only Shot ACO 00 – 63 Long ACO 00 – 63 Long SLIB Gain SAF only Shot ACO 00 – 63 Long ACO 00 – 63...
  • Page 514 IP LDK-20 Programming Manual ADMIN Programming...
  • Page 515: Initialization (Pgm 450)

    IP LDK-20 Programming Manual ADMIN Programming 4.14.2 Initialization (PGM 450) PGM FLEX ITEM RANGE DEFAULT REMARK Initialization Flexible Numbering Plan Initialization PGM105, PGM106, PGM107 Station Database Initialization PGM110, PGM111, PGM112, PGM113, PGM114, PGM 116, PGM117, PGM118, PGM119, PGM121,PGM122, PGM123, PGM124, PGM179...
  • Page 516: Print Prot Database (Pgm 451)

    IP LDK-20 Programming Manual ADMIN Programming 4.14.3 Print Prot Database (PGM 451) PGM FLEX ITEM RANGE DEFAULT REMARK Print Prot Data Flexible Numbering Plan Print Station Database Print STN_R CO Line Database Print CO_R System Feature Database Print Station Group Database Print...
  • Page 517: Section 5. Quick Reference Admin. Programming Table

    IP LDK-20 Programming Manual Quick ADMIN Programming Table Section 5. Quick Reference ADMIN. Programming Table NUMBERING PLAN 5.1.1 Flexible Numbering Plan The following numbering plan can be changed by ADMIN Programming 104-107 depending on the user's needs. NUMBER ITEM REMARK...
  • Page 518: Station Programming

    IP LDK-20 Programming Manual Quick ADMIN Programming Table 5.1.2 Station Programming NUMBER ITEM REMARK Differential Ring Keyset Intercom Answer Mode (1 HF / 2 TONE / 3 PV) Keyset SMS Message Display LDP Keyset Enblock Mode LDP Keyset SMS/ Notice Display...
  • Page 519: Attendant Programming

    IP LDK-20 Programming Manual Quick ADMIN Programming Table 5.1.3 Attendant Programming NUMBER ITEM REMARK 0111 Print SMDR (Station Base) System Attendant 0112 Delete SMDR (Station Base) System Attendant 0113 Print SMDR (Group Base) System Attendant 0114 Delete SMDR (Group Base)
  • Page 520: Flexible Button Programming Code

    IP LDK-20 Programming Manual Quick ADMIN Programming Table 5.1.4 Flexible Button Programming Code NUMBER ITEM REMARK Differential Ring Station COS Down Station COS Restore Walking COS Authorization Code Registration Authorization Code Change Wake-up Time Registration (One-time /Continuous) Wake-up Time Cancel...
  • Page 521: Admin Programming Index

    IP LDK-20 Programming Manual Quick ADMIN Programming Table ADMIN PROGRAMMING INDEX MAIN MENU ITEM PRE-PROGRAMMED DATABASE Location Program Numbering Plan Type Flexible Number Plan – Station Number Flexible Number Plan A Flexible Number Plan B IP Setting Flexible Number Plan C...
  • Page 522 IP LDK-20 Programming Manual Quick ADMIN Programming Table MAIN MENU ITEM SYSTEM BASE PROGRAM Linked Station Pairs Table System Timers – I System Timers – II System Timers – III CIDU Setting DCOB DCOB System attribute DCOB CO Line Attribute...
  • Page 523 IP LDK-20 Programming Manual Quick ADMIN Programming Table MAIN MENU ITEM NATION SPECIFIC DTIB Rx Gain Control SLIB Rx Gain Control ACOB Rx Gain Control DCOB Rx Gain Control VMIB Rx Gain Control DTMF Receiver Rx Gain Control EXT Page Rx Gain Control...
  • Page 524: Default Values

    VMIB DTIB8 AAFB LCOB4 STIB1 SLIB4 VMIBE CBIB SLIB8 AAFBE Board type on basic MBU(Slot 1- Slot3, Slot5) and VMIB slot (slot 7) can not be changed. 5.3.3 WTIB PORT NUMBER ASSIGNMENT This program is not available in IP LDK-20.
  • Page 525: Logical Slot Assignment

    IP LDK-20 Programming Manual Quick ADMIN Programming Table 5.3.4 LOGICAL SLOT ASSIGNMENT PGM FLEX ITEM DEFAULT REMARK COL Board Refer to Note STA Board Refer to Note For RSGM, IP phone virtual slot ‘99’ should be programmed. VMIB Not Assigned * Note) If the DIP switch of the manual board detection DIP Switch 4) is ON, system will detect the logical slot assign in sequence as increase order automatically.
  • Page 526: Flexible Numbering Plan

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.6 FLEXIBLE NUMBERING PLAN NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER FLEX FIELD REMARK SET1 SET2 SET3 SET4 SET5 SET6 SET7 SET8 10 – 35 10 – 35 Intercom call 10 - 35 10 –...
  • Page 527 IP LDK-20 Programming Manual Quick ADMIN Programming table NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER NUMBER FLEX FIELD REMARK SET1 SET2 SET3 SET4 SET5 SET6 SET7 SET8 Alarm Reset *565 *565 *565 *565 Group Call Pickup *566 *566 *566 UCD DND...
  • Page 528: Ip Setting

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.7 IP SETTING FLEX ITEM RANGE DEFAULT REMARK IP Name Max 15 Server IP Address 12 Digits 192.168.1.1 Skip : # CLI IP Address 12 Digits Gateway Address 12 Digits Subnet Mask 12 Digits 255.255.255.0...
  • Page 529: Station Attribute I/Ii/Iii

    If this value is set to ON, Speakerphone can Speakerphone ON/OFF be used. VMIB Slot Not available in IP LDK-20 This feature selects intercom Tenancy Group, ICM Group 1 - 5 which this station belongs to. If this value is set to ON, and TAD is used in...
  • Page 530 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK CIDSLT FSK GAIN 00-20 FSK gain for CID SLT, Not available in LDK-20 CALLER Voice Over ON/OFF Facility to make Voice-Over to busy station. In case of restricting outgoing CO call time, if...
  • Page 531 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK OFFNET Call Mode EXT/ALL If this value is set to EXT, the station user can only forward CO call to Off-net(ex mobile phone). Otherwise both CO call and ICM call can be forwarded to Off-net.
  • Page 532 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK ADMIN EN/DIS DISABLE If this value is set to ENABLE, the assigned station users can program ADMIN Database. This feature is only available at DKTU. VMIB Access...
  • Page 533: Isdn Station Attribute

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.11 ISDN STATION ATTRIBUTE PGM FLEX ITEM RANGE DEFAULT REMARK CLIP LCD ON / OFF If this value is set to ON, the CLI is displayed on the Display station’s LCD. ON / OFF COLP LCD If this value is set to ON, the connected party’s CLI is...
  • Page 534: Flexible Button Assignment

    IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK If this value is set to ON, she receives a call waiting via ON / OFF MSN Call Wait MSN.. Max 16 LONG CLI 1 If CLI type of outgoing CO line is set to 1, Long CLI 1 is sent.
  • Page 535 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK ICM Tenancy Group number Each Intercom Tenancy Group can be operated independently and the stations in the group can be assigned an individual CO Line Group to use. Each group can be...
  • Page 536: Co Line Base Program

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.14 CO LINE BASE PROGRAM PGM FLEX ITEM RANGE DEFAULT REMARK CO Service Type In this program mode, you can program the following items. 1:Normal, 2:RESERVED, CO Type 1(Normal) 3:ISDN DID/MSN Detailed Attribute of the type...
  • Page 537 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK CO Line Attributes – II 1-13 If this value is set to ON and the CO CO Line Name Display ON / OFF Line Name is assigned, the Name is...
  • Page 538 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Line Length LONG / SHORT SHORT This feature is used to distinguish the line length when the CO Line length is too variable. (SAF only) The incoming DISA call is answered DISA Answer Timer after this timer expires.
  • Page 539 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK LONG CLI TYPE If this value is set to 0, the CLI is made as before (refer PGM200 /PGM114) If this value is set to 1 or 2, the CLI is just as same as Long CLI (Station Long CLI 1 or 2).
  • Page 540: System Base Program

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.15 SYSTEM BASE PROGRAM PGM FLEX ITEM RANGE DEFAULT REMARK System Attributes-I 1-15 Attendant Call RBT / MOH If this value is set to RBT, ring back tone is provided to the station when the station calls busy attendant.
  • Page 541 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK System Attributes-II 1-18 Network Time/Date Setting ON / OFF If this value is set to ON, the system time/date are set by the network time/date. Off-Hook Ring Signal Type...
  • Page 542 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK DSS Indication Enable / Disable Disable If this value is set to ENABLE, LED indication of {CO} button or {DSS} button is blocked. (i.e. LED does not flash even if there is incoming call to the assigned CO Line or Station.)
  • Page 543 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK DID/DISA F1-F4 When there is a DID/DISA incoming call, if the destination is not answer / invalid / busy, the call is routed to Attendant / Destination Hunt group / or the caller gets the proper tone.
  • Page 544 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK LCD Time Display 12H / 24H Two LCD Time formats are Ordinary (12-hour)/Military (24- Mode hour) mode LCD Date Display MMDD / DDMMYY Two LCD date formats are Day/Month/Year (DDMMYY) or...
  • Page 545 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Off-line 01-10 COM1(01) : Off-line SMDR data is printed through this port. SMDR/Statistics Print ADMIN Data When ADMIN 451 is used, the ADMIN data is printed through this port.
  • Page 546 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Print Lost Call ON / OFF If value is set to ON, lost calls are printed The lost call is defined that the call is unanswered.
  • Page 547: System Timer Program

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.16 SYSTEM TIMER PROGRAM PGM FLEX ITEM RANGE DEFAULT REMARK Attendant Recall Timer 00 – 60 If a recalled call arrives to a attendant, the (2 digits) (min) attendant may not answer the call. Then the system disconnect the call if the attendant don’t...
  • Page 548 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK ACNR Tone Detect 001-300 This timer is invoked upon completion of dialing Timer (3 digits) (sec) and system considers the CO party is busy when the CPTU cannot detect the valid tone type until this timer expires.
  • Page 549 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Call FWD No Answer Timer 000 – 255 This timer is used at the no answer call forward (3 digits) (sec) feature(Section 2.3.1.2, and 2.3.1.3). If station is set the no answer call forward type, and if station don’t answer during this timer, then the...
  • Page 550 TEL NO(0) According to this ADMIN program value, LCD TEL NO(0) displayed data can be selected. Serial Port Select Not available in IP LDK-20 CID/ Co Port Mapping 000-063 Not available in IP LDK-20 Initialize CID Data CID Type2 Usage...
  • Page 551: Station Group Assignment

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.17 STATION GROUP ASSIGNMENT PGM FLEX ITEM RANGE DEFAULT REMARK Station Group Number STA Grp # Group Type Hunt group type can be selected among circular/terminal/UCD/ring/VM/pick- up/networking VM. Pick-up Attribute ON/OFF This value is used to assign the pick-up attribute at hunt group.
  • Page 552: Station Group Program

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.18 STATION GROUP PROGRAM ITEM FLEX SUB ITEM RANGE DEFAULT REMARK 191 Circular VMIB Announce 000-999 If the call doesn’t answered during this Group 1 Timer (sec) timer, the system plays VMIB...
  • Page 553 IP LDK-20 Programming Manual Quick ADMIN Programming table Circular No Answer Timer 00-99 In circular/terminal hunt, if the Group (sec) incoming call is not answered during this time, the call is routed to the next Terminal idle station in the group.
  • Page 554 IP LDK-20 Programming Manual Quick ADMIN Programming table Overflow STA #/ The call to a station in the group will Group Destination HUNT#/ continue to route until answered or each VMIB#/ station in the group has been tried. The SYS SPD#...
  • Page 555 IP LDK-20 Programming Manual Quick ADMIN Programming table Supervisor Timer 000-999 If there is no idle member at hunt group, the Group (3 digits) (sec) incoming call will be queued. If the total queued call count is more than the...
  • Page 556 IP LDK-20 Programming Manual Quick ADMIN Programming table ITEM FLEX SUB ITEM RANGE DEFAULT REMARK Ring VMIB Announce 2 000-999 This is used to repeat VMIB announce 2 Group Repeat timer (sec) when the timer is expired. (000: Not repeat).
  • Page 557 IP LDK-20 Programming Manual Quick ADMIN Programming table ITEM FLEX SUB ITEM RANGE DEFAULT REMARK Overflow Timer 000-600 If this timer expires after a call is received (3 digits) (sec) in the group, the call is routed to the overflow destination.
  • Page 558: Isdn Attributes

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.19 ISDN ATTRIBUTES PGM FLEX ITEM RANGE DEFAULT REMARK Advice of Charge The AOC is the call cost information service that is provided by public ISDN. According to the country, the standard of AOC type is different.
  • Page 559 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK COLP Table Max. 10 digits COLP table is used when makes the outgoing The method of making CLI is explained at ‘Section 2.14.2’. At this ADMIN program, the maximum 50 CLI data can be programmed.
  • Page 560: Lcr Table Assignment

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.20 LCR TABLE ASSIGNMENT PGM FLEX ITEM RANGE DEFAULT REMARK LCR Access Mode M00/M01/M02/M Disable This value is used to select LCR access mode. 11/M12/M13 (M00) Each access mode is explained at section 2.2.7.
  • Page 561 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Leading Digit Table 000-249 LCR Type 1 – 3 This value is used to select the LCR type. LCR Code Max 12 digits If digits that is dialed by user are equal to this value, the...
  • Page 562 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK CO Line Group 1 – 8 This value is used when LCR call seize the outgoing CO line. The idle CO line within CO Line Group of this value is seized for LCR call.
  • Page 563: Toll Table Assignment

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.21 TOLL TABLE ASSIGNMENT PGM FLEX ITEM RANGE DEFAULT REMARK Toll Table Allow Table A (01-30) Max 14 digits This ADMIN value is used to check, whether the dialed digit by COS 2 and COS 4 station is matched with the allowed toll pass digits or not.
  • Page 564: Other Tables

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.22 OTHER TABLES PGM FLEX ITEM RANGE DEFAULT REMARK Author Code Table 001 - 200 Authorization code table entries is consist of each station password and extra account codes. The table entry from 001 to the maximum capacity of station numbers are saved the password of each station.
  • Page 565 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Exec/Sec Table This ADMIN program is used at Table entry(1-6) STA #/STA # EXECUTIVE/SECRETARY feature( When the executive designated station is in DND state, intercom and transfer calls will be automatically routed to the designated secretary station.
  • Page 566 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK System Speed 01-10 Zone Speed Bin Range 2200 – 2499 The system speed zone can be grouped the in Zone maximum 10 system speed zone. About each system speed zone, the accessibility can be set at ADMIN program 232 –...
  • Page 567 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Voice Mail Dial-Table 1 - 9 This ADMIN program is used at the VM hunt Prefix Index 12 Digits group feature. This VOICE MAIL DIALING TABLE...
  • Page 568: Networking Attribute

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.23 NETWORKING ATTRIBUTE PGM FLEX ITEM RANGE DEFAULT REMARK Networking Basic Attributes F1-F7 Networking Enable ON / OFF This ADMIN program value is used to enable the networking feature. To set this ADMIN value to ON, the networking software lock-key must be installed at IP LDK system.
  • Page 569 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Supplementary Attributes F1-F7 Networking Transfer Mode REROUT REROUT At international standard of the networking / JOIN transfer signaling, two kinds of signaling type are exist. The name of each signaling type is REROUTE and REJOIN.
  • Page 570 IP LDK-20 Programming Manual Quick ADMIN Programming table Networking Routing 00-71 Table System Usage NET / PSTN This ADMIN program is used to set the networking connection type of the selected table entries. If PSTN is directly connected, this value must be set to PSTN.
  • Page 571: Voib Net Attrubute

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.24 VOIB NET ATTRUBUTE PGM FLEX ITEM RANGE DEFAULT REMARK VOIB IP SETTING IP Addressing(SKIP:#) 12 digits 0.0.0.0 This ADMIN program is used at setting the IP address of VOIP board. GATEWAY Addressing (SKIP:#) 12digits 0.0.0.0...
  • Page 572: Rsg/Ip Phone Setting

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.25 RSG/IP Phone Setting PGM FLEX ITEM RANGE DEFAULT REMARK VOIB SLOT FOR RSG/IP SLOT assign CHANEL assign 0 – 8 RSG/IP No Assign RSG NUMBER IP PHONE NUMBER 00~16 RSG/IP Attribute...
  • Page 573 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK RSG Alarm Attribute RSG 01~24 None RSG 25~48 None RSG 49~72 None RSG 73~96 None IP Phone Attribute SET MAC ADDR 00-00-00-00-00-00 IP Address DISPALY 0.0.0.0...
  • Page 574 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK RSG_SLT RX Gain RSG_SLT RX from DKTU 00 – 63 RSG_SLT RX from SLT 00 – 63 RSG_SLT RX from CTR_SLT 00 – 63 RSG_SLT RX from WKT 00 –...
  • Page 575 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK RSG_LCO RX Gain RSG_LCO RX from DKTU 00 – 63 RSG_LCO RX from SLT 00 – 63 RSG_LCO RX from 00 – 63 CTR_SLT RSG_LCO RX from WKT 00 –...
  • Page 576 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK IP PHONE RX Gain IP PHONE RX from DKTU 00 – 63 IP PHONE RX from SLT 00 – 63 IP PHONE RX from CTR_SLT 00 – 63 IP PHONE RX from WKT 00 –...
  • Page 577: Nation Specific

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.26 NATION SPECIFIC PGM FLEX ITEM RANGE DEFAULT REMARK DTIB RX Gain Korean version DTIB/DKT 00 – 63 DTIB/SLT 00 – 63 DTIB/RESERV 00 – 63 DTIB/RESERV 00 – 63 DTIB/ACO 00 – 63 DTIB/RESERV 00 –...
  • Page 578 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK DCOB RX Gain DCOB/DKT 00 – 63 DCOB/SLT 00 – 63 DCOB/RESERV 00 – 63 DCOB/RESERV 00 – 63 DCOB/ACO 00 – 63 DCOB/RESERV 00 – 63 DCOB/DCO 00 –...
  • Page 579 IP LDK-20 Programming Manual Quick ADMIN Programming table PGM FLEX ITEM RANGE DEFAULT REMARK Long SLIB Gain SAF only Shot ACO 00 – 63 Long ACO 00 – 63 Far SLIB Gain SAF only Shot ACO 00 – 63 Long ACO 00 –...
  • Page 580: Initialization

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.27 INITIALIZATION PGM FLEX ITEM RANGE DEFAULT REMARK Initialization Flexible Numbering Plan Initialization PGM105, PGM106, PGM107 Station Database Initialization PGM110, PGM111, PGM112, PGM113, PGM114, PGM 116, PGM117, PGM118, PGM119, PGM121,PGM122, PGM123, PGM124, PGM179...
  • Page 581: Print Prot Database

    IP LDK-20 Programming Manual Quick ADMIN Programming table 5.3.28 PRINT PROT DATABASE PGM FLEX ITEM RANGE DEFAULT REMARK Print Prot Data Flexible Numbering Plan Print Station Database Print STN_R CO Line Database Print CO_R System Feature Database Print Station Group Database Print...
