Summary of Contents for Amphion FlexBase25

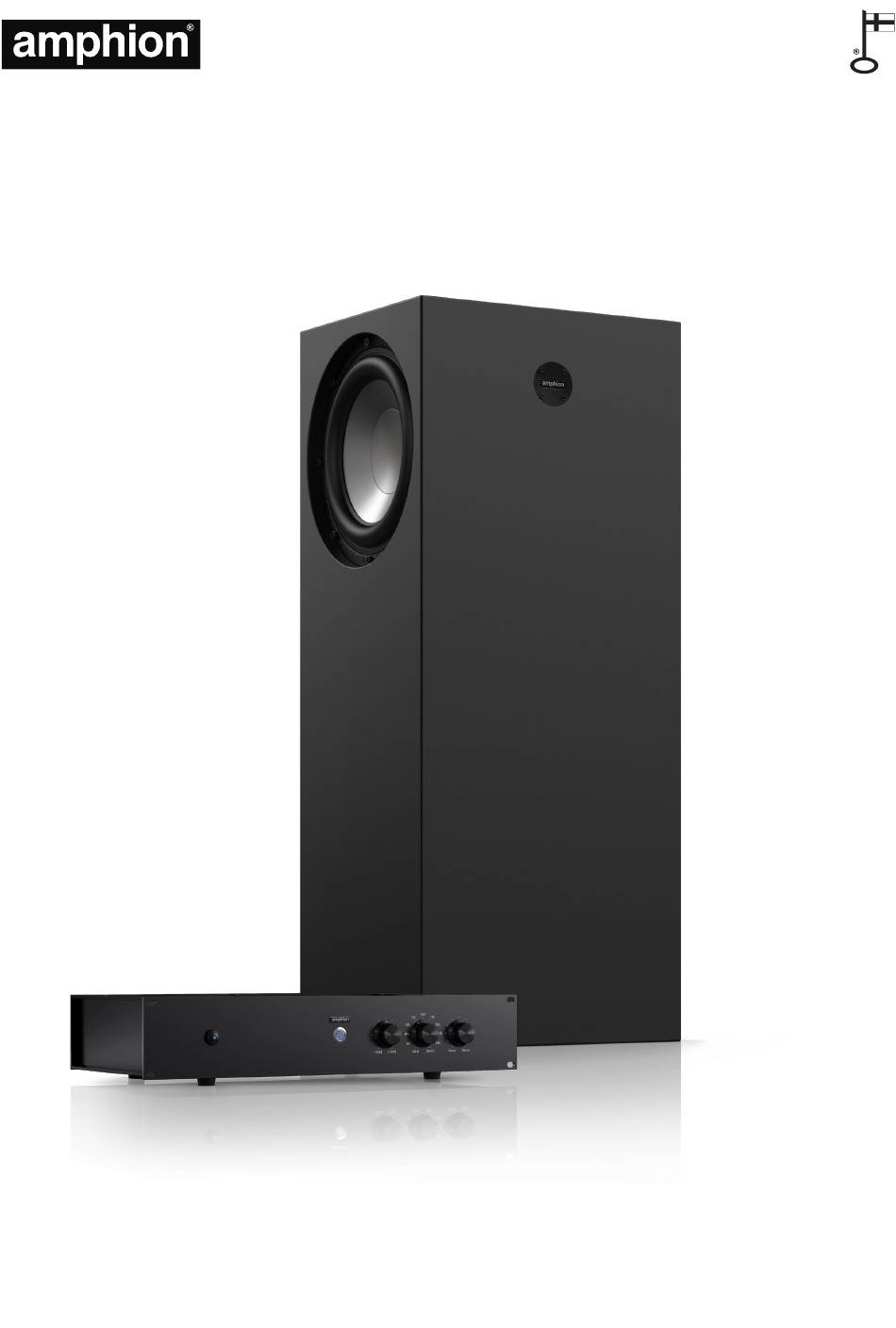

Page 1 Handmade in Finland FlexBase25 System Reference Manual...
Page 2: Table Of Contents
Connectivity diagram Technical specifications Settings - recall sheet FlexBase25 delivery contains: 1 pc Amphion FlexBase25 2U Amplifier & Crossover 1 pc Amphion FlexBase25 Tower 1 pc Neutrik Speakon/Speakon (NL4FX) 4-pole speaker cable for connecting. Length 3.5 meters 1 pc FlexBase25 Reference manual...
Page 3: Introduction
FlexBase25 looks simple, but it houses a lot of new thinking. It is easy to set-up and intuitive to use. It can be easily adapted to whatever task the modern sound engineer may encounter. We hope that it help you finish your project more quickly, while contributing positively to the creative process.
Page 4: Front Panel Controls
Front panel controls 89 mm 3½” 483 mm / 19”...
Page 5 Front panel controls Power button Power button turns on the power of the unit. Please note that hard bypass is enabled also when power is off, and that the unit always switches to active mode after power is switched on. Active button Active button switches the unit between hard bypass and active mode.
Page 6: Back Panel Connections
This connector is provided for chaining the LFE signal across several BaseAmp units (typically in a multichannel setup). Base out Neutrik Speakon (NL4FX) 4-pole speaker output for the FlexBase25 tower. IEC power connector Power input, auto switching in the 100-240V range, internally fused.
Page 7: Block Diagram
Block diagram CROSSOVER FREQUENCY LEFT LEFT OUTPUT INPUT LINK OUT INPUT STEREO LOW FREQ WIDTH LEVEL FLEXBASE SPEAKER RIGHT RIGHT OUTPUT INPUT...
Page 8: Connectivity Diagram
Right Signal FlexAmp500 Left Signal LFE Signal Set-up Tip: For Use With Consoles While FlexBase25 performs well FlexBase25 positioned directly on the floor, when used with large format consoles - where monitors are placed on the meter bridge - it is advisable to raise the...
Page 9: Technical Specifications
Technical specifications FlexBase25 One way closed box, stereo Operating principle 2 x 25 cm / 10” aluminum driver Drivers Active 4th-order @ 35-260 Hz Crossover Max SPL 117dB Frequency Response 20 - 260 Hz +/-3dB (low pass) 35 Hz - 200 kHz +/-3dB (high pass)
Page 10: Settings - Recall Sheet
Settings - recall sheet SETTING NAME: DATE: -10dB +10dB 35Hz 260Hz Mono Stereo SETTING NAME: DATE: -10dB +10dB Mono Stereo 35Hz 260Hz SETTING NAME: DATE: -10dB +10dB 35Hz 260Hz Mono Stereo SETTING NAME: DATE: -10dB +10dB Mono Stereo 35Hz 260Hz SETTING NAME: DATE: -10dB...
Page 11 Settings - recall sheet SETTING NAME: DATE: -10dB +10dB 35Hz 260Hz Mono Stereo SETTING NAME: DATE: -10dB +10dB Mono Stereo 35Hz 260Hz SETTING NAME: DATE: -10dB +10dB 35Hz 260Hz Mono Stereo SETTING NAME: DATE: -10dB +10dB Mono Stereo 35Hz 260Hz SETTING NAME: DATE: -10dB...
Page 12 Reference Manual Version: 1.3 / 20.02.2019 Amphion Loudspeakers Ltd. Factory & Headquarters Vitostie 1864 70800 Kuopio Finland Tel. +358 17 2882 100 info@amphion.fi amphion.fi...
