1、 Feature
1．1． Transmission mode：RF
1．2． Frequency：2410~2473MHz
1．3． RFchannel quantity：64
1．4． Center of Channel: 2410/2411/242...2471/2472/2473MHz
1．5． Width of Channel: 1MHz
1．6． Data Send timing: <500us
1．7． Power：2pcs *7# batteries
1．8． Modulate mode：GFSK
1．9． Effective distance：12m
1．10． Quantity of connection ID：24Bits (8,388,608 ID can be used)
1．11． No. of keys：3key
1．12． Dots per inch : 500/1000 dpi selectable
1．13． Low battery indicating voltage:2.2V@5%
2、 Use guide

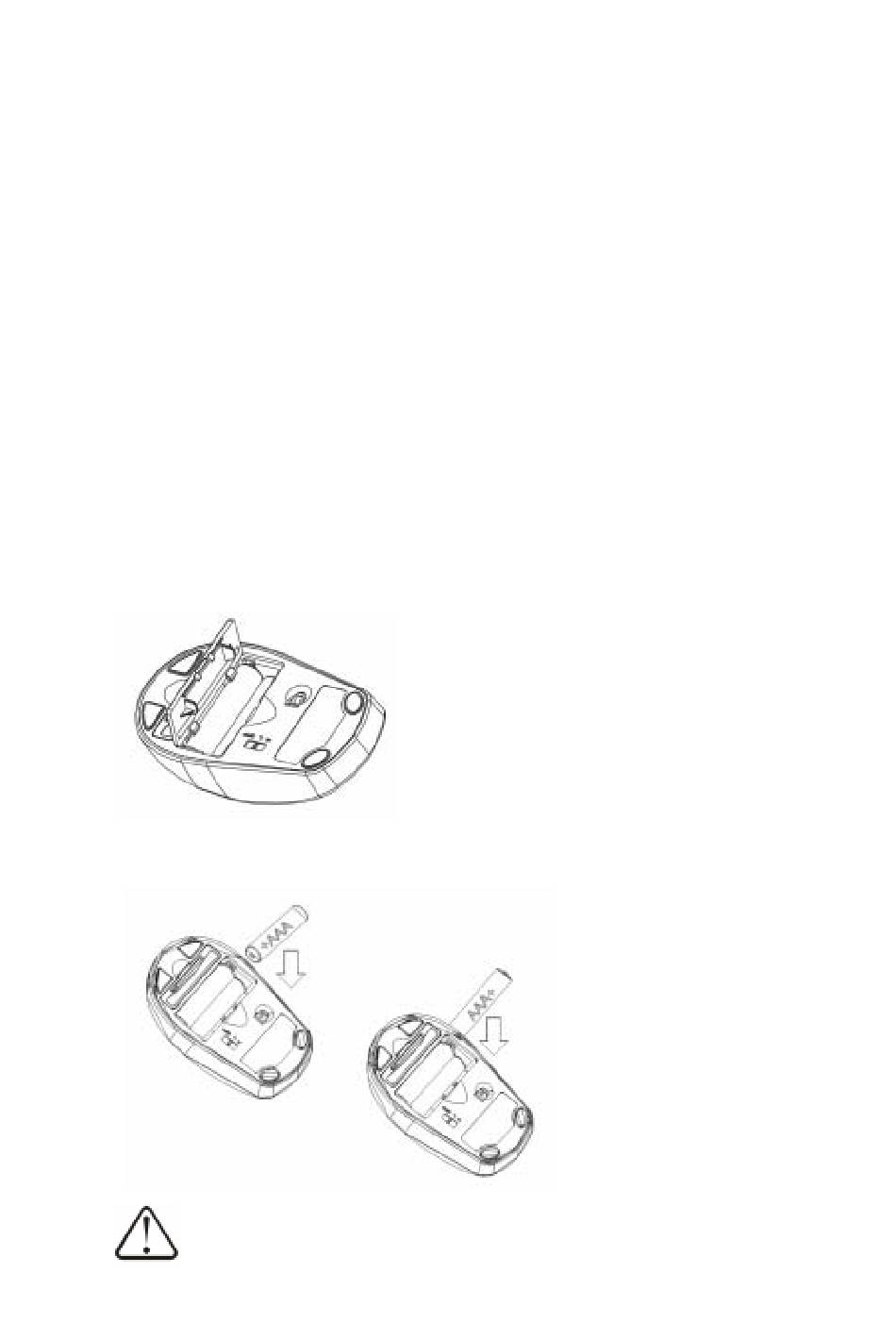

2．1 Battery Installation or Replacement
a. Unlock the battery cover
b. Remove the battery
c. install the new battery.
Caution:
Risk of explosion if battery is replaced by an incorrect type
Dispose of used batteries according to the instructions
JME-1123R user guide
Advertisement
Table of Contents
Summary of Contents for MCSaite JME-1123R
- Page 1 JME-1123R user guide 1、 Feature 1．1． Transmission mode：RF 1．2． Frequency：2410~2473MHz 1．3． RFchannel quantity：64 1．4． Center of Channel: 2410/2411/242…2471/2472/2473MHz 1．5． Width of Channel: 1MHz 1．6． Data Send timing: <500us 1．7． Power：2pcs *7# batteries 1．8． Modulate mode：GFSK 1．9． Effective distance：12m 1．10． Quantity of connection ID：24Bits (8,388,608 ID can be used) 1．11．...
- Page 2 2. 2 Binding Need to check and bind for the first time of usage only, Please bind as below a. First, confirm the receiver has been connected to the computer. b. Move the switch from “OFF” to “L” or “H” to select appropriate DPI H: 1000 DPI L: 500 DPI OFF: Turn Off...
