Summary of Contents for brenton Studio Merido Collection Desk OM03495

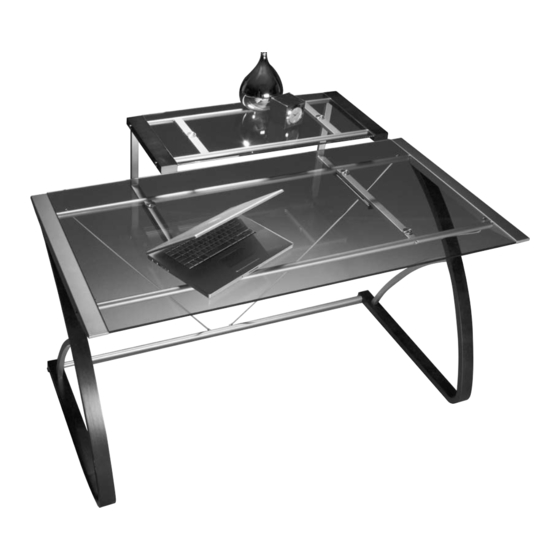

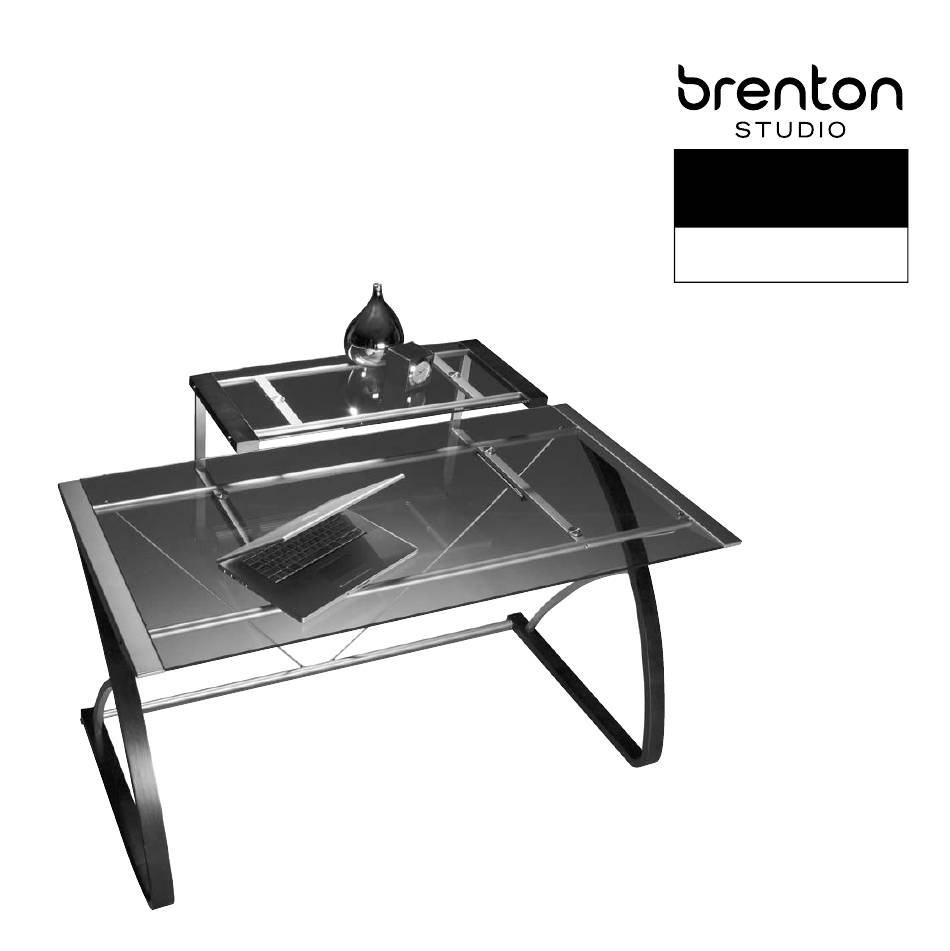

- Page 1 the merido collection desk escritorio principal OM03495...
- Page 2 Hardware identification Parts identification Identificación de las partes Identificación de los herrajes *Extra hardware is enclosed for your convenience. *Se adjuntan herrajes adicionales para su conveniencia Quantity/cantidad Quantity/cantidad the merido collection 6x13x14mm Allen bolt (AB61314S) 10 pcs Left leg 1 pc Perno Allen 6x13x14mm (AB61314S) Pata izquierda 6x16x14mm Allen bolt (AB61614S)
- Page 3 Assembly Instructions / Instrucciones De Montaje DO NOT FULLY TIGHTEN ALLEN BOLTS UNTIL THE END OF STEP 9. NO APRIETE BIEN LOS PERNOS ALLEN HASTA FINALIZAR EL PASO 9. Step 1 Step 2 Step 3 Step 4 1. Attach (6) Back Supports to (1) Left Leg and (2) Right Leg using (F) 6 x 13 x Attach (5) Middle Support Tubes to (7) Front Upper Crossbar and (8) Back Upper 1.
- Page 4 Assembly Instructions / Instrucciones De Montaje Step 5 Step 6 Step 7 Step 8 Carefully set (15) Desktop Glass down into place and secure to (5) Middle Support Attach (13) Upper Frame to both (3) Upper Panels and secure using 1.
- Page 5 DIMENSIONS & MAXIMUM WEIGHT CAPACITIES DIMENSIONES Y MÁXIMAS CAPACIDADES DE PESO Caution: This product is intended to hold the Maximum Weight (EVENLY PRECAUCIÓN: este producto está diseñado para sostener las Cargas Máximas Step 9 DISTRIBUTED) indicated. Exceeding the Maximum Weight will result in instability and indicadas (DISTRIBUIDO UNIFORMEMENTE) may cause possible injury.
- Page 6 Garantía Limitada de por Vida Gracias por comprar un producto de Z-Line Designs. Nos comprometemos a reparar o cambiar cualquier producto o componente Z-Line Designs LIMITED LIFETIME WARRANTY que pudiera tener algún defecto de material o fabricación siempre que usted, el comprador original, sea el propietario del mismo. Esta garantía Thank you for purchasing a Z-Line Designs product.
- Page 7 Distributed by OfficeMax Manufactured by Z-Line Designs 263 Shuman Blvd 1-888-736-2141 Naperville, IL 60563-1255 USA www.z-linedesigns.com ® www. officemax.com Customer Service: 1-888-736-2141 OM7400-01MD_V00_SW...
