Procon Grumbach CTD7 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Manual for Incubator
Operating Manual for Incubator
CTD7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grumbach CTD7 and is the answer not in the manual?

Questions and answers

Related Manuals for Procon Grumbach CTD7

Summary of Contents for Procon Grumbach CTD7

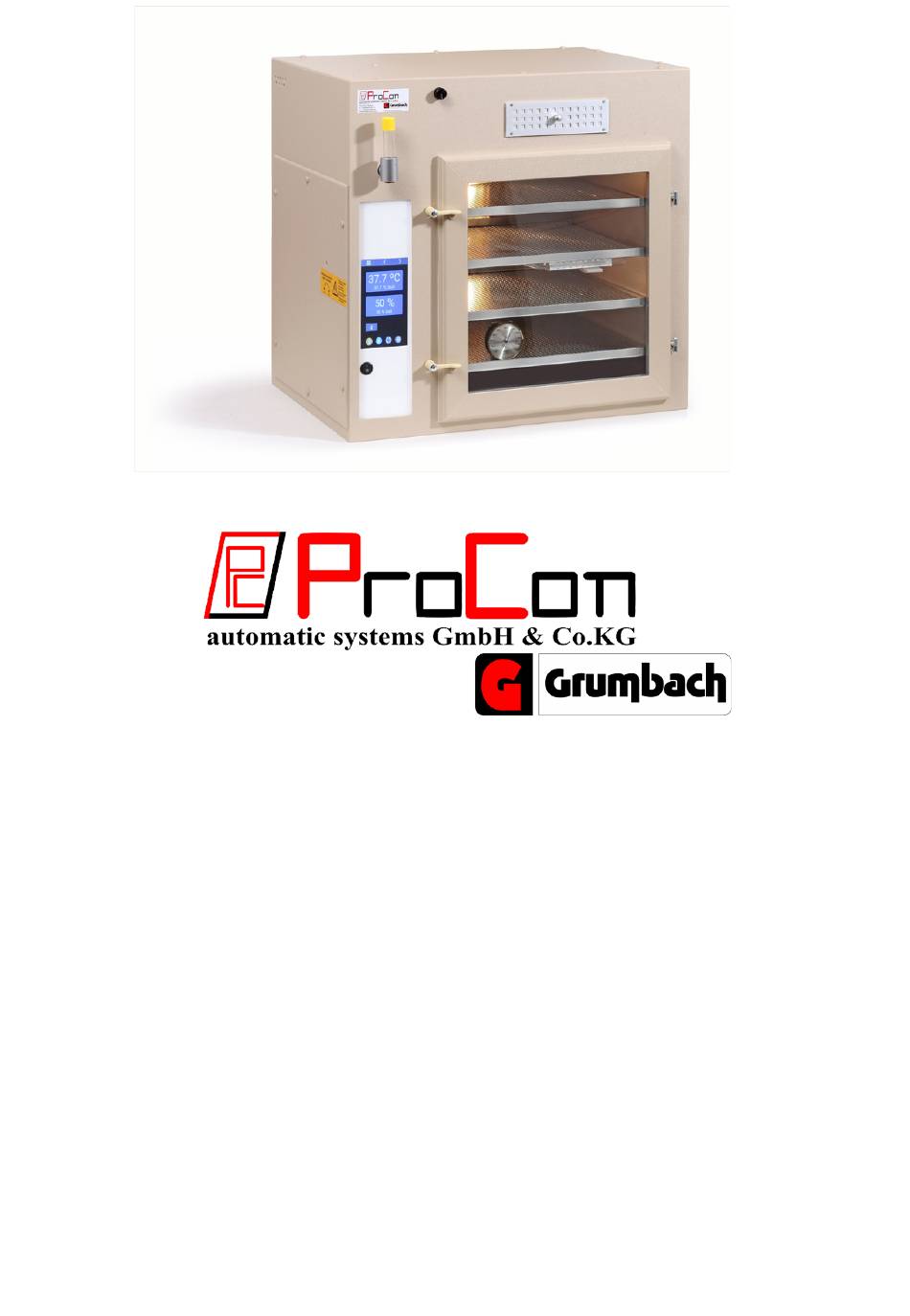

  • Page 1 Manual for Incubator Operating Manual for Incubator CTD7...

  • Page 2: Table Of Contents

    Content Installing your Grumbach Incubator ..............4 Safety instructions ..................4 Important! ....................4 The incubating room .................. 4 Safety thermostat ..................5 Tank flap ....................6 Turning of eggs ..................6 Light switch ....................6 Putting in the eggs ..................6 The hatch ....................
  • Page 3 12. Info page .................... 26 Web browser ....................27 1. Home ....................27 2. Calendar ....................28 3. Graph ....................29 2. Logs ..................... 30 3. Website ProCon-Grumbach ..............31 Breeding recommendation................32 attachment 1: Privacy Policy ............... 33...

  • Page 4: Installing Your Grumbach Incubator

    Installing your Grumbach Incubator Dear Customer! For your GRUMBACH-incubator we would like to wish you every success. Before you start incubating you should read the manual. Safety instructions We accept no liability for damage caused by non-observance of these instructions or improper handling. In these cases, all warranty claims expire. Read these instructions completely before using the incubator for the first time! For safety reasons, any unauthorized design changes to the device and the...

  • Page 5: Safety Thermostat

    ideal place, normally they offer an optimal incubating room climate. The temperature where your machine is installed should be around 18-20 degrees Celsius / 60-65 degrees and not higher than 25 °C! Hygiene is necessary in the incubating room. Bacteria, virus and fungi which are brought to the room with shoes can get into the incubator if you allow them to stay in the incubating room.

  • Page 6: Tank Flap

    Tank flap The flap is only to be used when you wish to reduce humidity while the tank is full. Behind the knob is a flap which opens or closes the installed filler pipes. Position 3 means “open”. This adjustment is necessary if you use the automatic humidity, so humid air can be blown from the tank into the breeding room.

  • Page 7: The Hatch

    incubator was open, a lot of heat has escaped, and the temperature of the eggs is much lower. It would be wrong to turn up the heat, as the eggs first must adopt the breeding temperature. After a few hours the thermometer will show the correct temperature. The eggs trays with rollers are adjustable to each size of egg by fitting the gaps between the rollers to the egg size, the egg lies horizontally on two rollers.

  • Page 8: Cleansing And Disinfection

    Cleansing and disinfection After the completed hatch, the incubator should be cleaned thoroughly with a damp cloth. The drawers can be scoured with soapy water and the trays of Compact and closet incubators can be just cleaned with water. After that, the incubator should be heated and disinfected.
  • Page 9 Checkpoints before putting in the eggs: • Range of temperature • constant temperature • air humidity • noise pollution Incubator: • horizontal position of the incubator • measuring instruments (thermometer) • operating elements (controls) • test run • water sterilized by boiling •...

  • Page 10: Operation

    Operation Premium Touch Display 2. Main switch 3. Water fill in/Water drain plug 4. Tank flap 5. Fresh air 6. Egg trays with rollers 7. Security thermostat...

  • Page 11: Technical Data

    Ducks Geese Ostriches Pheasants Nandu 8-12 Service ProCon automatic systems GmbH & Co. KG ·Bettwiesenweg 18 · D-35325 Mücke Phone +49 (0) 64 00/956 91-15 · Fax +49 +49 (0) 64 00/956 91-29 E-mail: info@grumbach-brutgeraete.de · Internet: www.grumbach brutgeraete.de Important! Since 1 January 1996, the CE marking has been compulsory in conjunction with the EMC Directive.

  • Page 12: Home

    Home menu/home page back page forward temperature humidity/water tank cooling turn/unlock Setpoint temperature humidity light calendar breeding time (visible, if active-see under point 5-) Important! Be sure to unplug the appliance before cleaning the incubator. For incubator CTD7 Please check the filters regularly every eight days.

  • Page 13: Menu

    Menu Configuration sites can be reached via (<) and (>) buttons, as well as the (☰) button. Temperature and humidity set points Cooling phases Rotation phases Offset and temperature unit Breed calendar, screen lock, logging Threshold values Email and internet connection Display and language settings...

  • Page 14: Temperature And Humidity Target

    1. Temperature and humidity target This menu can also be reached on the home screen by touching the temperature or humidity. Set point temperature Set point humidity Humidity regulation active/inactive Note: If the slider and the buttons are disabled (grayed out), the calendar is active (see ...

  • Page 15: Cooling Phases

    2. Cooling Phases Please note that no active cooling is possible. The "cooling" of the brood chamber is based on the supplied air of the room. Cooling phase length (1-90 minutes) When activated, the set cooling time will vary by up to 30% Cooling per day (0- When activated, the set cooling rate is...

  • Page 16: Rotation Phase

    3. Rotation phase Rotation time (1-30 minutes) When activated, the set rotation time will vary by up to 30% Rotations per day (0- When activated, the set rotation quantity is varied up to 30% Note: If the slider and the buttons are disabled (grayed out), the calendar is active (see ...

  • Page 17: Offset, Temperature Unit

    4. Offset, temperature unit To obtain the highest possible accuracy of temperature and relative humidity, we recommend you the use of the supplied Capillary Thermometer and Hair Hygrometer. corrected temperature corrected humidity Selection: Celsius, Fahrenheit, Kelvin...

  • Page 18: Brood Calendar, Data Logging And Language

    5. Brood Calendar, data logging and language The breeding time display and the setting of the incubation day are only valid if the calendar is activated. Selection of breeding start day Automatic screen lock. To unlock, press the cooling icon(bottom right) for 3 seconds Activation of the breeding calendar...

  • Page 19: Limits

    6. Limits A tolerance value monitors unusual fluctuation in temperature and humidity outside the cooling phases. As soon as the desired temperature and target humidity has been reached, the tolerance monitoring begins. If the present temperature/humidity is outside the tolerance value, the background color of the temperature/humidity changes to red, as well as a corresponding error on the error page is visible.

  • Page 20: E-Mail, Live Data

    Default is 0 hrs = inactive. Email address Enter email address for alert and status emails Alarm interval in hours before this email is resent Interval of status emails Send the state data to our servers. Https://procon-grumbach.de (see Web browser 3rd.Procon-Grumbach)

  • Page 21: Device Description, Display Settings

    8. Device description, display settings By adjusting the display brightness, you get the possibility to reduce your power consumption. Background color/Background image Display brightness Language settings...

  • Page 22: Test

    9. Test To test the functions of your incubator, first activate the test switch (current regulation is interrupted). The stopwatch runs when the test switch and the rotary switch are pressed. It stops as soon as the rotary switch is confirmed again.

  • Page 23: Ethernet Connection (Lan)

    10.1 Ethernet Connection (LAN) Activating the connection Setting data when a static connection is selected Choice of connection Type Display of the current IP Select the type of connection: Client is recommended if there is already an existing DHCP server on the network (router, etc.) Static if you want to set the connection manually Server creates a specified network in the network area...

  • Page 24: Wifi Connection (Wlan)

    10.2 WiFi connection (WLAN) Activating the connection Displays available networks Data of the WLAN Network you want to connect to or create Setting data when selecting a static connection Choice of connection type Current IP of the CTD7 Select the type of connection: Automatic Network setting client.

  • Page 25: Error Page

    11. Error page When the background color of the bottom icons on the main screen is colored red, an error occurred. Those errors can be looked up here. 1 Breeding time of the last connection to the regulation processor 2 Listing of possible errors...

  • Page 26: Info Page

    12. Info page 1 Here you can enter a description of the device 2 List of the complete duration of your incubator, microcontroller version, display version, device type, serial number 3 Contact...

  • Page 27: Web Browser

    Web browser As described in points 10.1 and 10.2, you can read your current IP address (if the device is connected to a network) on these pages. This can then be entered in your Web browser of your device, which is connected to the same network, and is connected directly to the main page.

  • Page 28: Calendar

    2. Calendar A complete breeding cycle of a maximum of 160 days can be predefined. The new entry button can be used to add a tag and remove the last day with last delete. With "Save" You can download your settings to your PC and read them back with the button "browse"...

  • Page 29: Graph

    3. Graph Already logged data on the USB-Stick can be visualised here. Just click on the disired log be patiend till the diagramm is build up entirely on your Browser. In the lower graph area you can zoom by marking the time area. Single Linevaluesets can be blended out by clicking there names on the legend.

  • Page 30: Logs

    2. Logs Existing logs on the USB stick can be downloaded here on the PC/smartphone. The determination of valid measurement results, conclusions and measures derived therefrom are exclusively subject to the user's own responsibility! A liability or guarantee for the correctness of the provided results (data) is excluded.

  • Page 31: Website Procon-Grumbach

    3. Website ProCon-Grumbach The worldwide access is done via the page www.procon-grumbach.de . Just enter The Serial number of your device (operation  12. info page) and click Submit. On this page you will see new data of the machine in 60 seconds.

  • Page 32: Breeding Recommendation

    Breeding recommendation Fowls breeding Duration of breeding: 21 days Temperature: 1. – 17. day 37,8 °C 18. – 21. day 37,0 °C (hatch) Humidity: 1. – 19. day 55 – 60 % relative humidity 20. – 21. day 70 % relative humidity Turning: 3.

  • Page 33: Attachment 1: Privacy Policy

    ProCon automatic systems GmbH & Co.KG. The use of the Internet pages of the ProCon automatic systems GmbH & Co.KG is possible without any indication of personal data; however, if a data subject wants to use special enterprise services via our website, processing of personal data could become necessary.
  • Page 34 number, location data, an online identifier or to one or more factors specific to the physical, physiological, genetic, mental, economic, cultural or social identity of that natural person. b) Data subject Data subject is any identified or identifiable natural person, whose personal data is processed by the controller responsible for the processing.
  • Page 35 Controller for the purposes of the General Data Protection Regulation (GDPR), other data protection laws applicable in Member states of the European Union and other provisions related to data protection is: ProCon automatic systems GmbH & Co.KG Bettwiesenweg, 18 35325 Mücke...
  • Page 36 3.General principles for processing of personal data In order to ensure that your personal data is processed correctly and with a suitable level of data protection, ProCon automatic System GmbH & Co.KG has adopted the following processing principles: Personal data is processed lawfully, fairly and in a transparent manner;...
  • Page 37 Contact information such as name, address, phone number, email address, title, place of work, etc. Information that you provide when contacting us via online contact forms, emails or phone Profile information in case you create a profile or account with us, including username and password User information such as technical data regarding usage and viewing, including IP addresses when you visit our websites or applications,...
  • Page 38 To administer our business relations and negotiate and execute agreements; or To provide general customer service and support; or To gain customer insights and knowledge of how our various services, including websites and applications, and products are used as well as evaluation and improvement hereof; or To communicate with you regarding various matters;...
  • Page 39 Following the evaluation of the risk, ProCon has taken measures to protect personal data against accidental or unlawful destruction or accidental loss,...
  • Page 40 10. Your rights You have the right to access to the data processed about you, subject to certain statutory exceptions. Furthermore, you can object to the collection and further processing of your personal data. In addition, you have the right to correct your personal data, if necessary.
  • Page 41 We reserve the right to amend this Privacy Policy in the future due to changes in applicable legislation. We will inform you of any such amendments.
