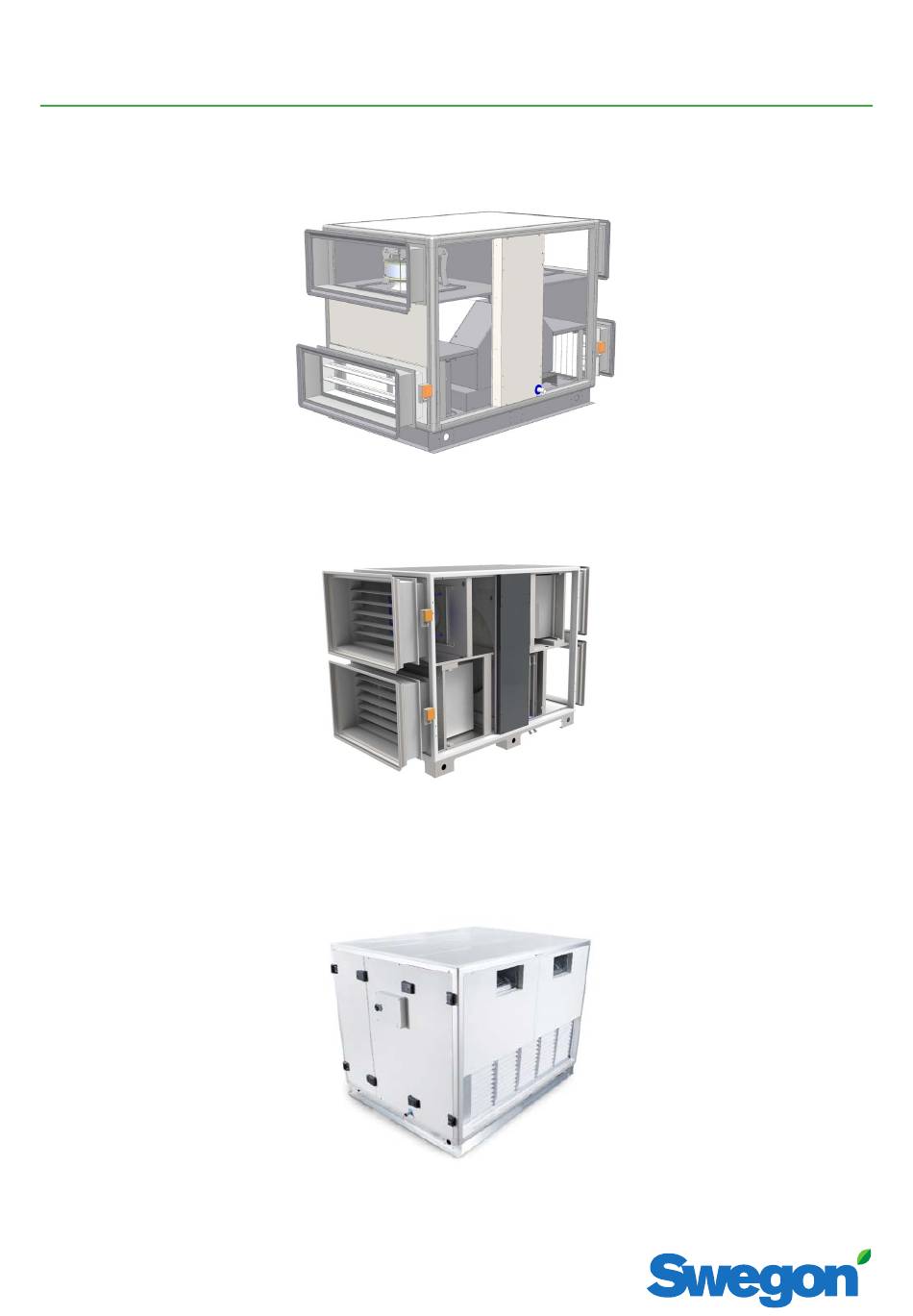

- Page 1 GLOBAL PX/RX Operation and maintenance instructions for air handling units without controls. GLOBAL PX GLOBAL RX NC GLOBAL PX...
-
Page 2: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Manufacturer (and where appropriate his authorised representative): Company: P Lemmens Company S.A. Adress: Parc-industriel de Sauvenière 102 Chaussée de Tirlemont B5030 Gembloux Hereby declares that: Following product range(s): GLOBAL PX (TOP) / GLOBAL RX (TOP) / GLOBAL LP / CLASS UNIT / MURAL Complies with the requirements of Machinery Directive 2006/42/EC. - Page 3 Installation manual Applicable for the following units INTEGRATED INTEGRATED EXCHANGER SIZES HANDING PRE-HEATING POST-HEATING GLOBAL PX 800/1200/2000/ Yes, electrical Forward Yes, electrical Left / Right Counterflow 3000/4000/6000 or water (FW) GLOBAL PX 800/1200/2000/ Yes, electrical Yes, electrical Left / Right Backward Counterflow 3000/4000/6000...
-
Page 4: Range Of Application
Disclaimer Danger/Warning/Caution • RANGE OF APPLICATION All staff concerned shall acquaint themselves with these instructions before beginning any work on the The GLOBAL units are designed for use in comfort unit. Any damages to the unit or its components ventilation applications. caused by improper handling or misuse by the Depending on the variant selected, GLOBAL units can be purchaser or the installer cannot be considered... -
Page 5: Symbols And Abbreviations
Symbols and abbreviations BACKWARD FORWARD CURVED FAN CURVED FAN BAG FILTER PLEATED FILTER ROTARY HEAT PLATE HEAT EXCHANGER EXCHANGER WARNING Must be connected by a qualified Electrician. Warning! Hazardous voltage. OUTDOOR AIR Air from outdoor to the AHU SUPPLY AIR Air from the AHU to the building EXTRACT AIR Air from the building to the AHU... -
Page 6: Product Overview
Product Overview GENERAL OVERVIEW RIGHT HAND UNIT (SUPPLY AIR TO THE RIGHT) LEFT HAND UNIT (SUPPLY AIR TO THE LEFT) GLOBAL RX GLOBAL RX GLOBAL PX GLOBAL PX GLOBAL PX FW GLOBAL PX FW ATTENTION Right and left hand units have different article numbers and should be ordered accordingly. It is however possible to change the direction afterwards but only by an accredited Service technician. - Page 7 General • All of the GLOBAL units produced without controller, will have no electrical cabinet nor will they be equipped with a main power switch. • All of the GLOBAL units produced without controller, will have no temperature sensors • All of the GLOBAL units produced without controller, will be equipped with their heat recovery actuator.
- Page 8 Operation and maintenance instructions – v2.8.8 & 2.7.3 COMPONENTS GLOBAL PX (FW) 1. Supply fan 7. Drain pan and drain pipe 2. Extract fan 8. Modulating 100% by-pass (standard) 3. Internal post-heating water or electrical coil 9. M5 / ePM10≥50% filter on extract air side (accessory) 10.
- Page 9 Operation and maintenance instructions – v2.8.8 & 2.7.3 POWER SUPPLY AND DIMENSIONS GLOBAL PX (FW) EXCHANGER SIZE AIR VOLUME A [mm] B [mm] C [mm] Weight [kg] 100 m³/h 28 l/s 840m³/h 230 l/s 1210 1235 100 m³/h 28 l/s 1260 m³/h 350 l/s 1210...
- Page 10 Operation and maintenance instructions – v2.8.8 & 2.7.3 COMPONENTS GLOBAL RX NC 4. Supply fan 13. Internal post-heating water or electrical coil (accessory) 5. Extract fan 14. Damper (at outdoor air side - accessory) 6. Kit CA -airflow measurement (accessory) 15.
- Page 11 Operation and maintenance instructions – v2.8.8 & 2.7.3 POWER SUPPLY AND DIMENSIONS GLOBAL RX NC (TOP) Weight Vægt EXCHANGER SIZE AIR VOLUME A [mm] B [mm] C [mm] C [mm] [kg] [kg] 200 m³/h 56 l/s 1120 m³/h 311 l/s 1530 1315 05 ALU...
- Page 12 K-values MAX PRES- EXCHANGER SIZE AIR VOLUME MIN AIR VOLUME MAX SURE REA- K-Value DING 100 m³/h 28 l/s 840 m³/h 230 l/s (FW) 100 m³/h 30 l/s 840 m³/h 230 l/s 1200 100 m³/h 28 l/s 1260 m³/h 350 l/s (FW) 2000 100 m³/h...
- Page 13 MAX PRES- EXCHANGER SIZE AIR VOLUME MIN AIR VOLUME MAX SURE REA- K-Value DING 200 m³/h 56 l/s 1120 m³/h 311 l/s 05 ALU 250 m³/h 69 l/s 1045 m³/h 290 l/s 200 m³/h 56 l/s 1330 m³/h 370 l/s 08 ALU 250 m³/h 69 l/s...
-
Page 14: Appendix 1 : Plc Fans
APPENDIX 1 : PLC FANS 1.1 FAN MOTOR CONNECTIONS 1.2 CONTROL CABLE 0-10V • +V cc/ac: 12-24VDC or 16/18VAC • 0-10V Motor start at signal ≥ 0,8V Motor stop at signal < 0,7V 1V = minum torque 10V = maximum torque •... -
Page 15: Power Connections
1.3 POWER CONNECTIONS Imax / fan Imax/unit RECOMMENDED SUPPLY VOLTAGE FUSES GLOBAL PX 800 2,6 A 5.2 A 1 x 230 V D10A - 10kA - AC3 GLOBAL PX 800 FW 3,5 A 6.9A 1 x 230 V D10A - 10kA - AC3 GLOBAL PX 1200 2,6 A 5.2 A... -
Page 16: Appendix 2 : Non-Plc Fans
APPENDIX 2 : NON-PLC FANS 2.1 COMPOSITE FANS 1X230V Imax / fan Imax/unit RECOMMENDED SUPPLY VOLTAGE FUSES GLOBAL RX 05 2,6 A 5.1 A 1 x 230 V D6A - 10kA - AC3 GLOBAL RX + 05 2,6 A 5.1A 1 x 230 V D6A - 10kA - AC3 GLOBAL RX 08... - Page 17 2.2 ALUMINUM NON-PLC FAN 1X230V Imax / fan Imax/unit RECOMMENDED SUPPLY VOLTAGE FUSES GLOBAL PX 4000 6,6 A 13.2 A 1 x 230 V D16A - 10kA - AC3...
- Page 18 2.3 COMPOSITE FAN 3X400V Imax / fan Imax/unit RECOMMENDED SUPPLY VOLTAGE FUSES GLOBAL RX 18 3,2 A 6.3 A 3 x 400 V + N D10A - 10kA - AC3 GLOBAL RX + 18 3,2 A 6.3 A 3 x 400 V + N D10A - 10kA - AC3 GLOBAL RX 20 3,4 A...
- Page 19 2.4 ALUMINUM NON-PLC FAN 3X400V Imax / fan Imax/unit RECOMMENDED SUPPLY VOLTAGE FUSES GLOBAL PX 5000 2,9 A 5.8 A 3 x 400 V + N D16A - 10kA - AC3 GLOBAL PX 6000 2,9 A 5.8 A 3 x 400 V + N D16A - 10kA - AC3...
-
Page 20: Appendix 3 : Heat Recovery Unit
APPENDIX 3 : HEAT RECOVERY UNIT 3.1 BYPASS PLATE HEAT EXCHANGER 3.2 ROTARY EXCHANGER STEP DRIVER 3.3 ROTARY EXCHANGER - ROTATION MONITOR Normally open contact, will close at each rotor revolution. Max.48 VDC/0,5A DC. 10 W max Any DC combination of V&A not to exceed their individual max.’s Contact Resistance (max.) 150 mOhms @ 0.5V &... -
Page 21: Appendix 4 : Electrical Coils
APPENDIX 4 : ELECTRICAL COILS 4.1 0-10V CONTROLLED ELECTRICAL COILS... -
Page 22: Preventive Maintenance
Preventive maintenance Attention : before handling and/or opening the access panels it is compulsory to shut down the unit and disconnect the power supply using the general switch located on the front panel. Do not isolate the power supply whilst the unit is running. If KWin and\or KWout are installed, then isolate the corresponding power supplies. - Page 23 EVERY 12 MONTHS 1. For rotary heat exchanger (RX) units, check the brush seals on the rotary heat exchanger along the perimeter in contact with the frame: If necessary, bring the brush seals closer to the exchanger to ensure good sealing. 2.
- Page 24 We make every breath count. Version: 14/01/2019 We reserve the right for changes.
