Summary of Contents for WarmPool DC55

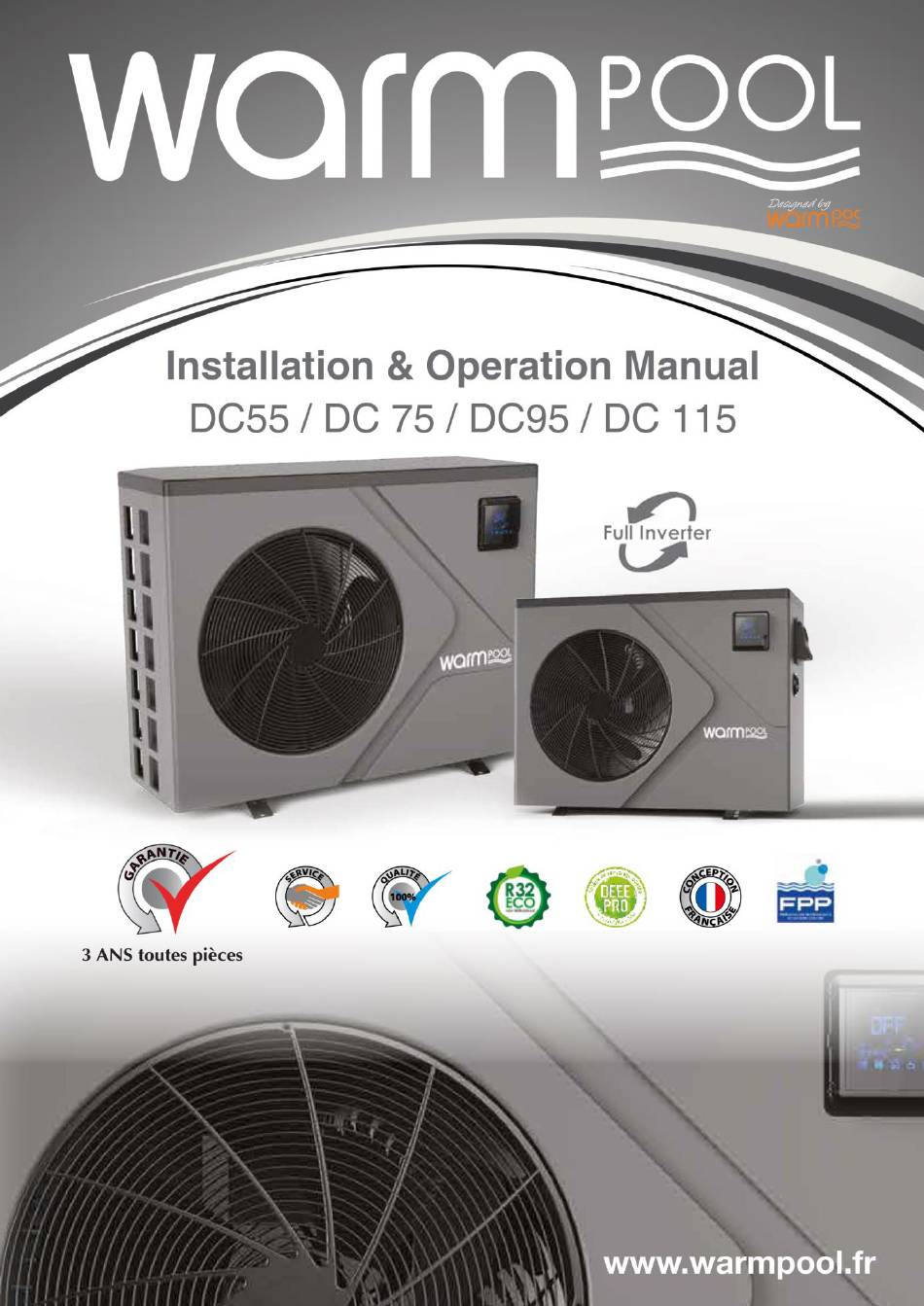

- Page 1 Installation and operation manual DC ~ 1 ~...
- Page 2 Installation and operation manual DC 1. Warning First and foremost, check the condition of your heat pump as soon as you receive it, write any reservations you have about its state on the delivery note if you have any doubts or a problem and send a registered letter to your installer or directly to the manufacturer within 48 hours.
-
Page 3: Technical Characteristics
Installation and operation manual DC 2.2 Technical characteristics MODELE DC55 DC75 DC95 DC115 Pool size Maxi 55m³ 75m³ 95m³ 115m³ Heating capacity * 1.3~ 7.93 1.75~ 10.90 3.21~15.81 3.21~ 17.05 Power consumption * 0.12~ 1.37 0.16~ 1.96 0.31~ 3.03 0.32~ 3.98 COP * 11.24~5.79... - Page 4 Installation and operation manual DC 2.3 Dimension of swimming pool heat pump DC 55/75 2.4 Dimension of swimming pool heat pump DC 95 ~ 4 ~...
- Page 5 Installation and operation manual DC 2.5 Dimension of swimming pool heat pump DC 115 3. Installation and connections 3.1 Installation Your heat pump and your pool pump must be installed close to each other. Your heat pump must be placed outdoors and must follow the minimum spacings shown on the connection diagram.
- Page 6 Installation and operation manual DC 3.2 Hydraulic connection Before carrying out any work, remember it is vital that all the valves are closed. As you can see from the connection diagram, you need to install a BYPASS valve (if you do not already have one) between the filtration system and the water treatment system (or discharge).
- Page 7 Installation and operation manual DC 3.3 Electrical connection Important: The electrical connection of your heat pump must be carried out by someone qualified to do it. Check that the cable supplying the machine room is rated for the additional current required by the pump. The heat pump must be powered from a separate D-curve circuit breaker which may be either on the main electrical panel fitted with a differential circuit breaker or on an independent panel connected to the main switchboard, with a differential circuit...
- Page 8 Installation and operation manual DC 4. Start-up a) Checking the valves The BYPASS valve must be fully open. The inlet and outlet water valves must be closed. b) Clean the filter c) Valve settings Open your valves following the order and setting recommended below, and check for water leaks.
- Page 9 Installation and operation manual DC 5. Using the heat pump 5.1 Interface screen 5.2 Instructions and functions of the icon keys Main Name Function symbols Silent mode Silent mode available only on our Inverter models. Changes the operating mode and the access to parameter Mode switch settings.
- Page 10 Installation and operation manual DC Main Name Function symbols Defrost symbol Displayed when the unit is in the defrosting process. Compressor symbol Displayed when the compressor is running. Displayed when the heat pump detects water flowing Water pump symbol through the heat pump and that the water circulation pump is operating correctly.
- Page 11 Installation and operation manual DC 5.3 Sarting up your heat pump Change of mode Sous In the main interface, briefly press" "to toggle the unit between heating, cooling and automatic modes. Appuyez brièvement pour passer d’un mode à l’autre, si pas d’opération durant 2 s, le mode actuel sera sauvé...
-
Page 12: Temperature Settings
Installation and operation manual DC Temperature settings Comments: In the temperature setting interface, if you briefly press , the system will return to the main display and no changes will be saved. When the temperature appears on the display after you set the value you want, wait 5 seconds and the temperature displayed will be saved as the set temperature. - Page 13 Installation and operation manual DC Locking the controller To lock or unlock the wireless controller press the symbol for 5 seconds. Schedule programming To get to this function press the up and down arrows for 2 seconds at the same time, the symbol will be displayed.
- Page 14 Installation and operation manual DC 5.4 Error code When the unit detects a failure, an error code is shown on the controller. The following table gives the description of the error and the action to take. ERROR CODE DESCRIPTION The HP pressure switch has detected an abnormality in the refrigerant regulation.
- Page 15 Installation and operation manual DC Fault in the ambient air temperature sensor. Solution: -Make sure the wires are properly connected to the electronic board P03/P04 -Check that the sensor is correctly fitted on the machine's rear grill -Check the condition of the sensor, make sure that the cable is not damaged or cut after the checks, if the error code remains set, replace the sensor Fault in the refrigerant evaporation temperature sensor in the copper lug at...
- Page 16 Installation and operation manual DC 6. Maintenance and guarantee Maintenance is mainly about keeping your machine in good condition so that it does not give you any problems. 6.1 Maintenance to be done Clean the evaporator: Use a water jet, making sure to keep the jet in the direction of the fins, from top to bottom.
- Page 17 Installation and operation manual DC Outside the guarantee period, or in the event of a failure not covered by the guarantee, the manufacturer may offer an on-site service. The customer must accept a quote in advance. No after-sales service interventions will change the guarantee period. 6.4 DC manufacturer’s guarantee The manufacturer's guarantee is for 3 years.
- Page 18 Installation and operation manual DC Limitation : This guarantee is exclusive and replaces all other implied warranties of merchantability or fitness for a particular purpose and any other explicit or implied guarantees. The indemnifications provided for in this guarantee are exclusive and are Warmpac's only obligation, any other claim made by any person will have no effect.
