TUNA ID551PN Operation Manual

Weighing controller, modbus-rtu, modbus-tpc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ID551PN
WEIGHING CONTROLLER
OPERATION MANUAL
2017/03
Rev 1.00
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID551PN and is the answer not in the manual?

Questions and answers

Summary of Contents for TUNA ID551PN

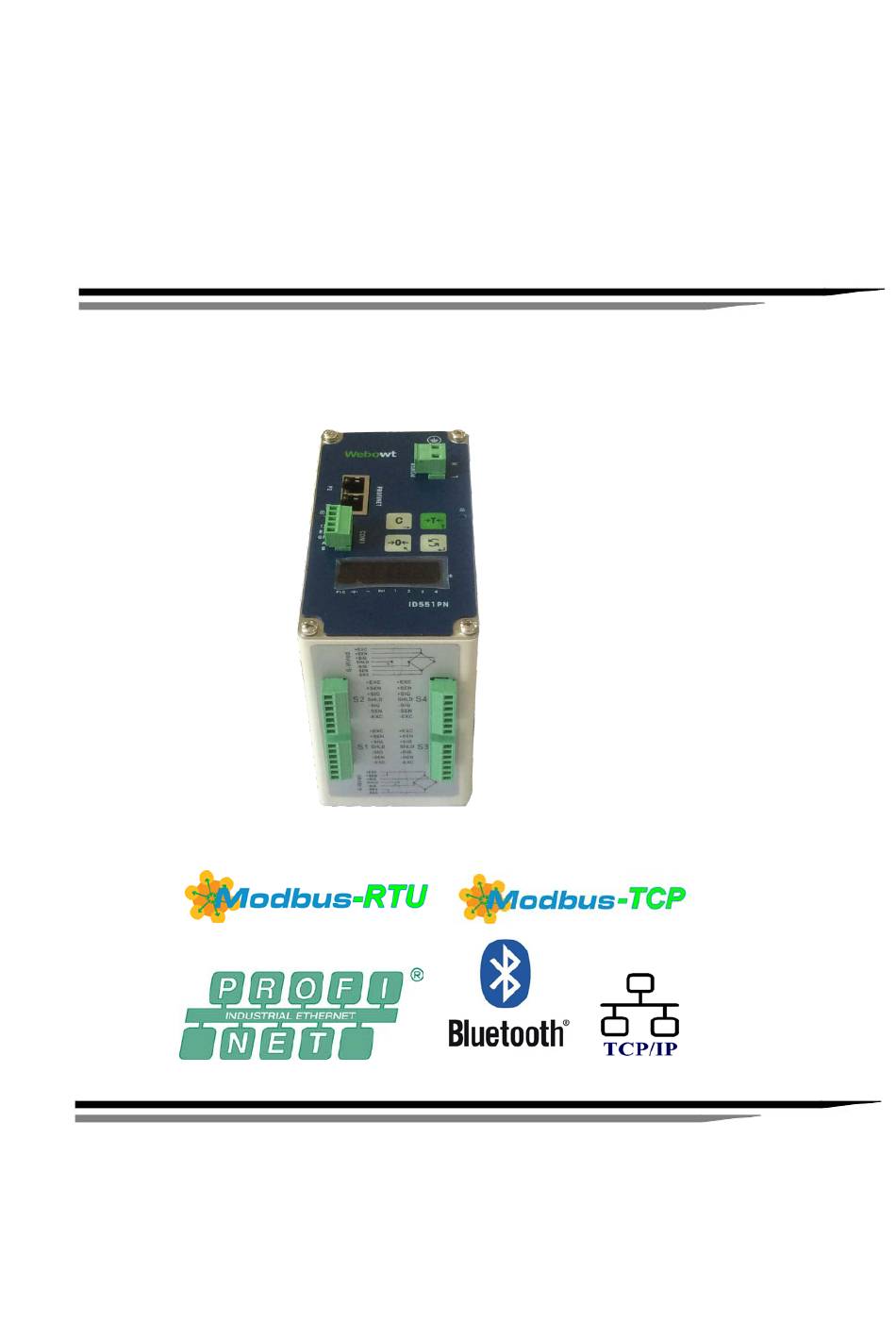

  • Page 1 ID551PN WEIGHING CONTROLLER OPERATION MANUAL 2017/03 Rev 1.00...

  • Page 2: Table Of Contents

    ID551PN Weighing Controller Contents Chapter 1 Introduction ............................4 1.1 Overview ......................... 4 Chapter 2 Keypad and Setup Menu ......................5 2.1 Keypad ........................5 2.2 Top Menu ........................ 6 2.3 Setup ........................6 2.3.1 1#Channel Scale ....................6 2.3.2 2#Channel Scale ....................8 2.3.3 3#Channel Scale ....................
  • Page 3 ID551PN Weighing Controller Change Log Version Change Date V1.00 Version 2017/03...

  • Page 4: Chapter 1 Introduction

    ID551PN Weighing Controller Chapter 1 Introduction 1.1 Overview  Four analog load cell I/F, support up to eight 350 Ohm load cells  Up to 150,000 display Division  200Hz weight updating speed  6-bit LED segment display  One serial ports ...

  • Page 5: Chapter 2 Keypad And Setup Menu

    ID551PN Weighing Controller Chapter 2 Keypad and Setup Menu 2.1 Keypad Set Menu Operation Set Menu Operation Zero Go back to Clear Key Reduce key, the previous right key, and menu and select the last exit parameter Tare Add key, left...

  • Page 6: Top Menu

    ID551PN Weighing Controller 2.2 Top Menu [F1] 1#Scale Configuration [F2] 2#Scale Configuration [F3] 3#Scale Configuration [- - - -] [Setup] [F4] 4#Scale Configuration Menu have password, [F6]Serial Port Press Print Key for 2 seconds please enter [F9]Network password [F10]Maintenance 2.3 Setup 2.3.1 1#Channel Scale...
  • Page 7 ID551PN Weighing Controller Number of working load cells [1.7.3] Input the number of working load cells in this scale Load Cell Sensitivity [1.7.4 ] Input the sensitivity of load cell, in general, It is 2mV/V or 3mV/V Sensitivity calibration [1.7.5 ] A test weight is loaded to calibrate the sensor sensitivity, and the method reference End Point [1.8...

  • Page 8: 2#Channel Scale

    ID551PN Weighing Controller 2.3.2 2#Channel Scale [2.1 ] Increment Size 0 (0.001), 1 (0.002), 2 (0.005), 3 (0.01), 4 (0.02), 5 (0.05), 6 (0.1), 7 (0.2), 8 (0.5), 9 (1), 10 (2), 11 (5), 12 (10), 13 (20), 14 (50), 15 (100) [2.2...

  • Page 9: 3#Channel Scale

    ID551PN Weighing Controller [2.11 ] Auto Zero Range 0 –Disable Auto Zero 0.1~9.9 - 0.1d - 9.9d, Enable When set to >0, the auto zero tracking is within ± 10d [2.12 ] Auto Zero Speed 0 – Disable Auto Zero 0.1~9.9 - Enable Auto Zero, Speed is (0.1~9.9)d/second...
  • Page 10 ID551PN Weighing Controller [3.7 ] CalFree Block Load Cell Capacity [3.7.1 ] Input the load cell capacity Number of total load cells [3.7.2 ] Input total number of load cells in this scale Number of working load cells [3.7.3 ]...

  • Page 11: 4#Channel Scale

    ID551PN Weighing Controller Change or Enter zero adjustment ADC code [3.A.4 ] Change or Enter span adjustment ADC code [3.A.5 ] Change or Enter zero adjustment weight value [3.A.6 ] 2.3.4 4#Channel Scale [4.1 ] Increment Size 0 (0.001), 1 (0.002), 2 (0.005),...

  • Page 12: Serial Port

    ID551PN Weighing Controller 0 –Disable motion check 0.1~9.9 –Enable motion check [4.11 ] Auto Zero Range 0 –Disable Auto Zero 0.1~9.9 - 0.1d - 9.9d, Enable When set to >0, the auto zero tracking is within ± 10d [4.12 ] Auto Zero Speed 0 –...

  • Page 13: Network Configuration

    ID551PN Weighing Controller 0-nonE–None 1-rtu1 MODBUS-RTU1 Communication format 2-rtu2 MODBUS-RTU2 Communication format 3-cnt Continuous Output Weight /support command C、T、Z 4-Acnt Continuous output filter code [6.5 ] COM Type 0 – RS232 1 – RS485 [ 6.6 ] Modbus RTU Floating Format decoding order ，word swap...

  • Page 14: Maintenance

    ID551PN Weighing Controller [9.7 ] Profinet IP Address Clear 0 – After the power is restarted, the IP address is not cleared 1 – After the power is restarted, the IP address is 0.0.0.0 2.3.7 Maintenance [ F 10.1 ] The first channel code [ F 10.2...

  • Page 15: Chapter 3 Serial Port Application

    ID551PN Weighing Controller Chapter 3 Serial Port Application 3.1 Serial Port and Ethernet continuous output weight format Output Start 1# Data 2# Data 3# Data 4# Data Data Byte 0x02 15 bytes 15 bytes 15 bytes 15 bytes 0x0D Data...

  • Page 16: Continuous Output A/D Code Format

    ID551PN Weighing Controller Sign, Positive = 0, Negative = 1 Out of Range = 1 (Over capacity or Under Zero) Motion = 1, Stable = 0 Alwa ys Alwa ys Alwa ys EVEN/ODD Pa ri ty bi t SWC: Sta tus C...
  • Page 17 ID551PN Weighing Controller Clear Tare Zero Scale The above N=1, 2, 3, 4 correspond to 1, 2, 3, 4 . For example, "1T" is Description: Scale sent,1# Scale perform Tare operations。...

  • Page 18: Modbus-Rtu1 & Modbus-Tcp1 Data Format

    ID551PN Weighing Controller 3.4 MODBUS-RTU1 & MODBUS-TCP1 Data Format MODBUS-RTU1 & MODBUS-TCP1 – 1# Scale Register Description Operation 40001/2 1# Scale： Floating point display weight 40003/4 1# Scale： Gross Weight 40005 1#Scale Status Bit 0 – 0(Two point calibration mode) 1（CalFree）...
  • Page 19 ID551PN Weighing Controller MODBUS-RTU1 & MODBUS-TCP1 – 2 # Scale Register Description Operation 40011/12 2# Scale： Floating point display weight 40013/14 2# Scale： Gross Weight 40015 2#Scale Status Bit 0 – 0(Two point calibration mode) 1（CalFree） Bit1 - 0（Disable Tare）...
  • Page 20 ID551PN Weighing Controller MODBUS-RTU1 & MODBUS-TCP1 – 3 # Scale Register Description Operation 40021/22 3# Scale： Floating point display weight 40023/24 3# Scale： Gross Weight 40025 3#Scale Status Bit 0 – 0(Two point calibration mode) 1（CalFree） Bit1 - 0（Disable Tare）...
  • Page 21 ID551PN Weighing Controller MODBUS-RTU1 & MODBUS-TCP1 – 4 # Scale Register Description Operation 40031/32 4# Scale： Floating point display weight 40033/34 4# Scale： Gross Weight 40035 4#Scale Status Bit 0 – 0(Two point calibration mode) 1（CalFree） Bit1 - 0（Disable Tare）...

  • Page 22: Modbus-Rtu2 & Modbus-Tcp2 Data Format

    ID551PN Weighing Controller 3.5 MODBUS-RTU2 & MODBUS-TCP2 Data Format MODBUS-RTU2 & MODBUS-TCP2 – 1# 2#Scale Register Description Operation 40001/2 1# Scale： Floating point display weight 40003/4 1# Scale： gross weight 40005 1#Scale Status Bit 0 – 0(Two point calibration mode) 1（CalFree）...
  • Page 23 ID551PN Weighing Controller MODBUS-RTU2 & MODBUS-TCP2 – 3# 4#Scale Register Description Operation 40013/14 3# Scale： Floating point display weight 40015/16 3# Scale： Gross Weight 40017 3#Scale Status Bit 0 – 0(Two point calibration mode) 1（CalFree） Bit1 - 0（Disable Tare） 1（Enable Tare）...

  • Page 24: Profinet Data Format

    ID551PN Weighing Controller 3.6 PROFINET Data Format Under configuration，Support 6W(Single Scale mode)，12W（2 Scales mode） ，18W（3 Scales mode） ，24W（4 Scales mode） （1#Scale） – Request: PLC ID551 Floating Point Value_0 2 Words,32 bits floating point data, use QD to express Value_1 Reserved Reserved W6-W11 is 2#Scale，W12-W17...
  • Page 25 ID551PN Weighing Controller （1#Scale） Response: ID551  PLC – Floating Point FAIL 2 Words,32 bits floating point data, use Value_0 ID to express Value_1 Display Weight, Value_0 2 Words,32 bits floating point data, use ID to express Display Weight, Value_1 W6-W11 is 2#Scale，W12-W17...

  • Page 26: Chapter 4 Hardware

    ID551PN Weighing Controller Chapter 4 Hardware 4.1 Interface Specification Four switches are available on main board. SW-1 W&M Sealed ON, Calibration is Disabled W&M Sealed OFF, Calibration is Enabled SW-2 Reserved, keep OFF SW-3 – Load Factory Default Values –...

  • Page 27: Housing Size

    ID551PN Weighing Controller 4.2 Housing Size DIN Rail Housing...

  • Page 28: Appendix 1 Calibration

    ID551PN Weighing Controller Appendix 1 Calibration Zero point calibration: F1.5 9,8…1,0 CAL-0 SAVE? Zero Adj.Completely. Go to F1.6 X is 1,2,3,4, corresponding to the 4 channel. 10、 9… 2、 1: Calibration 100 –Calibration Motion 200 –Seal lock, Disable Calibration 255 –Calibration Fail 0 –Calibration Done...

  • Page 29: Appendix 2 Display Message & Error Code

    ID551PN Weighing Controller Appendix 2 Display Message & Error Code Display Message & Description Error Code CAL_2 Set Span Calibration CAL_0 Set Zero Calibration CAL_35 Calibration Fail, Check load cell cable or if scale is stability CAL_D Calibration Done Factory CalFree Calibration data error, have to back to factory CALF-E for Factory Calibration again.
