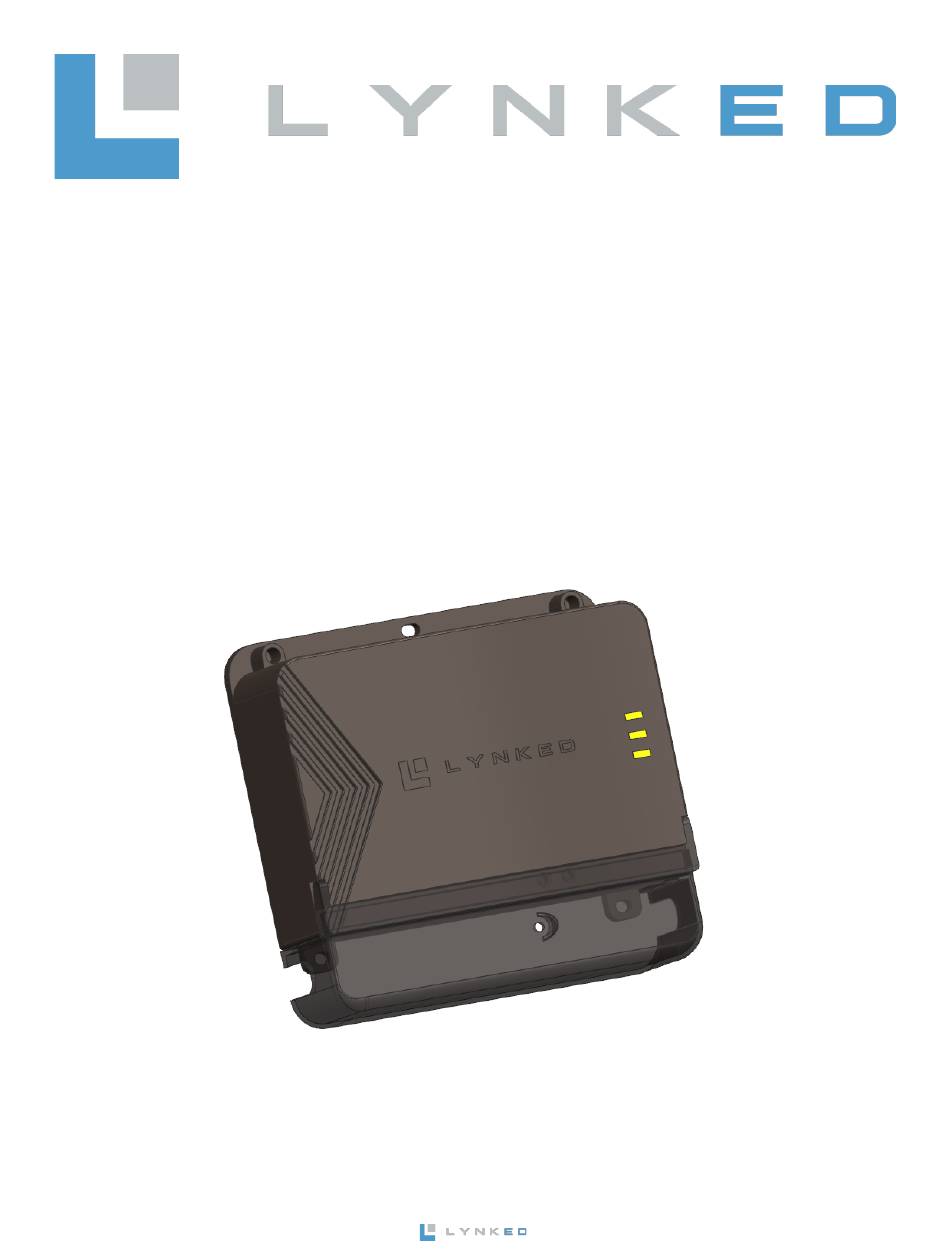

- Page 1 CG-100 YNKED NDUSTRIAL ATEWAY Installation and Operation Manual Model: CG-100 Last Modified: October 10, 2018 CG-100 Industrial Gateway Page 1...
-
Page 2: Copyright Information
(4) has not been sold subject to other warranty terms specified at the time of sale; and (5) is still owned by the original purchaser. This warranty provides specific legal rights that may be varied by state law. Lynked's products are not designed for life or safety applications. - Page 3 Contents PRODUCT OVERVIEW ................................ 4 HARDWARE SPECIFICATIONS ............................5 DEVICE INSTALLATION............................... 6 GETTING STARTED ................................7 CG-100 Industrial Gateway Page 3...
-
Page 4: Product Overview
Product Overview The Lynked CG-100 gateway system is designed to allow owners and managers of commercial and industrial facilities with a cost-effective means of gathering MBUS data in a timely manner. To meet these requirements, the system provides the installer with all the tools necessary to install and configure the hardware and software with a minimum of time and investment. -
Page 5: Hardware Specifications
Mass 0.63 lbs (0.286 kg) The CG-100 must be mounted inside a NEMA rated electrical enclosure for safety and isolation requirements. * if the product is used in a manner not specified by the manufacture, the protection provided by the equipment may be impaired. -
Page 6: Device Installation
If the “Power” light does not come on, verify that the power cord is plugged in. If after cycling the power the unit still does not power up contact technical support. After the CG-100 has been powered up for a minute, the green Alive LED should blink slowly once per second during normal operation. -
Page 7: Getting Started
Getting Started The CG-100 should now be available on the local area network for you to access using a web browser such as Google Chrome or Firefox. Step 1 - Use your web browser to connect to the CG-100 by entering http://ipaddress/. Where ‘ipaddress’ is the IP address given to the CG-100 by your DHCP Server. - Page 8 Please note: Rebooting the device takes approximately 30 seconds to complete its boot cycle. By selecting Device Information, you can view the specific fields related to your specific device. In order to update Hostname or IP configurations, click on General Settings. CG-100 Industrial Gateway Page 8...
- Page 9 By clicking on the Mbus Menu, you can setup your FTP settings (where you would like to receive your CSV files). Multiple FTP sites can be defined by clicking the Add button. The device currently collects MBUS data from all connected meters each hour and sends data to specified FTP sites once per day. CG-100 Industrial Gateway Page 9...
- Page 10 MBUS network and add any meter connected to the device (up to 100 meters). Depending on the size and scope of your network this scan could take up to 30 minutes. If Lynked meters are connected, this scan will only take approximately 3 to 5 minutes.
- Page 11 The CSV viewer allows you to review any data stored on the gateway. Readings are added to the CSV’s hourly and saved to this repository for review. Transmission of CSV files via FTP are nightly (Midnight UTC). Data will remain on the gateway for up to 90 days before being purged. CG-100 Industrial Gateway Page 11...
