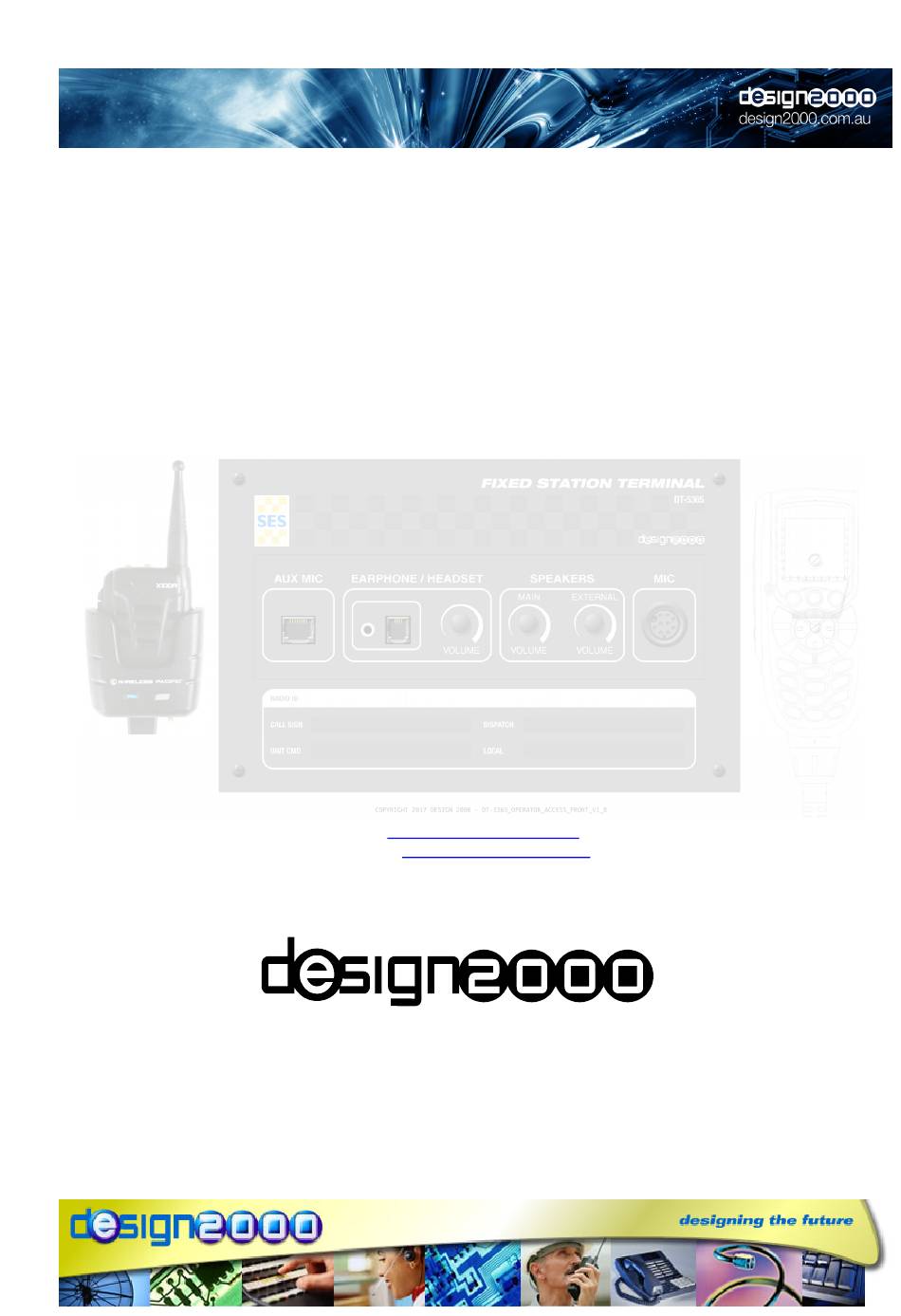

Fixed Station Terminal – DT-5365 Series

__________________________________________________________________________________

Installation & Service Handbook

__________________________________________________________________________________

FST DT-5365 Series Installation & Service Manual T/18237

DRAFT 2.0 – COMMERCIAL IN CONFIDENCE

ASTRO

APCO Project 25 Phase 2 Compliant

Item 1 of List of Deliverables

Document Number T/18237

Draft 2.0 – February 2018

Design Two Thousand Pty Ltd

9-11 Rose Street

Upper Ferntree Gully

Melbourne, Victoria, 3156

Australia

Australian Business Number: 45 005 014 639

Telephone: +613 9758 5933

Facsimile: +613 9758 5560

Email:

gen@design2000.com.au

Web Site:

www.design2000.com.au

Est. 1968

Draft 2.0 Page 1

February 2018

Table of Contents

Need help?

Do you have a question about the ASTRO 25 DT-5365 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Design 2000 ASTRO 25 DT-5365 Series

Page 1 Australian Business Number: 45 005 014 639 Telephone: +613 9758 5933 Facsimile: +613 9758 5560 Email: gen@design2000.com.au Web Site: www.design2000.com.au © 2018 - Design 2000 Pty Ltd Est. 1968 FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 1 February 2018...
Page 2: Document Control
DT-5365 Series Installation & Service Handbook Security Commercial In Confidence Circulation Victoria State Emergency Service, Motorola Solutions Australia Pty Ltd., Design 2000 Pty Ltd., Telstra Corporation Ltd., Licensed Installers Peter Zeug, Jed Street Prepared By Reviewed By Josh Gamble, Paul Engler...
Page 3 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE FIXED STATION TERMINAL DT-5365 SECTION CONTENTS PAGE 1.1.1 1.1.2 5.8.1 5.8.2 5.10 5.11 5.12 6.3.1 6.3.2 6.3.3 7.1.1 7.1.2 7.1.3 7.1.4 7.1.5 7.1.6 7.1.7 FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 3 February 2018...
Page 4 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE 8.10 8.11 8.12 8.13 10.1 10.2 11.1 Appendix A Feature Sets Appendix B Circuit – Hierarchy schematic Appendix C Circuit – Audio, E&M schematic Appendix D Circuit – Amplifier schematic Appendix E Circuit – Sub-board schematic Appendix F Circuit –...
Page 5: Warranty
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE ______________________________________________________________________________________________ Assumptions This document assumes that qualified installers and maintenance technicians perform the installation and maintenance procedures and are therefore aware of basic wiring and installation ‘Industry Best Practices’. The Occupational Health & Safety of all personnel working on or near this equipment is the responsibility of the installer or technician performing the tests, or operations.
Page 6: Functional Description
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE FUNCTIONAL DESCRIPTION Figure 1: DT-5365 Front Figure 2: DT-5365 Rear 1.1 GENERAL FEATURES The Victorian SES Fixed Station Terminal is a desktop APX2500, APX4500, APX6500, APX7500, or APX 8500 Mobile Radio Console for use in an office environment or temporary location. The Fixed Station Terminal is powered by the Standard VIC SES Radio Power Supply arrangement.
Page 7: Operating Conditions
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE 1.1.1 Operating Conditions The Fixed Station Terminal operates under the following physical conditions: Power source: 13.8V d.c. (12V d.c. nominal). Nominal output current rating: Continuous 5.0 Amps @ 13.8V d.c. 20 Minutes @ 20% duty cycle 7.5 Amps @ 13.8V d.c.
Page 8 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE HOUSING CONCEPT There are two variants (at this time) of the VIC SES faceplate. The physical construction consists of a melamine laminated timber cabinet that holds the Faceplate, Operator Control Panel Box (FP-5365 version), APX Mobile radio, mic cradle (and antenna connector which is on the back of the APX radio). The FP-5365P does not contain the Operator Control Panel Box.
Page 9 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Fixed Station Terminal DT-5365 This version includes the Operator Control Panel Box DT-5365 mounted in the Faceplate FP-5365 250mm 230mm Faceplate FP-5365 dimensions are 250mm wide The Operator Control Panel box is fixed to the Faceplate by 160mm high.
Page 10 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE DT-5365 Rear 70mm x 210mm x 130mm (H x W x D) The height of the Operator Control Panel box DT-5365 is 70mm, the width is 210mm and the depth is 130mm. Fixed Station Terminal DT-5365P This version has a plain Faceplate FP-5365P with no Operator Control Panel Box.
Page 11 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Optional Ethernet Controller Module Enabling remote management of the device including viewing of interface status and other Motorola direct API data such as radio status on network, radio ID, current channel and other parameters. This module can be fitted to the DT-5365.
Page 12: Mounting Brackets
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Mounting Brackets Mounting Bracket Set (for Faceplate or Under-Shelf) - Powder Coated in Racking Grey supplied with Black M4 threaded mounting screws. These are dual purpose brackets for mounting the DT-5365 Operator Control Panel Box on the FP-5365 Faceplate or under a shelf / desk. FST DT-5365 Series Installation &...
Page 13: Front Panel
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE INTERFACE PIN-OUTS FRONT PANEL AUX MIC INPUT (RJ45) For Motorola RMN5068A or HMN3000B-4273 Desktop Microphone, OR Pacific Wireless X10DR. Description Level / Sensitivity Number Power 12V d.c. nom. 60mA Emergency output to radio Active switched to Ground Rx audio from radio Line level Tx audio to radio...
Page 14 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE EARPHONE (3.5mm Four Pole) For iPhone or Samsung Smartphone Earbuds with mic Pin Number Description Level / Sensitivity 1 (mic) Mic Tx audio -34dBm nom., 5.6V bias 2 (sleeve) Ground 3 (ring) Right Rx audio -10dBm nom.
Page 15 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE User adjustable earphone / headset volume control SPEAKER VOLUME CONTROLS The MAIN VOLUME Control adjusts the main speaker in the FST cabinet. The EXTERNAL VOLUME Control adjusts a passive external PA speaker. FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 15 February 2018...
Page 16: Rear Panel
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE REAR PANEL MIC CABLE HOLE This is for the Motorola PMLN4958-03 Control Head extension cable for the Controller Mic. Mic extension cable pass-through hole FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 16 February 2018...
Page 17: Main Speaker
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE MAIN SPEAKER Dinkle® Mini Pluggable Screw/Clamp Terminal For connecting the main unpowered internal speaker (eg. 5W nom., 4 - 8 Ohm). Pin Number Description Level / Sensitivity Speaker - Speaker + 5W nom., 4-8 Ohm EXTENSION SPEAKER Dinkle®...
Page 18 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE E&M INTERFACE (RJ45) E&M (Earth & magneto, ear & mouth, or recEive and transMit) signaling provides the means to remotely signal and control the radio as well as provide external two-way audio. The E&M Interface has PTT in, Channel Activity out and 600Ω...
Page 19 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE PTT FOOTSWITCH (6.35mm Mono Jack) For Footswitch DS2700 fitted with 2m cable and ¼” TS jack. Pin Number Description Level / Sensitivity Normally Open Shorted to sleeve to activate PTT Sleeve Common 3.10 RADIO INTERFACE TO APX RADIO J2 CONNECTOR See next page for pin-out details.
Page 20 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE AUDIO CABLE PIN-OUTS DATA CABLE PIN-OUTS FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 20 February 2018...
Page 21: Power Input
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE 3.11 POWER INPUT This is the power input sourced from the VIC SES standard Power Supply Arrangement. Pin Number Description Level / Sensitivity -ve Return Return +12V d.c. nom. Power 3.12 ETHERNET CONTROLLER PORT (OPTIONAL) RJ45 MagJack The Ethernet jack is an IP Interface that provides an internal Web page (or Home page) for the configuration of the DT-5365.
Page 22 DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Press ENTER and this should bring up the Home page (example only is shown): Note that your Browser may do a Google search and not find the DT-5365. Contact your Network administrator for instructions on how to do a local search. FST DT-5365 Series Installation &...
Page 23: Emc Compatibility
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE EMC COMPATIBILITY The Motorola APX Mobile Terminal and DT-5365 Control Box meets the requirements of AS/ANZ 3548- 1995, EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2,-3 and for immunity EN61000-4- 2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria FST DT-5365 Series Installation &...
Page 24: Installation: General
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE INSTALLATION: GENERAL The relevant subsections & Installation check sheet for FST installation are covered in other Motorola documentation. Please consult your Fixed Station Terminal Manager as required. 4.1 Aesthetics Check that the equipment has no marks or damage that detracts from the equipment and appearance of the installation.
Page 25: Appendix A - Feature Sets
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Appendix A - Feature Sets FEATURE DT-5365 DT-5365P FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 25 February 2018...
Page 26: Appendix B - Circuit Diagram - Hierarchy Schematic
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Appendix B - Circuit Diagram - Hierarchy Schematic FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 26 February 2018...
Page 27: Appendix C - Circuit Diagram - Audio, E&M Schematic
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Appendix C - Circuit Diagram - Audio, E&M Schematic FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 27 February 2018...
Page 28: Appendix D - Circuit Diagram - Amplifiers Schematic
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Appendix D - Circuit Diagram – Amplifiers Schematic FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 28 February 2018...
Page 29: Appendix E - Circuit Diagram - Sub-Board Schematic
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Appendix E - Circuit Diagram – Sub-board Schematic FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 29 February 2018...
Page 30: Appendix F - Circuit Diagram - Power Supply Schematic
DRAFT 2.0 – COMMERCIAL IN CONFIDENCE Appendix F - Circuit Diagram – Power Supply Schematic FST DT-5365 Series Installation & Service Manual T/18237 Draft 2.0 Page 30 February 2018...
