Inter-m RFA-101 User Manual

RFA 101
Receiver for AOE
Features
RFA-101 is an audio / data reception equipment
over a network (LAN / WAN).
This product is a receive-only device used for
AOE-212N that transmits AUDIO & DATA using
TCP/IP Ethernet Network.
- Transmission of AUDIO & DATA using TCP / IP
Ethernet Network
- Contact closure output available
It can receive the contact signal from the server
device (AOE-212N) and can work with the exter-
nal device through the contact output.

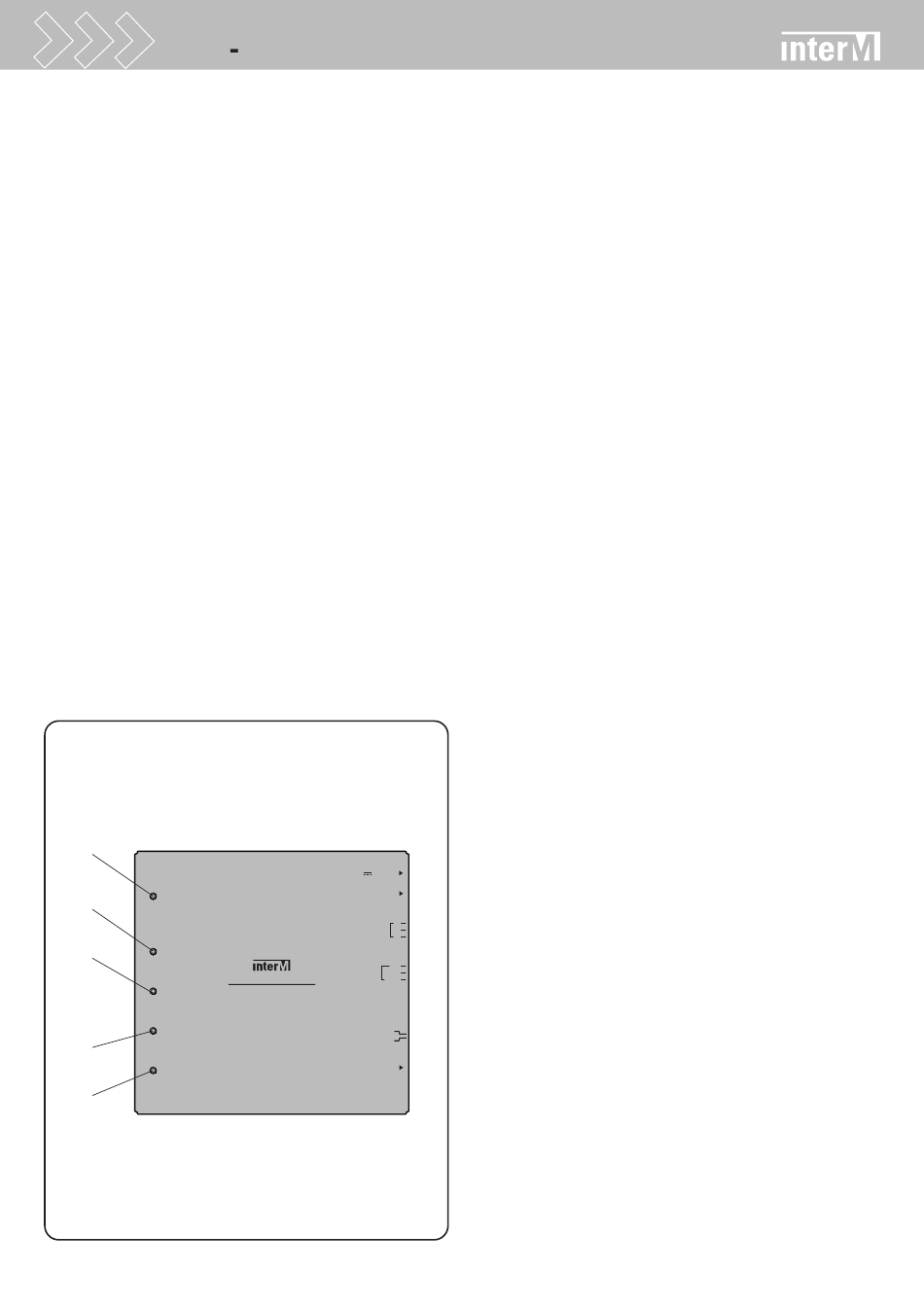

Front panel

1
POWER
2
NETWORK
3
ON AIR
OPERATION
4
DHCP
5
DC 12V , 500mA
FACTORY RESET
G
-
AUDIO OUTPUT
+
NO
CONTACT OUTPUT NC
RECEIVER FOR AOE
COM
RFA-101
STATIC
DHCP
NETWORK
Package and accessory includes
1. DC 12V adapter × 1
2. 3P Terminal blocks × 2
3. Lan cable × 1
4. User guide × 1
1. POWER LED (RED)
Power LED is displayed when power is supplied.
2. NETWORK LED (GREEN)
It is the LED that is displayed when sending data
through NETWORK. LED is blinking during normal
operation.
3. ON AIR LED (ORANGE)
This LED is displayed when streaming broadcast is
output. Even if the broadcast is not output because
buffering is in progress, the LED will be on.
4. OPERATION LED (GREEN)
CPU operation status is displayed. LED is blinking
during normal operation.
5. DHCP LED (ORANGE)
The LED lights up when the network IP setting is
DHCP. IP settings can be changed with the DHCP /
STATIC switch on the rear panel.
