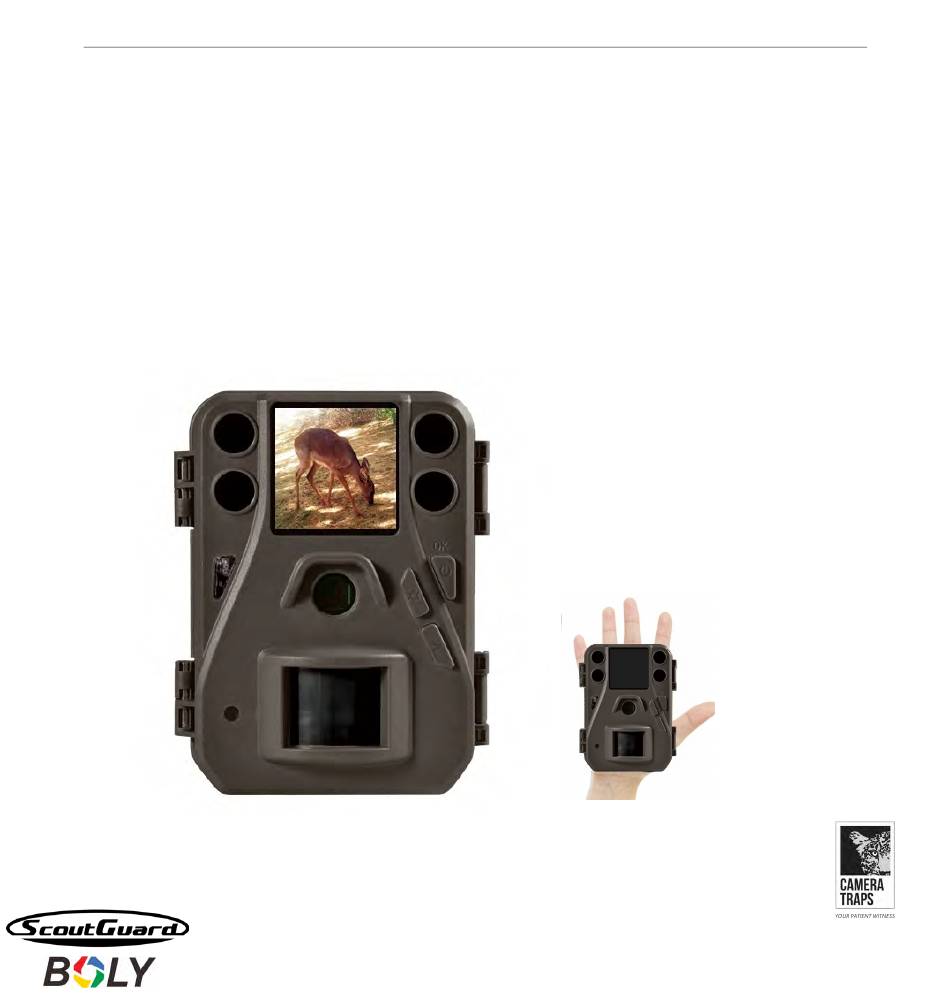

- Page 1 Trail Camera - BG330 BG330 User Manual Est. 2007 CAMERA TRAPS cc info@cameratraps.co.za www.cameratraps.co.za +27(0)83 560 0555 +27(0)82 422 0356...
-
Page 2: Table Of Contents
Trail Camera - BG330 Table of Contents 1. Getting Started................2 2. Camera Operations..............4 2.1 Batteries / Power Supply..........4 2.2 SD Card Information...........4 2.3 Camera Modes..............5 3. Camera Setup Settings & Display.......... 7 3.1 Settings Interface & Display........7 3.2 Manual Image / Video Capturing......8 3.3 Manage Images and/or Videos........8 3.4 Camera Setup Options..........8 4. -
Page 3: Getting Started
Trail Camera - BG330 1. Getting Started Latch Battery Tray... - Page 4 Trail Camera - BG330 External AC/DC connector (4*1.7mm)
-
Page 5: Camera Operations
Trail Camera - BG330 2. Camera Operations 2.1 Batteries / Power Supply The camera is powered by four AA batteries. High-density, high-performance alkaline, Lithium or high capacity (min 2600mAh) NiMH rechargeable batteries are recommended. When the batteries are low, the camera will beep twice and automatically shut down. -
Page 6: Camera Modes
Trail Camera - BG330 Make sure the SD card is unlocked before inserting it into the camera The camera will operate normally with a locked SD card inserted, but the card will not be able to store captured images or videos taken by the camera. Do not remove the SD card while the camera is on By removing the SD card while the camera is on risks damaging the internal components of the camera. - Page 7 Trail Camera - BG330 On / Hunting Mode The camera will take pictures or video clips when motion is detected and/or at specific time intervals, according to the programmed settings. "On / Hunting" mode is automatically activated, if the camera is turned on and left alone for 20 seconds.
-
Page 8: Camera Setup Settings & Display
Trail Camera - BG330 3. Camera Setup Settings & Display 3.1 Settings Interface & Display To update the camera settings, turn the camera on to activate the display screen. OK/Power: Save parameter settings and view pictures Settings/Sprocket: Switch between Test/Setup and On modes ►: Capture a photo or record a video manually When the camera is in ON Mode, the screen will activate and display the following:... -
Page 9: Manual Image / Video Capturing
Trail Camera - BG330 3.2 Manual Image / Video Capturing Place the camera in ON mode and press ► to manually capture photos or record video. Press ► again to stop capturing video. 3.3 Manage Images and/or Videos Place the camera in TEST/SETUP mode and press OK/POWER button to view images or videos. - Page 10 Trail Camera - BG330 After changing EACH setting in the Setup menu, you must press OK or the camera will retain the previous setting. Main Descriptions Options Language options include: English, Czech, French, German, Spanish, Swedish, Language Finnish. Default::English There are three camera modes: Photo: to take the photo Video: to capture video Camera...
- Page 11 Trail Camera - BG330 This setting indicates how long the PIR sensor will be disabled after each camera triggering. During this time the PIR sensor will not react PIR Interval to any detected motion. The PIR Interval can be set between zero seconds to a maximum of 1 hour.
- Page 12 Trail Camera - BG330 The camera can capture images or videos at a preset time interval regardless of motion detection. Changing this setting to a non-zero value turns on Time Lapse mode and the Time Lapse camera will take photos at the set interval time. If PIR Trigger/Sensitivity and Time Lapse options are BOTH OFF, the camera will not capture any photos or videos.
-
Page 13: Trouble Shooting
Trail Camera - BG330 4. Trouble Shooting There is something in front of the camera lens - Is the camera broken? A: The camera is not broken. It’s an IR-cut filter. When the camera is powered on, the IR-cut will cover the lens. Only when the camera is powered off, the IR-cut will be at a random place, sometimes covering the lens. -
Page 14: Additional Information
Trail Camera - BG330 5. Additional Information Avoid varying temperature and motion disturbances in front of the camera, such as falling leaves, air-conditioner outlets, and other sources that may easily sway and move to prevent false triggering. To adequately capture the full image of the tracked game, the camera should be placed high above the ground, respective to Generally, one to two meters is the object size of the game. -
Page 15: Pir Detection Zone
Trail Camera - BG330 6. PIR Detection Zone This camera has a new patented PIR design, which allows the detection range to reach to 70ft in good environments. The following picture shows the compared detection zone between normal PIR and the new patented PIR. The PIR detection angle (α) is just smaller than the field of view (FOV) angle (β). -
Page 16: Technical Specifications
Trail Camera - BG330 7. Technical Specifications 3MP CMOS Sensor Image Sensor 5MP, 8MP,14MP Interpolation F/NO=2.2 Lens FOV(Field of View)=55° PIR Detection Range 65ft Illumination Distance 70ft Display Screen of Remote 1.44” Color LCD Control Memory Card Up to 32 GB 1280x720(20fps) Video Resolution 640×480(20fps) - Page 17 Trail Camera - BG330 For more details about products or software, please visit our website at : http://www.bolymedia.com/index/Support Or contact CAMERA TRAPS cc ; Est. 2007 CAMERA TRAPS cc info@cameratraps.co.za www.cameratraps.co.za +27(0)83 560 0555 +27(0)82 422 0356 ...
