Edge-Core EWS101 Quick Start Manual

Quick Start Guide
Wireless LAN Controller
EWS101

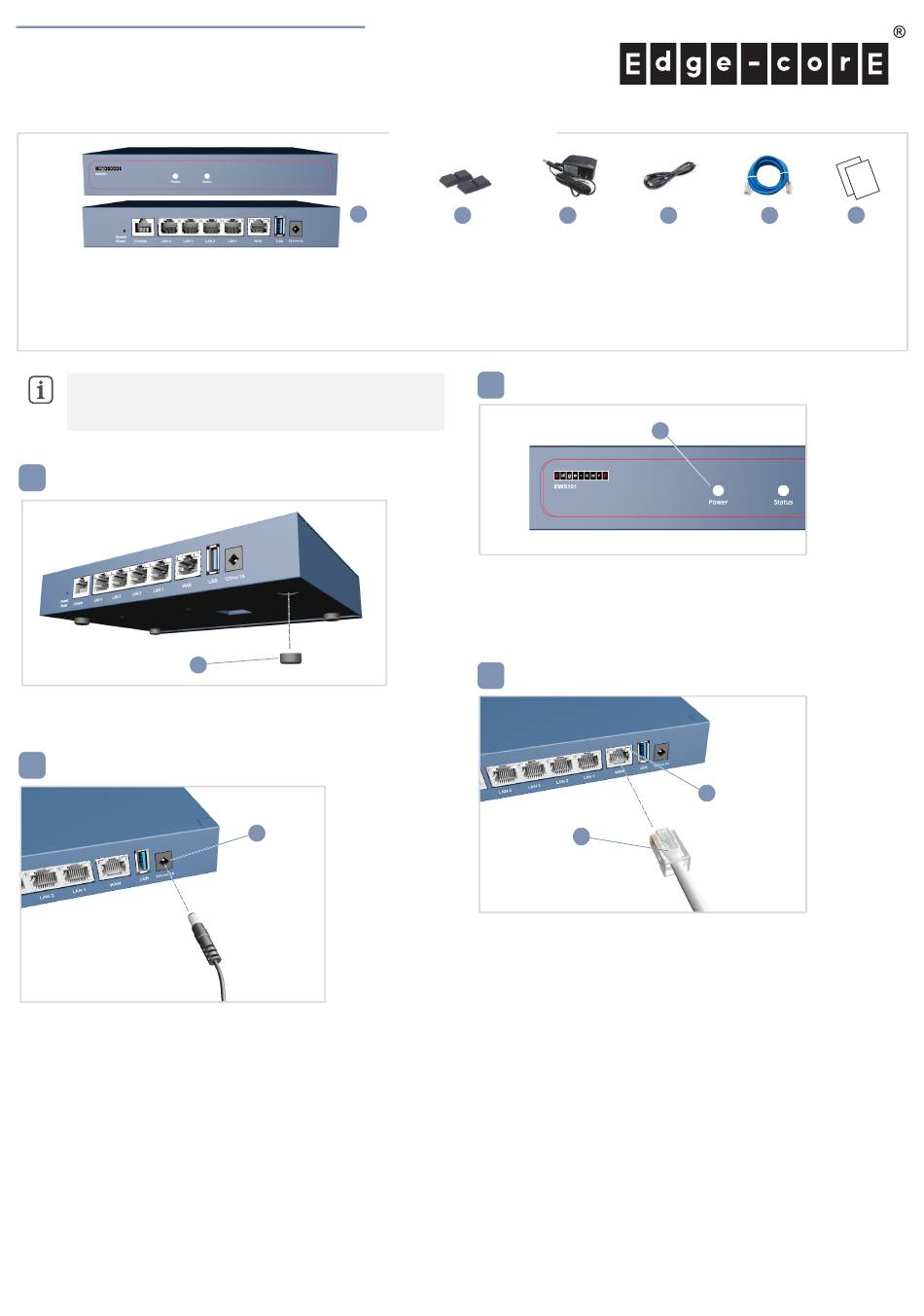

1. EWS101 Wireless LAN Controller
2. Four adhesive foot pads
3. AC power adapter
Note: For safety and regulatory information, refer to the
Safety and Regulatory Information document included with the
wireless controller.
1

Mount the Wireless Controller

1. The device can be installed on a desktop or shelf using the
included adhesive rubber foot pads.
2

Connect Power

1. Connect the AC power adapter to the DC power jack on the
device and then plug the adapter into a nearby 100-240 VAC,
50-60 Hz AC power source.
www.edge-core.com
1
1
1

Package Contents

2 3
4. Console cable—RJ-45 to DB-9
5. Cat. 5e LAN cable, 1.2 m length
6. Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
3

Check the System LEDs

1. Verify basic wireless controller operation by checking the system
LEDs. When operating normally, the Power LED should be on
green and the Status LED should be either on green or blinking
when the device is booting up.
4

Connect Network Cables

1. For the 1000BASE-T RJ-45 ports, connect 100-ohm Category 5,
5e or better twisted-pair cable.
LAN1-LAN4: RJ-45 1000BASE-T ports. Connect to downlink
devices, such as switches, APs, or client PCs.
WAN1: RJ-45 1000BASE-T port. Connect to an uplink device,
such as a DSL modem/router. This is the default port for passing
all traffic to an uplink device.
2. As connections are made, check the port status LEDs to be sure
the links are valid.
■ On/Blinking Green — Port has a valid link. Blinking
indicates network activity.
– 1 –
4
1
2
1
5 6
E022019-CS-R01
150200001984A
