USB 2.0 All-in-One Cable
13335

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 133355 and is the answer not in the manual?

Questions and answers

Summary of Contents for Equip 133355

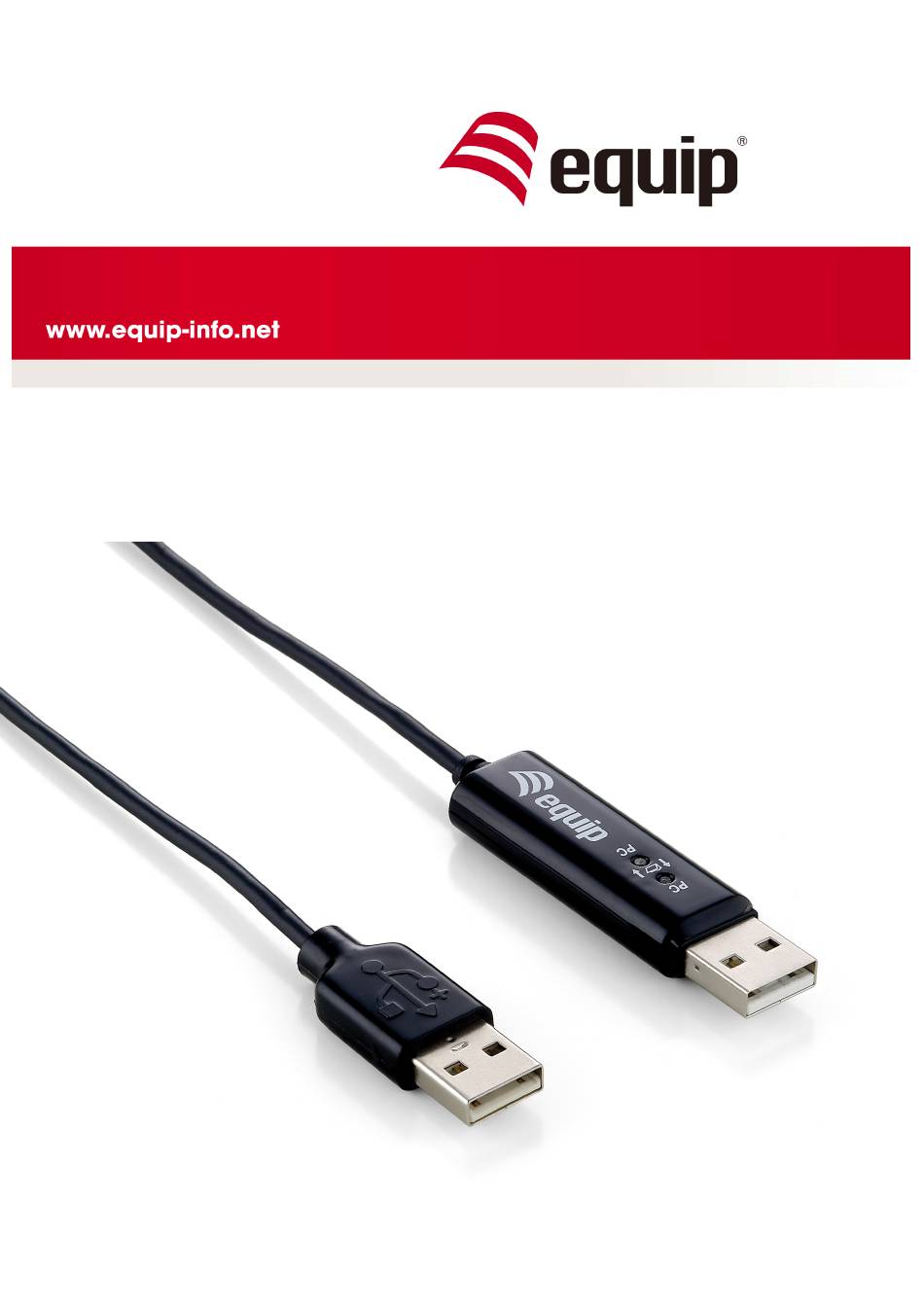

  • Page 1 USB 2.0 All-in-One Cable 13335...
  • Page 2: System Requirements

    Overview Congratulations on your purchase of the 133355, a USB file transfer cable. Nowadays, more and more people own more than two computers. Due to space limitations, most people choose NetBooks or Tablet PCs as their second computer. 133355 provides a simple and easy solution which lets you share the keyboard and mouse usage with another computer.
  • Page 3: Getting Started

    Getting Started With simple plug-and-play feature, you can easily connect the two computers via the USB port. Follow these steps to configure Smart KM Link connection and start with its application: Connect one end of the Smart KM Link to a standard USB port on one of the two computers you are connecting.
  • Page 4: Troubleshooting

    If the “User Account Control” window appears on the screen, click Yes to continue. You are now ready to operate the Smart KM Link application. A pop-up message appears at the bottom right of the screen. Troubleshooting: If the Smart KM Link application fails to start automatically, do any of the following: •...
  • Page 5: Changing The Settings

    Changing the Settings To customize the Smart KM Link settings, click the Smart KM Link icon ( ) at the bottom right of the screen. Select Preferences. The Preferences Setup screen is displayed. Keyboard & Mouse Control Switching Settings This option allows you to switch the control of keyboard and mouse from one computer to another.
  • Page 6 • Use Mouse Move Off the Edge of Screen Select this option to switch the control of keyboard and mouse from one computer to another by moving the mouse off the edge of the screen. Select the desired position. Click on the pull-down menu to see more options. Tips: You can also change this setting on the pop-up menu that appears on the screen when you click the Smart KM Link icon (...
  • Page 7: Clipboard Share Options

    • Click Specified Screen Hot Area Select this option to set a "hot area". When the “hot area” is clicked, the keyboard and mouse control switches from one computer to another. To specify the “hot area”, click View and Specify Area. Then drag the orange frame to the location that you want to specify as “hot area”.
  • Page 8: Event Notifications

    Event Notifications This option allows you to set the type of notification when receiving/sending clipboard data or switching the keyboard or mouse control to another computer. You can set either to play sound or to display a pop-up balloon tip. For example, a pop-up balloon tip appears when you copy data from the first computer and paste the data to the second computer.
  • Page 9: Sharing Keyboard And Mouse

    Sharing Keyboard and Mouse After you have configured the settings on the previous section, now you can start using your computers. To switch the cursor location to another computer: The action depends on the prior setting that you have chosen on the “Keyboard & Mouse Control Switching Settings”...
  • Page 10: Clipboard Sharing

    Clipboard Sharing With the clipboard sharing feature, you can easily edit, copy or paste clipboard contents between the two computers. For example, to copy an image file on PPT(Power Point) file to another another PPT file on the other computer: Open the “source”...
  • Page 11: File Transferring

    File Transferring With the keyboard and mouse sharing function, it is easy to manage files between the two computers. Simply drag and drop the file or folder between the two computers to transfer files. Besides using the drag and drop method, you can also do the following to transfer files between the two computers: •...
  • Page 12 Introduction Most of the latest ultra thin Notebooks, NetBooks, ultra-mobile PCs or Tablet PCs come without a CD, DVD, or Blue-Ray disc drive due to cost and space limitations. Without a built-in optical disc drive (ODD), users need some other way to access their CDs or DVDs. The EzODD provides a simple and easy solution which lets you access an optical disc drive on another computer through an easy-to-use, high-speed USB 2.0 connection.
  • Page 13 Getting Started Follow these steps to use your computer to access an optical disc drive installed on another computer. 1. Connect the mini USB connector on the USB cable provided in the package to the mini USB port on the back of the EzODD stick.
  • Page 14 Using the EzODD Application The EzODD application has the following functions: Minimize the application. Select the optical disc drive you want Start sharing the to share. ODD. Automatically share the ODD. Figure 1: EzODD application Right-clicking the system tray icon in the bottom right-hand corner of your screen also lets you operate the EzODD console application.
  • Page 15 Sharing ODD on the Server Computer Use the EzODD application that appears on the server computer (with the optical disc drive you want to share). 1. In the application, select an optical disc drive by clicking on the drive name in the drop-down list of disc drives. You can also select an optical disc drive by right-clicking on the EzODD icon in the system tray in the bottom right-hand corner of your screen.
