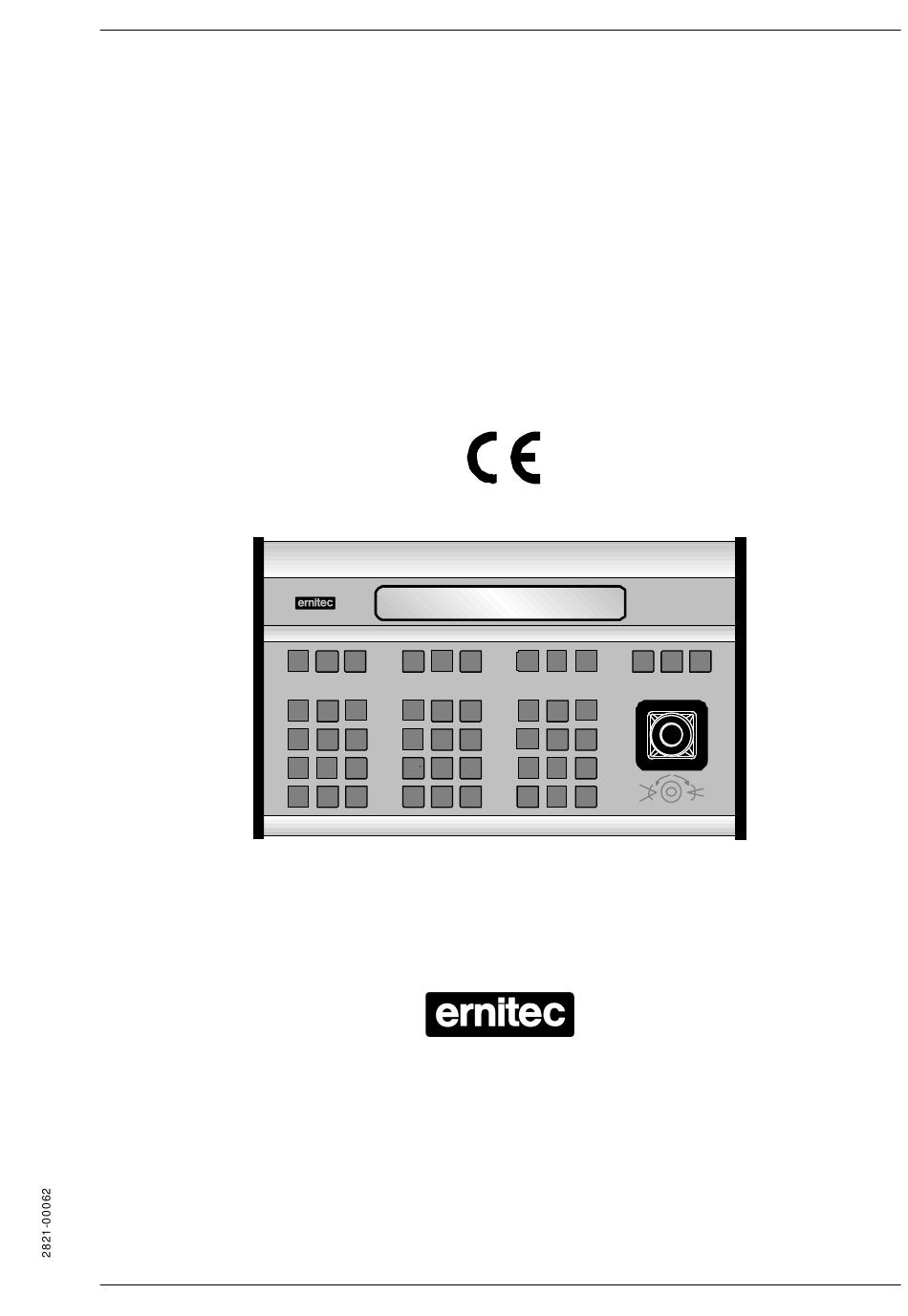

1504M
E-Mux & PTZ control
HEAD OFFICE: HØRKÆR 24, P.O. BOX 720, DK-2730 HERLEV, DENMARK
TELEPHONE: +45 44 50 33 00, TELEFAX: +45 44 50 33 33
E-MAIL: ernitec@ernitec.dk, HOME PAGE: www.ernitec.dk
UK OFFICE: ERNITEC UK, GERRARD HOUSE, WORTHING ROAD, EAST PRESTON, WEST SUSSEX BN16 1AW, ENGLAND
TELEPHONE: 01903 77 27 27, TELEFAX: 01903 77 27 07, E-MAIL: sally@ernitec-uk.co.uk
FRENCH OFFICE: ERNITEC FRANCE, PARC PEREIRE, 95 RUE PEREIRE, BAT. D, 78100 SAINT GERMAINE EN LAYE, FRANCE
TELEPHONE: (1) 39 21 12 00, TELEFAX: (1) 39 21 12 95, E-MAIL: ernitec-fr@magic.fr
GERMAN OFFICE: ERNITEC GmbH., STORMARNRING 28, 22145 STAPELFELD, GERMANY
TELEPHONE: (040) 67 56 25 0, TELEFAX: (040) 67 56 25 25, E-MAIL: ernitec@aol.com
JAPAN OFFICE: ERNITEC JAPAN LTD., 8-16 GAKUEN-HIGASHIMACHI, 1-CHOME KODAIRA-SHI, TOKYO 187-0043, JAPAN
TELEPHONE: (0)423 46 6290, TELEFAX: (0)423 46 5646, E-MAIL: jdr0632@niftyserve.or.jp
Advertisement
Summary of Contents for ERNITEC 1504M
- Page 1 TELEPHONE: 01903 77 27 27, TELEFAX: 01903 77 27 07, E-MAIL: sally@ernitec-uk.co.uk FRENCH OFFICE: ERNITEC FRANCE, PARC PEREIRE, 95 RUE PEREIRE, BAT. D, 78100 SAINT GERMAINE EN LAYE, FRANCE TELEPHONE: (1) 39 21 12 00, TELEFAX: (1) 39 21 12 95, E-MAIL: ernitec-fr@magic.fr GERMAN OFFICE: ERNITEC GmbH., STORMARNRING 28, 22145 STAPELFELD, GERMANY...
- Page 2 EN 50130-4 (EMC) and EN 60950 (LVD). Introduction The keyboard 1504M can be used for operating one E-Mux Multiplexer, as well as for direct operation of up to 32 telemetry receivers Series BDR-510, Series BDR-550, BDR-575, ICU and/or SATURN Dome camera.
-
Page 3: Installation
E-Mux Multiplexer Description Description Transmit Receive Receive Transmit 1, 4 or 5 Ground (To cable screen also) Ground (To cable screen also) Maximum cable length is 15 meters. Only one E-Mux can be connected to the 1504M. 2821-00062 Page 3... - Page 4 In order to exit programming press the ESC key, and the keyboard will automatically be re-booted in order to activate the new setting(s). A lot of setup features are available in the 1504M, whereof most are reserved for future use. Only the ones valid for Telemetry Receiver/E-Mux control are described in the following.
- Page 5 1504M E-Mux & PTZ control 2821-00062 Page 5...
- Page 6 1504M E-Mux & PTZ control Start programming of FAULT MENU keyboard. Press ESC to leave set-up. Enter Password (Default password is Enter Password: XXXX 0000) F4:OpMode F6:Comm. F7:Baud Select Mode of operation and Baud XXXXXX XXXX XXXX More rate. CamCtrl*...
- Page 7 1504M E-Mux & PTZ control Operation of telemetry receivers This section will describe operation telemetry receivers directly from the 1504M keyboard. Select Camera If Camera 3 is to be controlled: ð ð Select camera number 3 All subsequent operations are now directed to camera 3 until a new camera is selected.
- Page 8 De-activating an AUX-relay To de-activate AUX-relay 2, press: ð ð De-activate AUX 2 relay. Note: Used only if the Keyboard 1504M is set for Latch operation. Page 8 2821-00062...
- Page 9 1504M E-Mux & PTZ control Auto panning (BDR-575, SATURN and ICU only) To start auto panning, press: ð ð AUTO Start auto panning Call Preposition (not available on Series BDR-51X) To call preposition number 3, press: ð ð Call preposition number 3 Note: Valid range BDR-55X and ICU: 1-30, BDR-575: 1-126, SATURN: 1-127.
- Page 10 1504M E-Mux & PTZ control Back light compensation (ICU and SATURN only) In order to enable/disable Back light compensation, press: Back light compensation ON/OFF Programming the Telemetry Receiver The programming features are not available on the telemetry receivers Series BDR-51X.
- Page 11 1504M E-Mux & PTZ control Set the pre-position sequence dwell time To set the dwell time for the telemetry receiver currently being controlled to 15 seconds, press: ð ð ð ð Set dwell time to 15 sec. The dwell time range is 0 to 255 sec.
- Page 12 For specific details on the various Multiplexer functions, please refer to the documentation for the E-Mux Multiplexer. Setup of E-Mux To set up the E-Mux for 1504M control, the following should be programmed. Select E-Mux control Mode To enter E-Mux control mode, press:...
- Page 13 1504M E-Mux & PTZ control Spot monitor To select the spot monitor, press: SPOT Select Spot monitor This is a toggle function between Spot and Main monitor operation. Camera selection To select e.g. camera 3: 3 ð ð Select camera number 3...
- Page 14 1504M E-Mux & PTZ control Horizontal 2-Screen configuration To select horizontal 2-Screen configuration, press: SHIFT Horizontal 2-Screen To select a camera for the top window: 3 ð ð Select camera 3 for top window To select a camera for the bottom window: 2 ð...
- Page 15 1504M E-Mux & PTZ control Freeze picture To freeze the currently selected camera: Freeze camera (toggle function) Only valid for the Main monitor. Zoom To activate zoom (x2) on the currently selected camera: ZOOM Zoom Use the Joystick to 'Pan and Tilt' while in zoom mode.
- Page 16 1504M E-Mux & PTZ control View To activate view mode of the Multiplexer: VIEW View mode In view mode, the Main monitor shows what is being sent to the VCR while in Record mode, or from the VCR while in Play mode.
