Viking SwiveLift Assembly And Use Instructions

Assembly Tools Required:
Adjustable Crescent Wrench
14mm Box Wrench or Socket
16mm Box Wrench or Socket
18mm Box Wrench or Socket
Step 1: Attaching the Lift Beam to the Lift Platform
The lift platform is attached to the lift beam using
two 10mm hex bolts, two flat washers and two
locknuts. Attach the lift platform as shown in figure
1. Tighten the hex bolts securely.
Lift Beam
Figure 1
10mm Hex Bolt
Lift Platform
Step 2: Roller Bracket Assembly
Position the two roller brackets onto the end of
the lift beam as shown in figure 2. Attach the
brackets using two 10mm hex bolts, washers
and locknuts. Insert the plastic rollers as
shown and secure using two 12mm hex bolts,
washers and locknuts. Do not overtighten so
the rollers may rotate freely.
Hand Winch
Column Tube
Figure 3
Receiver Mounted Lifting Platform
Assembly and Use Instructions
Plastic Rollers
10mm Hex Bolts
Figure 2
8mm Hex Bolt
Step 3: Attaching the Hand Winch
Position the hand winch onto the end of the column tube as shown in
figure 3. Attach the winch using two 8mm hex bolts, washer and
locknuts and tighten securely. The washer and locknut should be
inside the tube. Note: the winch spool should be near the end of the
tube.
SwiveLift

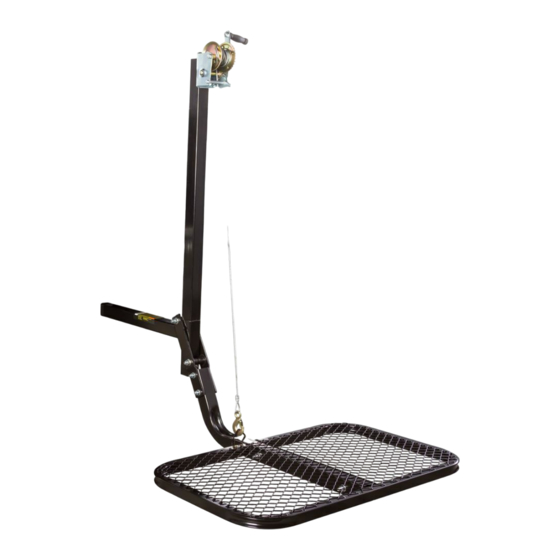

SwiveLift Parts Overview
Hand Winch
Plastic Rollers (4)
Lift Beam
Lift Platform
Column Tube
Roller Bracket (2)
Clevis Pin Hole
Receiver Tube
Assembly
12mm Hex Bolts
