Adtec Systema SW35S Installation Instructions

SW35S
SW35SW
SW35SB
SW35B

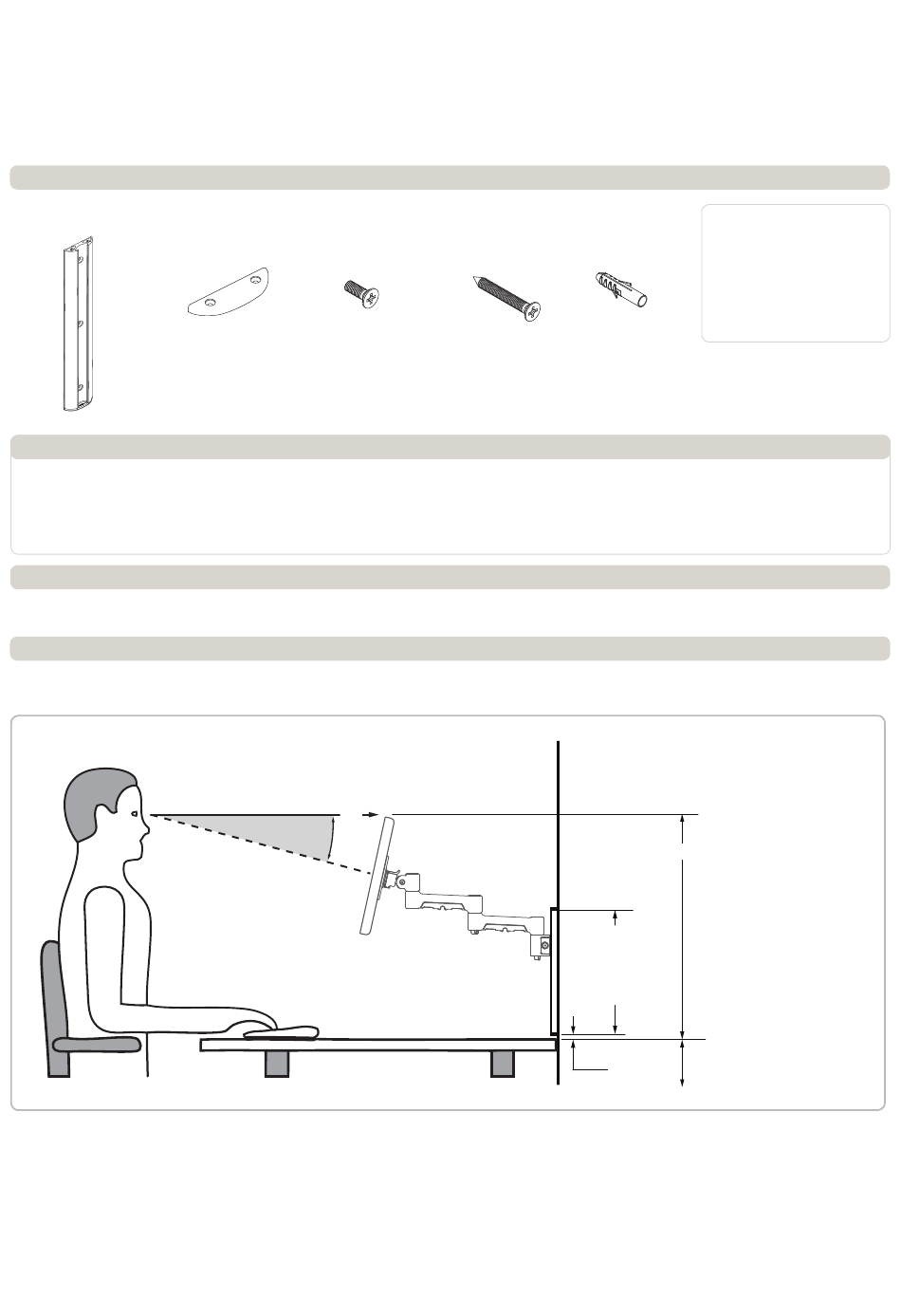

Component Checklist
Wall Channel (x1)

IMPORTANT INFORMATION:

! IMPORTANT - Install Systema Wall Channel as per installation instructions.
! Refer to Systema Monitor arm or Monitor Spring Arm Installation Instructions for maximum load advice.
! The manufacturer accepts no responsibility for incorrect installations.
! The Systema Wall Channel is compatible with Systema Monitor Arms: SA13, SA46, SA71 and with Systema Monitor
Spring Arm: SS.
Step 1. Check Components
Check what you have received against the component checklist and hardware above.
Step 2. Position Wall plate - Ergonomic Guidelines
Many experts believe that the extended use of any computer screen has the potential to cause serious injury to your eyes,
neck and back. This can be largely avoided by correctly positioning your display.
Height: As a guide, the height (h) of your display should approximately
be as follows:
- Tall Male (Max): 560mm (22")
- Short Male (Min): 368mm (14.5")
- Tall Female (Max): 520mm (20.5")
- Short Female (Min) 356mm (14")
Atdec recommends that the bottom of the wall channel is
positioned 10mm above the worksurface to facilitate use by
the largest range of people.
SYSTEMA
Top Cap Screws
Top Cap (x1)
(x2)
(d)
10º -20º
M6 x 50mm
Countersunk
Screw (x3)
Systema Monitor Arm
SA46 Shown
Please refer to the
Systema range Technical
Specifications for
dimensional details
Distance: For visual comfort, a viewing distance (d) between 500mm
(20") to 750mm (29.5") is recommended.
Viewing angle: Ergonomists recommend that the optimal position
of your display should be slightly below eye level. When looking at
the display's centre the user should have a downward visual angle of
approximately 10°-20°.

Installation Instructions

Systema | 358mm Wall Channel
Nylon Anchor (x3)
Tools Required:
• Power Drill
• 5.5mm (1/4") Drill Bit
• 8mm (5/16") Drill Bit
• Phillips Head Screwdriver
(h)
The Systema Wall
Channel
provides vertical
adjustment of
300mm (11.9")
Guidelines based on a
10mm (0.4")
720mm (28.3") high
worksurface
