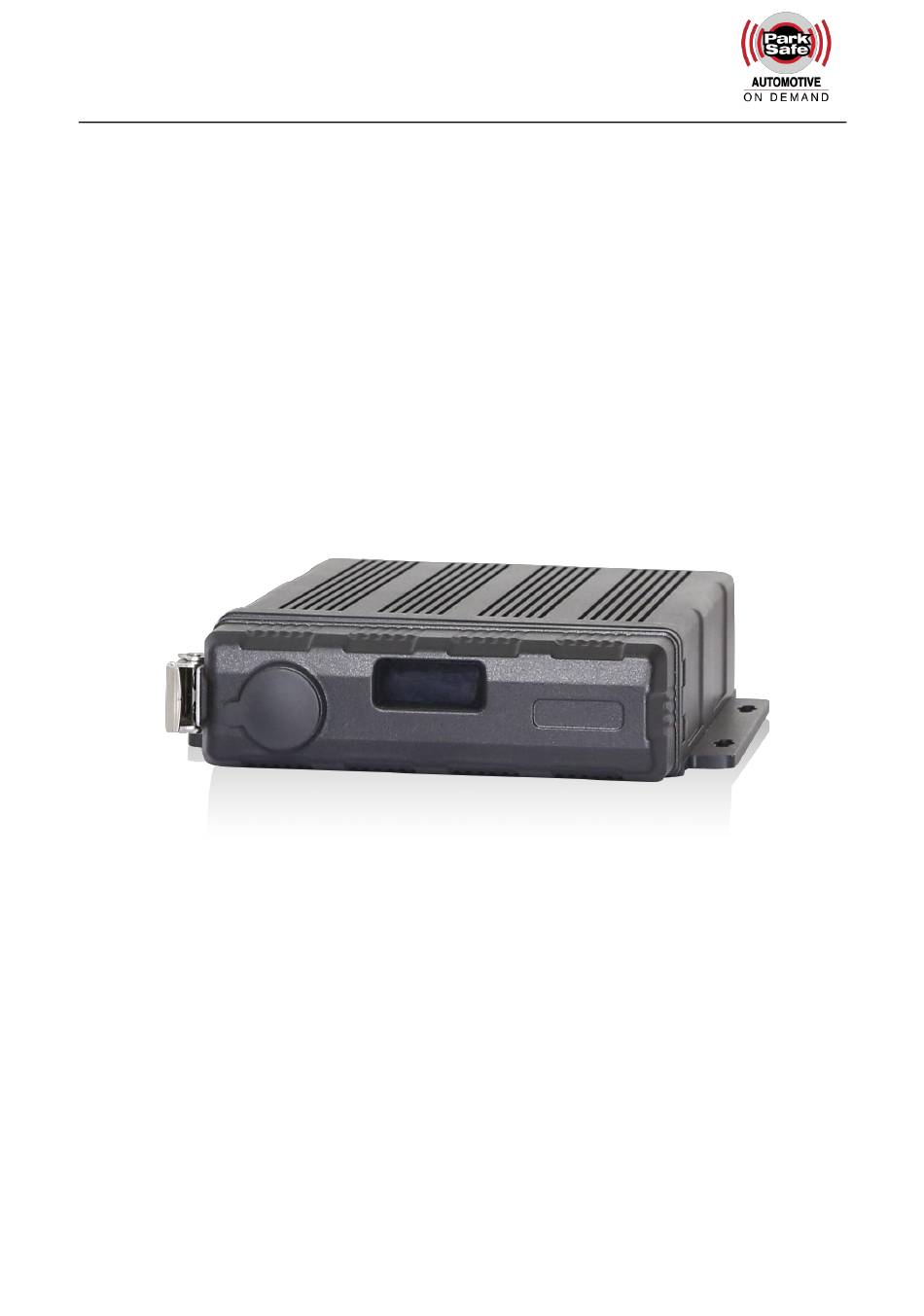

Operating Instructions

4CH HD DVR
Thank you for using our Mobile DVR. Please read this User's Manual carefully to ensure that you
can use the device correctly and safely.
The contents of this manual are subject to change without notice.
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW004SSD and is the answer not in the manual?

Questions and answers

Summary of Contents for Parksafe Automotive SW004SSD

  • Page 1: Operating Instructions

    Operating Instructions 4CH HD DVR Thank you for using our Mobile DVR. Please read this User’s Manual carefully to ensure that you can use the device correctly and safely. The contents of this manual are subject to change without notice. V1.0...

  • Page 2: Table Of Contents

    Contents 1. Specifications ...............................1 2. Precautions ................................3 3. Main Features ..............................4 4. Wiring Diagram ..............................6 5. Connection - Front Panel ...........................7 5.1 LED ................................7 5.2 Electronic Lock............................8 5.3 Remote Controller .............................8 5.4 SSD Slot ..............................8 5.5 SD Card Slot ..............................8 5.6 USB Slot ..............................9 6.
  • Page 3 8.8 Motion Sensitivity............................ 36 8.9 G-sensor Sensitivity ..........................37 8.10 File Type ..............................44 9. Display ................................44 9.1 Camera Display Setting ......................... 45 9.2 Camera Name Setting ........................... 45 9.3 System Language Setting ........................46 9.4 Audio Out ..............................46 9.5 OSD Display Setting ..........................

  • Page 4: Specifications

    1 Specifications 4CH HD DVR Operating system Linux System Operating interface Graphical menu operation interface(OSD) Video permission Administrator & user setting Video input 4 x 1080P analog high definition CVBS output 1CH 6pin aviation connector output PAL/NSTC VGA output 1CH VGA output, 1080P Video HDMI output NULL...
  • Page 5 2G/3G/4G Optional Wireless Wi-Fi Optional Wi-Fi hot spot/AP Optional Internal or external GPS/GLONASS module, coordinate/speed can be encoded in video stream and uploaded to server by wireless communication G-Sensor Nine axis sensor Available /Gyroscope Windows client Available Software iOS client Available Web portal Available...

  • Page 6: Precautions

    2 Precautions Motion detection function is set to OFF by default. Alarm files will be created When the motion detection is set ON. G-Sensor recording is recommended to set ON during driving for emergency recording use. G-Sensor level is optional. If the device could not boot up, try to remove all storage disks from the device, and then restart it to check whether it could boot normally or not.

  • Page 7: Main Features

    3 Main Features Appearance  Compact size and waterproof Controlled by touch screen  All settings and operations could be done through a touch-control monitor. Video and Audio  4 channels X 1080p,  4 video inputs with audio  2 video output with audio.
  • Page 8  Support USB disk or USB hard disk to backup the recording files. Network  Support LAN, Wi-Fi, and 3G / 4G  LAN, Wi-Fi and 3G / 4G have the sequence priority of connections. They are automatically switched to save the data once LAN or Wi-Fi is connected. ...

  • Page 9: Wiring Diagram

    4 Wiring Diagram...

  • Page 10: Connection - Front Panel

    5 Connection - Front Panel ① LED Indicators ⑤ IR Receiver ② Electronic lock ⑥ SD Card Slot ③ Front Cover Buckle ⑦ SSD Slot ④ USB2.0 port ⑧ SIM Card Slot 5.1 LED The red light is on constantly while the green light flickers when the device is working properly; The red light is on constantly while the green light is off when the device is upgrading the system 5.2 Electronic Lock ...

  • Page 11: Remote Controller

    5.3 Remote Controller Use the remote controller closer enough to the IR Receiver, otherwise it may not work. 5.4 SSD Slot  1XSSD (Max. 2T )  Size: 2.5 inches (70X100X7mm).  A computer could be connected and read the SSD through the SSD-out cable 5.5 SD Card Slot ...

  • Page 12: Usb Slot

    Step 2: Insert SD card to SD card slot Step 3: Close the front cover and use the key to lock 5.6 USB Slot USB 2.0/3.0, Max. Capacity 2T 6 Back Panel ③ Wi-Fi Connector ① Cellular Connector, TX/RX ② Cellular Diversity Connector, Rx ④...

  • Page 13: Power

    6.1 Power  power input Connect the 9 PIN female to the 9 PIN male on the device.  Connection Connect ignition wire to yellow ACC, battery Positive to V+(Red wire) and Negative to GND (black wire) 6.2 Cameras (AVIN 1~4 ) ...

  • Page 14: Lcd Monitor

    Connect No.1 camera to AVIN1 4PIN Aviation male. Connect No.2 camera to AVIN2 4PIN Aviation male. Connect No.3 camera to AVIN3 4PIN Aviation male. Connect No.4 camera to AVIN4 4PIN Aviation male. 6.3 LCD Monitor EDID (Extended Display Identification Data) is automatically acquired when power is connected. Output resolution of the LCD monitor can be selected.
  • Page 15 AUTO supports as below: System Format CVBS AUTO NTSC/PAL 1080P/720P  High definition monitors are recommended to work with the device as below:  The parameter list of high definition monitors Description 10.1"Color monitor 7"Color monitor...

  • Page 16: Buzzer

    Resolution 1024 x 600 (RGB) 1024 x 600 (RGB) Audio input 1 channel 1 channel Audio output (loudspeaker) VGA input 1 channel 1 channel CVBS input 1 channel 1 channel Trigger Max. Brightness 500 cd/m² 450 cd/m² 600 ： 1 800 ：...

  • Page 17: Recording Files Output

    Different beeping modes stand for different working status as below: The electronic lock is open: one long beep and one short beep No disk: one long beep and two short beeps Abnormal disk system: one long beep and three short beeps If the disk is well connected but the alarm video files are full : two short beeps and one short beep No camera input: two short beeps , and two short beeps after a second...
  • Page 18  Pin Definition: 10 PIN Colour pink blue gray white purple green yellow black black Alarm Alarm Alarm_in Alarm_in Alarm_in Alarm_in Alarm_in Alarm_in Definition out2 out1 1. Below is the alarm setting. Alarm1, Alarm2, Alarm3 and Alarm4 could be renamed by users. 2.

  • Page 19: Panic Button (Optional)

    6.6 Panic Button (Optional)  Overview The LEDs are used to show the working status of the device. But when the device is installed in the vehicle, it is not easy to check the LED on the front panel. Each LED indicates the corresponding status of the device.
  • Page 20 Connect the 8 PIN female of above cable to the 8 PIN male (RS232&RS485) on the device.  Color Go to [Setting]-[Record]-[Record Channel] to see if any camera is VLoss Amber Normal Operation missing. In case any camera is chosen but not connected, LED would show yellow Soft Starts to record...
  • Page 21 Panic Button . When the bookmark button is pressed, an emergency event will be triggered. b. When the bookmark button is pressed, the Event LED will be temporarily illuminated. If the PANIC button alarm recording cannot be triggered, please check if the alarm recording button is open as shown below: If the alarm recording is triggered, there will be an alarm sign on the screen, as shown below: ...

  • Page 22: Four-In-One Antenna (Gps, 3G/4G, Wi-Fi)

    The alarm from the buzzer in panic button is convenient for checking the status of the device. No matter the Buzzer is set as ON or OFF in the menu System->Exception, the buzzer will alarm for 4 seconds when the device is booted up and the panic button is hot plugged in. When the Buzzer is set ON in the menu System->Exception, the buzzer will continuously alarm when the alarm is triggered.
  • Page 23 ① System time display ② License plate number display ③ Recording status The recording sign will turn red when recording starts ④ Playback The playback icon will turn red during playing back. ⑤ Electronic lock  Lock indicator turns red when it is locked and the front cover is closed. ...

  • Page 24: Menu Lock

    ⑪ Channel name 7.2 Menu Lock  The device/recorder supports two kinds of permissions: admin permission and guest permission  Users’ account list User Name admin guest Password Modification Initial Password Enter the menu of Enter all menus Playback，Display mode Permission switching and Volume Users’...

  • Page 25: Keyboard Operation Instruction

     Only the administrator could change the status of Menu lock. The following picture shows how to change the Menu Lock status from ON to OFF.  When the status of Menu Lock is On, users always need to enter the password name before entering the menus like Record, Playback, Log, System and Disk as administrator.
  • Page 26 ： Switch letter case ：Exit the keyboard interface ：Delete the input letters ：Switch to the numeric interface ：Switch to the English alphabet interface ：Switch to the special character interface...
  • Page 27 Character Switching Introduction...

  • Page 28: Manual Recording

    Letter Case Switching Introduction 7.4 Manual Recording Touch this icon to start or stop recording. 7.5 Playback Video Playback button: Touch this icon to enter the calendar menu. Green marked date means it has recording files saved on that day. Select the date to enter the video file list, then select the file and touch Play icon to play video.
  • Page 29 and can be shifted to the next or the previous one. Specific operation as below. Search by month : Search by year ①Normal: Regular recording list, including regular Recording, Power on Recording, and Schedule Recording. ②Event: Alarm recording list, including alarm recording 1~6, Motion detection recording, G-force recording, over-speed recording and Panic button recording.
  • Page 30 Type Recording Time Control Mode View Position Normal recording Manual control Normal list Power on recording Manual control Normal list Schedule recording Pre-setup time Normal list Alarm recording 1~6 Event recording setup time Event list Motion detection recording Event recording setup time Event list G-sensor recording Event recording setup time...
  • Page 31 reverse recording alarm 6 (Brake) recording Left trigger recording Right trigger recording abbreviations of G-Sensor recording types are as following: RFID ACCELERATION DECELERATION TURN BY ACCELERATION TURN BY Gyroscope HARD BRAKE TURN LEFT BY Gyroscope TURN RIGHT BY Gyroscope CLIP THE RECORDING FILE ③...

  • Page 32: Logging

    7.6 Logging System memo checking, memo output. 7.7 Display Mode Switching Display mode switch: Press the icon to display 12 types of mode. The default mode is quad view. ① Display mode selection ② Touch the icon to set up the default. ③...

  • Page 33: Disk

    7.9 Disk Disk management: Touch the icon, then you can view the status of SSD, SD card and USB storage as below.

  • Page 34: Volume

    ① Disk types ② ALL：The total capacity of individual disk ③ Green shows the capacity of all the recording files in the Normal list, Red shows the capacity of all the recording files in the Event list, Blue shows the capacity of all the pictures in the Capture list, Yellow shows the capacity of all the other files except those abov, Grey shows the capacity which is not used.

  • Page 35: Record Setup

    8 Record Setup 8.1 Power On Rec When “Power On Rec” is set to ON, the device will start recording once it’s powered on. Default setting is ON.

  • Page 36: Cyclic Rec

    8.2 Cyclic Rec When “Cyclic Rec” is set to ON, new recording files will overwrite the previous ones when the disk is full. Otherwise, it will stop recording when the disk is full. Overwriting means it will cover all recording files, including the Event recording files by default. 8.3 Event Rec Event Rec.: Event recording refers to the alarm recording triggered by events including motion detection, G-sensor, alarm 1 ~ 6, panic button and over speed.
  • Page 37 The main stream is used for video storage. The sub stream is used for video backup and network transmission. ① Resolution There are 5 kinds of optional resolution in main stream menu, 1080P, 720P, D1 (PAL), D1 (NTSC) and AUTO. And there are 3 kinds of optional resolution in sub stream menu, D1 (PAL), D1 (NTSC) and AUTO.

  • Page 38: Record Channel

    In the options of Bit rate, AUTO is defined as follows. Bit rate Main stream Sub stream If a 1080P camera is connected, the bit rate will be 4Mbps. For a 720P Whatever cameras are connected, the AUTO camera, it’ll be 2Mbps. And for a D1 bit rate will always be 64Kbps.

  • Page 39: Event Duration

    After the recording (including all types of recording) is set to ON and the recording channel(s) is selected, the corresponding channel(s) will be recorded. If a record channel is turned off, the corresponding channel will not be recorded even if the recording function is on. Note: The configuration above is for normal recording, not for event recording.

  • Page 40: G-Sensor Sensitivity

    Total video file length equals to the pre-recording file length (default time 15s) plus the file length configured in Event Duration. If motion detection is set to OFF, event recording will not be triggered. Motion detection sensitivity can be set to two levels, low or high. Motion detection recording will be on when Low / High is selected.
  • Page 41 a turn. When the acceleration and angular velocity exceeds a certain threshold within a certain period of time, the corresponding alarm will be triggered and recorded. Then the detected data will be uploaded to the cloud (Detection principle is shown in Pic 1.1). For example, according to the detected data, if the acceleration when the vehicle moves on or makes a turn exceeds the certain threshold acceleration “a”...
  • Page 42 Items Meanings The value of acceleration when the vehicle moves on (for detecting sudden acceleration) Acce. When the vehicle is accelerating, the value will be positive number. And when it is decelerating, the value will be zero. Unit: mg The value of deceleration when the vehicle moves on (for detecting sudden deceleration) Dece.
  • Page 43 The meanings of “threshold”, “duration”, “status”, “correction” and “sampling frequency” are as follow. Items Meanings Threshold setting for “Acce”, “Dece”, “Turn_Acce”, “Turn_Gyr”, “Impact” threshold and “Filter”. When the detected value continuously exceeds threshold setting for “duration”, then the alarm recording will be triggered. Detection time setting for “Acce”, “Dece”, “Turn_Acce”, “Turn_Gyr”, duration “Impact”...
  • Page 44 1~4999 Impact duration 100ms The formula of calculating the acceleration of impact (collision) event is as follow. ＋ ＋ abs(X) abs(Y) abs(Z)*Filter. “abs(X)”, “abs(Y)” and “abs(Z)” are the data from the X, Y and Z axes of acceleration sensors in the vehicle.
  • Page 45 an alarm of Trun_Acce. (5) If the vehicle quickly turns to the positive or opposite direction of Y axis and if the real-time value of Trun_Gyr exceeds the threshold continuously for 100ms during driving, then DEVICE will trigger an alarm of Trun_Gyr. 3.
  • Page 46 Pic 1.4 Possible Installation Position of the device 4. Device Installation Method Selection and Installation Correction Forward and Left refer to the forward moving direction and the left moving direction of the vehicle. They help determine the directions of the vehicle with corresponding axes of the device, which is used to determine the installation method of the device.

  • Page 47: File Type

    procedure. When the data of Status (real-time sensor data) is observed changed to close to 0, it means the calibration procedure is completed. WARNING: The device installation must be calibrated before put into use. During the calibration process, the vehicle must be parked on a flat area in a static position and the calibration time shall not be less than 1s.

  • Page 48: Camera Display Setting

    9.1 Camera Display Setting Camera parameter setting for each corresponding channel includes brightness, contrast, saturation and hue. All default settings are 50. To change the value, drag the bar to left or right to decrease or increase. 9.2 Camera Name Setting Camera names are displayed at the bottom of each channel.

  • Page 49: System Language Setting

    9.3 System Language Setting English and Russian are available in the menu for your options. 9.4 Audio Out...

  • Page 50: Osd Display Setting

    Select the audio output channel in multi-display mode. 9.5 OSD Display Setting Time, Camera name and License number can be selected whether to display or not. If it is on, the information will be shown in the live and the playback video.

  • Page 51: Menu On

    9.6 Menu on Set the menu display duration. Menu on: Duration can be set to 30s, 60s, 120s and Always. When it is set to 30s, 60s, 120s, it means that the menu will disappear if there is no operation in 30s, 60s or 120s. When it is set to Always, the menu will always be there.

  • Page 52: Gps

    overspeed alarm recording will be triggered when the vehicle is speeding. If it is OFF, the overspeed alarm recording will not be triggered. 9.8 GPS When the GPS antenna is properly installed, the latitude, longitude and speed will be recorded. The menu provides the GPS information including latitude, longitude, available satellites and searchable satellites.

  • Page 53: Mirror

    9.9 Mirror ON: Mirror function on OFF: Mirror function off...

  • Page 54: Network

    10 Network 10.1 LAN and Server Setting  DHCP: Dynamic Host Configuration Protocol. Set On for dynamic IP and Off for static IP. Static...

  • Page 55: Wi-Fi Network Setup And Server Setup

    IP must be manually input with IP address, mask and gateway. MAC address can be automatically assigned or revised.  LAN connection Step 1: Connect the LAN cable to the DVR. Step 2: Go to “Network - LAN” page. Step 3: If DHCP is set to ON, a dynamic IP will be automatically matched. If DHCP is set to Off, input the IP, mask, gateway and MAC manually.
  • Page 56 Wi-Fi: ON/OFF DHCP: Dynamic Host Configuration Protocol. Set On for dynamic IP and Off for static IP. Static IP must be manually input with IP address, mask and gateway. MAC address can be automatically assigned or revised. SSID: Wi-Fi hotspot list Ap Internet: The hotspot of the device can be found on mobile phones when it is On.

  • Page 57: 3G/4G Control And Setup

    Step 5: Touch OK to exit. Step 6: Go to “Network - Server” page to input Wi-Fi Server IP and Port. Touch OK to save the settings. Step 7: Wi-Fi network status and server status can be checked on “Network - Status”. 10.3 2G/3G/4G Control and Setup...
  • Page 58 Cellular: Cellular is on, meaning that 2G/3G/4G is on. Standard: WCDMA is set by default. APN & Access No.: APN is required to enter. Access No., Username and Password are normally left as default setting. If connection is not successful under the default settings, please consult your local network carrier.

  • Page 59: Ap Internet Setup

    Step 8: Cellular network status and server status can be checked on “Network - Status”. 10.4 Ap Internet Setup  Steps to connect Ap Internet Step 1: Connect the DVR to the internet through Wi-Fi or 2G/3G/4G. Please refer to Chapter 10.2 and 10.3 for connection.
  • Page 60 LAN IP: The static IP set on Network-LAN page or the dynamic IP obtained automatically. MAC: The static physical address set on Network-LAN page or the dynamic physical address obtained automatically. Wi-Fi: Status indication. Wi-Fi RSSI: Wi-Fi signal strength indication. Wi-Fi IP: Static IP obtained from Network-Wi-Fi page or dynamic IP address.

  • Page 61: Server

    No SIM card No SIM card is found in the DVR. Cpin locked Cpin is locked. Signal abnormal Signal is abnormal. Networking failure Network connection is failed. SUCCESS Network connection is successful. Server Status: Online / Offline 10.6 Server The function of server setting is mentioned in Chapter 10.1, 10.2 and 10.3. 10.7 FTP...
  • Page 62 Username/Port/Password: Correct Username / Port / Password of the FTP server must be filled in. FTP: ON / OFF Normal File: ON / OFF  OFF: Upload the videos except the normal ones: alarm recording and timed recording videos.  ON: Upload all video files including the above mentioned normal ones.

  • Page 63: System

    Filename: The name of the file being uploaded. Status: The status of the FTP function. Successfully uploaded files can be found on the client as below: 11 System...

  • Page 64: Log In Setup

    11.1 Log in Setup Set user name and password for booting up. The initial password is 123. 11.2 License Plate Number Setup Input license plate number...

  • Page 65: System Time Setup

    11.3 System Time Setup Format Setup: Go to “System – Date &Time - Format_Setup” page. ①Time Zone: Time zone setting. ②Date Format: Set the date of format. ③24 Hour: If it is ON, time format will be displayed in 24-hour system. If OFF, time format will be...
  • Page 66 displayed in 12-hour system. Time Snyc Setup: Go to “System - Date&Time - Time Sync_Setup” page. ①GPS: Set GPS to ON/OFF ②NTP: Set NTP to ON/OFF ③NTP Server: Show the URL of the NTP Server DST Setup:...
  • Page 67 Go to “System – Date &Time - DST_Setup” page. ①Enable: Set DST setting to ON/OFF ②Offset: Adjust the offset after enabling DST ③Mode: Select the mode of DST (setup DST according to week or date) ④Start: Set start time of DST ⑤End: Set end time of DST...

  • Page 68: Scheduled Recording

    11.4 Scheduled Recording Enable: Set scheduled recording ON/OFF. Start: Set start time of scheduled recording. End: Set end time of scheduled recording. Week-day: Set scheduled recording by weekdays. Select the weekdays to set preset. Scheduled Recording:  Support up to four appointed tasks. The recording duration is counted in minutes. ...

  • Page 69: Exception

    11.5 Exception Exception Buzzer: Set the exception buzzer to ON/OFF. Power On Buzzer: Set the power on buzzer to ON/OFF. Duration: Set the duration time of the buzzer.

  • Page 70: Acc Settings

    11.6 ACC Settings Current voltage: Voltage of the working DVR. Shutdown voltage: When the current or voltage is lower than the shutdown voltage, the device will shut down automatically. When the current or voltage is higher than the shutdown voltage, the device would work properly.
  • Page 71 Alarm 1~Alarm 4: Customized alarm recording. Reverse: Reversing alarm recording. . Brake: Brake alarm recording. Left: Turning- left alarm recording. Right: Turning- right alarm recording. Priority: Set priorities for Alarm1~Alarm4, Reverse, Brake, Left, and Right. When different types of alarm are triggered at the same time, alarms with the highest priority will work first.
  • Page 72 Alarm Out-Output2: Set it ON, then 12V level output would come from the alarm wire of Output 2 Display: A full screen of one channel will display when this channel is triggered. Cursor: See the picture below. ①Camera name of the alarm-triggered channel. ②Touch this button to turn on/off cursor.

  • Page 73: Update

    : Press this button, then the priority value of the selected alarm will be added by 1. The bigger the value is, the lower the priority will be. : Press this button, the priority value of the selected alarm will be reduced by 1. The smaller the value is, the higher the priority will be.
  • Page 74 Step 3: When “Update success!” is shown on the display, the device will reboot automatically.
  • Page 75 Step 4: After rebooting, please check if the version is the same as the one you copy into “upgrade” folder. Please go to Menu -> System -> Info to check it.  For batch upgrade As the upgrade package will be deleted after the upgrade process is done, if you need to upgrade more than one device, please carry out as follows: Step 1: Rename the package “dvxxx_upgrade_201xxxxxxxxx”...
  • Page 76 Step 4: After “Update success!” shows, unplug the USB disk or SD card with upgrade package, then the device will reboot automatically.
  • Page 77 Note: If using “dvxxx_upgrade_never_rename” package to upgrade, users must unplug the USB disk or SD card when “update success!” is shown on the screen, otherwise the the device will go into infinite loop of upgrade and will not boot up. Solution: Unplug the USB disk or SD card with upgrade package, and then the device will stop the upgrading process and boot up successfully.

  • Page 78: Configuration

    11.9 Configuration Configuration Import: Import the configuration information from SSD, SD or USB memory flash devices. Configuration Export: Export Log to SSD,SD or USB memory flash devices. Factory Default: Press Reset to restore factory settings.

  • Page 79: System Info

    11.10 System Info System Info：Software version number.

  • Page 80: Faq

    12 FAQ 1) The System Can’t Start up? Check the power connection. Please follow the steps below to check the power connection: Check the input power: if the power wire is connected correctly, if the ground wire is connected to the battery, and if the fuse on the power wire is in good condition. Check if the voltage of the ACC signal wire is higher than 6 V.

  • Page 81: Appendix

    13 APPENDIX APPENDIXⅠ：Abbreviation & Description Rec. Record Light Emitting Diode G-sensor Accelerometer sensor Secure Digital Memory Card Global Positioning System Universal Serial Bus Wi-Fi Wireless-Fidelity Alarm Camera VLOSS Video Loss Audio Video Interleaved COMM Communication On-Screen Display Error Access Point Name Memory Dynamic Host Configuration DHCP...

  • Page 82: Appendixⅱ：accessories

    APPENDIXⅡ：Accessories Quantit Accessories Description Accessories Quantity Description 9 PIN Aviation Remote Power Input Wire Control 4CH HD DVR 10 Inches HD 1, Optional Monitor Four-in-One Antenna Optiona 1, Optional Panic Button (3G-4G-Wi-Fi-G 10 PIN Alarm 232&485,8 PIN to 1, Optional Wire 4 PIN Cable Panic Button...
