- Page 1 GAIA 160HY-Hybrid Pixhawk 2.1 User Manual 2019.04 V1.1...
-
Page 2: Table Of Contents
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Contents Product Profile Introduction Highlighted Features Assembled View Specifications Installation Power System Generator System Generator System Connection Illustrator Compatible Gimbals Foxtech Seeker-30 Connection Illustrator Flight Flight Environment Pre-Flight Checklist Calibrating the Compass Takeoff and Landing Appendix Pixhawk 2.1 Flight Control System Overview... -
Page 3: Product Profile
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Product Profile Introduction GAIA 160HY-Hybrid Pixhawk 2.1 hexacopter is a long flight time hexacopter equipped with gasoline-electric hybrid power system and Pixhawk 2.1 flight controller which ensuring safe and stable operation at all times. With a maximum flight time of 3 hours, take off weight of 19.5kg, Gaia 160HY can meet specific needs across a range of industries. lts carbon fiber material and mechanical design, with quick-release arms make it easy to transport, store, and prepare for flight. Highlighted Features The heart of GAIA 160HY is the on board NOVA 2000 generator. With which the max take-off weight can reach 21kg (Default power system), and the max flight time is about 3 hours. This 2000W NOVA generator... -
Page 4: Assembled View

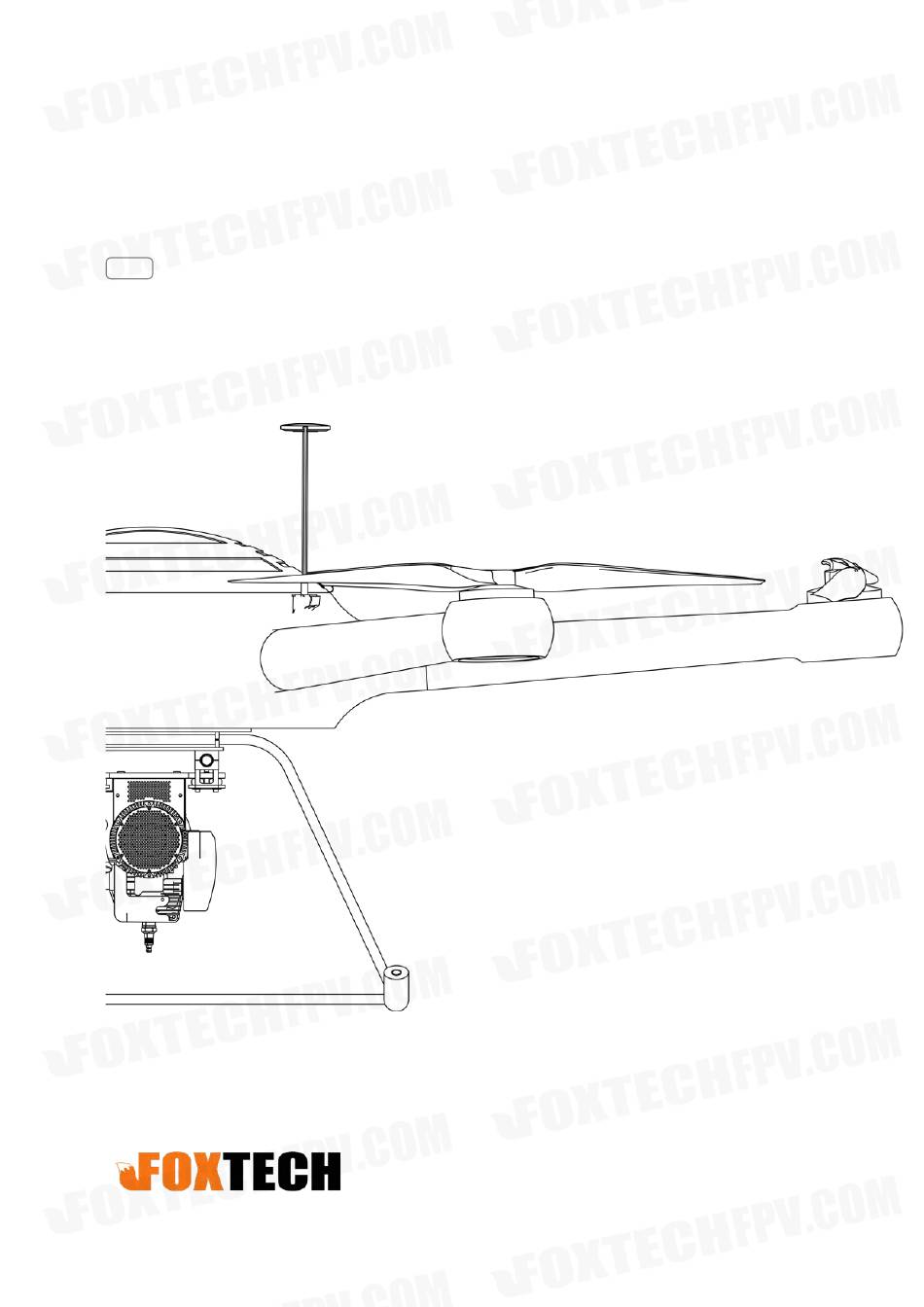

GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Assembled View ① T-MOTOR Flame 60A ESC ④ NOVA-2000 Generator ② Foxtech Supreme 3010T Propeller ⑤ Here 2 GPS ③ Landing Gear ⑥ T-MOTOR U8II KV85 ⑦ GAIA 160HY-Hybrid This content is subject to change. -
Page 5: Specifications
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Specifications Aircraft Structure Wheelbase 1600mm UAV Dimension(Unfolding) 1600mmx1600mx680mm UAV Body Dimension(Without Arms) 800mmx800mx500mm Dimensions(NOVA-2000 Generator) 192mmx215mmx222mm Shipping Dimension 8900mmx8800mmx6700mm Shipping Weight 104kg(Throw Weight) Weight(NOVA-2000 Generator) No Payload Weight 15.5kg(No Fuel) Max Take-off Weight 21kg... -
Page 6: Installation
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Installation Power System 1. Fix T-Motor U8II KV85 motors and Flame 60A ESC on arms. T-MOTOR U8II KV85 T-MOTOR Flame 60A ESC 2. Install Pixhawk 2.1 and arrange cables. ©2019 FOXTECH All Rights Reserved... -
Page 7: Generator System
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Generator System 1. Connect the fuel hose and the return hose. Mount the fuel tank. (For more information, download NOVA-2000 hybrid generator manual. https://www.foxtechfpv.com/foxtech-nova-2000-generator.html) Generator Loading Kit Mount the NOVA-2000 Generator A: Fuel Hose... -
Page 8: Generator System Connection Illustrator
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Generator System Connection Illustrator ©2019 FOXTECH All Rights Reserved... -
Page 9: Compatible Gimbals
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Compatible Gimbals 1.Foxtech Seeker Series Camera and Gimbals Seeker-10 Seeker-18 Seeker-18 IR Seeker-30 Seeker-30 TR 2.Foxtech FH Series Camera and Gimbals FH310IR-TR FH318/FH318Z FH336-TR FH325 FH230 3.DJI Series Camera and Gimbals Zenmuse XT Zenmuse X5 Zenmuse X3 4.Foxtech Mapping Cameras... -
Page 10: Foxtech Seeker-30 Connection Illustrator
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Foxtech Seeker-30 Connection Illustrator ©2019 FOXTECH All Rights Reserved... -
Page 11: Flight
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Flight Flight Environment 1.Do not use the aircraft in adverse weather conditions including rain, snow, fog, and wind speeds exceeding 8 m/s. 2.Only fly in open areas. Tall buildings and steel structures may affect the accuracy of the compass and the GPS signal. 3.Avoid flying near obstacles, crowds, high voltage power lines, trees and bodies of water. 4.Avoid flying in areas with high levels of electromagnetism, including mobile phone base stations and radio transmission towers. 5.Aircraft and battery performance is subject to environmental factors such as air density and temperature. -
Page 12: Calibrating The Compass
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Calibrating the Compass Be sure to calibrate the compass before your first flight, or else the aircraft cannot work properly. After that, calibrate the compass when the QGC app or the Aircraft Status Indicator prompts you to do so. * DO NOT calibrate your compass where there is a chance of strong magnetic interference, such as magnetite quarries, parking structures, and underground steel reinforcements. -
Page 13: Takeoff And Landing
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Takeoff and Landing Takeoff Follow the steps below to Takeoff: 1.Push the primer pump several times until fuel supply pipe is filled with gasoline(Fig.1). 2.Check the inlet filter if it is clogged(Fig.2). 3.Power on and switch the three-position switch to "idle". Make sure the status lamp on NOVA controller is "green". 4.Close the Choke Lever (Fig.3), a.Push hard the starter to NOVA, b.Push the start button for seconds. - Page 14 GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Voltage may drop 2~3 V when encounters air turbulence or Hard maneuver. If the voltage drops rapidly below 45 V, great attention should be given, and the drone should be landed and inspected when necessary.
-
Page 15: Appendix
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual Appendix Pixhawk 2.1 Flight Control System Overview ©2019 FOXTECH All Rights Reserved... - Page 16 GAIA 160HY-Hybrid Pixhawk 2.1 User Manual ©2019 FOXTECH All Rights Reserved...
- Page 17 GAIA 160HY-Hybrid Pixhawk 2.1 User Manual ©2019 FOXTECH All Rights Reserved...
-
Page 18: Da16 Remote Controller
GAIA 160HY-Hybrid Pixhawk 2.1 User Manual DA16 Remote Controller DA16+ is 16-channel radio controller which has both datalink and radiolink built inside, and both the datalink and radiolink can reach a range of 5km. You also could equip the DA16+ with range booster to extend the RC range and data transmission distance to 15km-20km. - Page 19 GAIA 160HY-Hybrid Pixhawk 2.1 User Manual This content is subject to change. Download the latest version from https://www.foxtechfpv.com/gaia-160-hybrid-hexacopter-arf-combo.html For everyday updates, please follow Foxtech facebook page"Foxtechhobby". YouTube Channel: Foxtech ©2019 FOXTECH All Rights Reserved...
