Summary of Contents for WÜRGES MR 1

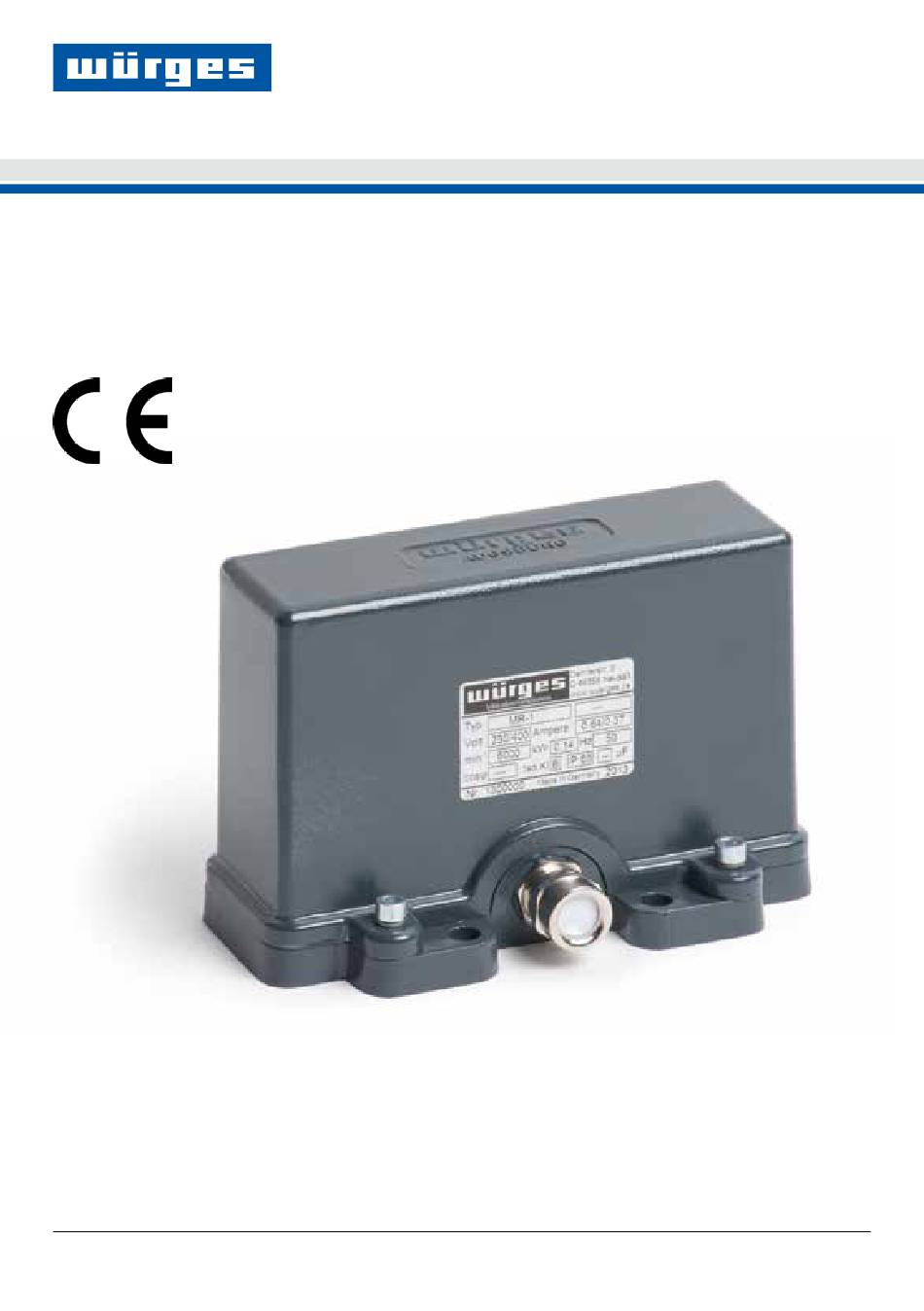

- Page 1 Installation and Operating Instructions Magnetic Vibrator MR 1 (Translation of the Original Instruction Manual) Würges Vibrationstechnik GmbH Daimlerstraße 9 D-86356 Neusäß Telephone +49 8 21 99 98 24-00 Telefax +49 8 21 99 98 24-10 E-Mail info@wuerges.de www.wuerges.de...
-
Page 2: Table Of Contents
Contents 1. General Information Page 3 2. Symbols Used Page 4 3. Safety Page 5 3.1. Intended use 3.2. Skilled personnel qualifications 3.3. General safety instructions 4. Technical Data Page 7 5. Transport and Storage Page 8 6. Installation and Startup Page 9 6.1. -
Page 3: General Information
1. General Information Würges magnetic vibrators are designed and The Operating Instructions have to be read built to state-of-the-art standards and operate and understood by every person at the user’s safely if used as intended. company who is assigned with assembly, setting up, start up, the maintenance and They conform to the Electromagnetic Compa- repair of vibration motors. -
Page 4: Symbols Used
2. Symbols Used The following information and hazard symbols are used in these installation and operating instructions: ATTENTION Important information regarding operations or procedures to which particular attention is to be paid. EXPLOSION HAZARD Refers to the possibility of fatal, severe or irreversible injuries caused by use of the product in an explosive atmosphere. -
Page 5: Safety
3. Safety 3.1. Intended use 3.2. Skilled personnel qualifications Electric vibrators are not independently The installation/assembly, startup and main- functioning machines. They are used as the tenance may only be carried out by authorised drives of vibrating machines such as vibratory and qualified skilled personnel. -
Page 6: General Safety Instructions
Always use a torque wrench when Tightening screws or bolts! Tightening torques see page 9. MR 1 series magnetic vibrator motors may not be used in hazardous areas (po- tentially explosive atmospheres). -
Page 7: Technical Data
4. Technical Data 1. Type designation 2. Mains voltage 3. Speed 4. Thermal insulation class Y (80°C) 5. Serial number 6. IP protection 7. Mains frequency 8. Year built 9. Power input 10. Nominal current Please see our catalogue for additional technical dara. -
Page 8: Transport And Storage
5. Transport and Storage When they are delivered the vibrators must be Vibrators must always be stood on their bases checked for visible transport damage! or footings! Do not stack vibrator motors! If the vibrator is visibly damaged Do not lift up the vibrator by its it must not be started up. -
Page 9: Installation And Startup
6. Installation and Startup 6.1. Assembly/Installation The bolts must be secured against mechani- cal loosening by Schnorr washers, type VS, Magnetic vibrators can be installed in any in- Nord-Lock washers or RIPP LOCK washers. ® stallation position. Vibrators may only be built on to machines with flat, oil, grease and paint- The fixing bolts must be checked free and flexurally rigid mounting surfaces. -
Page 10: Electrical Connection/Cable Connection
6.2. Electrical connection/Cable connection Electric vibrators must be safely dis- 1. Switch off vibrator motor and secure connected from the electricity mains against being switched back on again before work is carried out on them. 2. Check for safe isolation from supply The required procedure is as follows: 3. - Page 11 Use only a flexible cable for connection. Carefully close the vibrator with seal and screw We recommend the following cable type: lock. H 07 RN-F 3G1,5 The motor connection line has to be securely fastened approx. 0.5m after leaving the motor. Plastic cable is unsuitable.
-
Page 12: Intensity Adjustment
6.3. Intensity adjustment Noise generated by wrong adjustment. The rotor thuds onto the magnet The vibration effect with magnetic vibrators de- pends on the payload and the adjusted air gap with too small air gap causing a between magnet (Pos. 10 ) and rotor (Pos. 3). loud rattling noise. -
Page 13: Servicing And Maintenance
7. Maintenance and Repair Maintenance is not necessary since there are no wear parts. -
Page 14: Spare Parts
8. Spare Parts State the following when ordering spare parts: We expressly point out that original spare • Motor number parts and accessories that were not supplied • Device type by us have not been tested and released by • Description, position and us. - Page 15 Spare parts list MR 1 Order No. Pieces Order No. Pieces 05501 62101 05601 75351 05701 75831 21601 76201 22301 76501 0,5 mm ~ 8 22501 76511 0,2 mm ~ 8 28201 29491...
-
Page 16: Disposal And Recycling
9. Disposal/Recycling Packaging material and motor parts have to be disposed of in an environmentally compa- tible manner. Steel: Weights, screws, nuts Seals Aluminium: Copper and synthetic resin: Base plate, protective hood, rotor Magnet We take back equipment for professional disposal! Delivery must be carriage free. -
Page 17: Appendix
EU Declaration of Conformity Hereby declares the manufacturer Würges Vibrationstechnik GmbH, Daimlerstr. 9, 86356 Neusäß: The magnetic vibrators of the series Are conform to the following European directives: 2014/35/EU (Low Voltage) 2014/30/EU (EMC) 2011/65/EU (RoHS) The compliance with the provisions of the directives is proved by the following standards: EN ISO 12100 / 2011 EN 61000-6-2 / 2011 EN 61000-6-4 / 2011... - Page 18 Notes...
- Page 19 Notes...
- Page 20 Würges Vibrationstechnik GmbH Daimlerstraße 9 D-86356 Neusäß Telephone +49 8 21 99 98 24-00 Telefax +49 8 21 99 98 24-10 E-Mail info@wuerges.de www.wuerges.de © 06/2017...
