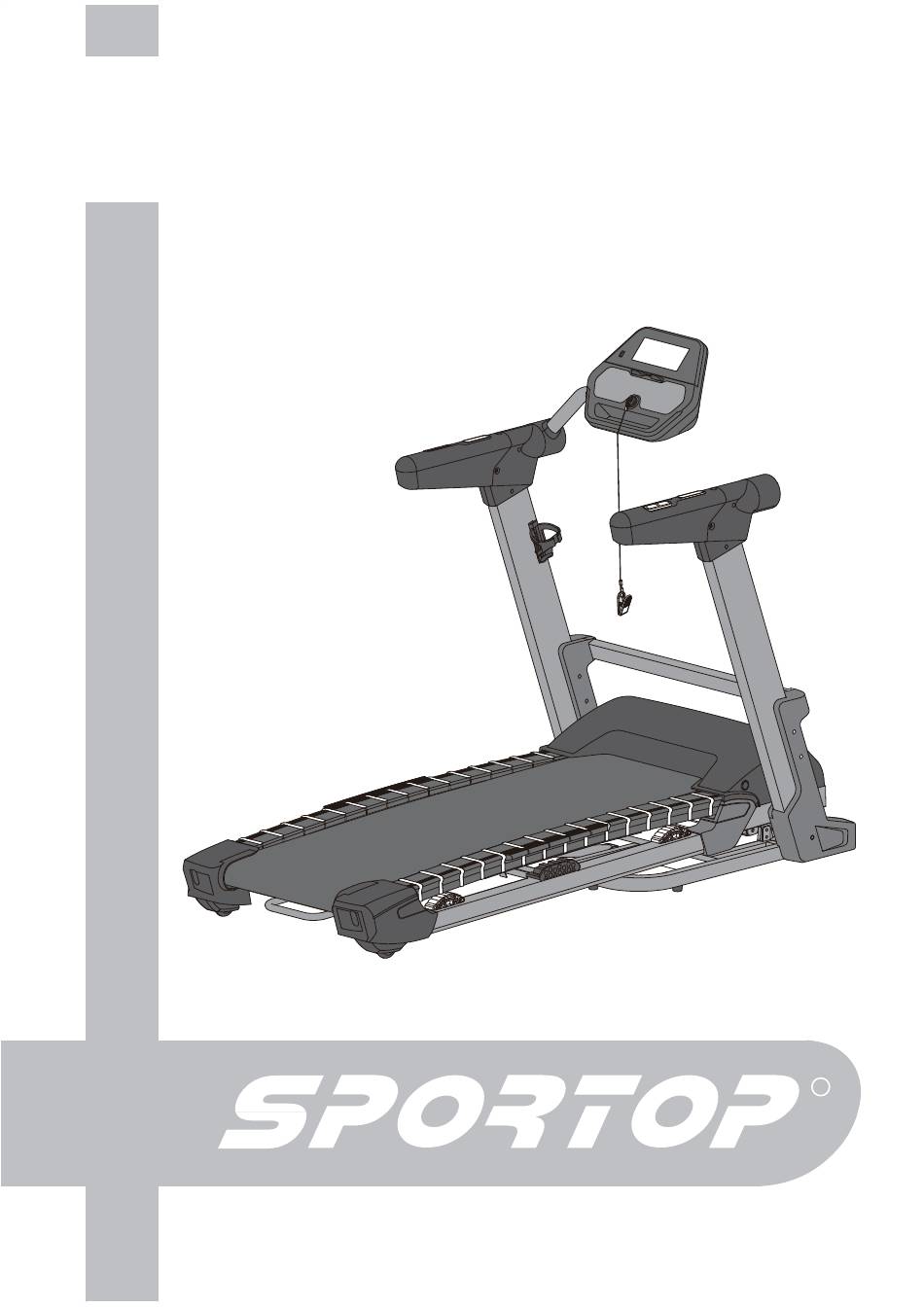

WAVE DECK TREADMILL
T5
MODEL:
Owner's Operating Manual
ENGLISH
R
IMPORTANT!
Please read the manual carefully. It is important for you to assemble and use the treadmill
correctly, also always keep this manual with you.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sportop T5

  • Page 1 WAVE DECK TREADMILL MODEL: Owner’s Operating Manual ENGLISH IMPORTANT! Please read the manual carefully. It is important for you to assemble and use the treadmill correctly, also always keep this manual with you.

  • Page 2: Important Safety Information

    Important Safety Information We thank you for choosing our product. To guarantee your safety and health, please use this equipment correctly, Please read the information as below carefully before using this equipment. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
  • Page 3 -WARM UP & COOL DOWN- WARM UP & COOL DOWN A successful exercise program consists of a warm up, aerobic exercise, and a cool down. Warming up is an important part of your workout, and should begin every session. It prepares your body for more strenuous exercise by heating up and stretching out your muscles.
  • Page 4 PARTS LIST IV-A MAIN FRAME IV-B13 IV-B3 UPRIGHT POST (L) UPRIGHT POST COVER OUTER (L) IV-B4 UPRIGHT POST IV-B14 UPRIGHT POST (R) COVER OUTER (R) TOOL IV-B21 IV-C14 Water Bottle Holder Safety Key IV-B22 IV-B25 Bolt (M10 x 50) x 6 Washer (D10) x 6 Silicon Oil Bottle IV-B26...
  • Page 5 FIGURE 1 FIGURE 1 - ASSEMBLY FOR LEFT AND RIGHT SIDE SUPPORTING TUBE Uplift the side supporting tube (IV-B1) & (IV-B2) steadily. (Be careful not to damage the wire during the assembly.) Then, slide it to the L & R support bracket, tighten with the bolt (IV-B22) and washer (IV-B25).
  • Page 6 FIGURE 2 Place the Front Cover (IV-B3)&(IV-B4) on the bottom frame and tighten with Screw (IV-B26) by Cross Wrench. IV-B1 IV-B2 IV-B3 IV-B26 IV-B26 IV-B4 IV-B26 USE TOOL IV-B26 ST3.9 X 14 mm x 8 pcs...
  • Page 7 FIGURE 3 FIGURE 3 - ASSEMBLY FOR RIGHT & LEFT SIDE SUPPORTING TUBE Step 1. Remove the pre-mounted bolt (IV-A41) and spacer (IV-A113) from right & left side support tube (IV-B1/IV-B2) and also upright post (IV-B13 & IV-B14). Step 2. Connect the wire (IV-B33) with (IV-B35) firstly and then tighten left upright IV-B13) with left side supporting tube (IV-B1) by using bolt (IV-A41) and spacer (IV-A113).
  • Page 8 FIGURE 4 FIGURE 4 - HOW TO FO LD UP THE TREADMILL The treadmill is foldable to save the space when it’s stored. Warning: Do not try to fold up the treadmill while it’s operating. Do not connect the power supply while it’s folded. The incline must be adjusted to the lowest level as VIEW A.
  • Page 9 FIGURE 5 FIGURE 5 - HOW TO MOVE THE TREADMILL Hold the rear part of mainframe (as below picture B) firmly, press it till the transportation wheel at the bottom touch the ground, and adjust the mainframe to suitable angle for moving ( as below picture A), then release the front part of mainframe back to the ground slowly and stably after move it to the desired place.
  • Page 10 FIGURE 6 FIGURE 6 - HOW TO UNFOLD THE TREADMILL Warning: Make sure there is enough space to place the treadmill while it’s unfolded. Make sure there is nothing surrounding the treadmill that makes the treadmill impossible to unfold. Step 1: Stand behind the treadmill and hold the rear bar of machine. Use your foot to release the locking system.
  • Page 11 FIGURE 7 FIGURE 7 - HOW TO ADJUST THE RUNNING BELT The treadmill has been adjusted to the best condition before delivery, but some changes may occur after transportation. Therefore please put it power on and work for some minutes before use it, and center the running belt through adjusting the adjustable bolt of rear roller if the running belt deflects to one side.
  • Page 12 FIGURE 8 FIGURE 8 - LUBRICANT OILING USAGE INSTRUCTION The running belt of treadmill has been sprayed appropriate lubricant before packaged. However, the treadmill shall be maintenance by refueling in order to ensure the normal use and reduce the abrasion of components. Please follow the below refueling indication.
  • Page 13 FIGURE 9 FIGURE 9 - STOP USAGE INSTRUCTION If you want to stop while exercising, you can press “stop” key on the console and then the treadmill will be slower and slower until it stops. If you feelunfit to catch the belt speed and the emergency stop is needed, pull out the safety key ( C14) and then treadmill will stop soon within 10 sec onds.
  • Page 14 FIGURE 11 FIGURE 11 - CONSOLE ASSEMBLY The console angle view is adjustable. If you find the console is not fixed tightly, loosen the screw ( B27) and remove the rear cover of console ( C5), then tighten or unscrew the bolt ( C13).
  • Page 15 OPREATION MANUAL (1)CONSOLE DISPLAYS AND BUTTON FUNCTIONS LCD WINDOWS DISPLAY FUNCTION: A.Speed：Displays the current speed .Speed range is 1~18Km/H. B.Distance/Calories/Inclination：Distance range is 0.00-99.9Km, you can manually enter your desired distance, when you are about to reach your preset distance ,the treadmill will gradually stop by itself. Calories range is 0.0~999.After setting your desired calories , Press STAR button, the treadmill will start to run accordingly until reach your preset calories.
  • Page 16 FUNCTION BUTTONS INSTRUCTION： A. PROG：At outage state, manually press PROG button to choose recycle programs. Manual programs (P01-P02-…-P15-U01-U02-U03-HP1-HP2-FAT). B. MODE：At outage stage, manually press MODE button to choose Manual mode(Normal Mode): Time countdown-Distance countdown -Calories countdown . C. START：At outage or stopped stage, manually press START button to start the motor.
  • Page 17 (3)Manual Mode 1. How to enter Manual Mode A. Opening the Switch, the system will enter the normal mode of the Manual mode. B. Pressing the Mode button can enter into the normal mode of the Manual mode under the standby mode. 2.
  • Page 18 3. Pressing the “Speed+-” to adjust the speed. 4. Pressing the “Incline+-”to adjust the incline. 5. Pressing the speed quick button can quickly adjust to the speed which the button show. 6. Pressing the incline quick button can adjust the incline which the button show.
  • Page 19 SPEED INCLINE SPEED 10 10 11 11 12 11 11 10 10 11 11 12 11 11 9 INCLINE SPEED 10 10 9 10 10 9 10 10 8 INCLINE SPEED INCLINE SPEED INCLINE SPEED 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 8 INCLINE SPEED 11 11 12 12 13 13 12 12 13 13 12 12 13 13 12 10 7...
  • Page 20 c) Setup instructions of user programs： Every programs has 20 exercising times on average, you have to finish all the setup of speed, incline and exercising time for all 20 times , finally you can press “START” to start the treadmill. (7)HEART RATE CONTROL(HRC) PROGRAM: In the standby status, press “PROG”...
  • Page 21 increase 0.5KM/H until it reach the highest speed，the incline would increase 1 level at the highest speed. B. When(target hand pulse-hand pulse of user)<0，and incline is not in zero，then the incline would decrease 1 level；when it is in zero incline， then the speed would increase 0.5KM/H until it reach the lowest speed.
  • Page 22 (9)The display range of each data： SETTING SET UP DISPLAY BEGIN BEGINNING RANGE RANGE VALUE TIME(MINUTE:SECOND) 0:00 15:00 5:00-99:00 0:00-99:59 SPEED(KMH/MPH) 1.0-16.0 0.0－16.0 INCLINE(LEVEL) 0-15 0-15 DISTANCE(KM) 0.00 1.00 1.00－99.0 0.00－99.9 CALORIE(KILOCALORIE) 50.0 20.0－990 0.0－999 (10)Safety key feature： The Safety Key is designed to function as an emergency stop mechanism. As soon as the key is pulled out from the sensor, the speed window will display “---”and the buzzer makes a sound Bi-Bi-Bi, the motor will be...
  • Page 23 (15)Fault code and solution： fault and phenomenon probable cause solution A Power is not connected successfully Connect the power cord, or check the or no power socket B Power switch is not turned on Press “ON” of the switch C Drive is no power or destroyed Press the overload protector again or change the drive No display on the screen...
  • Page 24 C Bad driver Change a driver A User’s weight exceeds treadmill’s System protection. Restart it by user. maximum capacity. E05-Current is too large. B Transmission part get stuck Adjust transmission part or lubricate it. C Motor is short-circuited. Change a motor. D Driver burn out.
  • Page 25 Preparation: Before starting any exercise programs, you should consult your doctor or professionals first to determine if you are more than 45 years old, or have health problems, and this is your first time to take exercise. Before using the motorized treadmill, you should be please stand beside it to have a general familiarity with using it, such as start, stop and speed adjustment.
  • Page 26 In order to exercise more, you can try to hold pace during 1 hour of TV program, increase 0.3km/h when boarding the commercial advertising, then return to the original speed when next TV program starts. Calories will be burned fully in this way. In the last, you should take 4 minutes to slow down.
  • Page 27 Attachment Instruction 1. Always unplug the power cord before performing the maintenance and clean. 2. Do not put goods such as carpet or pillow under the treadmill to avoid fire caused by overheating. 3. Remove the safety key and store it away in a safe place when the treadmill is not in use.
