Summary of Contents for Gunnebo GlasStile GSS

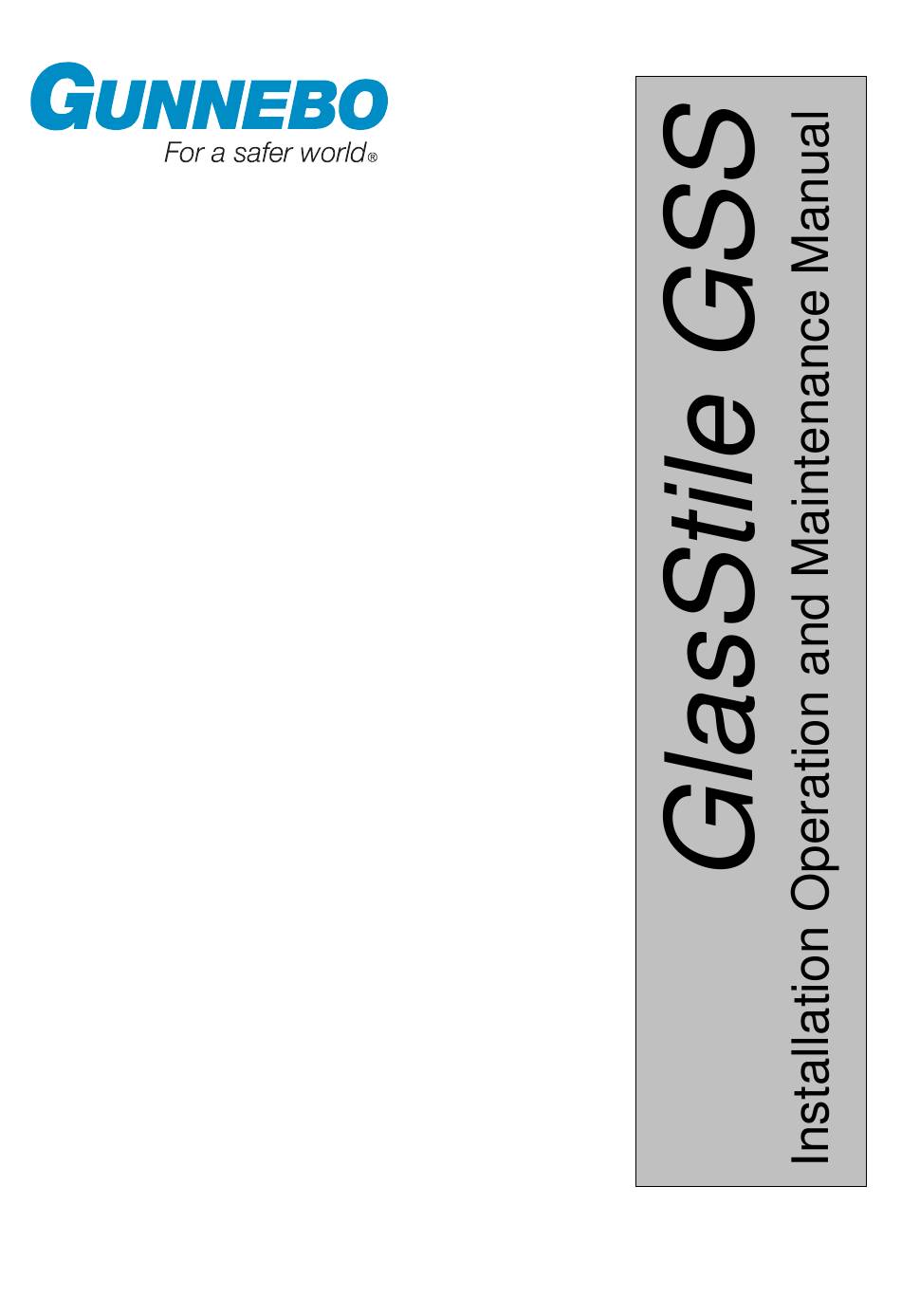

- Page 1 ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
- Page 2 ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
-
Page 3: Table Of Contents
Power Supply and Cables ................. 20 Customer Connections ..................23 Programming the Wing ‘Home Position’ ............25 Testing after Installation .................. 25 Programming Options ..................26 ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... - Page 4 Encoder Replacement ..................29 Replacing the Control Card ................29 Trouble Shooting ....................29 ............................31 ECTION PARE ARTS Recommended Spare Parts ................31 ......................32 ECTION ECLARATION OF CONFORMITY ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
-
Page 5: Section 1 Introduction
Proprietary Notices All data appearing herein is of a proprietary nature, with exclusive title to it held by Gunnebo. The possession of this Manual and the use of the information are therefore restricted only to those persons duly authorised by Gunnebo. -
Page 6: Rotating Machinery
Use only the correct tools for the task in hand. When working on the equipment, remove any personal jewellery that may be conductive, or clothing that may become entangled with mechanical parts......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... -
Page 7: Risk Assessment
Site Personnel within the Vicinity of the Work Area Hazard Fume Inhalation Current Controls Compliance with COSSH regulations Rating 5: Commissioning Who is at Risk Site Engineer Hazard Power Supply/Moving Parts Current Controls Isolate Power ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... -
Page 8: Ce - Marking
Incorrect handling techniques Current Controls Protective Equipment must be worn. CE - Marking The Gunnebo GlasStile GSS is CE marked, developed and manufactured according to the EU’s Machinery, Low-Voltage and EMC-Directives......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... -
Page 9: Escription
Product Description Product Description The Gunnebo GlasStile GSS is a revolving entrance gate with glazed panels. The gate rotates clockwise or counter-clockwise to its User Programmed opening positions and then returns to the home position, where it is locked by an electro-mechanical brake. The gate is activated by impulses to the driving electronics unit from either a reception area or impulse unit (e.g. -
Page 10: Technical Specification
Transportation and Storage: -25 to +55 C Relative Humidity: 95% Maximum Note - Class C mains circuit breaker is required. - Other finished and sizes are available upon request to Gunnebo ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... -
Page 11: Use
The gate opens for as long as the pushbutton remains pressed. Upon release the gate returns to its home position, where the electro-mechanical brake locks it. Walkway Details Fig 3.1 - Walkway Details ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... -
Page 12: Operating Modes
The gate closed output is then activated. Reset After repeated incorrect use or blocking of the unit, the GlasStile GSS will go into alarm mode, with an optional remote alarm indication being set in the reception area. There are three ways to reset the unit to normal operation: ... -
Page 13: Nformation
Gunnebo for further information. Flexibility of Design The integrated design makes the GlasStile GSS simple to install with a minimum of intrusion to the existing environment. This concept allows architects and designers the ability to design a security system that fits their requirements for any situation. -
Page 14: Standard Dimensions
Standard Dimensions Fig 4.1 – Standard GlasStile GSS Dimensions ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... -
Page 15: Component Location
Component Location Fig 4.2 – Main Component Identification ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... -
Page 16: Unpacking
0.5mm sq. should be laid and a 1.5m tail left. (Screened cables are NOT normally required) For units that are to be controlled by Card Access or similar it is recommended that Gunnebo Technical Personnel are advised prior to starting the installation routines. -
Page 17: Installation Routines
Installation Routines Note - The GlasStile GSS should NOT be installed under a desk. When planning the installation, it is important that everything is measured accurately and that all cable ways are marked out. All cables must be laid according to the specification indicated before installation begins. - Page 18 Fig 5.4 – Glazed Panel Fitting Detail Using a spirit level adjust the glass so that the top is horizontal. Rotate the gate manually to check that it rotates freely......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
- Page 19 Retaining Strip, locates on the screw in the Rotor Column. Note – The cladding may need to be compressed together to aid this function. Lock the Retaining Strip into position using M4 x 8 security fixing......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
-
Page 20: Power Supply And Cables
The power to the logic board, motor and brake is supplied through a Toroidal transformer specification below. Transformer wiring differences between 230Vac and 110Vac Suitable cables for connecting to the main power supply and external signals such as impulse units are: ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... - Page 21 To switch of the power locally in the unit you can simply unclip the glass fuse breaker as shown in the image below Glass Fuse Holder 5 x 20 LBC 2A ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
- Page 22 4. Make all required connections ensure all cable contained within the centre column. Load-relieving clamps on the adjustment plate shall secure the cables as follows: Fig 5.6 - Electrical Connections Fig 5.7a – Cable Fixing Locations ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
-
Page 23: Customer Connections
Note: - The GlasStile should always have an independent fire signal. If an echo signal is used the unit will not function correctly. P7 Motor Connections Description Red positive Black Negative ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... - Page 24 Hand Held Programmer. This device should be ordered with the main equipment purchase, it is not supplied as part of the standard installation kit. To program the GlasStile GSS the cladding must be moved. The Hand Held Programmer is then connected to the serial port on the Control PCB.
-
Page 25: Programming The Wing 'Home Position
Testing after Installation When the installation is complete, test the system. The GlasStile GSS will now search for a zero position (INDEX 0). Do not interfere with the gate until this has been achieved and the brake has been activated in the home position. -
Page 26: Programming Options
No panel selection, this is the normal position when panel is to be programmed. Opening Position CW Rotation - Position 90 (DF) Home Position - Position 100 (DF) Opening Position CCW Rotation - Position 90 (DF) ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... -
Page 27: Section 6 Maintenance
Section 6 Maintenance Maintenance General Care The GlasStile GSS Entrance Gate should be cleaned and greased, where directed, at regular intervals, using the following approved materials. Routine Cleaning, all finishes Cleaning agent. Soap or mild detergent water. Action: Sponge rinse with clean water, wipe dry as necessary... - Page 28 Check that the insulation of the wires is in good condition and that no conductors are exposed. Electrical Circuits No general maintenance is required apart from replacement fuses in the event of a failure. General Component Maintenance Ensure the assembly is kept clean......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
-
Page 29: Brake Adjustment
Bearing for correct alignment. Loosen and re-tighten bearing Transmission to the Optical Check connections and Unit replace if unserviceable Pulley Belt for tension Adjust replace unserviceable ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... - Page 30 ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
-
Page 31: Section 7 Spare Parts
Section 7 Spare Parts Spare Parts Recommended Spare Parts Quantities listed are per GlasStile GSS over a 24 month period. Table 7.1 – Recommended Spare Parts Code Description SM-BO-GS-0001 Motor/Gearbox G42x40 40VDC SE-FU-GS-0001 Fuse Q/B 20mm 2.A SM-TR-GS-0001 Transformer Toroidal SM-CB-GS-0001 Timing Belt (2.5 x 80T) -
Page 32: Eclaration Of Conformity
Section 8 Declaration of conformity Declaration of conformity ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009... - Page 33 Notes ......CCEC/ OM Manual GlasStile GSS 1.6 EN 07.2009...
- Page 34 Gunnebo AB, Box 5181, SE-402 26 Goteborg, SWEDEN. Tel +46-31 83 68 00, Fax +46-31 83 68 10 www.gunnebo.com Note: In pursuit of its policy of continuous refinement and improvement, Gunnebo Entrance Control Ltd reserves the right to modify design and details......
