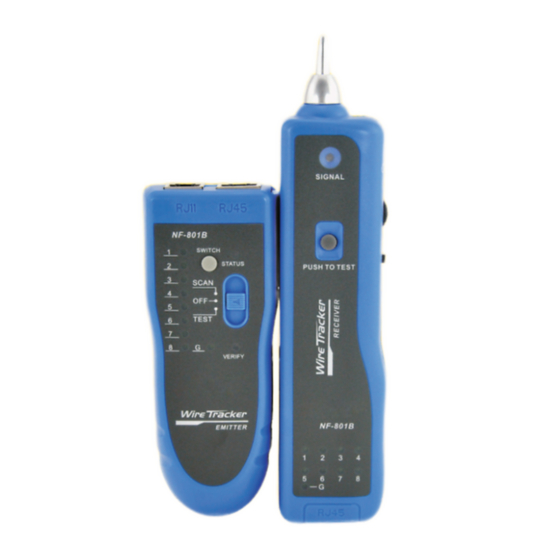

- Page 1 MODEL:NF-801B Your excellent helper in cable test! INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL Wire Tracker ORIGINAL ORIGINAL AUTHENTIC AUTHENTIC REV1.0...
-
Page 2: Table Of Contents
Contents i n t e r f a c e s a n d f u n c t i o n s ..........1 P a r t s o f e m i t t e r ..............1 P a r t s o f r e c e i v e r ..............1 Te l e p h o n e c a b l e t r a c i n g f u n c t i o n ......2 Te l e p h o n e c a b l e t r a c i n g f u n c t i o n ......2 N e t w o r k c a b l e t r a c i n g f u n c t i o n........3... -
Page 3: Interfaces And Functions
interfaces and functions operating Find wire on all types of connected Ethernet switch/Router/PC terminal Parts of emitter Parts of receiver Probe Wire finding indicator Signal indicator Wire sequence indicator Inching button Function switchover button DIP switch Wire sequence indicator Testing indicator Earphone jack RJ11 socket RJ45 socket... -
Page 4: Telephone Cable Tracing Function
Telephone cable tracing function 1. Directly insert telephone wire with RJ11 plug into the RJ11 socket of e mitter; ( Note: Never put energized telephone cable into RJ45 port, in fear of burnout to the tester) 2. Push DIP switch of emitter to position of“SCAN”then wire finding indicator “STATUS”flashes, which means normal work of emitter;... -
Page 5: Network Cable Tracing Function
Network cable tracing function 1. Directly insert network cable into the RJ45 port of e mitter; 2. Push DIP switch of emitter to position of “SCAN” then wire finding indicator “STATUS”flashes which means normal work of emitter; 3. Press the inching button, use the probe of receiver to find target wire at the other end;... -
Page 6: Electric Wire Tracing Function
Electric wire tracing function 1. Directly insert RJ11 of crococile clip into RJ11 port of emitter, connect telephone line with the clamp; 2. Push DIP switch of emitter to position of ”SCAN”then wire finding indicator “STATUS”flashes which means normal work of emitter; 3. - Page 7 Network wire Collation function 1. Insert the two ends of the network wire into Rj45 port emitter and receiver. 2. Push function switchover button on emitter to the position of “TEST ”, testing indicator “VERIFY” flashes meaning normal work of emitter. 3.
-
Page 8: Others Function
Others function Open circuit or short circuit testing function Open circuit or short circuit testing function Push DIP switch on emitter to position of“ TEST” , press function switchoverbutton on emitter for 2 seconds, “ VERIFY” indicator will change“ flash” to“ lighting” connect crocodile clamp with RJ11 port, clamp the two ends of cable with crocodile clamps, in case of short circuit, indicator “1”... -
Page 9: Accessories
Low voltaage alarm function Low voltaage alarm function Push DIP switch on emitter to position of“SCAN”, if the that battery level is lower than 6.0V,“STATUS”and“VERIFY”indicators will light up at the same time, it indicates to have new battery. Earphone function Earphone function In noisy environment, earphone can be used to prevent interference from the outside. -
Page 10: Specification Of Product
Applicable users Applicable users Applicable scope Applicable scope Telecom bureau/net bar/telecom Wire engineering of telecom, network engineering companies / network and regular maintenance work; network engineering companies/power supply/ line engineering of computer; other wire army and other departments requiring engineering and maintenance. wire. - Page 11 NF-306 NF-868 NF-8208 NF-268 NF-806R NF-816 NF-468L NF-3468 NF8108-M NF-388 NF-903 NF-906A Your excellent helper in cable test!
- Page 12 Your excellent helper in cable test! SHENZHEN NOYAFA ELECTRONIC CO.,LTD...
