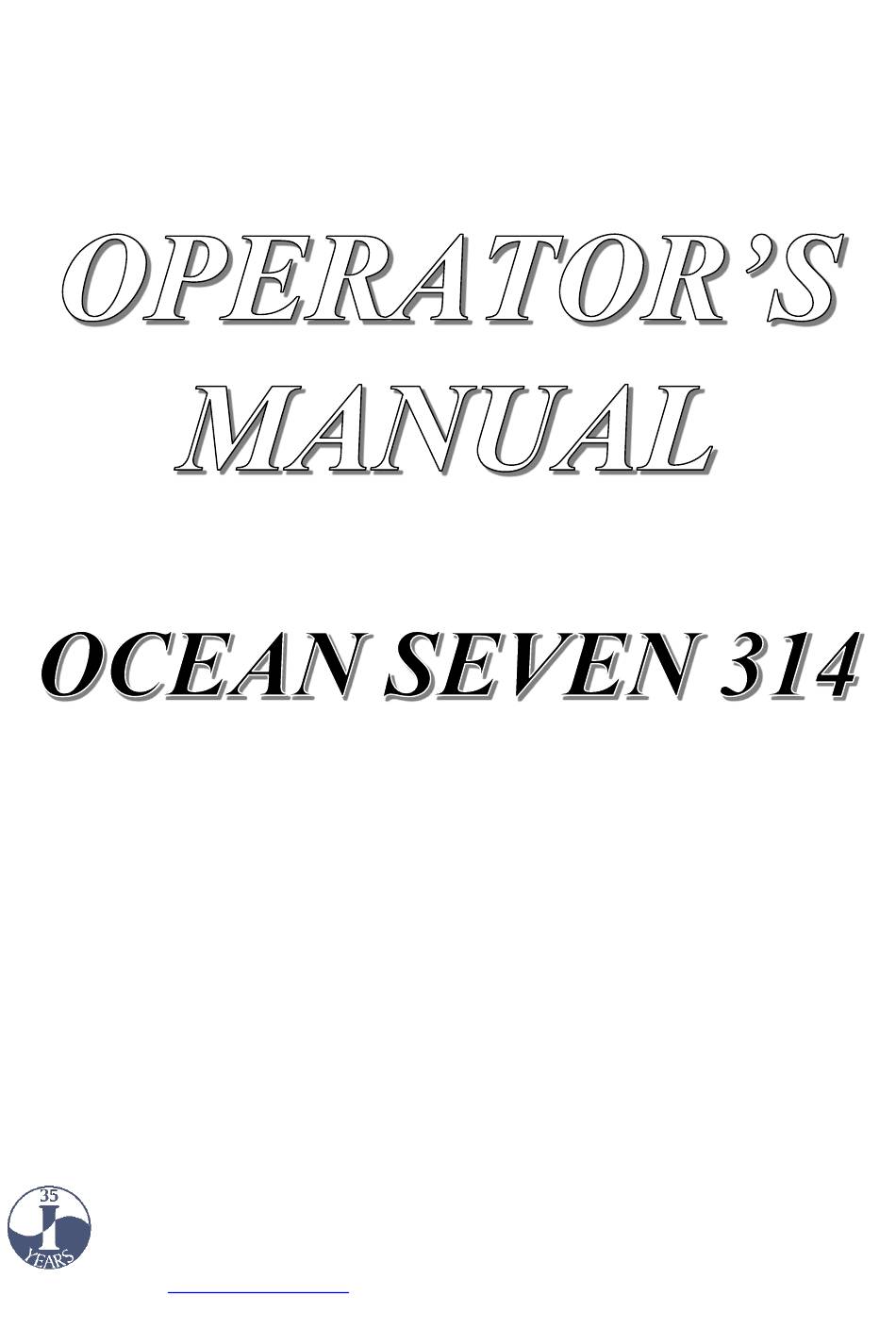

idronaut Ocean Seven 314 Operator's Manual

Multi-parameter on-line module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IDRONAUT S.r.l.
Via Monte Amiata, 10 – Brugherio (MB) – ITALY
Tel. +39 039 879656 – 883832 Fax. +39 039 883382
Email:
idronaut@idronaut.it
Web: http://www.idronaut.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ocean Seven 314 and is the answer not in the manual?

Questions and answers

Related Manuals for idronaut Ocean Seven 314

Summary of Contents for idronaut Ocean Seven 314

  • Page 1 IDRONAUT S.r.l. Via Monte Amiata, 10 – Brugherio (MB) – ITALY Tel. +39 039 879656 – 883832 Fax. +39 039 883382 Email: idronaut@idronaut.it Web: http://www.idronaut.it...
  • Page 2 Idronaut S.r.l. shall not be liable for any damages (including, but not limited to, consequential, indirect or incidental, special damages, or loss of profits or data) even if they were foreseeable and Idronaut S.r.l. has been informed of their potential occurrence arising out of or in connection with this document or its use.
  • Page 3 Most polarographic oxygen sensors take 5 to 10 minutes after they have been switched on to polarize and become stable. To overcome this limitation, the OS314 has been fitted with 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 4 The pH sensor cap should be filled with the pH7 Buffer Solution (or simply with clean water). The reference sensor cap should be filled with the Idronaut Reference Sensor Storage Solution.
  • Page 5 OS314. The remaining sections and appendices could be consulted only when needed. If the OS314 is supplied with external sensors, deck unit or the IDRONAUT Portable Reader, useful information can be found in each dedicated Operator’s Manual.
  • Page 6 . if the problem is identified as a hardware problem or if you need additional help in identifying the problem. Please make sure to contact IDRONAUT S.r.l. to obtain the relevant instructions before the OCEAN SEVEN or any module is returned to IDRONAUT (see cleaning instructions).
  • Page 7 When service is required, either at the user's facility or at IDRONAUT, the following steps must be taken to insure the safety of our service personnel.

  • Page 8: Table Of Contents

    1.12.2 The pressure sensor ........................... 4 1.12.3 The temperature sensor ........................5 1.12.4 The conductivity sensor equipped with the "IDRONAUT seven-ring cell" ......5 1.12.5 The oxygen sensor ..........................6 1.12.6 The oxygen sensor maintenance-free version - 5 bar only ............7 1.12.7 The Blue-cap optical dissolved oxygen sensor ................
  • Page 9 INITIALIZE DATA MEMORY ....................... 37 SENSOR CALIBRATION ....................... 39 CALIBRATION STORING LAYOUT .................... 39 5.1.1 Parameter/Sensor logical codes ..................... 39 CALIBRATION GLP (GOOD LABORATORY PRACTICE) ............39 SENSOR CALIBRATION FUNCTIONS ..................39 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 10 PRESSURE SENSOR ........................63 INTERNAL BATTERY ........................64 7.8.1 Internal battery pack endurance ....................64 7.8.2 Oxygen sensor polarization device ....................64 ROUTINE MAINTENANCE SCHEDULE ................... 64 TROUBLESHOOTING ........................65 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 11 Appendix B Data Processing Function Priming Appendix C Optional sensors Appendix D Advanced configuration Appendix E IDRONAUT Windows Terminal Emulation Programme Appendix F Wireless “Bluetooth™” Interface Appendix G Submersible connectors and cable care 314 On-line module IDRONAUT – Brugherio (MB)

  • Page 12: Introduction

    PPS white plastic. The OCEAN SEVEN 314 on-line module in its basic configuration is equipped with three sensors: pressure, temperature and conductivity. Other bulkhead sensors can be optionally added, like: dissolved polarographic oxygen, optical dissolved oxygen, pH, redox, reference electrode.

  • Page 13: Real-Time Communications

    RS232C interface. Real-time data can be acquired by means of the REDAS-5 Windows software. The RS232C cable maximum length is 200 m. It is important to mention that the OCEAN SEVEN 314 is insulated with respect to the communicating device, independently of the kind of interface that is used.

  • Page 14: Standard Sensor Specifications

    UNESCO “Technical papers in marine science no. 44”. The fresh water properties like: TDS (Total Dissolved Solids), Fresh Water Conductivity corrected at 20°C and 25°C are automatically calculated. OPTIONAL SENSOR SPECIFICATIONS Among others, the OCEAN SEVEN 314 can be optionally equipped with the following sensors: Parameter Range...

  • Page 15: Physical Characteristics

    This section provides a detailed presentation of the OCEAN SEVEN sensors. LIFETIME AND HOW TO REPLACE THE IDRONAUT SENSORS The IDRONAUT sensors are all pressure compensated and, in particular, the physical sensors (pressure, temperature and conductivity) can last many years, if properly used. They are high-quality sensors, as they are well known by oceanographers to measure salinity with great accuracy.

  • Page 16: The Temperature Sensor

    Maintenance: none. The conductivity sensor equipped with the "IDRONAUT seven-ring cell" The conductivity sensor is a unique flow-through self-flushed cell with seven platinum ring electrodes. The central ring is excited with alternate current flowing to both the outermost rings. The two adjacent pairs of rings sense the relative drop in voltage due to the electrical conductivity of the measured water.

  • Page 17: The Oxygen Sensor

    2 years if intensively used to perform continuous monitoring, up to 4 years used weekly to perform daily profiling or monitoring. Calibration frequency: weekly. Maintenance: measuring membrane replacement, electrolyte replacement 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 18: The Oxygen Sensor Maintenance-Free Version - 5 Bar Only

    This polymer can be applied to carrier material and used as sensor spots or sensor foil. It can also be coated directly onto the optical fiber. Oxygen quenching luminophores have been studied from at least 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 19 The membrane cap is made of blue plastic to better shield the external light and is very similar to the Idronaut pH watering cap. The only difference is that a hole at its bottom allows the factory installation of the glass window on its inside.

  • Page 20: Ph And Reference Sensors

    The IDRONAUT reference sensor is in contact with the unknown solution by means of a small hole in the glass tip. This minimizes and stabilizes the junction potential between the inner gel electrolyte and the liquid to be measured.
  • Page 21 STANDARD POTENTIALS OF THE SILVER/SILVER CHLORIDE REFERENCE ELECTRODE FILLED WITH SATURATED KCl WITH RESPECT TO THE HYDROGEN ELECTRODE Temperature °C Uo (mV) 220,5 216,1 211,5 206,8 201,9 191,9 186,7 181,4 176,1 170,7 165,3 159,8 154,3 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 22: The Redox Sensor

    1 mV. Resolution: 0.1 mV. Max Pressure: 700 bar. Response time Sensor Body: titanium. Compensation: none. Life: unlimited. Calibration frequency: not available. Maintenance: cleaning of the glass/Pt surface with special sandpaper. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 23: Calculations

    (r1 + r2) 1.13.1.2 Calculation of % saturation The following proprietary coefficients are required for the calculation of % saturation to compensate the IDRONAUT membrane permeability to oxygen due to the temperature and pressure variation respectively. Saturation % Coeff.

  • Page 24: Conductivity Compensated At 20 °C

    15.50 43.40 22.25 50.20 29.00 57.27 15.75 43.65 22.50 50.46 29.25 57.54 16.00 43.89 22.75 50.72 29.50 57.80 16.25 44.14 23.00 50.98 29.75 58.07 16.50 44.39 23.25 51.24 30.00 58.34 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 25: Firmware Overview

    Data entry functions automatically end after a pre-defined time-out (30 s). This prevents the OS314 from halting during a data entry function inadvertently not completed by the operator. Whenever the data entry function terminates due to the time-out, the item under modification remains unchanged. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 26: Menu & Submenu Structure

    The menu and submenus show a list of commands preceded by two header lines, which identify the menu or submenu and show the relevant information about the OS314 in square, round and glyph brackets. OCEAN SEVEN 314 - Id:0317003 {USR}[sw](1.3_05 10/18)Oct 01 14:19:51.61 2018 They are: OCEAN SEVEN 314 Type of OS314 and name.

  • Page 27: Os314 Access Rights

    SRV Service access to allow the operator to carry out advanced set-up and advanced diagnostic functions. ADM Administrative access to allow full control of the OCEAN SEVEN 314. This access is reserved to IDRONAUT technicians or to trained operators. Upon request and under IDRONAUT control, administrative access can be granted to the operator to carry out dedicated functions or configurations.

  • Page 28: Acquired Data Processing And Post-Processing

    OS314 start-up using a CRC 32- bit wide algorithm. By means of the CRC 32-bit code, corruption of OS314 configuration is promptly detected and restoration of the “factory” default configuration is automatically carried out by the OS314 by itself. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 29 SECTION ONE – SYSTEM DESCRIPTION OCEAN SEVEN 314 SENSORS SENSOR BODIES ARE MADE OF TITANIUM (TO PREVENT CORROSION) APART FROM THE TEMPERATURE SENSOR, WHICH IS MADE OF AISI 316L TO ACHIEVE THE BEST TIME CONSTANT. 314 On-line module IDRONAUT – Brugherio (MB)

  • Page 30: Installation And Start Up

    Afterward mount the sealing O-ring and fix the measuring cell by means of the six screw. See the below pictures, mounting sequence from left to right. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 31: Start-Up

    Before proceeding with the OS314 start-up operations, please turn the personal computer ON, install and run the WTERM or ITERM IDRONAUT terminal emulation programme. Please be aware that, after its installation, the WTERM or ITERM automatically selects the PC communication port #1. In case the...

  • Page 32: The Main Menu

    Details about the PTP protocol and the relevant command and communication protocol rules can be Protocol found in the “OCEAN SEVEN 3xx OS314s Data Transmission ” manual. The manual can be freely downloaded from the IDRONAUT web site “http://www.idronaut.it/download”. To switch the OS314 to verbose mode, type the characters followed by the CTRL-J sequence (keep pressed the CTRL key while typing the J character).
  • Page 33 ON position to wake up the on-line module. Note It is possible to configure the on-line module to remain in stand-by indefinitely so that it did not automatically shut down. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 34: Data Acquisition

    OS314 cannot respond to the operator’s request to perform or interrupt the configured data acquisition cycle. Should this accident happen, please contact IDRONAUT to obtain the relevant instructions on how to revive the OS314 operation. As a general rule, never configure a value to 0 unless explicitly foreseen or requested by the configuration procedure and well described in the manual.

  • Page 35: On-Line Acknowledgement

    UPLOADING DATA STORED IN THE On-Line module MEMORY At the end of the unattended acquisition, data stored in the OS314 memory can be retrieved. The ITERM and following instructions explain how to do that with the IDRONAUT programs: REDAS-5. “WTERM” or “ITERM”...

  • Page 36: Unattended Acquisitions - Important Tips

    17.055 45.353 35.352 1.0258 2.35 30.1 7.895 214.8 11:14:26.8 M+ 0.19 17.010 45.304 35.350 1.0258 2.17 27.8 7.902 208.7 11:14:27.0 M+ 0.09 17.011 45.300 35.345 1.0258 2.17 27.8 7.901 208.7 11:14:27.4 M+ 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 37: Timed Data Acquisition

    OS314 at the right time. Before starting the date&time must be set. When selected from the main menu, the following message appears on the PC screen: OCEAN SEVEN 314 - Jun 13 08:35:24.61 2017 Timed data acquisition configuration...

  • Page 38: Terminate A Timed Data Acquisition

    Next acquisition on Jun 13 09:00:32.37 2017 Acquisitions left to do 9 CAST temporary updating...Flush_EXT Memory...Ok done OCEAN SEVEN 314 - ID:0317003 {USR}(1.0_10 05/17)Jun 13 08:59:34.40 2017 SHUTDOWN..RTC alarm setup..Completed Afterwards, the OS314 waits in OFF condition that the next data acquisition time is met.

  • Page 39: Accidental Power On Cycle

    After the start-up messages, the OS314 starts by showing a warning question about the intention to stop the measurement cycle. Answer to the given question. The unattended timed acquisition is ended. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 40: Conditional Data Acquisition

    Configuration of wrong trigger value may led the OS314 to misbehave. The last parameter to enter is the sampling rate that will be used by the OS314 whenever the burst data acquisition cycle starts. 1/Sample rate=[35..60000ms]:50 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 41: Terminate The Conditional Data Acquisition

    After this message is shown, the conditional data acquisition procedure is automatically concluded and the OS314 shows the "Data acquisition menu" again. Acquired data is automatically confirmed in the OS314 memory. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 42: Continuous Data Acquisition

    To stop while the OS314 is ON, type <ESC> until a message appears Between acquisition cycles, while the OS314 is on surface, wait 1 minute before switching OFF the OS314 start-up Wait at least 30 seconds before executing a new 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 43: Step-By-Step Procedure

    OFF once on the surface. ❖ Please protect the not-in-use bulkhead connectors with the proper dummy connectors. ❖ When carrying out the unattended continuous profiles, the OS314 monitors the battery voltage. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 44: Terminate The Continuous Data Acquisition

    Whenever this command is selected from the data acquisition menu, the following message appears on the PC screen: From the Main Menu, select the data acquisition menu and then the “Burst Sampling” function answering the following question: 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 45: Field Operations

    Switch the OS314 ON. After the start-up messages, the OS314 starts by showing acquired data. Type to stop data acquisition answering to the given question. The unattended timed acquisition is ended. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 46: Data Storage

    OS314 internal memory depends on the size of the OS314 memory. A bigger memory allows storing more data records. Data Sets Data records are grouped in sets to form single “Data Sets”. Each data set is composed of the recorded 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 47: Memory Management

    SECTION FOUR- DATA STORAGE data for each installed sensor plus one dedicated to store the date & time of acquisition. Memory capacity of the OCEAN SEVEN 314 is judged in terms of available “CASTs” and available “Data Sets”. Note The IDRONAUT “OS3xx OS314 Autonomy” program is distributed together with the OS314 electronic documentation and ITERM.

  • Page 48: Memory Delete Data

    Once invoked, the following message appears: Initialize data storage area Warning, the initialize procedure deletes all data records and casts stored permanently Are you sure ?:No type [Y]es or [N]o < y 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 49 The operator must confirm again his intention to perform a data memory initialization Data storage area has been initialized.. After this message appears, the programme returns to the “Memory menu”. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 50: Sensor Calibration

    The "Calibration Menu" is displayed on the user’s terminal by selecting: <CALB> from the "Main Menu". The following menu is displayed: OCEAN SEVEN 314 - ID:0317003 {USR}(1.3_05 10/18) Jun 13 10:43:08.96 2018 Calibration menu <0>[CAUP] - Leave calibration menu <1>[CASE] - Calibrate sensors <2>[CALO] -...

  • Page 51: Updating The Calibration Information

    CALIBRATE THE SENSORS This function allows the operator to perform the sensor calibration. Once invoked, the following message appears: OCEAN SEVEN 314 - ID:0317003 {USR}(1.3_05 10/18) Jun 13 10:43:08.96 2018 Sensors Calibration..Index Sensor Data&Time...

  • Page 52: Pressure Sensor

    We recommend that the operator does not change the calibration and data processing method, even though permitted by the management firmware, otherwise the sensor specifications stated on the IDRONAUT documentation cannot be guaranteed. Pressure sensor The aim of the pressure sensor calibration is the offset zeroing. It is preferable to immerse the OS314 in water, up to about 10 cm from the OS314 housing, and wait for few seconds before starting the calibration.

  • Page 53: Simple Check Of Conductivity Sensor Calibration

    When ready, press any key to continue; the following message appears: Oxygen calibration in progress Calibration statistics 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 54 1.05 should be entered to compensate for the stirring effect on the surface membrane. For instance, to apply a double compensation due to the barometric effect and to the oxygen depletion, the following operation must be used 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 55 If the altitude is 0 (sea level) no correction is required, leave the shown value (0); Otherwise enter the altitude. The ON-LINE MODULE calculates by themselves the relative atmospheric pressure. 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 56: Ph Sensor Calibration

    OS314 in its vertical position (sensor looking at the floor). When the preparation is complete, press any key to continue. In case of trouble, type <ESC> to abandon the pH sensor calibration. The following message appears: pH calibration in progress 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 57: Redox Sensor Calibration

    Selecting a value of buffer solution greater than 1 starts the REDOX sensor calibration sequence. Immerse Redox and Reference sensors into the calibration cup filled with the 1st REDOX BUFFER Type <any key>To continue, <ESC>To leave 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 58 Once the Turbidity Meter is selected from the list of sensors to be calibrated, the following message and questions appear: Turb. sensor calibration Measuring scale 1, Full scale [>750 FTU] Current Calibration values Offset = 0.0 Slope = 1.0 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 59 OS314 sets up after the wake-up. During data acquisition, the turbidity meter measuring scale is automatically selected by the OS314 management firmware to be the most sensitive one. Turbidity meter scale:(1)>750 FTU,(2)500 FTU,(3)125 FTU,(4)25 FTU 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 60 “Number of data sets per acquisition” up to 10. After selecting each parameter associated with the Single/Three-Channel Fluorimeter from the calibration list, the following calibration procedure arises: Do you already know 'SLOPE & OFFSET' coefficients?: No 314 On-line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 61: Calibrating Logging

    The offset and slope are indicated on a dedicated calibration sheet which accompanies the CYCLOPS sensors and that are prepared by Idronaut. It is possible to order from Idronaut an advanced interface for the CYCLOPS-7 fluorometers, which allows the operator to set the CYCLOPS working gain between: x1, x10 and x100.

  • Page 62: Service, Diagnostics And Configuration

    Service” OS314 access rights and are described in a dedicated appendix. Service, diagnostics and configuration available under “user” access rights are here described. THE SERVICE MENU The Service menu is selected from the Main Menu. OCEAN SEVEN 314 - ID:0317003 {USR}(1.3_05 10/18) Jun 13 10:43:08.96 2018 <0>[SVUP]-Leave the service menu <1>[CONF]-Configuration <2>[DIAG]-Diagnostics <3>[RAWC]-Raw data acquisition in counts (bit)
  • Page 63 “ADMINISTRATOR” and “SERVICE” access rights. 6.1.2.1 The Diagnostics Menu The Diagnostics Menu is presented by selecting: <2> [DIAG] from the "Service menu”. OCEAN SEVEN 314 - ID:0317003 {USR}(1.3_05 10/18) Jun 13 10:43:08.96 2018 <0>[DIUP]-Leave Diagnostics menu <1>[DITT]-Test 16bitADC <2>[DISR]-Service reading <3>[DISI]-Serial interface <4>[DIRT]-Real time clock/calendar...

  • Page 64: Os314 Configuration

    CRC code 32bit long. In case the configuration integrity is compromised, the “default factory” configuration is automatically restored and used. The configuration contains information pertaining to the OS314: ❖ Operations. ❖ Data acquisition. ❖ Serial interfaces. ❖ Interfaced sensors. 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 65 Configuration Menu. 6.1.3.5 Data acquisition OS314 Through this command, it is possible to customize some aspects of the data acquisition functions. OCEAN SEVEN 314 - ID:0317003 {USR}(1.3_05 10/18) Jun 13 10:43:08.96 2018 -- Analog setup --- Battery 3.3 V Ext.power 3.7 V...
  • Page 66 6.1.3.6 Operating parameters Through this command, it is possible to customize some aspects of the OS314 operation. The customizable parameters are: OCEAN SEVEN 314 - ID:0317003 {USR}(1.1_00 06/17)Oct 01 12:26:28.06 2016 --- Digital setup ---Config[6456]Status[488] Warmup timeout [s]:5 The operator can customize the time-out used by the OS314 at the wake-up to wait for the sensor stabilization.
  • Page 67 A seven-character acronym that is used by the OS314 to identify data acquired from this sensor. No. of digits to show Number of digits used by the OS314 to numerically show the acquired data for this sensor. 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 68 The day of the week is numbered starting from Sunday (1). 6.1.3.10 External systems The external equipment interfaced by the OS314 through digital, analogue or serial interface I/O can be configured. OCEAN SEVEN 314 - ID:0617002 {USR}(1.1_00 06/17)Oct 01 12:47:13.58 2016 --- Auxiliary setup --- Aux.#1,select:(0)None,(1)Trilux,(2)Wetlab ECO Aux.#1:0 Aux.#2-Rosette:(0)No,(1)GO1018,(2)SBE32c,(3)MISS...

  • Page 69: Os314 Maintenance

    Most polarographic oxygen sensors take 5 to 10 minutes after they have been switched on to polarize and become stable. To overcome this limitation, the Idronaut OS314 has been fitted with a small internal rechargeable device, to maintain polarization of the oxygen sensor continuously. However, if the OS314 is not used for several days, the polarizing device become completely discharged.

  • Page 70: Refilling Oxygen Sensor Cap With Electrolyte

    D. It is recommended that only the IDRONAUT electrolyte be used, since its composition and pH guarantee the best performance and minimize the formation and growing of silver chloride on the anode.

  • Page 71: Oxygen Sensor Cleaning

    After these operations, the oxygen current, during calibration, will be higher than the normal one and will drop during the first few hours to reach the normal stability level of 0.1 to 0.3 ppm/week. 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 72: Oxygen Sensor Check In The Absence Of Oxygen

    3 % H2O2, ethanol or a soap solution. Gently wash the membrane using a soft brush REFERENCE SENSOR ❖ During all periods of inactivity, the reference sensor must be always hydrated with the IDRONAUT REFERENCE SENSOR STORAGE SOLUTION or, if not available, even with KCl or NaCl saturated solution, using the plastic hydrating cap.

  • Page 73: Ph Sensor

    The pH sensor cap should be filled with the pH7 Buffer Solution (or simply with clean water). The reference 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...

  • Page 74: Conductivity Sensor

    SECTION SEVEN- OS314 MAINTENANCE sensor cap should be filled with the Idronaut Reference Sensor Storage Solution (or even with KCl/NaCl saturated solution). CONDUCTIVITY SENSOR For accurate determinations of conductivity, it is important that the seven platinum electrodes of the sensor flow cell be not contaminated with oils, biological growths or other foreign materials, which can cause a reduction in the conductivity reading.

  • Page 75: Internal Battery

    ON-LINE MODULE electronics or removing the internal battery pack from the ON-LINE MODULE to prevent the internal batteries from damaging the ON-LINE MODULE due to battery acid leakage. This is why the OCEAN SEVEN 314 ON-LINE MODULE is shipped without batteries installed.

  • Page 76: Troubleshooting

    ❖ Perform the oxygen sensor maintenance procedure described in Oxygen sensor calibration error the maintenance section. ❖ Perform the pH sensor maintenance procedure described in the pH sensor calibration error maintenance section. 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 77 Check the correct position of the O-ring and close the ON-LINE MODULE with the four screws. Gradually tighten the four screws in sequence such as to close the cover uniformly 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 78 ADC counts into engineering values. Polynomial interpolation: y = a + bx + cx2 + dx3 1st order interpolation: y = a + bx 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 79 ECO FLRT URANIN OBS 3LR OBS 3HR EH –Standard Horiba Cyclops #1 Cyclops #2 TRILUX/UNILUX PHYCOERITHRIN TRILUX/UNILUX PHYCOCYANIN TRILUX/UNILUX FLUOROSCEIN TRILUX/UNILUX CHL-a TRILUX/UNILUX TURB TRILUX/UNILUX CDOM High Precision pressure transducer 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 80 The Cyclops sensor is calibrated by entering the calibration coefficients for the selected measuring scale. The procedure can be run starting from the CASE command available under the CALB menu. 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 81 Select CYCLOPS7 gain 1)x1,2)x10,3)x100 Select the working measuring scale Number of coefficients: 2 Enter the number of calibration coefficients and then the value for each ones. Coeff. a: Coeff b: 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 82 Wake up from RS232 Wait before shutdown [s]: Wait valid command [s]: Wait valid parameter [s]: ER xxx messages HEADER message OCEAN SEVEN 314 - Log Calibration USB interface installed ?: BlueTooth installed WIFI installed Telemetry:0)No,1)QAM,2)FSK: 0 ComPort:(1)MAIN,(2)Aux#1,(3)Aux#3,(4)Rosette Com. [1..4]:1...
  • Page 83 Ext power working limit [V]: Optical sensors auto-scale settling time [ms]:800 Unattended cycles,PRESSURE auto-zero ?:No Ana.board filtering [0..5]: 16bit ADC reading method:0,1,2: 16bit ADC filter:0)None,1)Average,2)LowPass: 2 Lowpass factor x^2: 24bit ADC filter:0)None,1)Average,2)LowPass,3)IIRFilter: Smoothing factor: 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
  • Page 84 APPENDIX ”E” – TERMINAL EMULATION PROGRAM INTRODUCTION The aim of the terminal emulation programme is to provide a simple and reliable tool that IDRONAUT customers can freely use to communicate with their products, like the OCEAN SEVEN OS3xx. Since 2019 the ITERM is replaced by the more advanced WTERM program.
  • Page 85 The IDRONAUT Wireless Module is formed by a Bluetooth OEM module mounted ® ® inside the OCEAN SEVEN 314 housing and is designed to provide an interface conforming to the Bluetooth v1.1 class 1. ® The operating range of the adapter is specified in 100m although line of sight ranges of 300m can be achieved.
  • Page 86 This appendix describes the proper care of submersible connectors and cables installed in the IDRONAUT OCEAN SEVEN 3xx series OS314s. The text refers to the XSG/RMG connector and to the standard MCBH/MCIL one (detailed characteristics of these connectors can be found on www.impulse-...
  • Page 87  Grip main body of connector during mating and un-mating. Do not pull on cable to disconnect.  Avoid sharp bends at cable entry to connector. 314 On-Line module IDRONAUT – Brugherio (MB) OCEAN SEVEN 04-2019...
