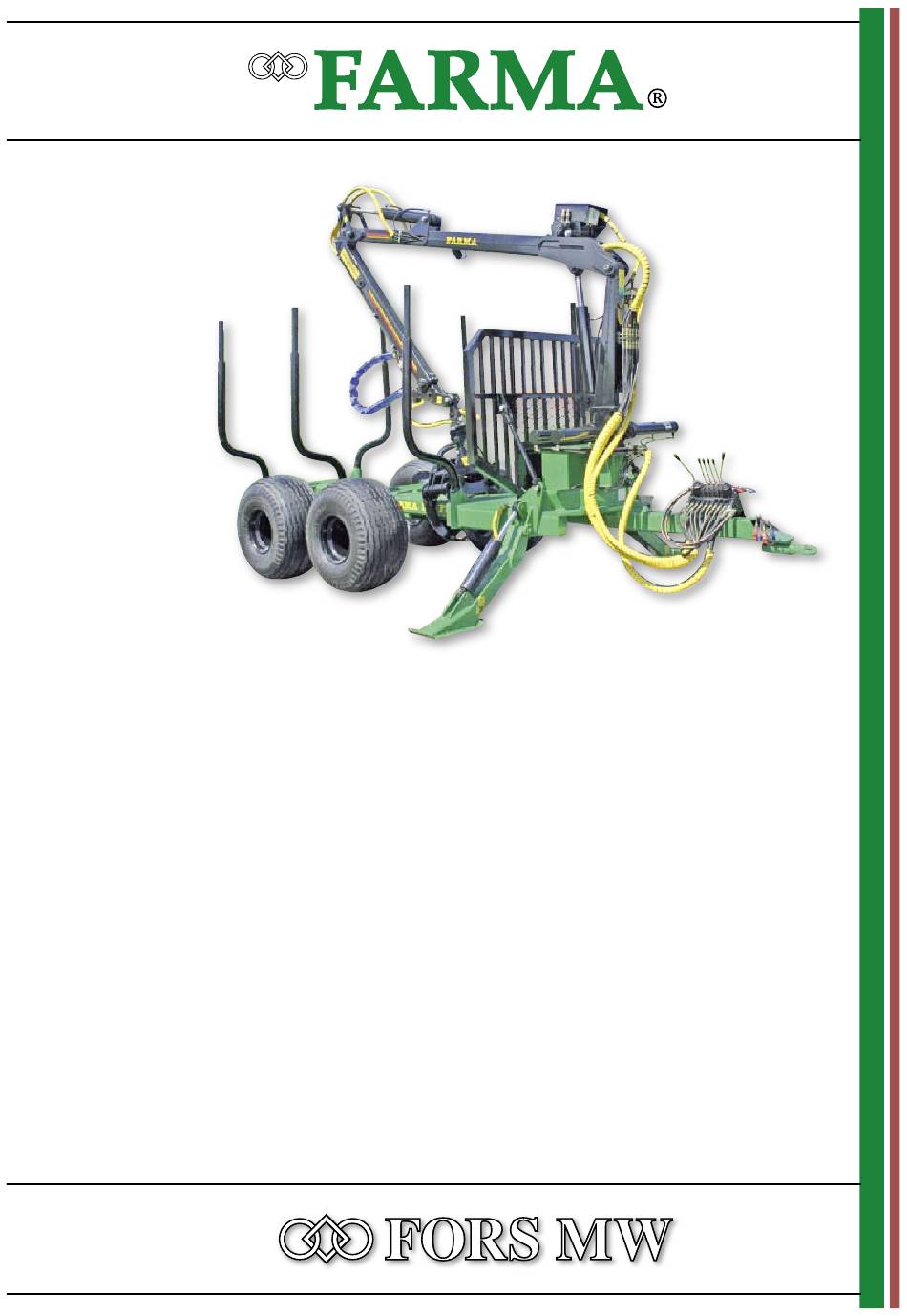

- Page 1 This picture shows CT 6,5–10 D INSTRUCTION BOOK FARMA T 12 SERVICE AND SPARE PARTS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................1 TECHNICAL SPECIFICATION................2 2.1. CONSTRUCTION OF THE TRAILER ............2 2.2. SPAREPART LIST FOR TRAILER T 12 ............4 2.3. HYDRAULIC CYLINDERS ................5 2.4. TECHNICAL DATA..................6 OPERATING INSTRUCTIONS................7 3.1. SAFETY ....................... 7 3.2. -
Page 3: Introduction
TRAILER T 12 INTRODUCTION This manual deals with the T 12 forest trailer and It contains information that enables the trailer to contains all the operating and maintenance be used efficiently and safely. Make sure that instructions you need for using the trailer safely this trailer corresponds to your demands. -
Page 4: Technical Specification
TRAILER T 12 TECHNICAL SPECIFICATION 2.1. CONSTRUCTION OF THE TRAILER © 2005 FORS MW Ltd www.forsmw.com Page 2... - Page 5 TRAILER T 12 © 2005 FORS MW Ltd www.forsmw.com Page 3...
-
Page 6: Sparepart List For Trailer T 12
TRAILER T 12 2.2. SPAREPART LIST FOR TRAILER T 12 Pos no Art no Number Sparepart Dimension 10001 Bolt M24×80 M6S 8.8 Zn ISO 4017 10002 Spring washer 24,5x40,0x5 DIN 127B 10003 M24 M6M-8 Zn ISO 4032 10004 FMW10-080000.000 Railing 10005 FMW10-070003.000... -
Page 7: Hydraulic Cylinders
TRAILER T 12 2.3. HYDRAULIC CYLINDERS Sparepartlist for Hydraulic-cylinder 90/40-200 Frame steering cyl for 9; 12 trailer Production no M13-100200.000. Art no Number Sparepart Dimension 56201 M13-100120.000 Piston road 56202 M13-100110.000 Tube 56203 F13-100100.001 Front bush 56204 F13-100100.002 Piston 56205... -
Page 8: Technical Data
TRAILER T 12 Sparepartlist for Hydraulic-cylinder 90/40-300 Stabilizer cyl for Trailer T 12 Production no F10-100400.000 Art no Number Sparepart Dimension 56401 F13-100410.000 Piston road 56402 F10-100220.000 Tube 56403 M13-100100.001 Front bush 56404 M13-100100.002 Piston 56405 Scrape-ring AS40-50-7-10 56406 Sealing... -
Page 9: Operating Instructions
TRAILER T 12 OPERATING INSTRUCTIONS 3.1. SAFETY Read the manual before operating the Do not use the trailer until you are familiar trailer. Neglecting the instructions can with the controls. cause danger to operator and machine. Before loading works, ensure there is no Operator must have sufficient training for one in danger zone (20 m). -
Page 10: Instructions For Safe Operation
TRAILER T 12 3.2. INSTRUCTIONS FOR SAFE OPERATION SUPPORTING THE TRAILER Always engage the base machines parking Always use support legs. Make sure the brakes before loading. If necessary put trailer situated firm terrain. some obstacles in front of wheels. -
Page 11: Working At Extreme Conditions
TRAILER T 12 3.3. WORKING AT EXTREME CONDITIONS Recommended working temperature range for Slowly drive every action through several times trailer is –30° C up to +40°C. so that gaskets come pliable before they Note that working temperatures receive full pressure. -
Page 12: Lubrication
TRAILER T 12 4.2. LUBRICATION © 2005 FORS MW Ltd www.forsmw.com Page 10... - Page 13 TRAILER T 12 RECOMMENDED GREASES BRAND TYPE Energrease LS-EP2, L2M Beacon EP2, Multipurpose GR Moly ESSO Mobilux EP2, Mobil Grease MP MOBIL Special Alvania EP Grease 2 SHELL Marfak Multi-Purpose 2, Molytex UNION/TEXACO Grease 2 PAY SPECIAL ATTENTION TO THE TOWBAR CYLINDER.
