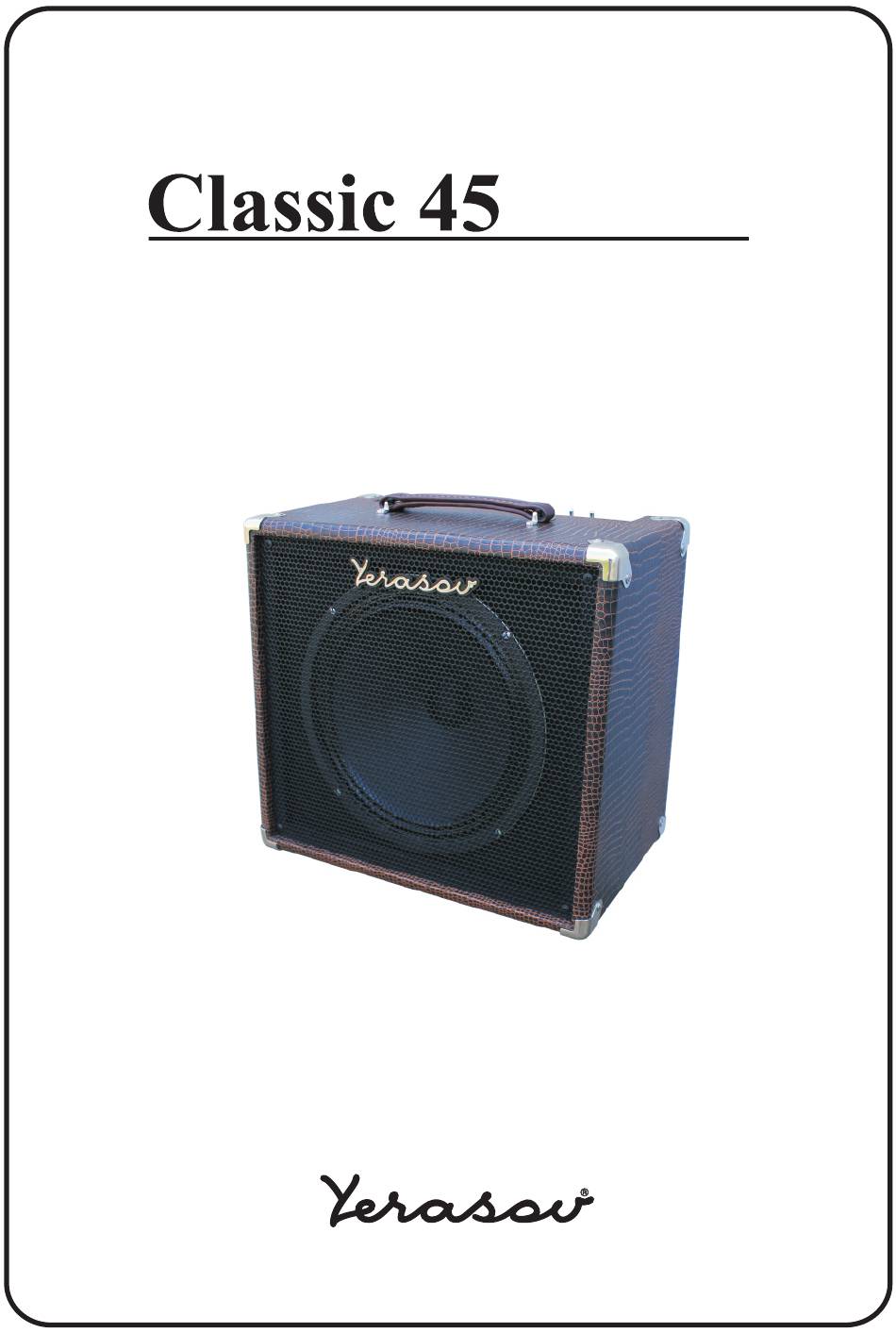

- Page 1 Tube guitar combo amplifier User manual...
- Page 2 CONTENTS Precautions ..…………………………………………........1 General information ………………………………………………………..2 Top panel ..…..…………..…………………………………......2 Rear panel. ..… ....…………………………………………....3 Operating Instructions ……..………..…………………………………….…….3 Troubleshooting ..........……........4 Technical Specifications ..……..………………………………….....4 Delivery …….…...…………………………………………......4 Guarentee …………………………………………..........5...
- Page 3 1 . PRECAUTIONS Allow the amp to warm up for a few minutes before playing. Allow the amp to cool for a few minutes before moving. Do not store or use the unit in a damp environment. Do not place the device in direct sunlight or near a heater. When connecting to a power supply, make sure that its voltage matches the requirements of the unit.

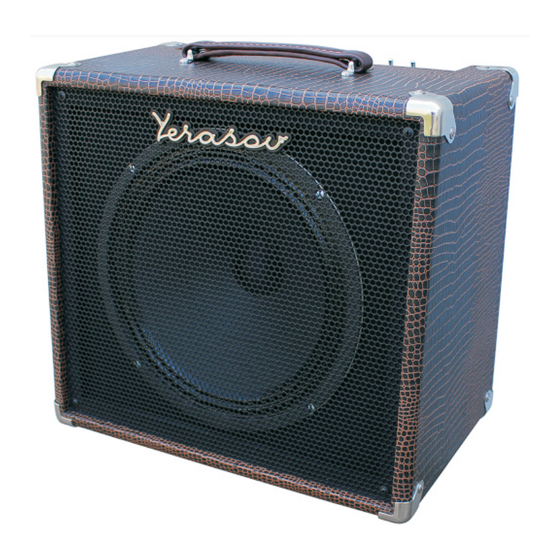

- Page 4 2 .GENERAL The Classic 45 is a compact 10 watt CLASS A/45 watt class AB valve guitar combo amplifier, which gives a clean, warm and rich sound. Exceptionally easy to use, combined with the possibility of obtaining a clean and warm overdriven tube sound at sensible volumes.
- Page 5 Rear panel Power Cord 2 - Fuse 3 - Jack built-in speaker or external cabinet 8-ohm 4 - 2x6L6 pover amp tubes 5 - 2x12AX7 (2xECC83) pre amp tubes 3. OPERATING Plug the cord into the guitar jack socket INPUT. Turn the power switch to ON.
-
Page 6: Troubleshooting
Weight (net), kg, not more .. ………………………….………………......17 Tubes 2x6L6, 2x12AX7 (2xECC83) ................Speaker ................Celestion Vintage 6. DELIVERY Guitar Combo Amplifier Classic 45 units .……………………...………......1 AC fuse (spare) T2A, units …….………………............1 Operating instructions ………………………………………..........1 Container packing, items ……………………………………………………....1... - Page 7 7. GUARANTEE Warranty period 12 months from the date of purchase. During the warranty period, the owner is entitled to a free repair. Caution: In the absence of the warranty card and the receipt of purchase the warranty period will be calculated from the date of manufacture of the product.
- Page 8 YERASOV MUSIC CORPORATION www.yerasov.ru e-mail: sale@yerasov.ru...
