EVEKTOR-AEROTECHNIK SPORTSTAR Manual

Ultralight airplane
Hide thumbs Also See for SPORTSTAR:
Table of Contents

Advertisement

Quick Links

Download this manual
ULTRALIGHT AIRPLANE
Serial number:
Registration mark:
Document number: S2005FMENKT
Date of issue:
This manual must be on the airplane board during operation. This manual contains information
which must be provided to the pilot and also contains supplementary information provided by the
airplane manufacturer --- Evektor --- Aerotechnik a.s.
This airplane must be operated in compliance with the information and limitations
stated in this manual.
EVEKTOR --- AEROTECHNIK, a.s.
Letecká 1384
686 04 Kunovice
Czech Republic

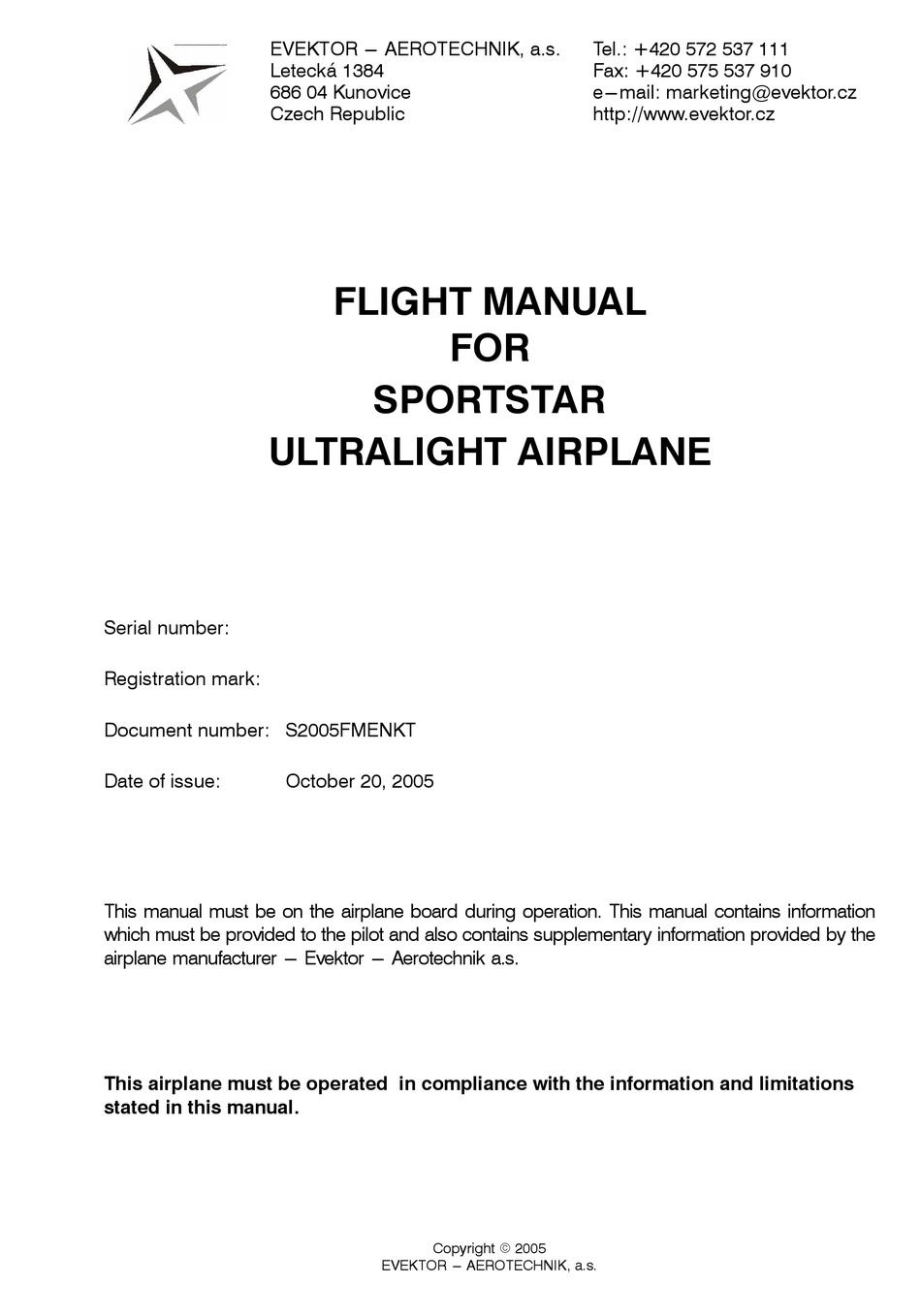

FLIGHT MANUAL
SPORTSTAR
October 20, 2005
Copyright E 2005
EVEKTOR --- AEROTECHNIK, a.s.
Tel.: +420 572 537 111
Fax: +420 575 537 910
e---mail: marketing@evektor.cz
http://www.evektor.cz
FOR
