Summary of Contents for FSM TSRL

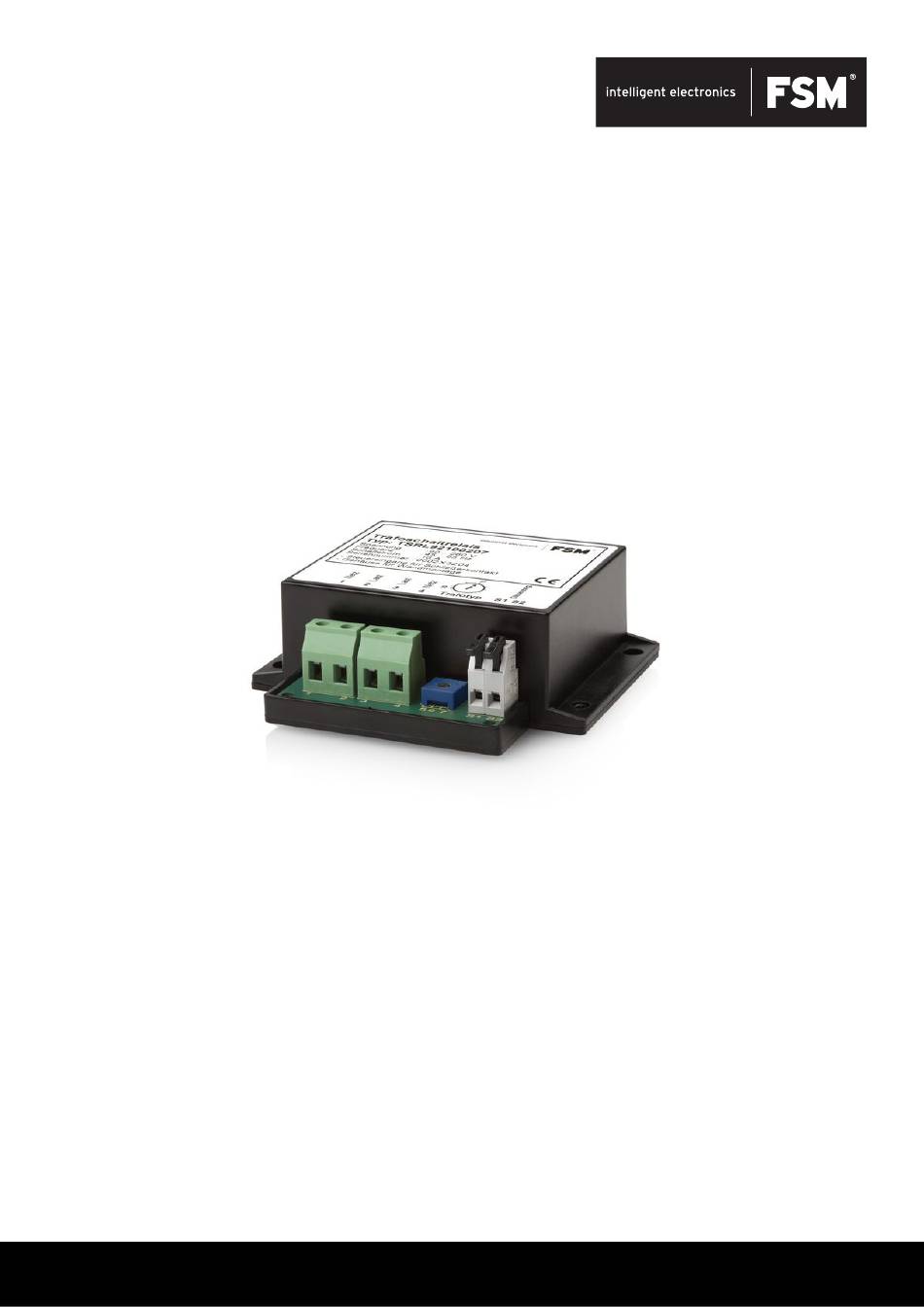

- Page 1 Operating instructions Transformer Switching Relay TSRL 18.10.2018 FSM AG | Erich-Rieder-Straße 2 | D-79199 Kirchzarten | vertrieb@fsm.ag | www.fsm.ag 1 | 8...
-
Page 2: Table Of Contents
Troubleshooting guide ..............................6 Accessories and spare parts ............................7 Accessories ....................................7 Spare parts ....................................7 Technical data ................................... 7 Dimensions....................................7 Order code ....................................8 Disposal....................................8 18.10.2018 FSM AG | Erich-Rieder-Straße 2 | D-79199 Kirchzarten | vertrieb@fsm.ag | www.fsm.ag 2 | 8... -
Page 3: Introduction
Intended use and foreseeable misuse The TSRL may only be used to switch transformers with or without load. The TSRL is commonly used for isolating-, control-, filament- and traction transformers. The TSRL is solely intended for installation in a closed device. Outside mounting is not allowed. -
Page 4: 1.4.2 Half-Wave Failure Recognition
Half-wave-failure recognition with fast restart (special version): At the end of a half-wave with a failure the TSRL switches the transformer off. The transformer is restarted using the fast restart-procedure. Depending on its remanence the transformer is restarted at the earliest timing possible. Delay is 40 ms max. -
Page 5: Connections And Operating Elements
Housing for wall mounting: The TSRL can be installed using two mounting holes on the housing. > Housing with standard rail holder: The TSRL can be installed on any 35 mm standard rail holder in accordance with DIN EN 60715 . Set up >... -
Page 6: Potentiometer Setting
(TP1) matches type of transformer (see chapter 4.1) A malfunction of the TSRL itself can only be remedied by repair or replacement of the device. If the error can not be reme- died please contact our service team: Service@fsm.ag 18.10.2018... -
Page 7: Accessories And Spare Parts
There are no spare parts available. The TSRL can only be completely replaced or repaired. Technical data 89,5 Technical data can be found in the corresponding data sheet, which is available at www.fsm.ag, or can be downloaded using the QR code below. -
Page 8: Order Code
WEEE-Reg.-Nr. DE 47299690 Notice Incorrect disposal can lead to environmental hazards. Equipment components and packaging materials from the TSRL must be disposed of in an environmentally sound manner in accordance with the local regulations on waste treatment and disposal. 18.10.2018 FSM AG | Erich-Rieder-Straße 2 | D-79199 Kirchzarten | vertrieb@fsm.ag | www.fsm.ag...
