- Page 1 CBC-802 Plug-In Clutch/Brake Control with Solid State Switching Service & Installation Instructions P-2104-WE 819-0548...

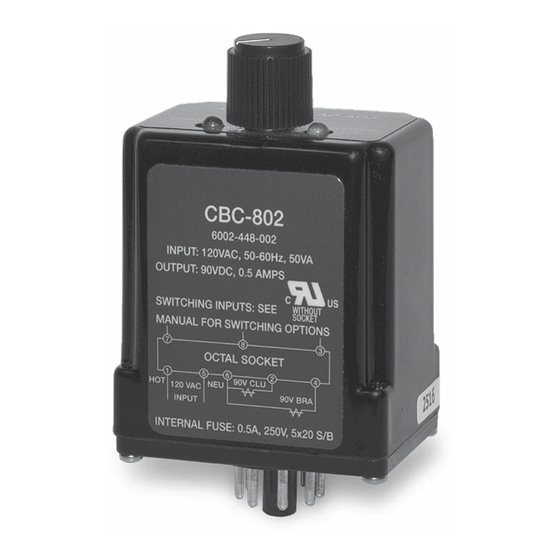

- Page 2 The CBC-802 clutch/brake control is a direct plug-in replacement for the previous MCS-802-2 control. The Output 90 VDC full wave rectified. difference between the two versions is that the CBC-802 0.50 amps maximum. has a potentiometer for adjustment of the anti-overlap Fusing...
- Page 3 MCS-802-2, but is not directly equipment. Do not touch the board if power is interchangeable with other Warner Electric plug-in applied. controls. Before actual installation of the CBC-802 into its socket, insure all external wiring conforms to the following hook-ups: Installation Mounting 1.
- Page 4 3. This completes the wiring of the CBC-802. isolation transformer on the AC input to the Double check all terminal wiring at this time. CBC-802 must be used, or the CBC-802 will be Proceed to the start-up section of this destroyed.
- Page 5 Start-Up to the CBC-802. On power up, the brake output LED (Red) should be on, and the The following procedure may be used to check out the brake should be energized. socket and wiring installation prior to plugging in and powering the CBC-802.
- Page 6 Warner Electric LLC be liable for consequential, indirect, or incidental damages of any kind incurred by reason of the manufacture, sale or use of any defective product. Warner Electric LLC neither assumes nor authorizes any other person to give any other warranty or to assume any other obligation or liability on its behalf.
