Quick Set Up and Installation Overview
Before installing the system and software
1.
Ambient room temperature should be: 18°C – 24°C
2.
Windows user must be an administrator to install the software.
3.
Windows must be 7 and up. software cannot be installed on Mac operating system.
4.
Disable any antivirus software during the installation.
System set up - Connectors Panel
1.
Unpack the box
2.
Connect all the accessories according to the scheme pictured below:
3.
Note that the CoVAS unit (if applicable) is connected directly via USB to the computer
4.
Additional info can be found in section 3 in the TSA 2 Operation Manual
Thermode connections
1.
The thermode plug, marked in green (1) is directional. The arrows indicate which side should face upwards. Make
sure you hear the click after inserting each connector.
2.
The coolant connectors (2) should be inserted by pushing in the connector and rotated all the way clockwise.
3.
If only one thermode is used, the thermode must be connected to the Main Thermode port, on top.
4.
If there is an additional thermode, it should be connected to the Secondary Thermode port, on the bottom.
5.
Make sure that both coolant connectors are connected.
DC 00573 TSA 2 Quick Installation and Set Up Overview Rev.1
TSA 2

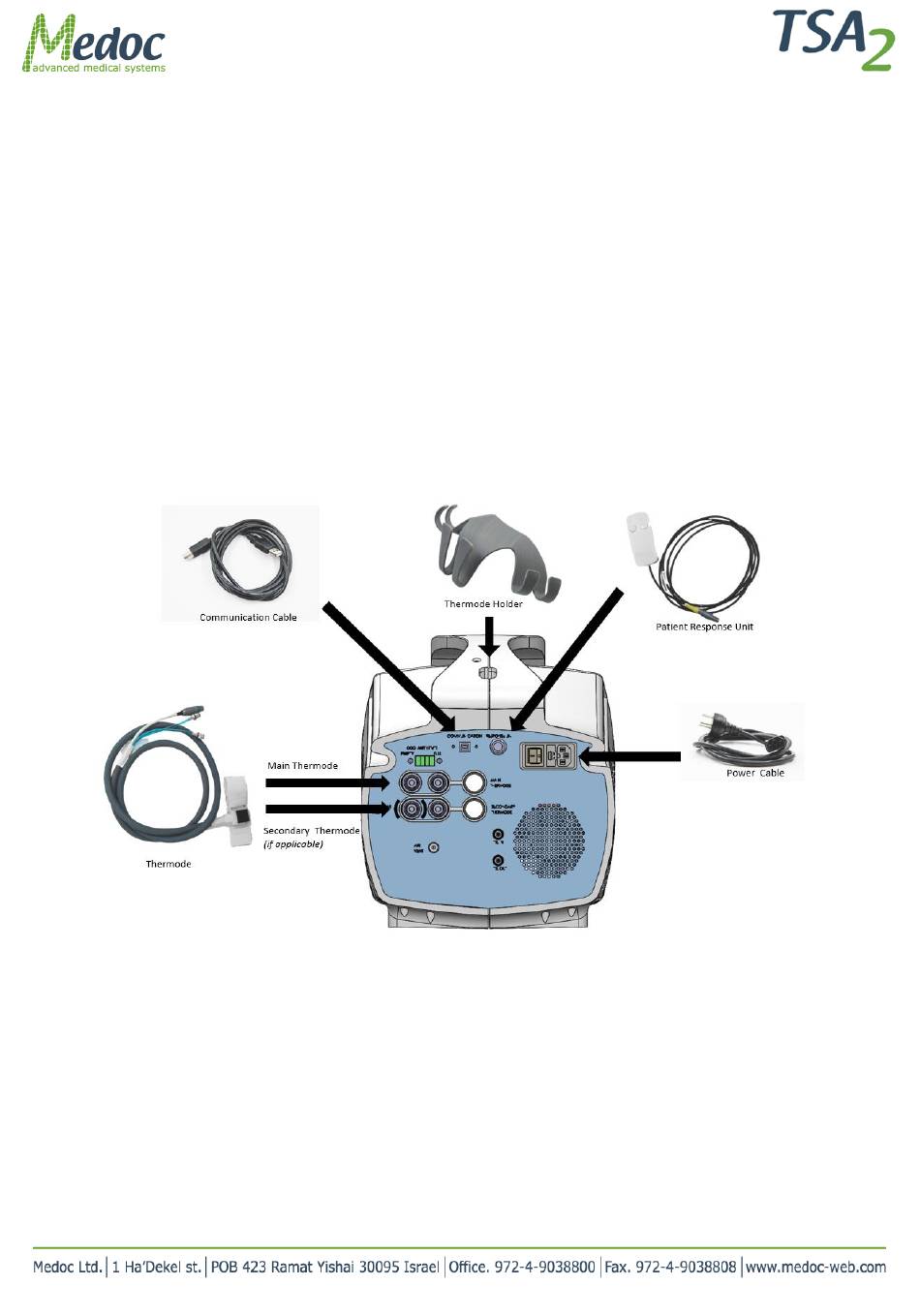

Figure 1: TSA 2 Connection Scheme
Date of issue: 10.06. 2019
Page 1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the TSA 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Medoc TSA 2

Summary of Contents for Medoc TSA 2

  • Page 1 Figure 1: TSA 2 Connection Scheme Note that the CoVAS unit (if applicable) is connected directly via USB to the computer Additional info can be found in section 3 in the TSA 2 Operation Manual Thermode connections The thermode plug, marked in green (1) is directional. The arrows indicate which side should face upwards. Make sure you hear the click after inserting each connector.
  • Page 2 Make sure you hear a Click when inserting the plug. When not in use, place the Response Unit in the middle holder position. Figure 3: Patient response unit connection DC 00573 TSA 2 Quick Set Up and Installation Overview Rev.1 Date of issue: 10.06. 2019 Page 2 of 9...

  • Page 3: Software Setup

    Additional info can be found in section in the TSA 2 operation Manual TSA 2 is now ready for use. DC 00573 TSA 2 Quick Set Up and Installation Overview Rev.1 Date of issue: 10.06. 2019 Page 3 of 9...
  • Page 4 The home screen is displayed showing the devices available under your license . Choose TSA 2 (marked in red) Figure 6: MMS main screen When the login screen is displayed, enter your user name and password and select “TSA 2” in the “connect to” field. Initial login Username and Password are both “admin”...
  • Page 5 Use the kit AS 00171 to fill the cooling unit. connect the syringe to the transparent tube without the connector, fill the syringe with coolant liquid Use only coolant liquid from type Dowthern SR1 (or other coolant liquid approved by Medoc) Figure 9: Filling the syringe with coolant liquid DC 00573 TSA 2 Quick Set Up and Installation Overview Rev.1...
  • Page 6 Fill the system slowly with cooling liquid (ONLY) and check the Coolant Level LED lights indicator (located above the thermode ports). As soon as the fourth LED (full) lights up, stop filling the system. DC 00573 TSA 2 Quick Set Up and Installation Overview Rev.1 Date of issue: 10.06. 2019 Page 6 of 9...
  • Page 7 System Requirements: 1 GHZ CPU frequency. Windows 7,8 or 10. 2GB RAM. see section 4.1 in TSA 2 Operation Manual. Do not connect any equipment to the TSA 2 system that has not been specifically authorized and approved by Medoc.

  • Page 8: Common Troubleshooting

    Figure 4 : Wrong coolant connectors connection should be inserted all the way Figure 5: Wrong coolant connection – not rotated all the way clockwise DC 00573 TSA 2 Quick Set Up and Installation Overview Rev.1 Date of issue: 10.06. 2019 Page 8 of 9...
  • Page 9 1. Make sure that the system is turned ON and that the communication cable is connected to the computer 2. Go to “utilities” and click “Device Recovery” Figure 6: device recovery DC 00573 TSA 2 Quick Set Up and Installation Overview Rev.1 Date of issue: 10.06. 2019 Page 9 of 9...
