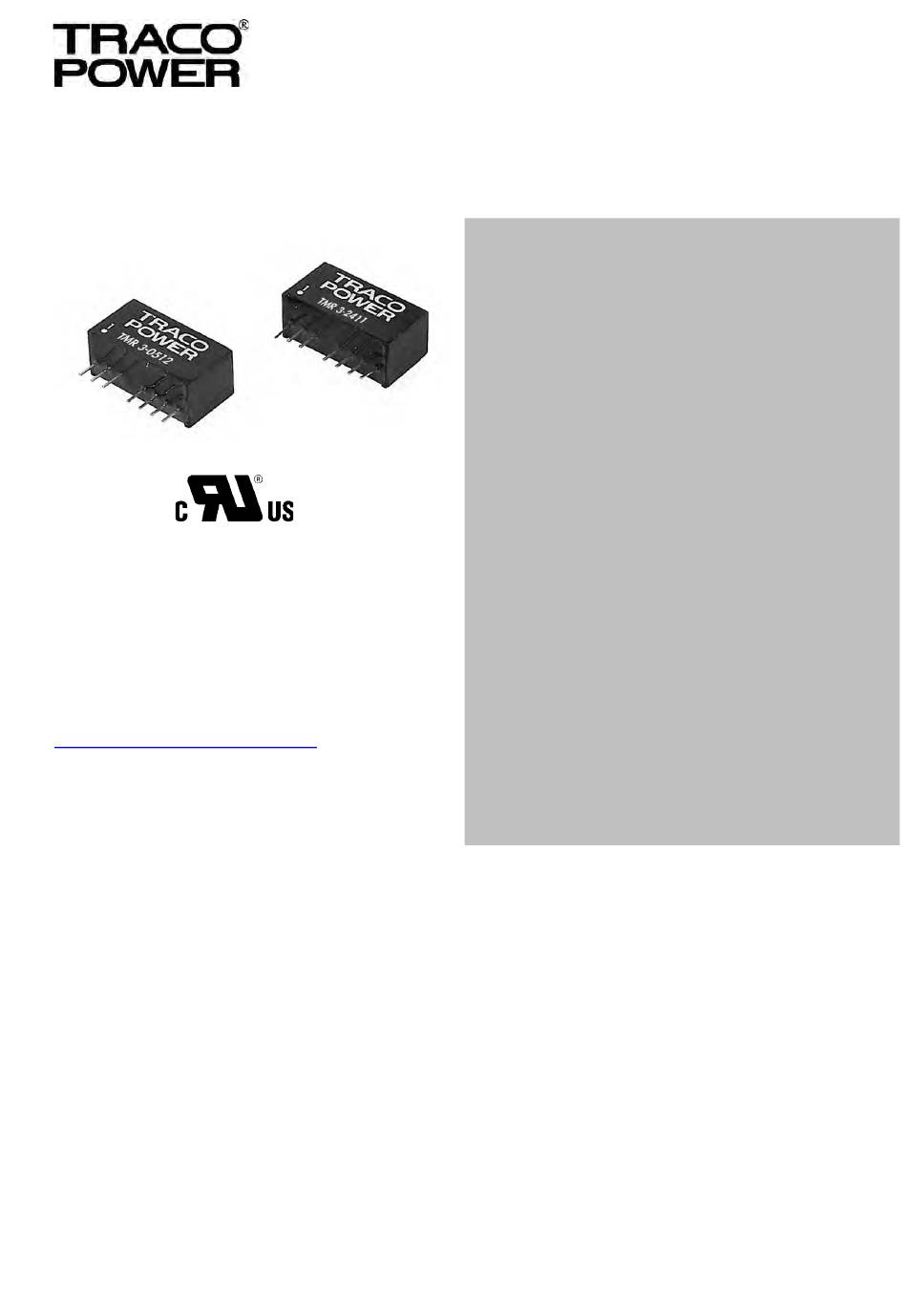

TMR 3 Series
DC/DC Converter 4.5 to 9Vdc, 9 to 18Vdc, 18 to 36Vdc or 36 to 75 Vdc Input
3.3 to 15Vdc Single Outputs and ±5 to ±15Vdc Dual Outputs, 3W
E188913
Complete TMR-3 datasheet can be downloaded at:
http://www.tracopower.com/products/tmr3.pdf
General Description
The TMR 3 series offer 3 watts of output power from a 21.8 x 9.2 x 11.1mm package without derating up to an operating
temperature of 71ºC and without need of any external components. This product has a 2:1 wide input voltage of 4.5-9, 9-18,
18-36 and 36-75Vdc with an I/O isolation test voltage of 1500Vdc and indefinite short-circuit protection. All models are particularly
suited to telecommunications, industrial, mobile telecom and test equipment applications.

Table of contents

Absolute Maximum Rating
Input Specification
General Specification
Input Source Impedance
Thermal Consideration
Created by Traco Electronic AG Arp.
Features
• Single output current up to 700 mA
• Dual output current up to ±300mA
• 3 watts maximum output power
• High efficiency up to 85%
• RoHS directive compliant
• SIP package, 21.8 x 9.2 x 11.1mm (0.86 x 0.36x 0.44 inch)
• 2:1 wide input voltage range
• Low ripple & noise
• UL94-V0 case potting materials
• Input to output isolation: 1500Vdc, 1 min
• Continuous short circuit protection
• Remote ON/OFF
• ISO 9001 certified manufacturing facilities
• UL60950-1 Recognized E188913 (Pending)
Applications
• Distributed power architectures
• Workstations
• Communication equipment
• Computer equipment
P2
Remote ON/OFF Control
P4
P5
P70
Part Number Structure
Safety and Installation Instruction
P73
MTBF and Reliability
P73
www.tracopower.com
th
Date: April 17
, 2009 / Rev.: 1.3 / Page 1 / 77
P73
P74
P74
P75
P75
P76
P77
P77
