DURASTALL
ASSEMBLY • INSTALLATION • REPAIR PARTS
FOR ONE OF THE FOLLOWING MODELS:

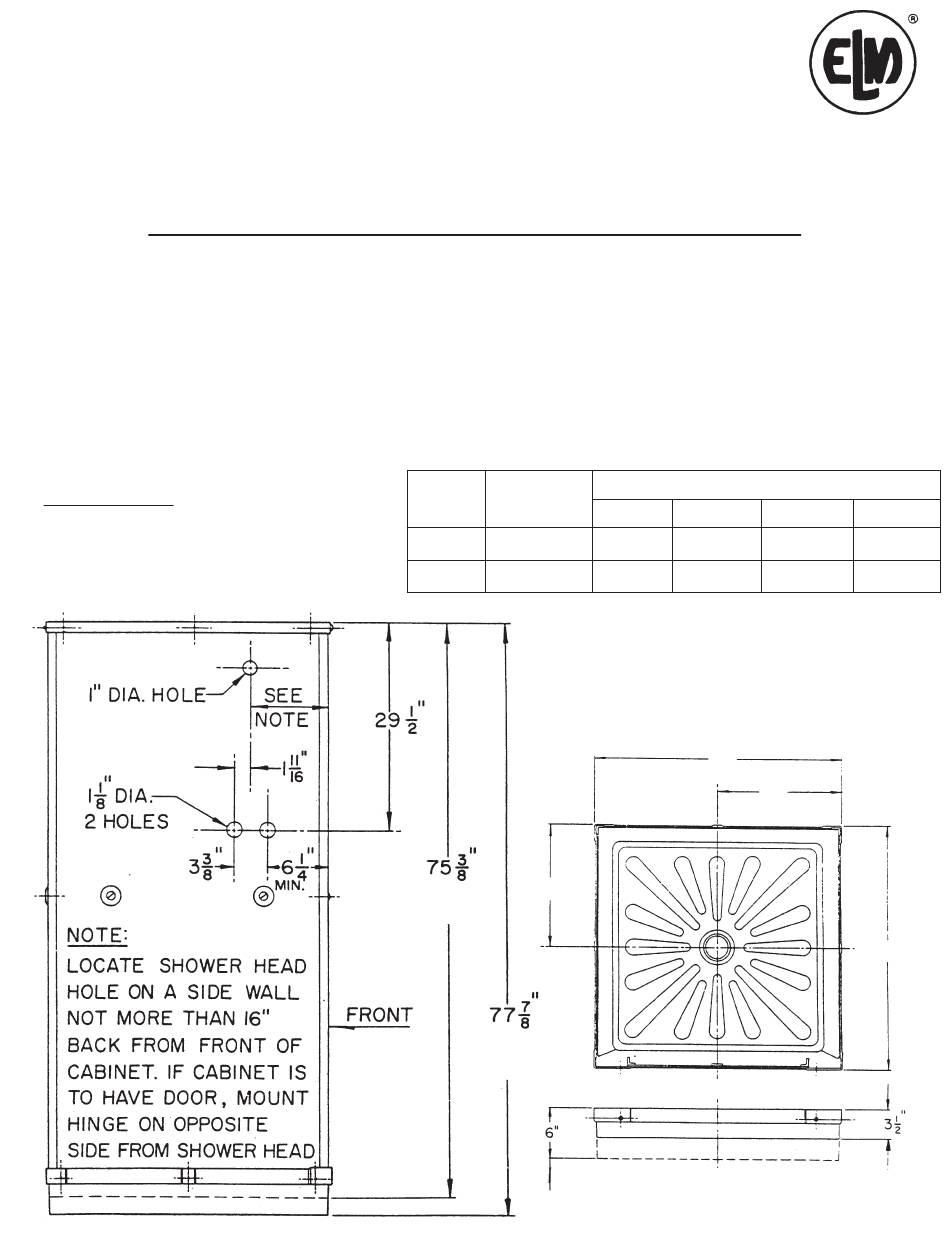

ROUGH-IN:
SHOWER STALL
MODEL:
80 (32")
Cabinet (rigid corners) with Standard Base
complete with Curtain and Valve assembly.
MODEL:
82 (32")
Cabinet (rigid corners) with Extended Base
complete with Curtain and Valve assembly.
MODELS
80 & 140
140 (36")
142 (36")
NOM.
MODEL
SIZE
NO.
32"
80 & 82
32-5/8"
36"
140 & 142 36-5/8"
D
MODELS
82 & 142
MODELS
82 & 142
®
DIMENSION
A
B
C
32-5/8"
16-5/16" 16-5/16"
36-5/8"
18-5/16" 18-5/16"
A
C
D
B
MODELS
80 & 140
SI-188 (8•07)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 140 and is the answer not in the manual?

Questions and answers

Summary of Contents for Durastall 140

  • Page 1 Curtain and Valve assembly. NOM. MODEL DIMENSION ROUGH-IN: SIZE 32” 80 & 82 32-5/8” 32-5/8” 16-5/16” 16-5/16” 36” 140 & 142 36-5/8” 36-5/8” 18-5/16” 18-5/16” MODELS 80 & 140 MODELS 82 & 142 MODELS MODELS 82 & 142 80 & 140 SI-188 (8•07)
  • Page 2 Suspend Center Panel off floor. Angle Corner Lock Strip slightly, and engage a short section of Center Panel into Lock Strip channel making sure smooth (gloss) side of panel will be on inside of shower stall. Align top edge of Corner Lock Strip with top edge of Center Panel.
  • Page 3: Standard Base

    PART NUMBER MODEL MODEL NUMBER DESCRIPTION 70.102 40.1030 Shower Base 70.207 40.210 Threshold 42.309 42.309 Strainer Drain Seal 80.140 80.140 Drain Body 32.214 32.214 Sealing Washer - 1/16” 42.319 42.319 Sealing Washer - 1/8” 32.207 32.207 Fiber Washer 42.305 42.305 Locknut Note: For missing or replacement parts, contact Mustee Customer Service @216.267.3100...
  • Page 4: Extended Base

    NOTICE: Extended Base is for use with Mustee free-standing cabinets only! NOT for “built-in” alcoves! EXTENDED BASE Check shower base carefully making sure it is not damaged. Refer to the “rough-in” drawing and determine location of shower base. Assemble drain to shower base (see illustration) using all washers provided. Do not use any putty or thread sealant on either drain body or waste fitting.
  • Page 5: Care And Cleaning

    Apply a small bead of quality waterproof caulking (not furnished) in track on Base – see illustration. Use the Safety Rail to lift the panel unit and place into the track against the caulking. It may be necessary to re-tap the Corner Lock Strips to ease installation.
  • Page 6 PARTS ILLUSTRATION * Hardware NOT used (x 2) PARTS LIST PART NUMBER PART NUMBER 32” 36” DESCRIPTION 32” 36” DESCRIPTION 40.805 40.805 1/4”-20 Flanged Hex Nut (6 req’d.) 80.318 40.317 Panel-Right Hand 80.812 80.812 #10 x 5/8” Truss Head Screw 80.318 40.317 Panel-Left Hand...
