Summary of Contents for HAB Home Intelligence iBlinds

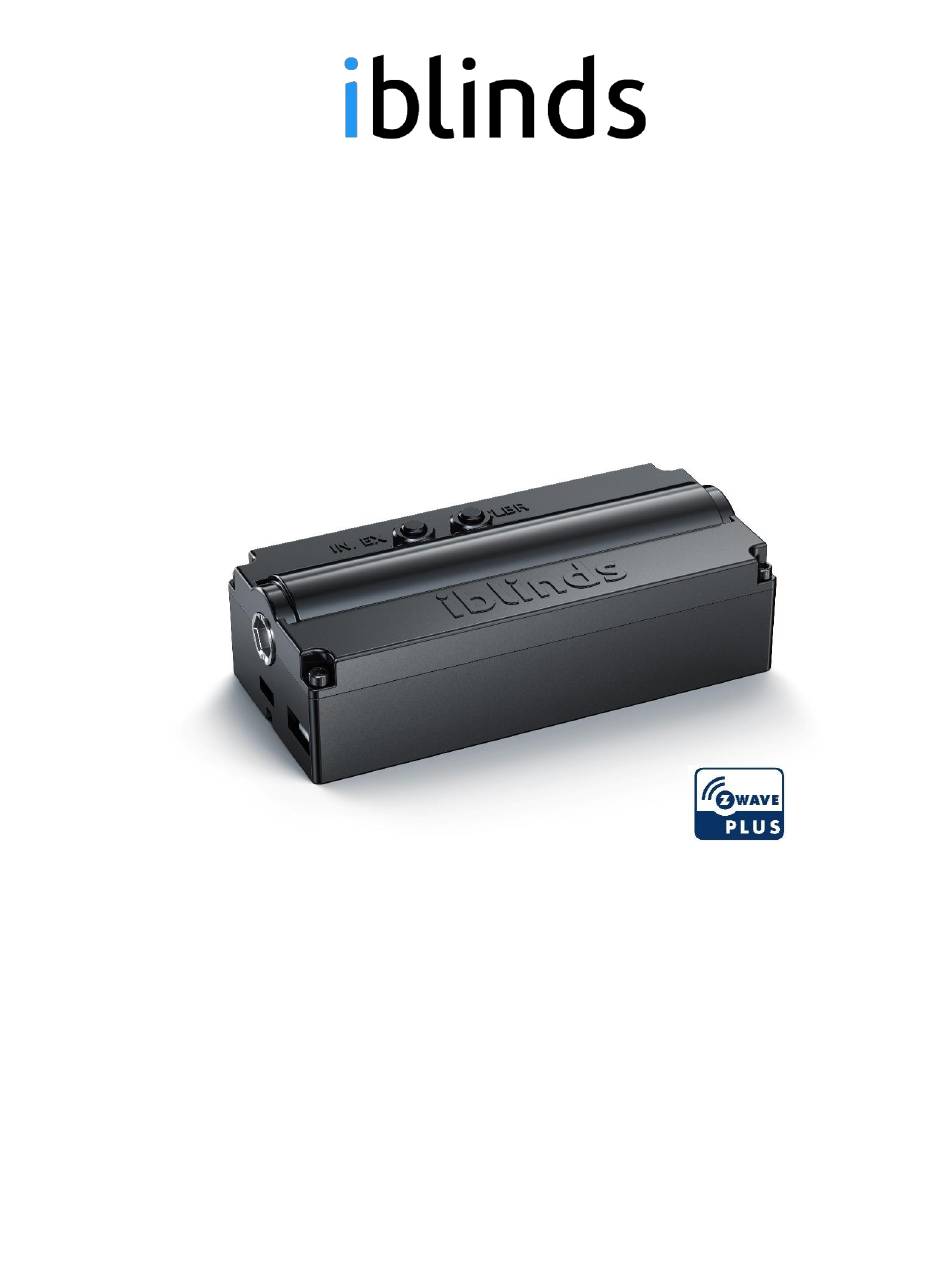

- Page 1 User Guide...
-
Page 2: Safety Information
Do not use the device for anything other than its intended use. Any use outside the sphere of application specified by HAB Home Intelligence is not approved. Such use, or any failure to comply with the instructions given herein will invalidate the warranty and HAB Home Intelligence refuses to accept liability. CAUTION •... - Page 3 Installation Guide - v1.0 Page 3 ©HAB Home Intelligence, LLC. 05/2019...
- Page 4 Motor Z-Wave Include / Exclude Button Calibration Reset Button Battery Connector Solar Connector String Pass-Through Channel Micro USB Connector iblinds Motor Tilt Shaft Window Blind Components Window Blind Mounting Bracket End Cap Tilting Mechanism Tilt Drum Tilt Rod Headrail Installation Guide - v1.0...
-
Page 5: Installation
Determine iblinds Motor Location The motor should be installed near the center of the headrail. Make a note of where the iblinds motor will be installed. All wires will be run to this area. Installation Guide - v1.0 Page 5 ©HAB Home Intelligence, LLC. - Page 6 Locate the battery and make sure it is in the off position. Attach the battery cable to the iblinds motor. Place the battery in an empty space in the headrail. Remember to save room for the iblinds motor as close to the center of the window blind headrail as possible.
- Page 7 7. Install the iblinds Motor Once all connections to the iblinds motor have been made, and the proper adapters have been installed, place the iblinds motor in the headrail. The motor should be as close to the center of the window blind headrail as possible.
- Page 8 Z-Wave Association Group The iblinds product grouping identifier is 1 and maximum number of devices that can be added to the group is 5. When the battery level of the device becomes low, the iblinds device sends notification to the controller.
- Page 9 The User Control Device can be a Cell Phone, Tablet, Remote, Computer or Voice Control using a digital assistant. Note: Upon first use, iblinds will auto calibrate.It will cycle open and closed several times while finding the end points. Then move to the user requested position….
-
Page 10: Troubleshooting
Solar not Keeping Battery Reposition Solar Panel or use USB Charger and Cable to Not enough sun light Charged charge the battery Check Z-Wave Controller Reduce iblinds Z-Wave polling to Excessive polling Short Battery Life once a day Excessive Usage... -
Page 11: Limited Warranty
Limited Warranty HAB Home Intelligence offers a limited one-year warranty on the hardware components of its kit. If a defect in the hardware, or any component thereof, appears at any time during the first year after purchase, HAB Home Intelligence will repair or replace (at its option) the kit or the defective component at no cost to you beyond the cost of shipping the defective item to us. - Page 12 LIABILITY OF HAB HOME INTELLIGENCE RELATED TO ANY PRODUCT EXCEED THE PURCHASE PRICE OF THE PRODUCT. YOUR USE OF HAB HOME INTELLIGENCE PRODUCTS IS AT YOUR SOLE RISK. HAB HOME INTELLIGENCE SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR CONSEQUENTIAL, INDIRECT, SPECIAL, OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OF ANY HAB HOME INTELLIGENCE PRODUCT.
