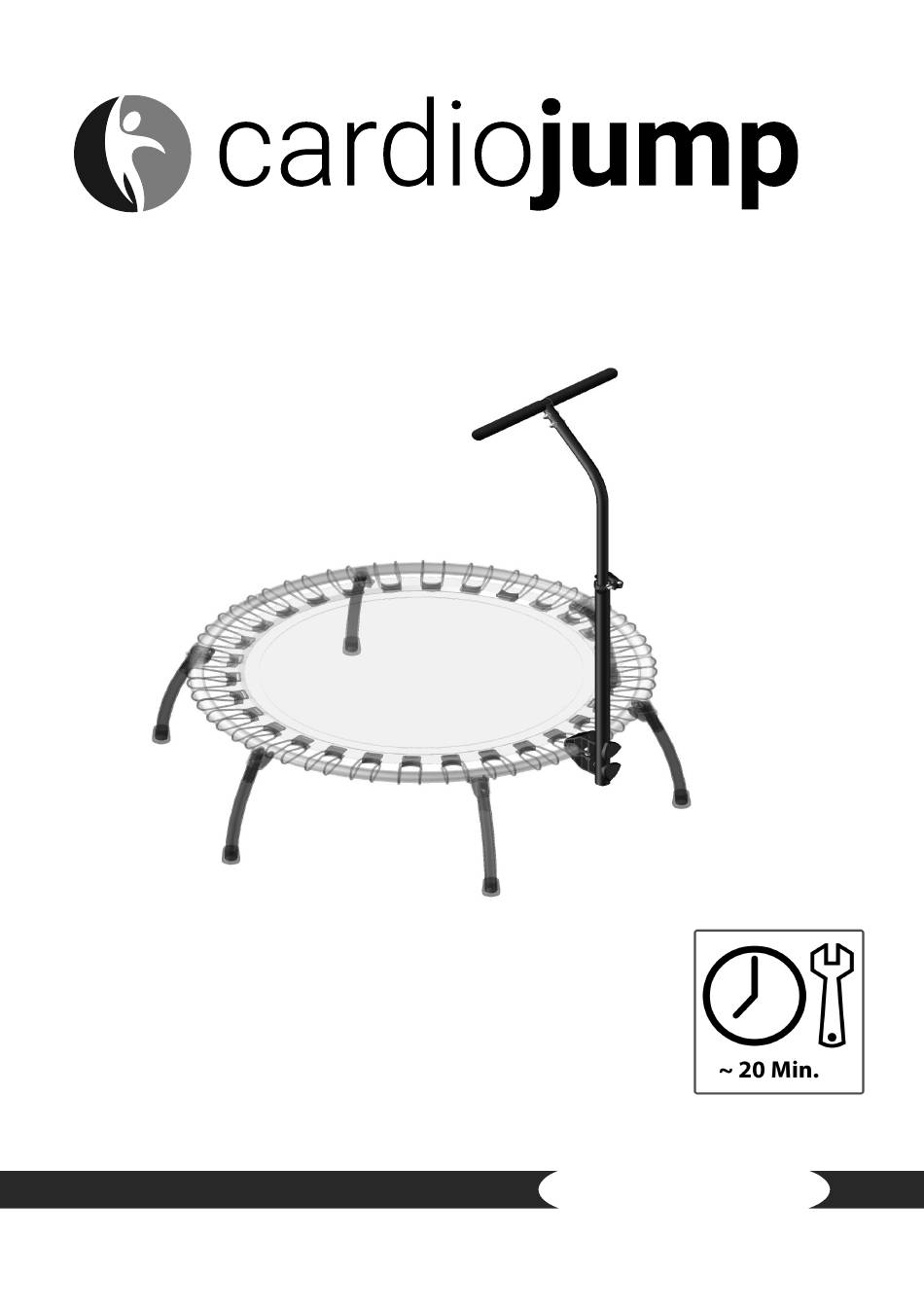

- Page 1 ® Assembly and Operating Instructions CJ-FT-HB.01.01 Art. No. CJ-FT-HB Fitness Trampoline...
- Page 2 Fitness Trampoline...
- Page 3 Dear Customer, Thank you for deciding for a high-quality training equipment of the brand cardiojump®. cardiojump® offers fitness and outdoor trampolines, that connect fun, exercise, sport and safety. Whether young or old, small or big cardiojump® fulfills every demand. For further information about cardiojump®...
-
Page 4: Table Of Contents
CONTENTS GENERAL INFORMATION 1.1 Technical Data 1.2 Personal Safety 1.3 Set-Up Place ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 2.1 General Instructions 2.2 Maintenance and Service Calendar ASSEMBLY 3.1 Packaging Contents 3.2 Assembly Instructions STORAGE 4.1 Dismounting the Handlebar WARRANTY INFORMATION DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS 8.1 Service Hotline... -
Page 5: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Packaging dimensions: 670 mm x 195 mm x 45 mm Article weight (net, without packaging): 2.5 kg Article weight (gross, including packaging): 3 kg... -
Page 6: Personal Safety
Personal Safety Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 7: Assembly Instructions, Maintenance And Care
ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE General Instructions Please check if all parts and tools belonging to the equipment are included in the delivery and if there is any transport damage. If there are any complaints, please contact your contract partner directly. -
Page 8: Maintenance And Service Calendar
Maintenance and Service Calendar The equipment must be cleaned with a moist towel (no solvent!) after evey training session in order to avoid damage caused by sweat. Besides the regular checks before every use, the following routine work must be done in the specified time intervals: Part Weekly... -
Page 9: Assembly
ASSEMBLY HALTESTANGE Package Contents The handlebar is an optionally available accessory for the fitness trampoline from the cardiojump® brand. The trampoline is not included and must be purchased separately. Please contact your distributor for more information. Assembled trampoline (not Curved washer... -
Page 10: Assembly Instructions
Assembly Instructions Look carefully at all single, illustrated assembly steps before the assembly and do the assembly according to the given steps. Step 1: Mounting the clamp Place the clamp (E) between two legs on the frame of the trampoline (see fig. 1). fig. - Page 11 Step 2: Preparing the support tube Insert the plastic spacer (G) in the support tube (C) and mount the quick release clamp (F) on the support tube (C) (see fig. 3). fig. 3 Step 3: Mounting the support tube Use the knobs (Q) to mount the support tube (C) to the clamp (E) (fig. 4). fig.
- Page 12 Step 4: Connecting the bar to the adjustable tube To mount the bar (B) to the adjustable tube (D) use four curved washers (J), two cylinder head bolts (I) and two safety nuts (L) (fig. 5) Tighten them by using the Allen key (O) and the ring spanner (P). fig.
- Page 13 Step 6: Adjusting the height of the handlebar To adjust the height of the handlebar to a comfortable height, press the spring button (M) and let it snap in at the wanted position. To fasten the set height, tighten the quick release clamp (F) (see fig. 7 and fig. 8). fig.
-
Page 14: Storage
STORAGE Make sure that the trampoline is securely stored away from moisture, dirt and dust. The storage place should be dry, well ventilated and has a temperature between 5°C and 45°C. Additional the storage place should be secure enough so that misuse by third parties and children is not possible. Dismounting the Handlebar Dismount the handlebar by unscrewing the knobs (Q) (see fig. -
Page 15: Warranty Information
WARRANTY INFORMATION cardiojump® trampolines are subject to strict quality controls. However, if a trampoline purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 16 Warranty service Within the warranty period, trampolines and their equipment which develops faults as a result of ma- terial or manufacturing defects, will be repaired or replaced at our discretion. Ownership of trampo- lines or parts of trampolines which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 17: Disposal
DISPOSAL At the end of its operational life, this trampoline cannot be disposed of in normal household waste. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. -
Page 18: Ordering Spare Parts
10:00 - 17:00 Serial number and model name Before assembling your trampoline, find the serial number on the white sticker and enter it in the appropriate space. Serial number: Brand / Category: Model name: CJ-FT-HB cardiojump / trampoline handlebar Fitness Trampoline... -
Page 19: Parts List
Parts List Description Qty. Pre-Assembled trampoline set Armrest Handle bar support tube Adjustable tube Handle bar clamper Quick release clip Plastic spacer M8x30 Socket head bolt M6x35 Cylinder head bolt 6mm Curved washer 8mm Washer M6 Safety nut Spring button 6mm Allen key Spanner M8x55 Knob... -
Page 20: Exploded Drawing
Exploded Drawing Fitness Trampoline... - Page 21 DISCLAIMER ©2018 cardiojump® is a registered brand of the company Sport- Tiedje GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 22 Notes Fitness Trampoline...
- Page 24 ® Fitness Trampoline...
