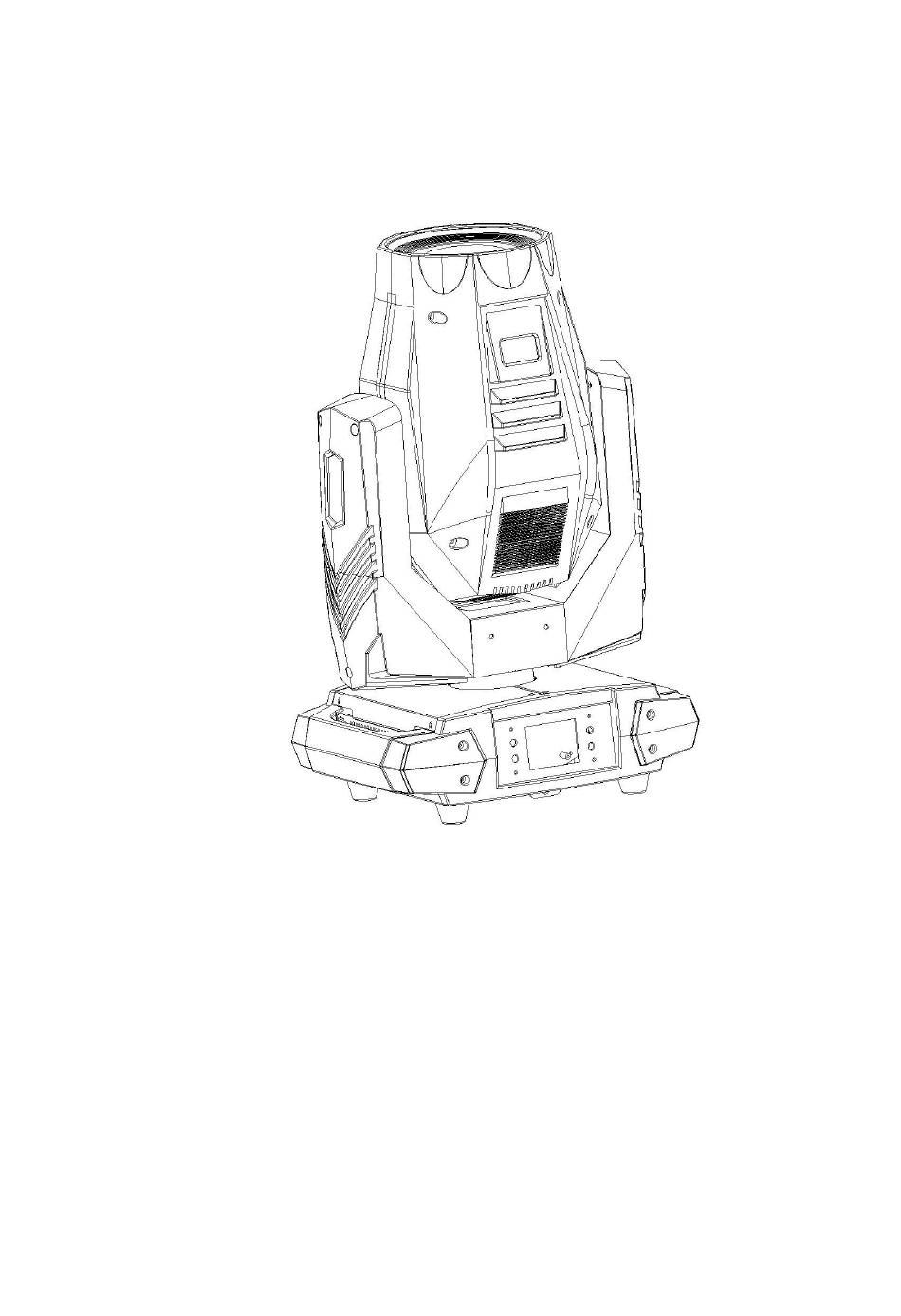

HL-150BSW LED
USER MANUAL
The LED BSW 3-in-1 is a powerful LED Moving Head to date. It uses a specially designed
150W LED engine that offers massive output for most large venues and event productions.
It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture.
What's more, is it comes in a smaller footprint than most other movers in its class.
The LED BSW 3-in-1 offers motorized focus, motorized zoom, circular rotating prism,
1 color wheel, 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable
GOBOs). There is a LCD function display on the front panel, with the rear panel offering
powerCON In/Out and 3-pin DMX connections.
Protect the LED BSW 3-in-1 during storage and transport with the road case..
Advertisement
Table of Contents
Summary of Contents for Hi-ltte HL-150BSW LED
-
Page 1: User Manual
HL-150BSW LED USER MANUAL The LED BSW 3-in-1 is a powerful LED Moving Head to date. It uses a specially designed 150W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture. -
Page 2: Table Of Contents
Contents 1: Safety Instructions --------------------------------------------------3 2: Technical Parameters ---------------------------------------------4 3: Schematic Lighting Components ------------------------------5 4: Packing And Shipping --------------------------------------------6-7 5: Installation -----------------------------------------------------------7-8 6: AC Power-------------------------------------------------------------9 7:Dynamic Effects -----------------------------------------------------9-10 8: LCD Control --------------------------------------------------------11-12 9: DMX Channels -----------------------------------------------------13-14 10. Trouble Shooting--------------------------------------------------- 15 11. -
Page 3: 1: Safety Instructions
1. Safety Instructions • Before using this product, please observe carefully the product is not unwrap or damage during transportation. • As a result of damage during transporting , please do not use the lights, and contact with the dealer or manufacturer. If you have questions about how to operate the fixture safely, please contact us by calling the 24-hour service hot line on +86 -02036633371. -
Page 4: 2: Technical Parameters
2. Technical Parameters Optical • Light Source: 150W White LED • Beam Angle: 8° to 30° • Spot Angle: 30° • Wash Angle: 10°to 37° Specifications • Pan / Tilt Range: 540° / 270° • Color Wheel 1: 8 + Open •... -
Page 5: 3: Schematic Lighting Components
3. Schematic Lighting Components Dimensions Parts... -
Page 6: 4: Packing And Shipping
4. Packing And Shipping 4.1 Packing Moving Head LED light is packaged by carton or standard 2in1flight case.(selectable 1in1 or 4in1), Random accessories items shown below Name Quantity Unit User Manual piece Signal Line piece Powercon In & Out Hanging lamp piece hook and fastener Power line... -
Page 7: 5: Installation
Note: Upon receipt of lamps, please check if there is damage to the fold closure caused by transport, where there is transportation damage, please do not use this fixture, and contact us as soon as possible Users should ensure that light and installation materials are checked for regular safety checks, Unprofessional incorrect installation can lead to dangerous, if the lack of working conditions and professional standards, please operate the light by professionals. - Page 8 Lights must be placed vertically upward. The shortest distance between working lights must be more than or equal to 900mm. Layout the lighting installation as shown above.. 5.3 Data cable Data cable is DMX512 signal Signal line connections is X-type connector, X-type connector-----If the external flexible cable or cord of this light is damaged, please replace professional cable or cord from the manufacture or its agent.Lights’...
-
Page 9: 6: Ac Power
Do not use two separate output connections. To connect the branch, a separating consecutive DMX512 signal amplifier must be used to separate. Please use the shielded twisted-pair cable. Standard microphone cables can not be reliably controlled long-distance data. 6. AC Power 6.1 Fuse Size Power: 100-240v~ Fuse: 4A 5 * 20 main fuse... - Page 10 7.3 Optical Lens focus/zoom Adjust the optical lens, using mute sound motor + zoom system to make the gobo clearly. 7.4 Prism The circular prism can be clockwise & counter-clockwise direction rotating and the speed can be adjustable. Perfect match color & gobo, adding rotating effect, can creat a variety of gorgeous dynamic lighting effects. 7.5 Dimmer &...
-
Page 11: 8: Lcd Control
8. LCD Control... - Page 12 Manual Control –you can adjust beam spot wash Beam - Setting adjustment Press the ENTER button, then screen touch MAUNAL CONTROL and select Channel Use the UP and DOWN buttons or screen touch to make your adjustments, make FIXATION GOBO value 013, FOCUS value 243, ZOOM value 007, then will show beam effect.
-
Page 13: 9: Dmx Channels
9. DMX Channels Channel Value Description PAN MOVEMENT PAN FINE TILT MOVEMENT TILT FINE 0-255 PAN & TILT FAST TO SLOW 6 Dimmer 0-255 Linear Dimming Shutter 5-64 shutter Random 65-128 Regular shutter 129-160 From dark to bright shutter Shutter 161-192 From bright to dark shutter 193-224... - Page 14 84-90 Gobo 7 shake 91-97 Gobo 6 shake 98-104 Gobo 5 shake 105-111 Gobo 4 shake 112-118 Gobo 3 shake 119-125 Gobo 2 shake 126-132 Gobo 1 shake 133-192 Gobo Clockwise flow 193-255 Gobo Counter-clockwise flow White 9-17 Gobo1 18-26 Gobo2 27-35 Gobo3...
-
Page 15: Trouble Shooting
10. Trouble Shooting Listed below are a few common problems that you may encounter, with solutions. Unit does not work, No light output and the fan does not work; Check the power connection and main fuse. Be sure the fuse holder is completely and properly seated. Not responding to DMX Control;... -
Page 16: Photometric Chart
12. Photometric Chart...
