CS2676FX Insulation Resistance Tester User Manual
CS2676FX Insulation Resistance Tester
User Manual
The maximum output voltage of the tester can be up to 1kV.
* Any incorrect operation maybe cause death.
* Before operation, please read notice before
use carefully of chapter2.
* This manual should be beside the operator.
Page 1 of 25
Ver:1.1
Advertisement
Table of Contents
Summary of Contents for Allwin CS2676FX
- Page 1 CS2676FX Insulation Resistance Tester User Manual Ver:1.1 User Manual CS2676FX Insulation Resistance Tester The maximum output voltage of the tester can be up to 1kV. * Any incorrect operation maybe cause death. * Before operation, please read notice before use carefully of chapter2.
-
Page 2: Explanation Of The Manual
If you find that missing page manual or instructions to be contaminated, please contact with the dealer of Allwin company immediately to purchase. With improved equipment capabilities, software upgrades, instruction manual will also continue to be improved and upgraded. Note that the test instruments and manual versions of the software. - Page 3 （2）Displayed voltage value is not changed but high-voltage indicator is still lit. Encounter the above situation, please do not use the tester, turn off the power switch and unplug the power cord. Contact with Allwin instrument company or its designated dealer immediately...
-
Page 4: Table Of Contents
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 TABLE OF CONTENTS Explanation of the manual： · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2 1 Unpacking and installation tester ·... -
Page 5: Unpacking And Installation Tester
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Unpacking and installation tester Page 5 of 25... -
Page 6: Check The Received Instrument
1.1.2 If the instrument package is good, then please check what you have ordered instrument model are the same with the model label on the box; if not, please contact Allwin dealer or Allwin company After checking through 1.1.1 and 1.1.2, if there is no problem, you can unpack the carton and check the instrument your ordered Check test clips of the tester in the carton. -
Page 7: The Provisions Of The Operator
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Instrument usage temperature range: 0 º C ~ +40 º C; Instrument storage temperature range: -20 º C ~ +70 º C; 1.4.3 Do not use the tester in humidity environment Do not put the instrument on a boiler, kettle, humidifier water or moist environments. -
Page 8: Check Power Supply Voltage
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 1.5.3 Dress The operator can not wear clothes decorated with metal or wear metal accessories, such as watches, metal bracelets. Non-cardiac patients or those who wear a pacemaker can not operate the tester. -
Page 9: Grounding Warning
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 (3) Check and replace the fuse, it must be the same with specifications listed in the 1.7.1; (4) The fixed fuse holder should be back in its original location. 1.8 Grounding WARNING: * Improper grounding or not grounding may cause electric shock;... -
Page 10: Notice Before Use
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Notice Before Use Before operation, please read the notice carefully。 Warning：The maximum output voltage of this tester is 1kVDC; When user is operating, user must follow the warning, notice and other explanation. 2.1 Prohibit operation 2.1.1 Do not press the power switch continuously and fastly. -
Page 11: Emergency Treatment
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 2.2 Emergency treatment In case of emergency (electric shock or DUT burning), must take the following two actions and the two actions must be all completed. (1) Turn off the power switch; (2) Unplug the power cord of the instrument. - Page 12 CS2676FX Insulation Resistance Tester User Manual Ver:1.1 When the tester is in testing status, test leads, DUT, test probes, and high-voltage output are all with high voltage, do not touch any part of the test loop. Note: When the host is high output state, do not touch any part of the test circuit to avoid electric shock! 2.3.6 Test Termination...
-
Page 13: Panel Illustration
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Panel Illustration 3.1 Front panel illustration 3.2 Rear panel illustration Page 13 of 25... -

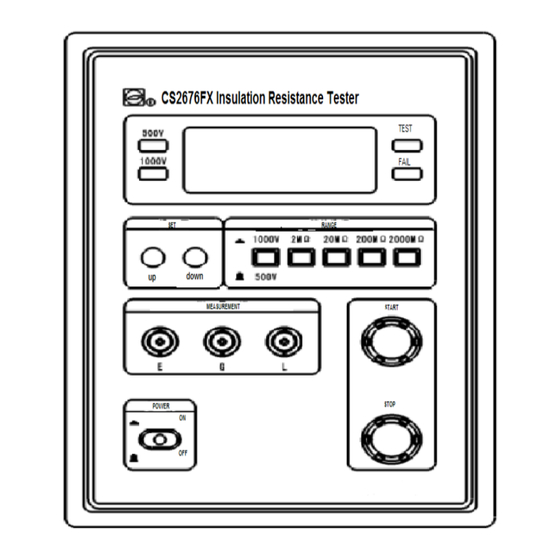

Page 14: Illustration Of Front Panel
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 3.1 illustration of front panel 1、 POWER SWITCH Press the button to turn on the power, pop-up for turning off the power. 2、STOP key It is used to stop the test during the test; In additions, it is used to stop alarming when the DUT is failed to test. -
Page 15: Illustration Of Rear Panel
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 10、11、DOWN key, UP key, the measured resistance lower limit settings, press the key to set the lower limit within the measuring range. 12、Current sample 13、Grounded shield end 14、High voltage output During test, the output voltage is negative voltage, the maximum voltage is 1kVDC. -
Page 16: Function Outline
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Function Outline 4.1 Outline 4.2 Function introduction Page 16 of 25... -
Page 17: Outline
Ver:1.1 4.1 Outline CS2676FX is the insulation resistance tester, it is the type of small insulation resistance tester, simple features, easy to operate and easy to learn. Voltage switches manually, voltage settings for the two ranges, divided into 500V and 1000V.The testing resistance value can be displayed at real time. In additions, the lower limit can be set according to the users’... -
Page 18: Technical Parameters
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Technical parameters Page 18 of 25... -
Page 19: Technical Parameters
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Technical Parameters CS2676FX Model CS2676FX Output Range 500V/1000V voltage Accuracy ± （5%+3‰FS） （DC） Range Test range 2MΩ 200kΩ~2MΩ± （5%+2words） 20MΩ 2MΩ~20MΩ± （5%+2words） 200MΩ 20MΩ~200MΩ± （5%+2words） 200MΩ~1000MΩ± （5%+2words） 、1000MΩ~2000MΩ± （7%+2words） 2000 MΩ Page 19 of 25... -
Page 20: Parameters Setting
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Parameters setting 6.1 Power on 6.2 CS2676FX Parameters setting Page 20 of 25... -
Page 21: Power On
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 6.1 Power on After power is on, the testing lamp, the failed lamp and 500V,1000V indicators and the digital tube will be all light. Users can judge the quality of the display part. -
Page 22: Test Function
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Test Function 7.1 Connect the DUT to the tester 7.2 CS2676FX test Page 22 of 25... -
Page 23: Connection
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 7.1 CONNECTION 7.1.1 CS2676FX connection method Figure 8.1 Note：G is the shield end, preventing the signal interference. Because the top test resistance is not very high, so the ground shield end can not be connected. -
Page 24: Accessories & Maintenance
CS2676FX Insulation Resistance Tester User Manual Ver:1.1 Accessories & Maintenance Accessories： ： 1、Power cord 2、Test clips 1set (CS26018-3、CS26018-4) 3、User manual 4、Test report Maintenance： Warranty period: 8.2.1 (1)、The instrument is warranted to be free from use for a period of 12 months from the date of shipment to the original end users in different sales spots. -
Page 25: Contact
The copyrights reserved by Allwin Instrument Science and Technology Co., Ltd The products of Allwin Instrument appreciate the protection of approved and examining Chinese potent. The information of the Operation Manual replaces all the data and files published before. The company holds the rights to change the specification and price;...
