Summary of Contents for Oceanic Systems NMEA2000 3420

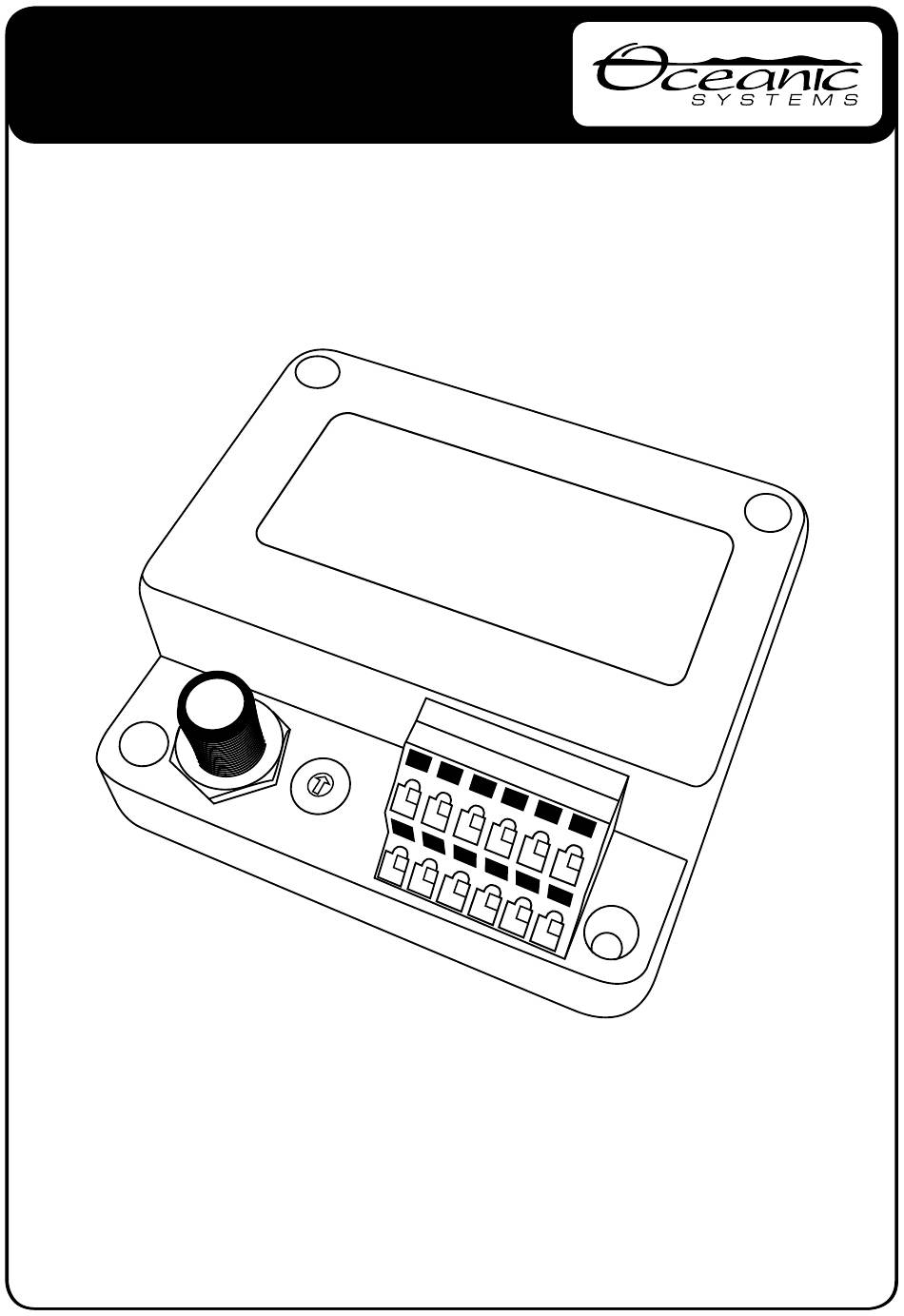

- Page 1 NMEA2000® AC MONITOR Part Numbers: 3420 USER MANUAL Revision 2.00...
-
Page 3: Table Of Contents
1 Introduction ............2 1.1 Product Features ..........2 2 Installation ............3 2.1 Unpacking the box ..........3 2.2 Mounting the unit ..........3 2.3 Connecting the NMEA2000® Cable ......3 2.4 Connecting the sensor cables to the WAGO socket.4 2.5 AC Monitor Connections ........5 3 Configuration ............6 3.1 Configuring Circuit Type ........ -
Page 4: Introduction
INTRODUCTION The Oceanic Systems NMEA2000® 3420 AC Monitor is designed to monitor any AC source including single-phase (phase A), single-phase (phase A,B), and three-phase (phase A,B,C) This unit is designed to operate in a protected marine environment such as an engine room. It is very important that it is installed and set up correctly according to this manual. -
Page 5: Installation
INSTALLATION 2.1 UNPACKING THE BOX You should find the following items in the 3420 shipping box: 1 x 3420 NMEA2000® AC Monitor 1 x 3420 User Manual (This document) 1 x 3420 200 Amp AC Current Transformer 2.2 MOUNTING THE UNIT The unit should be mounted to a flat surface using 4 mounting screws. -
Page 6: Connecting The Sensor Cables To The Wago Socket
2.4 CONNECTING THE SENSOR CABLES TO THE WAGO SOCKET WARNING: Risk of Electric Shock This device contains potentially hazardous voltages. Ensure that power is removed from all AC circuit that will be connected to the AC monitor. Do not attempt to disassemble the device. This device contains no user serviceable parts. -
Page 7: Ac Monitor Connections
2.5 AC MONITOR CONNECTIONS Terminal 1 Current Transformer Phase A (2) Terminal 2 Current Transformer Phase B (2) Terminal 3 Current Transformer Phase C (2) Terminal 4 Voltage Phase A Line (Fit in-line 3 Amp fuse) Terminal 5 Voltage Phase B Line (Fit in-line 3 Amp fuse) Terminal 6 Voltage Phase C Line... -
Page 8: Configuration
CONFIGURATION The following items can be configured on the 3420. 3.1 CONFIGURING CIRCUIT TYPE Before the AC monitor is ready to use, the type of system you will be monitoring has to be set up. When turning on the AC monitor for the first time the blue LED will flash quickly to indicate it’s not set up. - Page 9 Two Phase Connection 7 of 12...
- Page 10 Three Phase Connection 8 of 12...
-
Page 11: Device Instance
3.2 DEVICE INSTANCE It is possible to install 16 3420 AC Monitors on a NMEA2000® network so they need to each have a unique Device Instance Address. The Device Instance of each unit is set by turning the small rotary switch with a small screw driver. Valid Device Instances range from “0” through to “F”. NMEA2000®... - Page 12 Design Standards Parameter Comment NMEA2000® Level B Maritime Nav and RadioComm Equipment IEC60945 CE and FCC Electromagnetic Compatibility Electrical and Mechanical Parameter Value Comment Operating Voltage 9 to 28 Volts DC Voltage Power Consumption 50mA Average Operating Load Equivalence Number Reverse Battery Protection Indefinately Load Dump Protection...
-
Page 13: Warranty
Systems sole obligation hereunder, provided product is returned pursuant to the return requirements below, shall be limited to the repair or replacement, at Oceanic Systems option, of any product not meeting the above limited warranty and which is returned to Oceanic Systems; or if Oceanic Systems is unable to deliver a replacement that is free from defects in materials or workmanship, Purchaser’s... -
Page 14: Technical Support
Email: sales@osukl.com Web: www.osukl.com Copyright © 2019 Oceanic Systems (UK) Ltd. All rights reserved. Our policy is one of continuous product improvement so product specifications are subject to change without notice. Oceanic Systems products are designed to be accurate and reliable.
