Summary of Contents for Natuled NAT_SLP004N

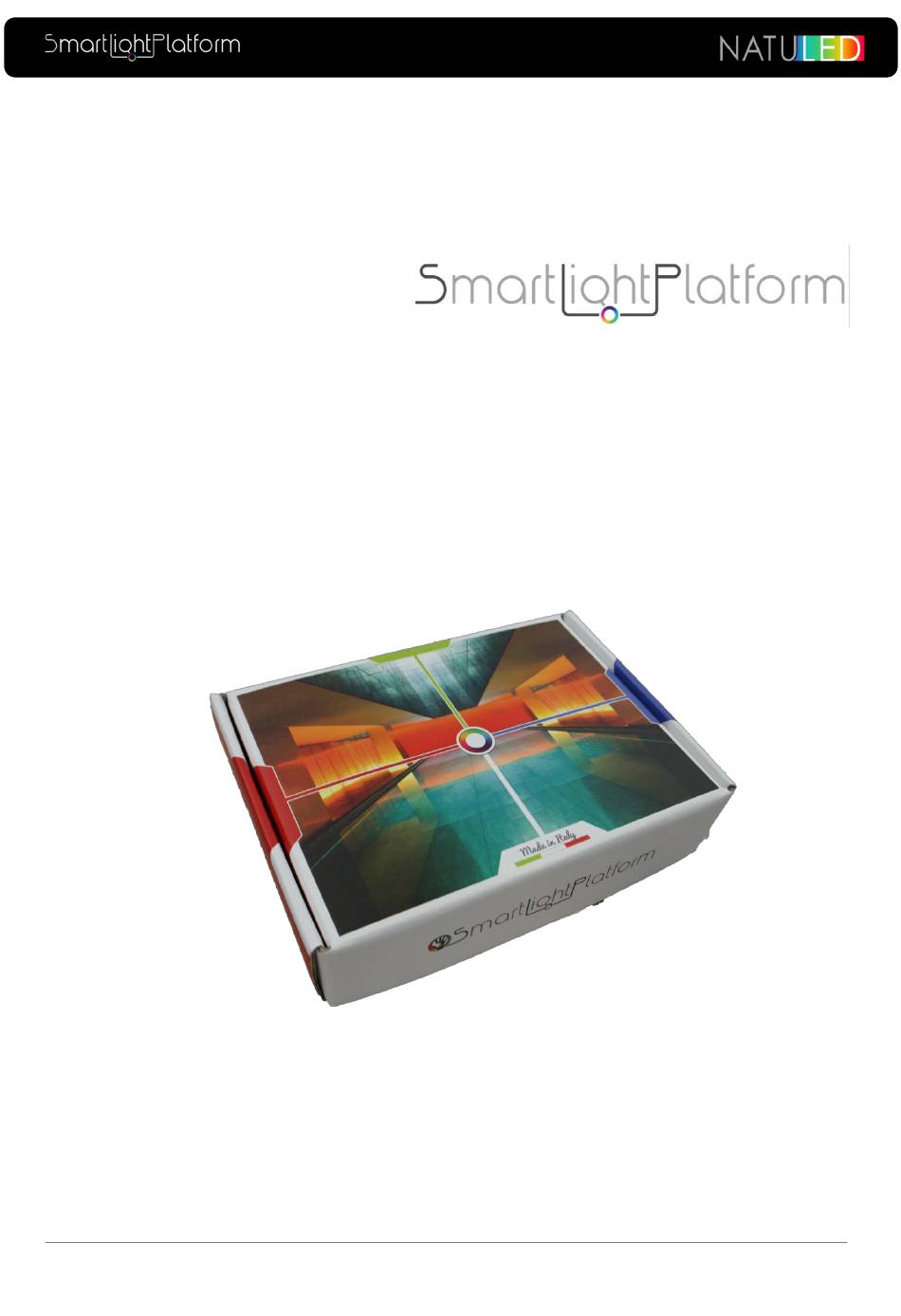

- Page 1 Product Manual Your key to Automation Release 1.1 Product Manual AGS SpA Page 1...
-
Page 2: Table Of Contents
Summary Smart Light Platform ......................3 Introduction ............................3 Product DataSheet ..........................4 Operating Instruction ..........................5 Product Description ......................6 Product Components ......................7 Hardware specifications of the components ............... 8 Mainboard ............................8 Expansion board (Optional) ........................9 Micro Controller Unit (MCU) - Hardware ....................9 SLP Control Software ...................... -
Page 3: Smart Light Platform
The SLP is a cornerstone feature of the AGS Natuled product offering, as it is the digital control system designed to drive all AGS Natuled series high quality LED lights. -
Page 4: Product Datasheet
The Smart Light Platform comes in two models: MODELS DISTINCTIVE PARAMETERS NAT_SLP004N Light Channels: 4 x 2-way Relay Output ports = 8 (expansion included) All other operating parameters are the same for all models: COMMON PARAMETERS VALUE... -
Page 5: Operating Instruction
Temperature Sensor inputs PT100, PT1000, NTC Audio Out 1x output enable to external amplifier Ethernet Port 1 RJ45 Audio output jack 1.3 Operating Instruction To ensure proper operation of the device and to avoid endangering the safety of persons or things you need to pay attention to the warnings below. The proper and safe operation of this device requires proper transport, storage, setup and •... -
Page 6: Product Description
Power SLP Box with the correct voltage (2x 24Volt 240W ports) and do not connect devices • that exceed the maximum expected power (300 W) for version earlier then V4. In case of use with immersion Lights (pools and so on) always use SELV power supply. The unit contains components sensitive to electrostatic charges. -
Page 7: Product Components
9. The SLP comes with a Mobile App, a Software configurator and an on-board software included. Smart Light Platform is a digital control system designed to drive AGS NATULED high quality LED lights series, and to control different types of electrical output equipment, based on input coming from sensors or physical buttons, from events triggered by timers or from software commands sent by the Mobile APP. -
Page 8: Hardware Specifications Of The Components
Below is also reported the physical schema: 4. Hardware specifications of the components 4.1 Mainboard The mainboard contains all input and output ports to connect Smart Light Platform to the external world: 8 connectors with 5 poles for RGBW led and +24V power supply divided •... -
Page 9: Expansion Board (Optional)
2 inputs for temperature sensors Pt1000 and Pt100 • 1 input for NTC temperature sensor • 8 input connector + common pole for 5 physical buttons or sensors and 3 generic • digital input or sensors 1 slot to connect an output expansion board •... -
Page 10: Slp Control Software
5. SLP Control Software Three software modules allow a correct and effective management of the device: 1) A software backend module, installed on the Micro-Controller Unit (MCU) receives the input request and transforms them into control signals for the output devices connected. 2) A Mobile Android App allows to manage in an easy and flexible way most of the capabilities provided by the product. -
Page 11: Mobile App
Number and names of configured Zones • Input Buttons and Output ports configuration • Initial configuration will be based on pre-configured factory settings, like color pre-sets. More pre-set can be added later on by the Mobile App, and at that point these will also be visible by the configurator for further changes to initial configuration. -
Page 12: Programs And Rules
Strobe: continuous switching between two different colors. The user can select the colors and the duration in milliseconds of each color. Starting from a standard effect, the user can create a personalized program by editing the required parameters, and save the new program with a name 5.3.4 Programs and rules The App allows setting up Programs to switch on and off the lights, effects or outputs at specific time. -
Page 13: Connection To Lighting Devices
As previously mentioned the SLP manages 2 or 4 light channels, depending on the device model, each controlling 2 lights ports. Each power supply feeds different channels, in particular: On SLP V3 models, “PWS1” feeds Channels “A” and “PWS2” feeds Channels “B” •... - Page 14 Below an example of connection to a LED lamp of Pool light: Cable color Connector Pole R (red LED) Brown G (green LED) BLUE B (blue LED) Yellow W (white LED) White Common 24V Black Below, in the order, the rear and front view of the connector used with Neptune lights Product Manual AGS SpA Page 14...
-
Page 15: Connecting External Devices
6.3 Connecting external devices The SLP card mounts two connectors for external I/O devices: 1) A 8 pins connector dedicated to: External Audio amplifier enable (pin 1 and 2) NTC Temperature sensor (pin 3 and 4 PT1000 Temperature Sensor (pin 5 and 6) PT100 Temperature Sensor (pin 7 and 8) 2) A second 9 pins connector to attach up to 5 input buttons or digital sensors, three generic digital input or digital sensors... -
Page 16: Connecting A 24V Dc Three-Phase Motor
6.4.1 Connecting a 24V DC three-phase motor Product Manual AGS SpA Page 16... -
Page 17: Connecting A 24V Dc Two-Phase Motor
6.4.2 Connecting a 24V DC two-phase motor 6.4.3 Connecting a 220V AC mono-phase motor Connection instructions for 24V DC motors: 1. Connect the positive 24V pole (red line) to the output connector in-line (OUT1 - PIN1) 2. Connect the output connector out-line (blu line) (OUT 1 - PIN2) to power switch positive terminal (A1) 3. -
Page 18: Connecting A 220V Ac Three-Phase Motor
6.4.4 Connecting a 220V AC three-phase motor Product Manual AGS SpA Page 18... -
Page 19: Connecting A 220V Ac Single-Phase Motor
Connecting a 220V AC single-phase motor 6.4.5 Connecting a 220V AC mono-phase motor Connection instructions for 220V AC motors: 1. Connect OUT 1-PIN1 of the output connector to the positive terminal A1 of the contactor (red line) 2. Connect the power cable of the electrical system (green line) to OUT1-PIN2 of the output connector 3. -
Page 20: Expansion Card Of Control Relay
6.5 Expansion card of control relay In case of need it is possible to increase from four to eight the power exits of the device, through an expansion card: Product Manual AGS SpA Page 20... -
Page 21: Installing The Box
6.6 Installing the Box The box can be attached to a wall or the installation can take place through Din guides. Below the assembly steps for both solutions: 6.6.1 Installing on a wall Screw in the brackets to the side of the box using M3 screws provided in the package 2) Insert a Fisher (5mm) in the... -
Page 22: Installation With Din Guides
6.6.2 Installation with DIN guides Mount the guide brackets to the rear of the box using the 3mm nut and M3 screws provided in the package Insert the DIN sliding guide within the brackets for wal mounting Product Manual AGS SpA Page 22... - Page 23 AGS S.p.A. reserves the right of changing the content of this document without any notice. The use of this document is restricted to recipients authorized by AGS S.p.A. Unauthorized use, reproduction and distribution is strictly prohibited and may be prosecuted by law. All trade names and logos contained herein are trademarks registered by AGS S.p.A.
