Alltrax XCT Manual

Adapter wire kit for function knob boxes: fn2 and fnks club car iq with 16 pin iq controller

Alltrax XCT Adapter Wire Kit for Function Knob Boxes: FN2 and FNKS

File: DOC105-001-B_Install Doc, FN Knob Box CC-IQ to XCT.pdf, Released Rev B, EC-081616

ALLTRAX PN: KIT-CBL511-004_FN ADAPTER CC-IQ

The XCT motor controllers have "User Inputs" or commonly called Personality Switches that allow for set user

profiles or interactive adjustments of Speed or Regen while driving. XCT Controllers PRIOR to AUGUST 2016 may

not have the FN 3-pin integrated connector in J4-J5-J6 connector well (See WEB SITE for serial number cutoff).

This adapter kit is for all older controllers. Use TOOLKIT software (Version 3.0 or above) to enable the new

Function Control features. Newer XCT controllers built ON or AFTER August 2016 will have the 3-pin connector to

directly plug the FN boxes into the XCT controller J4-J5-J6.

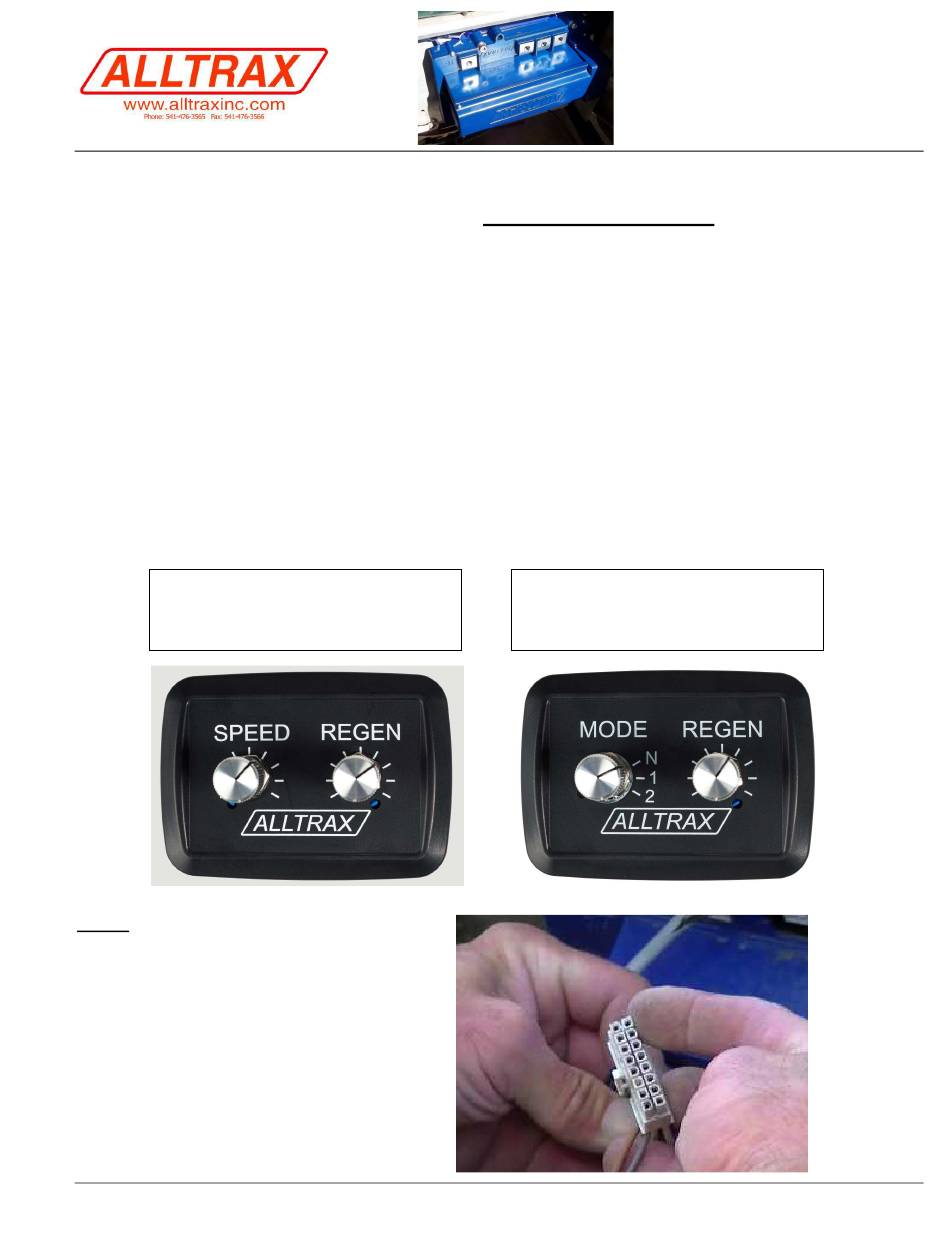

Two different Function boxes are available, FN2 for dual pot Speed/Regen or FNKS with Mode Switch + Regen

knob.

This adapter wire kit has 3 wires to plug into the OEM wire harness to gain access to the user inputs on the XCT.

Install time for this wire harness adapter kit is approximately 5 minutes.

Dual Potentiometer

Steps:

1. Disconnect positive battery terminal.

2. Carefully unplug the 16 pin connector

from the XCT-IQ controller.

P/N: Doc105-001-B_Install CC-IQ FN Knob Box Adapter

Club Car IQ with 16 pin IQ Controller

FN2

Alltrax Inc

1111 Cheney Creek Rd

Grants Pass, Or, 97527

Direct: 541-476-3565

Fax: 541-476-3566

FNKS

1-MODE Rotary Switch

1-Potentiometer

Page 1 of 2

Table of Contents

Do you have a question about the XCT and is the answer not in the manual?

Page 1 Two different Function boxes are available, FN2 for dual pot Speed/Regen or FNKS with Mode Switch + Regen knob. This adapter wire kit has 3 wires to plug into the OEM wire harness to gain access to the user inputs on the XCT. Install time for this wire harness adapter kit is approximately 5 minutes.
Page 2 MOLEX pins from the 16 pin connector, so we can cut and splice this wire (about 6” back) and splice the BLACK FN knob box interface wire used for the XCT into PIN 4.
