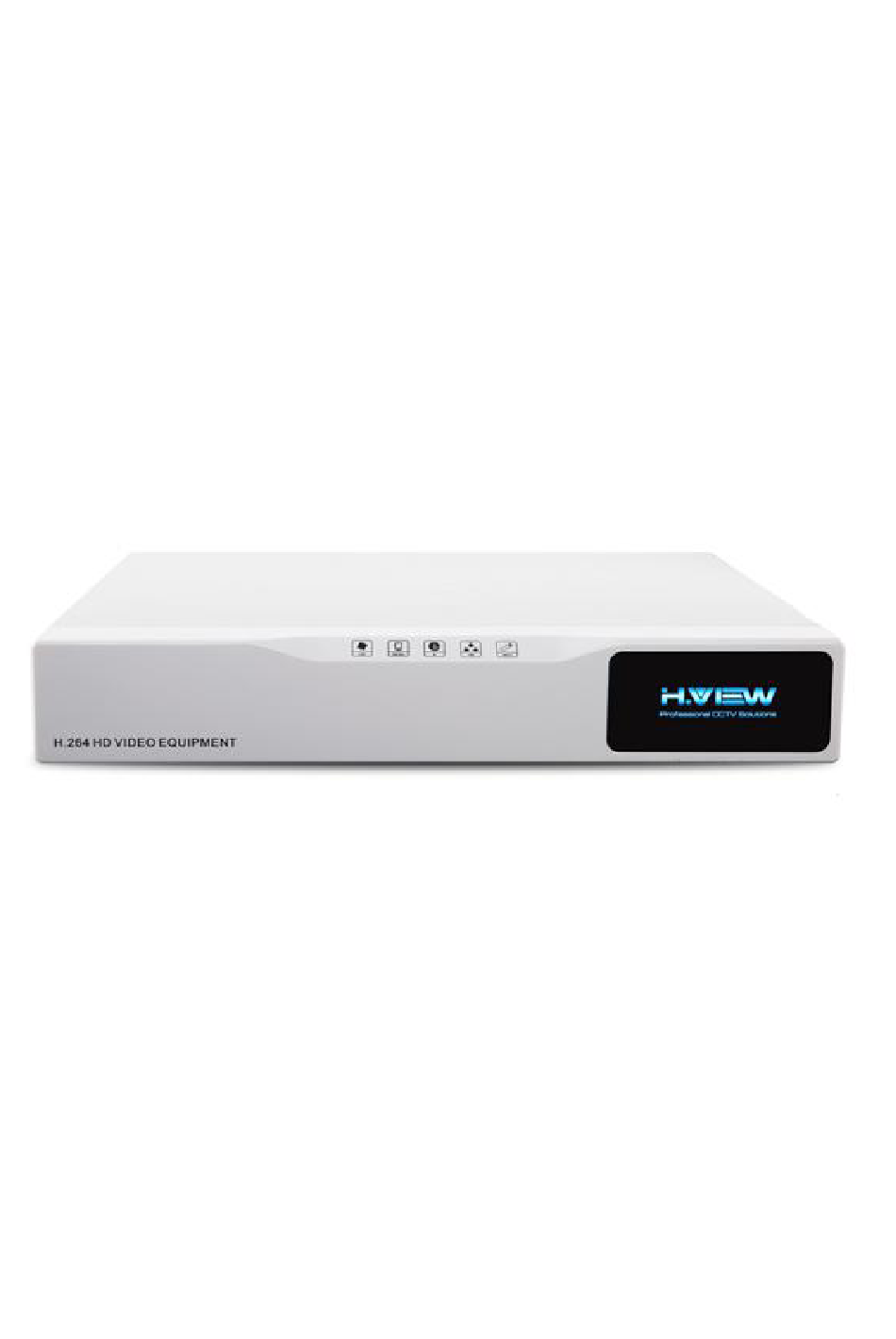

- Page 1 H.VIEW Hybrid CCTV Security Camera DVR USER MANUAL Http://www.hviewsmart.com...
-
Page 2: Table Of Contents
Contents Overview.........................3 Installation........................4 Log in & Log out......................7 Hard drive setup......................8 Motion detect........................ 9 Privacy Mask.......................10 Email setup........................10 Network Status......................11 Record Setting......................12 Video Playback......................14 Web viewer........................15 Mobile phone / IPAD viewer..................16 CMS Viewer......................... 18... -
Page 3: Overview
Overview Before installation Remove the power supply module before proceeding. Check the input voltage to the power supply module before connecting it. Keep the product away from humidity. Ensure that all devices connected to the product should be properly earth-grounded. ... -
Page 4: Installation
Since the cable quality may affect directly to the video quality depending on the distance between the camera and DVR Installation Connecting to an external device This product supports 1080p 60 Hz HDMI monitors and regular monitors that support DVI and VGA inputs. - Page 5 4 cameras system (Include 8 Channels and 4 channels) There is Label on Video cable ,”Only for DVR” & “Only for Camera”,please choose right port when you connect cable 1-4 Splitter be used to power camera, connect one port of 30M Video cable with 1-4 Splitter There are 2 adapter included in package,One is used to power DVR recorder ,one is used to connect with 1-4 splitter to power 4 cameras you received.
- Page 6 Phone and PC. 8 channels & 8 cameras system If you bought 8 channels & 8 cameras system ,you will receive : * 1 x 8CH AHD DVR * 8 x CCTV security Cameras * 8 x 60ft Power Video Cable * 2 x 1-4 splitter cable * 3 x 12V DC Power Supply * 1 x Remote Control...
-
Page 7: Log In & Log Out
Log in & Log out Log in To manipulate or access the menus of DVR, you should have logged in. 1. When the system starts, the log in screen appears 2. Select a user and provide the password.The default User Name is "admin"... -
Page 8: Hard Drive Setup
General Setup You can set time zone,Date and language storage in this page. 1.Time zone : specify the GMT standard time for your local area. 2.System time: Set the current time and date 3.Language: specify the language of your local area 4.Storage Full: Set<Overwrite>... -
Page 9: Motion Detect
2.Choose <Format Storage> before you using hard drive Before setting hard drive you need confirm if the hard drive has been connected successfully. System will automatically overwritten the former data when hard drive is full ,if you need change model of recording ,please check 【General setting】 Motion detect Set the motion sensor of the camera so that it can detect a motion event. -
Page 10: Privacy Mask
> MD interval : Specify the interval of motion detect > Record channel:Specify the channel which will record when motion be detected > Choose suitable push approach:Show message,Send email,Buzzer,Write Log,FTP upload,Mobile reported The motion detection sensitivity may differ depending on the characteristics of the connected camera or the installation environment. -
Page 11: Network Status
You can register and test an email address so that an email notification is delivered at a specific interval or if an event occurs. 1. From <Main Menu> - <System> - <NetService> ,Select <EMAIL> 2. Use the mouse to specify the use of email and select >... -
Page 12: Record Setting
2.Network Map >Net Card:Choose specific Net card >IP address : Indicates the internal IP address of the DVR. >Subnet Mask:provide the subnet mask address(Default:255.255.255.0) >Gateway:provide the gateway address (Same IP address as your router IP address) >Primary DNS:Enter the address of the primary DNS server >Secondary DNS:8.8.8.8(Enter the address of the secondary DNS server.) - Page 13 Configuration > Channel : Choose specific channel to record > Length: Set the length of per video file.Default length is 60min > PreRec:Set up the period of record > Period: Set the period of record（Default period is 24-hours,for all channels） >...
-
Page 14: Video Playback
Video Playback Using the play bar Start Playback Play backward Stop Playing Slow Playback Prev/Next Frame Prev/Next File Repest playback Full Screen Start Editing Backup Video Playback Region Video date query,color filled represent containing video content Playback Channel Optional Video Playback time Playback control key Note: Different color means... -
Page 15: Web Viewer
Web viewer Connection Open a browser and type the URL in the address bar http://www.xmeye.net After you enter the URL and you will see the live screen Click the upper warning bar to install the ActiveX Click <Install> NOTE:If you failed to install the ActiveX control, move to <Tools>---<Internet Options>---<Security>---<Trus... -
Page 16: Mobile Phone / Ipad Viewer
2.By Device Find device Serial number in monitor Type Serial number Default User name: admin password:null(leave null) Click<Login and Preview> Mobile phone / IPAD viewer You can use your IPAD to remotely view your device.Please so as follow: Download “XMeye”in APP store ... - Page 17 At this page ,you need type your serial number and password. The default user name: admin Password: null (leave it blank,don’t type any words) There is no need to enter device name and http port After doing as above,you can see your device ...
-
Page 18: Cms Viewer
CMS Viewer Install Running disc (Included package),open “CMS”and install it. Open the “CMS” client . Click”System” at the right corner of screen Click”Device Manager” Click “zoom list”,then click “ADD AERA” At this page,you need type data of zone and up zone You can enter any words you like,such as “111”... - Page 19 At this page,you need type some data of your device Choose Cloud Type serial number of recorder Click”OK” Choose specific CAM and view it Click “Test” Choose CAM you want view Congratulations.
